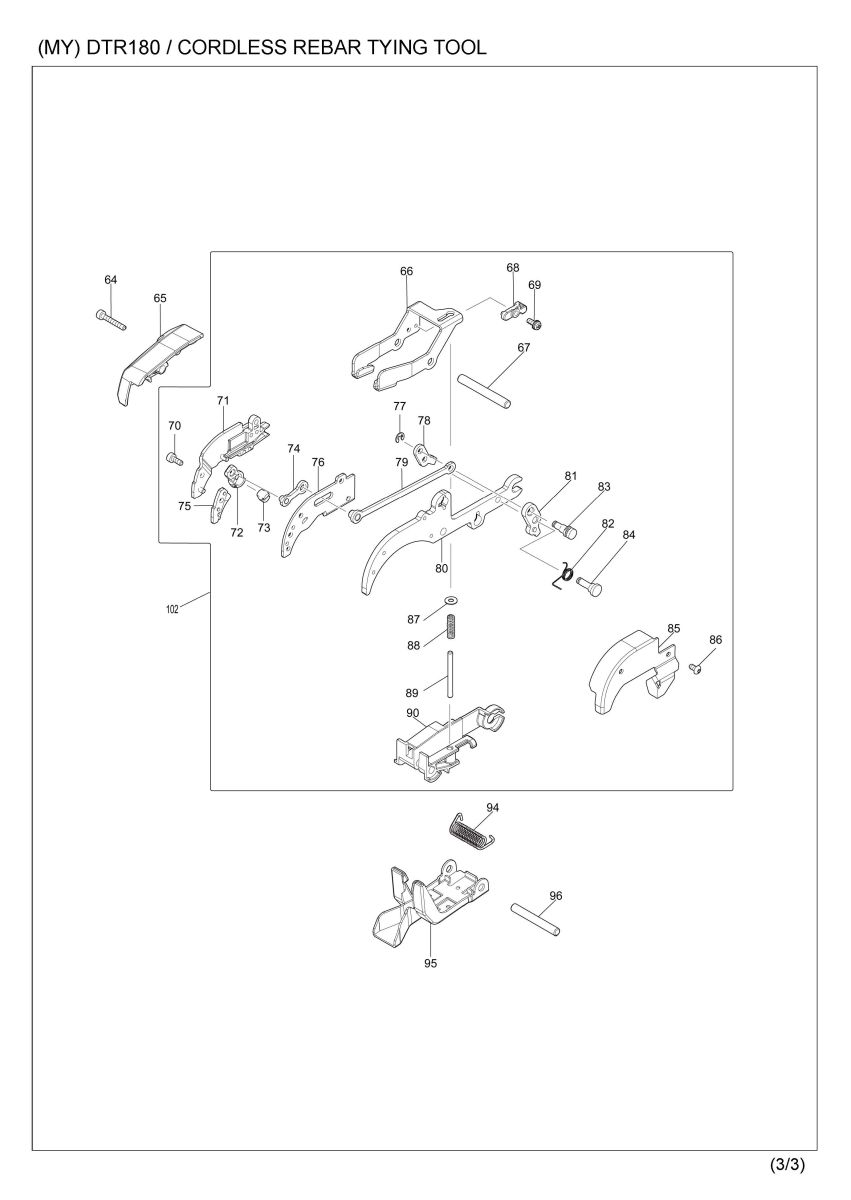

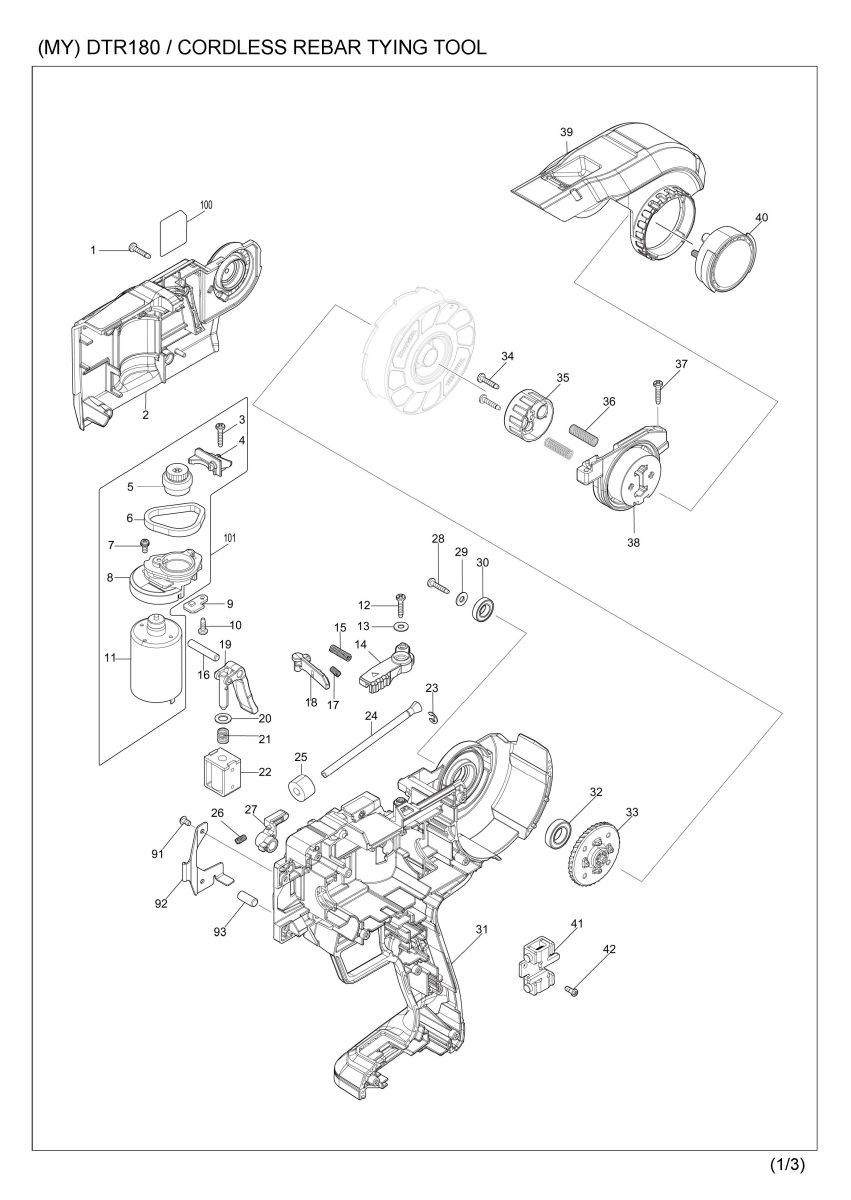

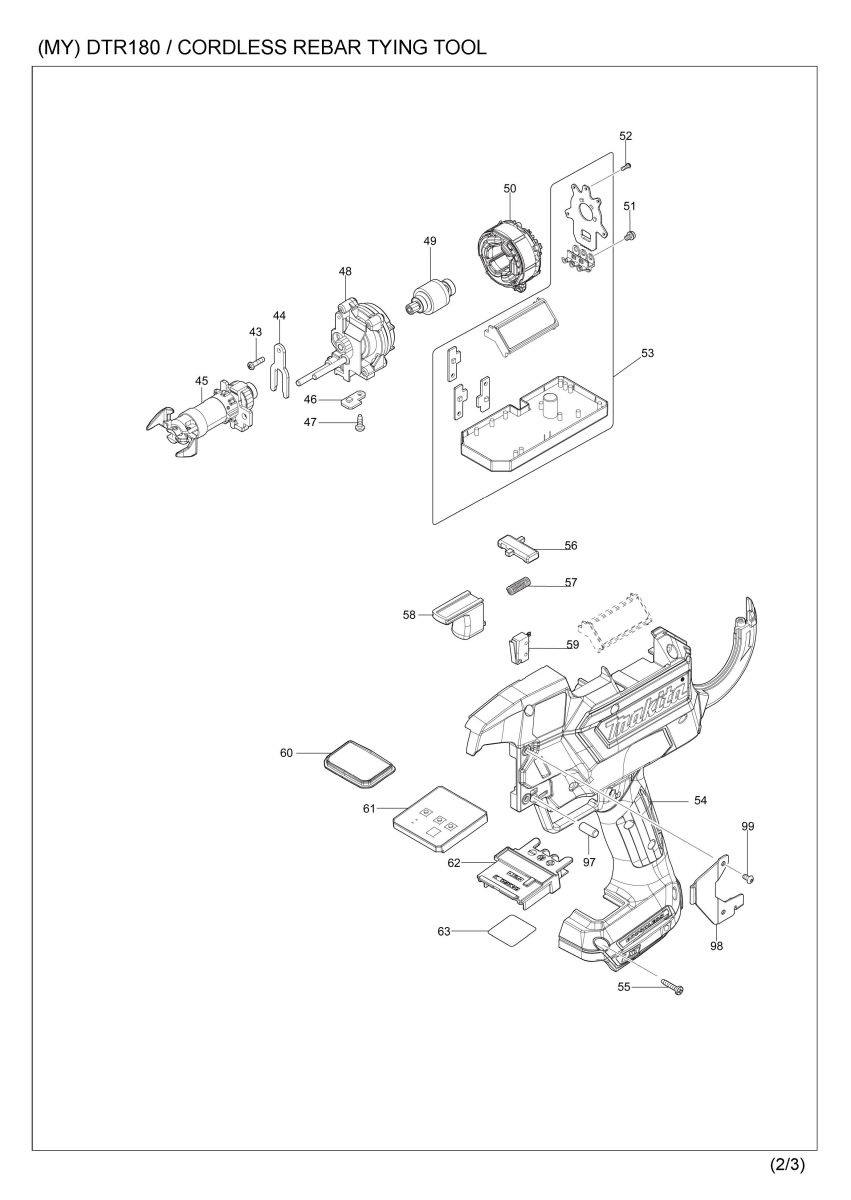

Part Diagram
Image not found: DTR180.jpg
Total: 148 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | |
| 2 | 140B66-1 | HOUSING COVER COMPLETE | 1 | |
| 2 | C10 | 817A35-8 | INDICATION LABEL A | 1 |
| 2 | C20 | 817A42-1 | CAUTION LABEL A | 1 |
| 2 | C30 | 817A44-7 | CAUTION LABEL B | 1 |
| 002-1 | 140J78-2 | HOUSING COVER COMPLETE | 1 | |
| 002-1 | C10 | 817A35-8 | INDICATION LABEL A | 1 |
| 002-1 | C20 | 817A42-1 | CAUTION LABEL A | 1 |
| 002-1 | C30 | 817A44-7 | CAUTION LABEL B | 1 |
| 002-2 | 140V64-5 | HOUSING COVER COMPLETE | 1 | |
| 002-2 | C10 | 817A35-8 | INDICATION LABEL A | 1 |
| 002-2 | C20 | 817A42-1 | CAUTION LABEL A | 1 |
| 002-2 | C30 | 817A44-7 | CAUTION LABEL B | 1 |
| 3 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | |
| 4 | 310864-7 | WIRE GUIDE A | 1 | |
| 5 | 135968-2 | SPUR GEAR 30A ASSEMBLY | 1 | |
| 6 | 422247-0 | SPONGE SHEET A | 1 | |
| 7 | 911008-8 | PAN HEAD SCREW M3X8 | 2 | |
| 8 | 458222-0 | MOTOR BASE | 1 | |
| 9 | 620913-5 | SENSOR CIRCUIT | 1 | |
| 10 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | |
| 11 | 629346-1 | DC MOTOR | 1 | |
| 12 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | |
| 13 | 941051-3 | FLAT WASHER 4 | 1 | |
| 14 | 135969-0 | RELEASE LEVER ASSY | 1 | |
| 15 | 232443-0 | COMPRESSION SPRING 3 | 1 | |
| 16 | 256098-7 | PIN 5 | 1 | |
| 17 | 232442-2 | COMPRESSION SPRING 3 | 1 | |
| 18 | 458223-8 | LOCK LEVER | 1 | |
| 19 | 140A85-1 | BRAKE ARM COMPLETE | 1 | |
| 20 | 941152-7 | FLAT WASHER 6 | 1 | |
| 21 | 232446-4 | COMPRESSION SPRING 7 | 1 | |
| 22 | 679032-4 | SOLENOID | 1 | |
| 23 | 961011-9 | STOP RING E-4 | 1 | |
| 24 | 327112-7 | WIRE GUIDE PIPE | 1 | |
| 024-1 | 140L14-0 | WIRE GUIDE PIPE COMPLETE | 1 | |
| 25 | 422249-6 | SPONGE SHEET B | 1 | |
| 26 | 232442-2 | COMPRESSION SPRING 3 | 1 | |
| 27 | 144901-3 | MAGNET ARM CCOMPLETE | 1 | |
| 28 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | |
| 29 | 941051-3 | FLAT WASHER 4 | 1 | |
| 30 | 211478-4 | BALL BEARING 689 | 1 | |
| 31 | 183J56-9 | HOUSING SET | 1 | |
| 31 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 31 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 31 | C30 | 931002-4 | HEX. NUT M3 | 2 |
| 31 | C40 | 817A46-3 | CAUTION LABEL C | 1 |
| 31 | D10 | INC. 54 | ||
| 32 | 211136-2 | BALL BEARING 6801LLB | 1 | |
| 33 | 144904-7 | MAGNET WHEEL COMPLETE | 1 | |
| 033-1 | 140H97-6 | MAGNET WHEEL COMPLETE | 1 | |
| 34 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 35 | 319665-0 | REEL BEARING | 1 | |
| 035-1 | 319822-0 | REEL BEARING | 1 | |
| 36 | 231294-8 | COMPRESSION SPRING 6 | 2 | |
| 37 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 38 | 458225-4 | REEL BASE | 1 | |
| 39 | 458216-5 | REEL COVER | 1 | |
| 40 | 458221-2 | REEL BEARING CAM | 1 | |
| 41 | 126743-7 | STOPPER ASSEMBLY | 1 | |
| 42 | 265199-0 | =+ PAN HEAD SCREW M3X8 | 2 | |
| 43 | 911017-7 | PAN HEAD SCREW M3X12 | 1 | |
| 44 | 310866-3 | BEARING RTAINER | 1 | |
| 45 | 140B72-6 | MAIN SLEEVE COMPLETE | 1 | |
| 045-1 | 140J49-9 | MAIN SLEEVE COMPLETE | 1 | |
| 46 | 620913-5 | SENSOR CIRCUIT | 1 | |
| 47 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | |
| 48 | 126838-6 | GEAR ASSEMBLY | 1 | |
| 49 | 619520-9 | ROTOR | 1 | |
| 50 | 629343-7 | STATOR | 1 | |
| 51 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 52 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 53 | 140B68-7 | MAIN CONTROLLER COMPLETE | 1 | |
| 53 | C10 | 817A37-4 | INDICATION LABEL B | 1 |
| 54 | 183J56-9 | HOUSING SET | 1 | |
| 54 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 54 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 54 | C30 | 931002-4 | HEX. NUT M3 | 2 |
| 54 | C40 | 817A46-3 | CAUTION LABEL C | 1 |
| 54 | D10 | INC. 31 | ||
| 55 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 11 | |
| 56 | 458219-9 | TRIGGER LOCK | 1 | |
| 57 | 234037-7 | COMPRESSION SPRING 5 | 1 | |
| 58 | 458220-4 | TRIGGER | 1 | |
| 59 | 632L94-5 | SWITCH UNIT | 1 | |
| 60 | 140B67-9 | SWITCH PLATE COMPLETE | 1 | |
| 60 | C10 | 817A39-0 | INDICATION LABEL C | 1 |
| 61 | 620924-0 | SWITCH CIRCUIT | 1 | |
| 62 | 643860-3 | TERMINAL | 1 | |
| 63 | 854L26-4 | DTR180 SERIAL NO. LABEL | 1 | |
| 64 | 265633-0 | HEX SOCKET HEAD BOLT M3X20 | 1 | |
| 65 | 458217-3 | CONTACT PLATE COVER | 1 | |
| 66 | 347331-9 | CONTACT PLATE | 1 | |
| 67 | 256573-3 | PIN 5 | 1 | |
| 68 | 144903-9 | MAGNET BASE B COMPLETE | 1 | |
| 69 | 911008-8 | PAN HEAD SCREW M3X8 | 1 | |
| 70 | 265634-8 | HEX SOCKET HEAD BOLT M3X8 | 1 | |
| 71 | 140C95-0 | WIRE GUIDE B COMPLETE | 1 | |
| 72 | 310815-0 | CUTTER B | 1 | |
| 73 | 310814-2 | CUTTER A | 1 | |
| 74 | 161872-9 | LINK ARM A COMPLETE | 1 | |
| 75 | 347328-8 | TOP PLATE | 1 | |
| 76 | 347326-2 | GUIDE PLATE A | 1 | |
| 77 | 961017-7 | STOP RING E-3 | 2 | |
| 78 | 347330-1 | PULL PLATE | 1 | |
| 078-1 | 347720-8 | PULL PLATE | 1 | |
| 79 | 161873-7 | LINK ARM B COMPLETE | 1 | |
| 80 | 347370-9 | GUIDE ARM A | 1 | |
| 81 | 347329-6 | PUSH PLATE | 1 | |
| 82 | 232445-6 | TORSION SPRING 7 | 1 | |
| 83 | 256400-4 | SHOULDER PIN 4 | 1 | |
| 84 | 256399-3 | SHOULDER PIN 4 | 1 | |
| 85 | 347327-0 | GUIDE PLATE B | 1 | |
| 86 | 265635-6 | H.S.BUTTON HEAD SCREW M3X6 | 2 | |
| 87 | 941001-8 | FLAT WASHER 3 | 1 | |
| 88 | 232444-8 | COMPRESSION SPRING 4 | 1 | |
| 89 | 256390-1 | PIN 3 | 1 | |
| 90 | 458226-2 | LEAD HOLDER | 1 | |
| 91 | 265635-6 | H.S.BUTTON HEAD SCREW M3X6 | 2 | |
| 92 | 347333-5 | SIDE PLATE R | 1 | |
| 93 | 263040-1 | RUBBER PIN 6 | 1 | |
| 94 | 232448-0 | TORSION SPRING 6 | 1 | |
| 95 | 161867-2 | CURL GUIDE COMPLETE | 1 | |
| 96 | 256573-3 | PIN 5 | 1 | |
| 97 | 263040-1 | RUBBER PIN 6 | 1 | |
| 98 | 347332-7 | SIDE PLATE L | 1 | |
| 99 | 265635-6 | H.S.BUTTON HEAD SCREW M3X6 | 2 | |
| 100 | 854L20-6 | DTR180 NAME PLATE | 1 | |
| 101 | 135999-1 | DC MOTOR ASSY | 1 | |
| 101 | D10 | INC. 3-8,11 | ||
| 102 | 135998-3 | GUIDE ARM ASS'Y | 1 | |
| 102 | D10 | INC. 66-90 | ||
| 102-1 | 136184-9 | GUIDE ARM ASSY | 1 | |
| 102-1 | D10 | INC. 66-90 | ||
| 103 | 232508-8 | COMPRESSION SPRING 10 | 1 | |
| A01 | 251314-2 | =+ SCREW M4X12 | 1 | |
| A02 | 346449-3 | HOOK | 1 | |
| A03 | 783208-8 | HEX. WRENCH 2.5 | 1 | |
| A04B | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) | 1 | |
| A04B | C10 | 453974-8 | LATCH | 4 |
| A04-1B | 140S63-9 | CONNECTOR P.CASE (TYPE4) COMP. | 1 | |
| A04-1B | C10 | 453974-8 | LATCH | 4 |
| A04-1B | C20 | 8008X6-2 | CAUTION LABEL | 1 |
| A05B | 839735-4 | INNER TRAY | 1 | |
| A05-1B | 835W33-2 | INNER TRAY | 1 | |
| A06B | 817D09-7 | DTR180ZJ INDICATION LABEL | 1 | |
| A07B | 817D10-2 | DTR180ZJ PLASTIC CASE LABEL | 2 | |
| A09 | 162755-6 | NYLON BRUSH | 1 |
