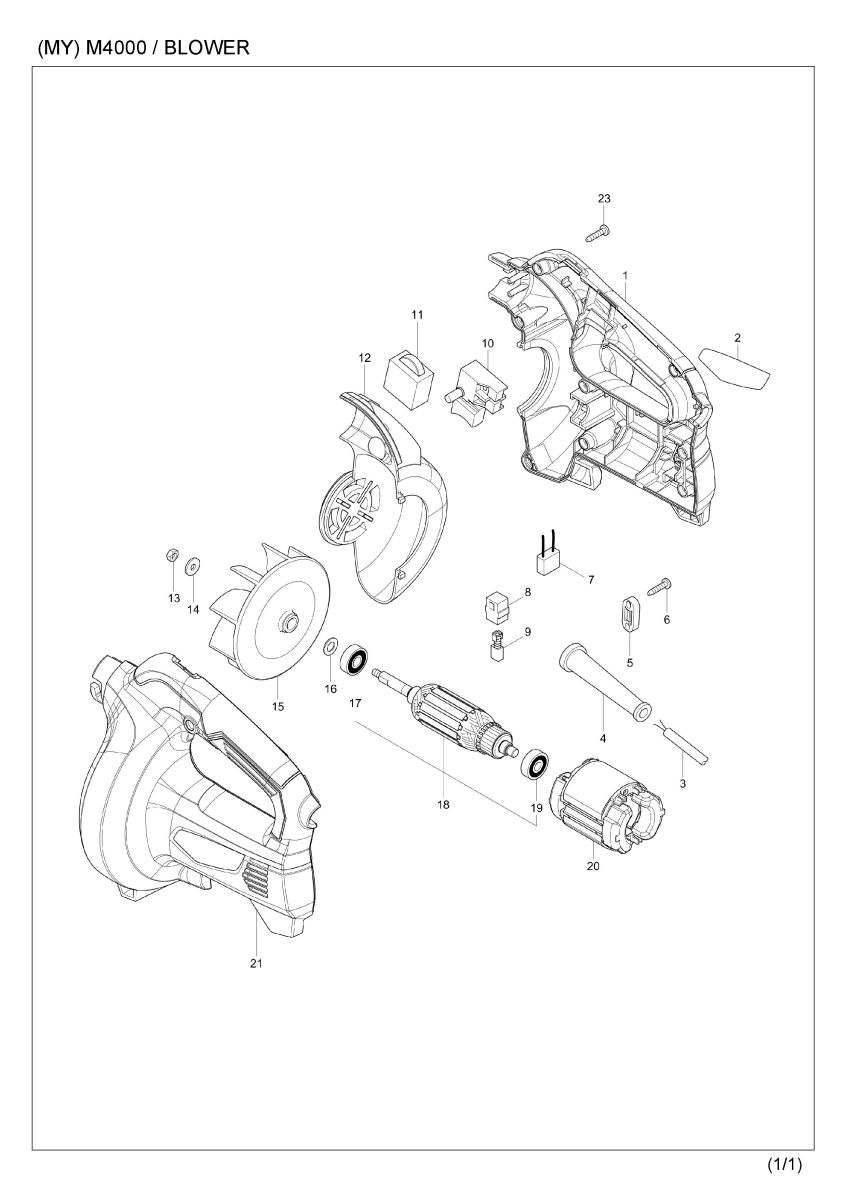

Part Diagram
Total: 32 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001-1A | 183A93-9 | HOUSING SET | 1 | |
| 001-1 | D10 | INC. 21 | ||
| 001-1B | 183A91-3 | HOUSING SET | 1 | |
| 2 | 850V68-6 | M4000 NAME PLATE | 1 | |
| 3 | 692006-8 | POWER SUPPLY CORD 1.0-2-2.0 | 1 | |
| 4 | 682569-2 | CORD GUARD 8-85 | 1 | |
| 5 | 687123-7 | STRAIN RELIEF | 1 | |
| 6 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 8 | 643566-3 | BRUSH HOLDER 5X8 | 2 | |
| 9 | 191998-3 | CARBON BRUSH CB-85 | 1 | |
| 10 | 650217-1 | SWITCH FA1-6/1B-1 | 1 | |
| 11 | 620187-8 | CONTROLLER FA-02 | 1 | |
| 012-1A | 454070-5 | INNER HOUSING | 1 | |
| 012-1B | 455994-8 | INNER HOUSING | 1 | |
| 013A | 252103-8 | HEX. LOCK NUT M5-8 | 1 | |
| 013-1A | 252286-4 | COLLARED HEX.LOCK NUT M5-8 | 1 | |
| 013-1B | 252286-4 | COLLARED HEX.LOCK NUT M5-8 | 1 | |
| 014A | 267294-2 | FLAT WASHER 5 | 1 | |
| 15 | 240077-5 | FAN 100 | 1 | |
| 16 | 267240-5 | FLAT WASHER 8 | 1 | |
| 17 | 210046-0 | BALL BEARING 608ZZ | 1 | |
| 18 | 515864-4 | ARMATURE ASS'Y 240V | 1 | |
| 18 | D10 | INC. 17,19 | ||
| 19 | 210050-9 | BALL BEARING 627ZZ | 1 | |
| 20 | 633799-8 | FIELD 240V | 1 | |
| 021-1A | 183A93-9 | HOUSING SET | 1 | |
| 021-1 | D10 | INC. 1 | ||
| 021-1B | 183A91-3 | HOUSING SET | 1 | |
| 23 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| A01 | 418919-3 | SASH NOZZLE | 1 | |
| A02 | 418920-8 | JOINT | 1 | |
| A03 | 421905-5 | NOZZLE | 1 |
