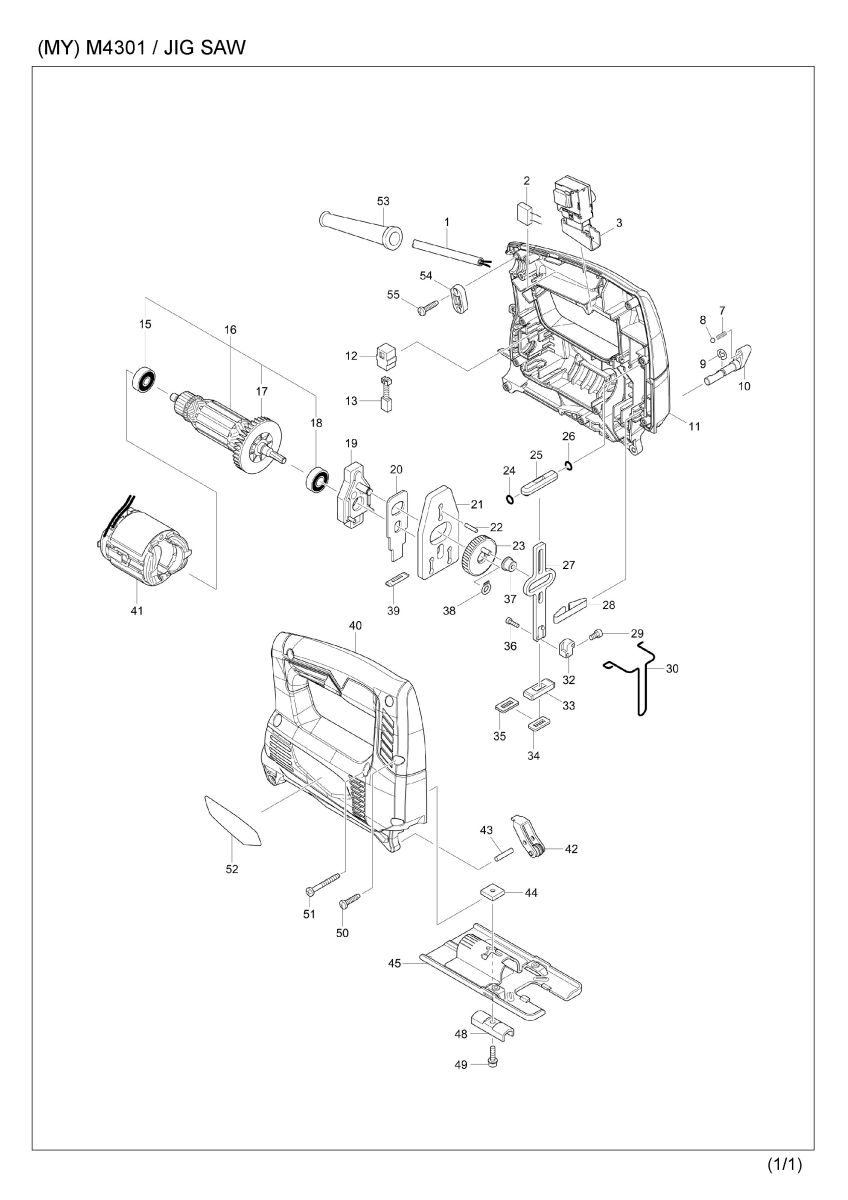

Part Diagram
Total: 64 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 692006-8 | POWER SUPPLY CORD 1.0-2-2.0 | 1 | |
| 3 | 650633-7 | SWITCH DGQ-1104H-03 | 1 | |
| 7 | 233151-6 | COMPRESSION SPRING 4 | 1 | |
| 8 | 216008-6 | STEEL BALL 4 | 1 | |
| 9 | 961011-9 | STOP RING E-4 | 1 | |
| 10 | 272267-2 | LEVER 19 | 1 | |
| 011A | 183E11-1 | HOUSING SET | 1 | |
| 11 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| 11 | D10 | INC. 40 | ||
| 011B | 183E27-6 | HOUSING SET | 1 | |
| 12 | 643552-4 | BRUSH HOLDER 5-8 | 2 | |
| 13 | 191627-8 | CARBON BRUSH CB-64 | 1 | |
| 15 | 210030-5 | BALL BEARING 627ZZ | 1 | |
| 016A | 510188-3 | ARMATURE ASSEMBLY 240V | 1 | |
| 016A | D10 | INC. 15,17,18 | ||
| 016-1A | 510412-4 | ARMATURE ASS'Y 240V | 1 | |
| 016-1A | D10 | INC. 15,17,18 | ||
| 016-1B | 510412-4 | ARMATURE ASS'Y 240V | 1 | |
| 016-1B | D10 | INC. 15,17,18 | ||
| 17 | 241881-5 | FAN 52 | 1 | |
| 018A | 210044-4 | BALL BEARING 608DDW | 1 | |
| 018-1A | 210200-6 | BALL BEARING 608DDW | 1 | |
| 018-1B | 210200-6 | BALL BEARING 608DDW | 1 | |
| 19 | 152600-3 | BEARING CASE COMPLETE | 1 | |
| 20 | 344683-9 | PUSH PLATE | 1 | |
| 21 | 344614-8 | BALANCE PLATE | 1 | |
| 22 | 256254-9 | PIN 3 | 1 | |
| 23 | 153260-4 | GEAR COMPLETE | 1 | |
| 24 | 213038-8 | O RING 5 | 1 | |
| 25 | 313082-6 | SLIDER GUIDE | 1 | |
| 26 | 213038-8 | O RING 5 | 1 | |
| 27 | 344613-0 | SLIDER | 1 | |
| 28 | 232183-0 | LEAF SPRING | 1 | |
| 29 | 922107-1 | HEX. SOCKET HEAD BOLT M4X8 | 1 | |
| 30 | 323748-0 | SAFETY WIRE | 1 | |
| 32 | 313140-8 | BLADE CLAMP | 1 | |
| 33 | 313086-8 | SLIDER SUPPORT | 1 | |
| 34 | 423307-1 | POLY URETANE SPONGE SEAL | 1 | |
| 35 | 344686-3 | SEAL PLATE | 1 | |
| 36 | 266177-3 | HEX. SOCKET HEAD BOLT M3X10 | 2 | |
| 37 | 257683-9 | COLLAR SLEEVE | 1 | |
| 38 | 961002-0 | RETAINING RING S-6 | 1 | |
| 39 | 416703-0 | DUST SEAL | 1 | |
| 040A | 183E11-1 | HOUSING SET | 1 | |
| 40 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| 40 | D10 | INC. 11 | ||
| 040B | 183E27-6 | HOUSING SET | 1 | |
| 41 | 633733-8 | FIELD 220-240V | 1 | |
| 42 | 158392-2 | RETAINER COMPLETE | 1 | |
| 43 | 256117-9 | PIN 4 | 1 | |
| 44 | 343540-8 | HOLDER | 1 | |
| 45 | 163397-9 | BASE | 1 | |
| 048A | 344685-5 | CLAMP PLATE | 1 | |
| 048-1A | 344685-5 | CLAMP PLATE | 1 | |
| 048-1B | 344685-5 | CLAMP PLATE | 1 | |
| 49 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 1 | |
| 50 | 265995-6 | TAPPING SCREW 4X18 | 9 | |
| 51 | 266351-3 | TAPPING SCREW 4X35 | 1 | |
| 52 | 852A95-3 | M4301 NAME PLATE | 1 | |
| 53 | 682569-2 | CORD GUARD 8-85 | 1 | |
| 54 | 687123-7 | STRAIN RELIEF | 1 | |
| 55 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| A01 | 783201-2 | HEX. WRENCH 3 | 1 | |
| A02 | A-85628 | JIGSAW BLADE NO.B10 | 1 |
