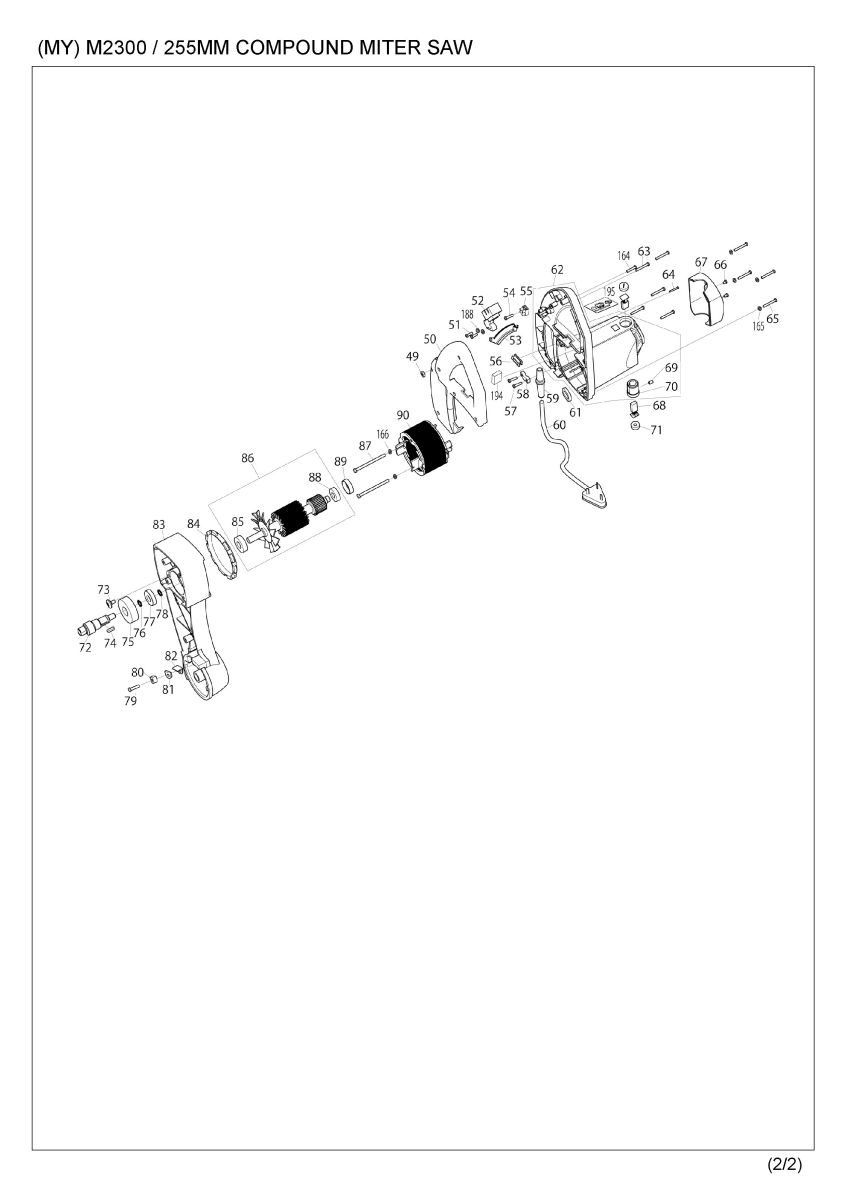

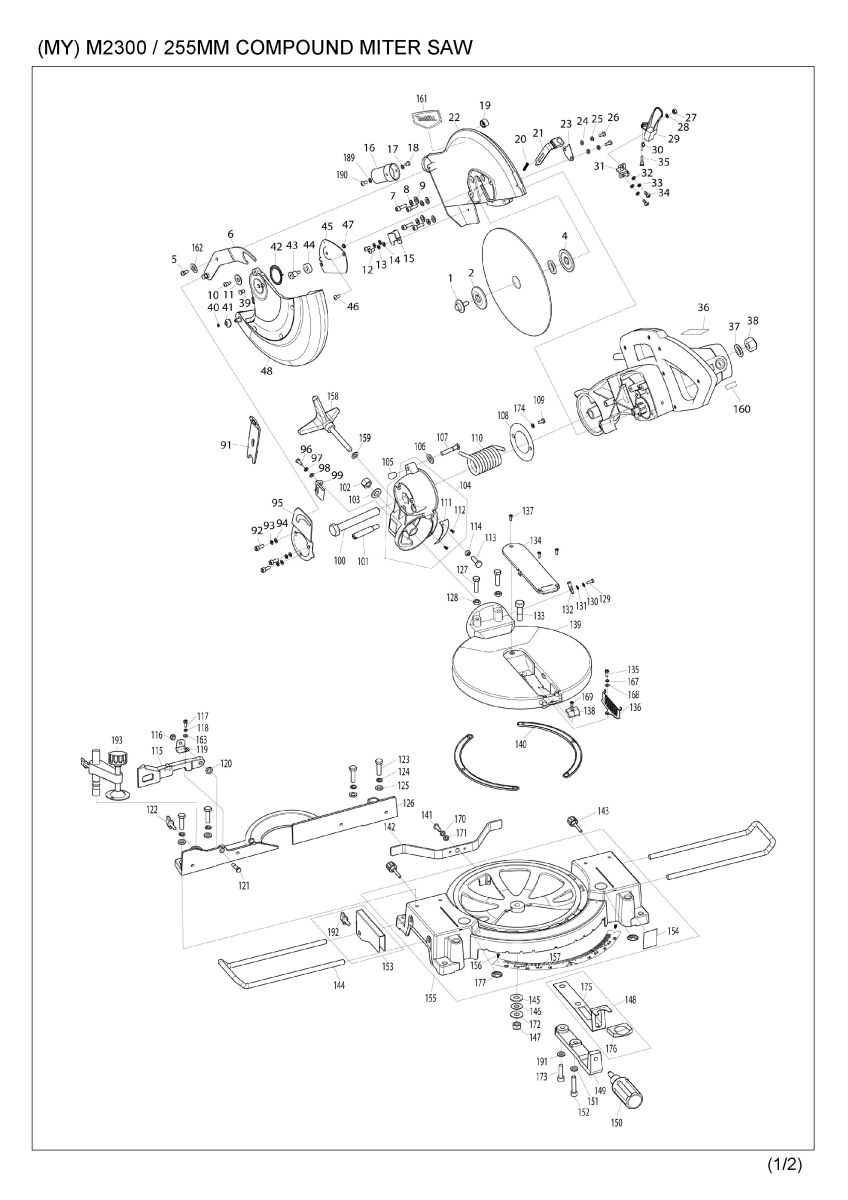

Part Diagram
Total: 233 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | JM23000054 | BLADE LOCK BOLT M8X20(LH) | 1 | |
| 001-1 | JM23000054 | BLADE LOCK BOLT M8X20(LH) | 1 | |
| 002 | JM23000065 | FLANGE | 1 | |
| 004 | JM23000065 | FLANGE | 1 | |
| 005 | JM23000057 | STEPPED BOLT M6 | 1 | |
| 006 | JM23000058 | LINK COMP. | 1 | |
| 007 | JM23000052 | HEX. SOCKET HEAD BOLT M6 X 20 | 4 | |
| 008 | JM23000040 | SPRING WASHER6 | 4 | |
| 009 | JM23000041 | FLAT WASHER6 | 4 | |
| 010 | JM23000055 | STEPPED BOLT M5 | 1 | |
| 011 | JM23000056 | BUSH | 1 | |
| 012 | JM23000032 | PAN HEAD SCREW M5 X 10 | 2 | |
| 012-1 | JM23000069 | PAN HEAD SCREW M5X12 | 2 | |
| 013 | JM23000031 | SPRING WASHER5 | 2 | |
| 014 | JM23000030 | FLAT WASHER5 | 2 | |
| 015 | JM23000053 | PLATE | 1 | |
| 016 | JM23000059 | DUST NOZZLE | 1 | |
| 016-1 | JM23000178 | DUST NOZZLE 38 | 1 | |
| 016-2 | JM23000059 | DUST NOZZLE | 1 | |
| 016-3 | JM23000178 | DUST NOZZLE 38 | 1 | |
| 017 | JM23000030 | FLAT WASHER5 | 1 | |
| 017-1 | JM23000136 | FLAT WASHER4 | 1 | |
| 018 | JM23000060 | PAN HEAD SCREW M4 | 1 | |
| 018-1 | JM23000138 | PAN HEAD SCREW M4X10 | 1 | |
| 019 | JM23000063 | LIMIT RING | 1 | |
| 020 | JM23000066 | LOCK SPRING | 1 | |
| 021 | JM23000067 | SHAFT LOCK | 1 | |
| 022 | JM23000061 | BLADE CASE COMP | 1 | |
| 022 | D10 | INC. 22 | ||
| 022-1 | JM00000065 | BLADE CASE COMPLETE | 1 | |
| 023 | JM23000068 | COVER | 1 | |
| 024 | JM23000030 | FLAT WASHER5 | 2 | |
| 025 | JM23000031 | SPRING WASHER5 | 2 | |
| 026 | JM23000069 | PAN HEAD SCREW M5X12 | 2 | |
| 036 | JM23000083 | NAME PLATE | 1 | |
| 036-1 | JM23080117 | NAME PLATE | 1 | |
| 037 | JM23000070 | FLAT WASHER16 | 1 | |
| 038 | JM23000071 | ANTI-LOOSE NUT16 | 1 | |
| 039 | JM23000074 | SQUARE NECK BOLTM6X10 | 1 | |
| 040 | JM23000076 | PUSH NUT | 1 | |
| 041 | JM23000075 | WHEEL | 1 | |
| 042 | JM23000073 | TORSION SPRING | 1 | |
| 043 | JM23000077 | STEPPED BOLT M6 | 1 | |
| 044 | JM23000078 | RUBBER SLEEVE | 1 | |
| 045 | JM23000079 | FIX PLATE | 1 | |
| 046 | JM23000081 | STEPPED BOLT M5 | 1 | |
| 047 | JM23000080 | ANTI-LOOSE NUTM6 | 1 | |
| 048 | JM23000072 | SAFETY COVER COMP. | 1 | |
| 049 | JM23000096 | HEX.NUTM4 | 6 | |
| 050 | JM23000210 | HANDLE COVER,GREY | 1 | |
| 050-1 | JM00000033 | HANDLE COVER GREY | 1 | |
| 050-2 | JM00000021 | HANDLE COVER BLUE | 1 | |
| 051 | JM23000113 | SELF TAPING SCREWST 3X8 | 2 | |
| 051-1 | JM23000106 | SELF TAPING SCREWST4.2X12 | 2 | |
| 052 | JM23000112 | SWITCHCB21-B | 1 | |
| 052-1 | JM00000067 | SWITCH | 1 | |
| 053 | JM23000114 | SWITCH LEVER | 1 | |
| 053-1 | JM00000272 | SWITCH LEVER | 1 | |
| 054 | JM23000115 | SELF TAPING SCREWST4.2X12 | 1 | |
| 054-1 | JM00000211 | TAPING SCREW ST2.9X17 | 1 | |
| 055 | JM23000116 | TERMINAL BASE | 1 | |
| 056 | JM23000111 | CLAMP | 1 | |
| 057 | JM23000106 | SELF TAPING SCREWST4.2X12 | 2 | |
| 058 | JM23000107 | STRAIN RELIEF | 1 | |
| 059 | JM23000109 | CORD GUARD | 1 | |
| 060 | JM23000152 | PW SUPPLY CORD H05VV-F 1-2 BSI | 1 | |
| 061 | JM23000110 | CHOKE COIL | 1 | |
| 061-1 | JM23000110 | CHOKE COIL | 1 | |
| 062 | JM23000211 | MOTOR HOUSING SET,GREY | 1 | |
| 062 | D10 | INC. 69,70,160 | ||
| 062-1 | JM00000032 | MOTOR HOUSING COMPLETE GREY | 1 | |
| 062-1 | D10 | INC. 160 | ||
| 062-2 | JM00000024 | MOTOR HOUSING COMP BLUE | 1 | |
| 062-2 | D10 | INC. 160 | ||
| 063 | JM23000118 | PAN HEAD SCREW M4X30 | 5 | |
| 064 | JM23000119 | SELFTAPPING SCREW | 1 | |
| 064-1 | JM00000212 | TAPPING SCREW ST2.9X30 | 1 | |
| 065 | JM23000118 | PAN HEAD SCREW M4X30 | 4 | |
| 065-1 | JM00000214 | PAN HEAD SCREW M5X25 | 4 | |
| 066 | JM23000124 | SELF TAPING SCREWST5.2X12 | 2 | |
| 066-1 | JM00000213 | SELF TAPING SCREW ST4.8X9 | 2 | |
| 067 | JM23000125 | MOTOR REAR COVER | 1 | |
| 068 | JM23000123 | CARBON BRUSH 2PCS/SET | 2 | |
| 068-1 | JM23000123 | CARBON BRUSH 2PCS/SET | 1 | |
| 069 | JM23000122 | HEX. SOCKET HEAD BOLT M5 X 8 | 2 | |
| 070 | JM23000121 | BRUSH HOLDER | 2 | |
| 071 | JM23000120 | BRUSH HOLDER CAP | 2 | |
| 072 | JM23000084 | SPINDLE | 1 | |
| 073 | JM23000090 | TRUSS HEAD SCREW M8X12 | 1 | |
| 074 | JM23000085 | KEY5X10 | 1 | |
| 075 | JM23000086 | BALL BEARING 6304-RZ | 1 | |
| 076 | JM23000087 | RETAINING RING S-20 | 1 | |
| 077 | JM23000088 | HELICAL GEAR | 1 | |
| 078 | JM23000089 | RETAINING RING S-16 | 1 | |
| 079 | JM23000092 | PAN HEAD SCREW M5 X 25 | 1 | |
| 079-1 | JM23000092 | PAN HEAD SCREW M5 X 25 | 1 | |
| 080 | JM23000093 | LIMIT PLATE | 1 | |
| 081 | JM23000094 | LIMIT PAD | 1 | |
| 082 | JM23000095 | ADJUST PAD | 1 | |
| 083 | JM23000091 | GEAR HOUSING COMP. | 1 | |
| 084 | JM23000098 | FAN GUIDE | 1 | |
| 085 | JM23000099 | BALL BEARING 6201Z | 1 | |
| 086 | JM23000100 | ARMATURE ASS'Y (230V) | 1 | |
| 086 | D10 | INC. 85,88 | ||
| 087 | JM23000101 | SELF TAPING SCREWST4.8X70 | 2 | |
| 088 | JM23000102 | BALL BEARING 6001Z | 1 | |
| 089 | JM23000103 | RUBBER RING | 1 | |
| 090 | JM23000104 | FIELD ASS'Y (230V) | 1 | |
| 091 | JM23000130 | WRENCH 13 | 1 | |
| 092 | JM23000039 | PAN HEAD SCREW M6 X 16 | 3 | |
| 093 | JM23000040 | SPRING WASHER6 | 3 | |
| 094 | JM23000041 | FLAT WASHER6 | 3 | |
| 095 | JM23000038 | LINK SUPPORT PLATE | 1 | |
| 096 | JM23000032 | PAN HEAD SCREW M5 X 10 | 1 | |
| 097 | JM23000031 | SPRING WASHER5 | 1 | |
| 098 | JM23000030 | FLAT WASHER5 | 1 | |
| 099 | JM23000042 | CLIP | 1 | |
| 100 | JM23000037 | SHAFT | 1 | |
| 101 | JM23000049 | LIMIT PIN | 1 | |
| 102 | JM23000044 | ANTI-LOOSE NUTM12 | 1 | |
| 103 | JM23000045 | FLAT WASHER12 | 1 | |
| 104 | JM23000036 | ARM COMPLETE | 1 | |
| 104 | D10 | INC. 111,112 | ||
| 105 | JM23000046 | LOCK PIN CAP | 1 | |
| 106 | JM23000047 | O RING | 1 | |
| 107 | JM23000048 | PIN | 1 | |
| 108 | JM23000051 | RING | 1 | |
| 109 | JM23100014 | CROSS HEAD SCREW M4X15 | 1 | |
| 109-1 | JM23000138 | PAN HEAD SCREW M4X10 | 1 | |
| 110 | JM23000050 | TORSIONAL SPRING | 1 | |
| 111 | JM23000035 | SCALE LABEL | 1 | |
| 112 | JM23000034 | RIVET | 2 | |
| 113 | JM23000033 | HEX. BOLT M8X16 | 1 | |
| 114 | JM23000028 | HEX. NUT M8 | 1 | |
| 117 | JM23100014 | CROSS HEAD SCREW M4X15 | 1 | |
| 118 | JM23000137 | SPRING WASHER4 | 1 | |
| 121 | JM23000201 | COUNTERSUNK HEAD SCREW M6X25 | 1 | |
| 122 | JM23000126 | WING BOLT M6X12 | 2 | |
| 122-1 | JM23000126 | WING BOLT M6X12 | 1 | |
| 123 | JM23000024 | HEX.BOLT M8X30 | 4 | |
| 124 | JM23000025 | SPRING WASHER8 | 4 | |
| 125 | JM23000026 | FLAT WASHER8 | 4 | |
| 126 | JM23000204 | GUIDE RULE | 1 | |
| 126-1 | JM23000023 | GUIDE RULE | 1 | |
| 127 | JM23000027 | HEX. BOLT M8 X 20 | 2 | |
| 127-1 | JM23000024 | HEX.BOLT M8X30 | 2 | |
| 128 | JM23000028 | HEX. NUT M8 | 2 | |
| 129 | JM23000032 | PAN HEAD SCREW M5 X 10 | 1 | |
| 130 | JM23000031 | SPRING WASHER5 | 1 | |
| 131 | JM23000030 | FLAT WASHER5 | 1 | |
| 132 | JM23000029 | BEVEL POINTER | 1 | |
| 133 | JM23000019 | PIVOT | 1 | |
| 134 | JM23000207 | KERF BOARD,GREY | 1 | |
| 134-1 | JM23000141 | KERF BOARD BLUE | 1 | |
| 134-2 | JM23000141 | KERF BOARD BLUE | 1 | |
| 135 | JM23000018 | COUNTERSUNK HEAD SCREW M4X10 | 1 | |
| 135-1 | JM23000138 | PAN HEAD SCREW M4X10 | 1 | |
| 136 | JM23000022 | PROTECTION NET | 1 | |
| 137 | JM23000018 | COUNTERSUNK HEAD SCREW M4X10 | 4 | |
| 137-1 | JM23000018 | COUNTERSUNK HEAD SCREW M4X10 | 3 | |
| 138 | JM23000017 | MITER ANGLE POINTER | 1 | |
| 139 | JM23000021 | TURN BASE COMP. | 1 | |
| 140 | JM23000016 | SLIDE PLATE | 2 | |
| 141 | JM23000012 | SCREW | 1 | |
| 142 | JM23000011 | BASE SUPPORTER | 1 | |
| 143 | JM23000006 | LOCK KNOB FOR EXT.WINGS | 2 | |
| 144 | JM23000127 | HOLDER | 2 | |
| 145 | JM23000013 | FLAT WASHER10 | 2 | |
| 145-1 | JM23000013 | FLAT WASHER10 | 1 | |
| 146 | JM23000014 | WAVE WASHER 6 | 1 | |
| 147 | JM23000015 | HEX NUT M10 | 1 | |
| 148 | JM23000200 | KNOCK SPRING SET | 1 | |
| 148 | D10 | INC. 175,176 | ||
| 149 | JM23000002 | HANDLE BRACKET | 1 | |
| 150 | JM23000001 | GRIP | 1 | |
| 151 | JM23000003 | SPRING WASHER8 | 2 | |
| 151-1 | JM23000003 | SPRING WASHER8 | 1 | |
| 152 | JM23000004 | HEX SOCKET HEAD BOLT M8X25 | 2 | |
| 152-1 | JM00000207 | HEX SOCKET HEAD BOLT M8X30 | 1 | |
| 153 | JM23000128 | SET PLATE | 1 | |
| 153 | D10 | INC. 192 | ||
| 154 | 810965-6 | CAUTION LABEL | 1 | |
| 155 | JM23000009 | BASE COMP | 1 | |
| 155 | D10 | INC. 154,156,157 | ||
| 155-1 | JM00000066 | BASE COMP | 1 | |
| 155-1 | D10 | INC. 154,177 | ||
| 155-1 | D11 | INC. 177 | ||
| 156 | JM23000008 | RIVET | 2 | |
| 157 | JM23000007 | MITER ANGLE LABEL | 1 | |
| 158 | JM23000208 | KNOB BOLT M10 GREY | 1 | |
| 158-1 | JM23000143 | KNOB BOLT M10 BLUE | 1 | |
| 158-2 | JM23000143 | KNOB BOLT M10 BLUE | 1 | |
| 159 | JM23000013 | FLAT WASHER10 | 1 | |
| 160 | 810964-8 | CAUTION LABEL | 1 | |
| 161 | JM23080143 | LOGO LABEL | 1 | |
| 162 | JM23000014 | WAVE WASHER 6 | 1 | |
| 164 | JM00000210 | PAN HEAD SCREW M4X28 | 1 | |
| 165 | JM23000030 | FLAT WASHER5 | 4 | |
| 166 | JM23000030 | FLAT WASHER5 | 2 | |
| 167 | JM23000137 | SPRING WASHER4 | 4 | |
| 167-1 | JM23000137 | SPRING WASHER4 | 1 | |
| 168 | JM23000136 | FLAT WASHER4 | 1 | |
| 169 | JM00000206 | FLAT HEAD SCREW M4X8 | 1 | |
| 170 | JM23000040 | SPRING WASHER6 | 1 | |
| 171 | JM23000041 | FLAT WASHER6 | 1 | |
| 172 | JM23000013 | FLAT WASHER10 | 1 | |
| 173 | JM23000004 | HEX SOCKET HEAD BOLT M8X25 | 1 | |
| 174 | JM00000208 | CONE WASHER 6 | 1 | |
| 175 | JM23000005 | KNOCK SPRING | 1 | |
| 176 | JM23000185 | LOCKING KNOB | 1 | |
| 177 | JM2708B060 | CAUTION LABEL | 2 | |
| 188 | JM23000136 | FLAT WASHER4 | 2 | |
| 189 | JM23000136 | FLAT WASHER4 | 1 | |
| 190 | JM23000138 | PAN HEAD SCREW M4X10 | 1 | |
| 191 | JM23000003 | SPRING WASHER8 | 1 | |
| 192 | JM23000129 | WING BOLT M6X20 | 1 | |
| 193 | JM23000131 | VISE ASS'Y | 1 | |
| 194 | JM23000183 | CAPACITOR | 1 | |
| 195 | JM23180056 | CAUTION LABEL | 1 | |
| A01 | JM23010001 | SUB FENCE COMPLETE | 1 | |
| A02 | JM23010002 | SUB FENCE COMPLETE | 1 | |
| A03 | JM23380067 | CAUTION LABEL | 1 | |
| A04 | JM23380068 | CAUTION LABEL | 1 | |
| A05 | JM23000130 | WRENCH 13 | 1 | |
| A06 | JM23000131 | VISE ASS'Y | 1 | |
| A07 | JM23010003 | DUST BAG ASSEMBLY | 1 | |
| A08 | 762001-3 | TRIANGULAR RULE | 1 | |
| A10 | JM23100191 | RING 25.4 | 1 | |
| C01 | JM23080139 | COLOR CARTON FOR GRAY | 1 | |
| C01-1 | JM23080141 | COLOR CARTON FOR BLUE | 1 | |
| C01-2 | JM23080141 | COLOR CARTON FOR BLUE | 1 | |
| F01 | JM23080139 | COLOR CARTON FOR GRAY | 1 | |
| F01-1 | 198687-1 | STAND SET | 1 |
