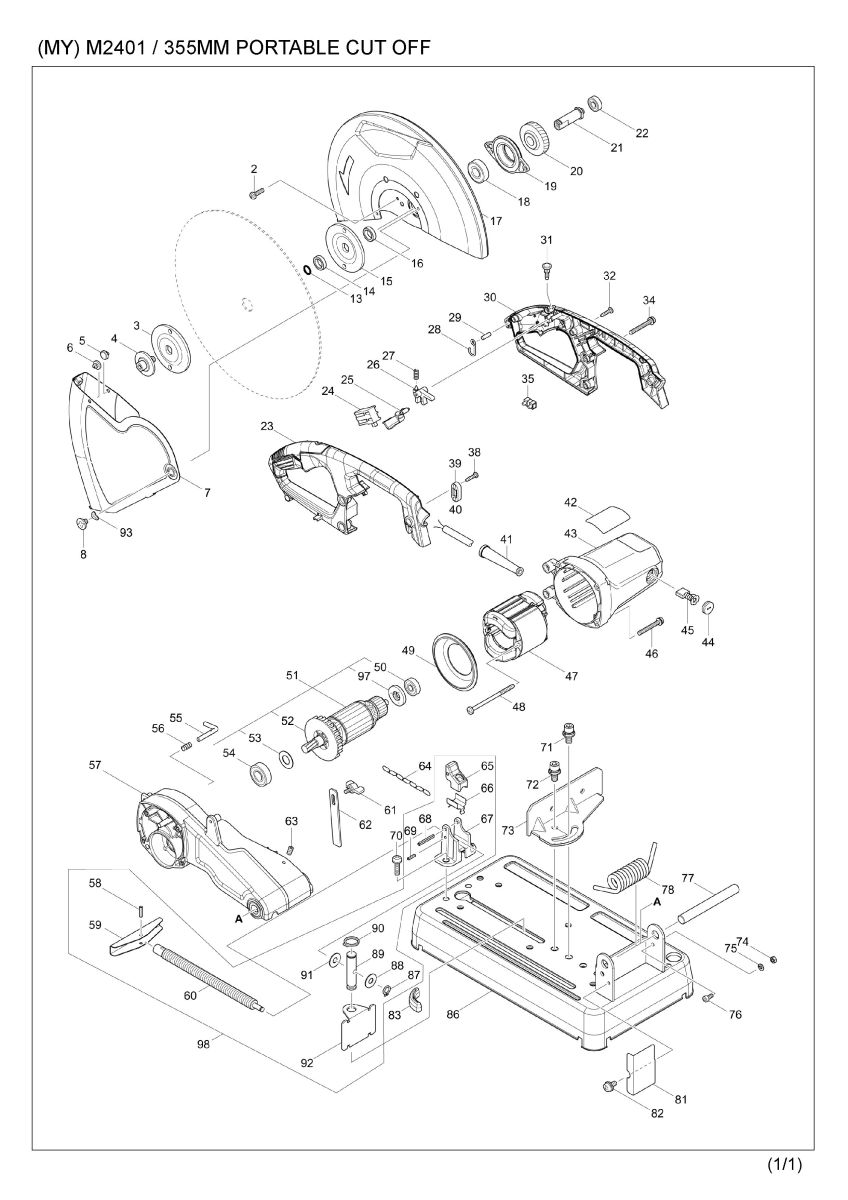

Part Diagram
Total: 128 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 002 | 265122-5 | PAN HEAD SCREW M5X20 | 4 | |
| 003 | 224299-5 | FLANGE 90 | 1 | |
| 004 | 251498-6 | HEX SOCKET HEAD BOLT M10X25 | 1 | |
| 005 | 416771-3 | PLUG | 1 | |
| 006 | 416771-3 | PLUG | 1 | |
| 007 | 161529-2 | SAFETY GUIDE | 1 | |
| 008 | 265121-7 | + FLAT HEAD SCREW M6 | 1 | |
| 013 | 213180-5 | O RING 14 | 1 | |
| 014 | 257255-0 | RING 17 | 1 | |
| 015 | 224299-5 | FLANGE 90 | 1 | |
| 016 | 257255-0 | RING 17 | 1 | |
| 017 | 161530-7 | SAFETY COVER | 1 | |
| 018 | 210155-5 | BALL BEARING 6203ZZ | 1 | |
| 019 | 316527-3 | BEARING BOX | 1 | |
| 020 | 221462-1 | HELICAL GEAR 43 | 1 | |
| 021 | 326790-0 | SPINDLE | 1 | |
| 021-1 | 322633-4 | SPINDLE | 1 | |
| 022A | 210067-2 | BALL BEARING 6000ZZ | 1 | |
| 022-1A | 210199-5 | BALL BEARING 6000ZZ | 1 | |
| 022-1B | 210199-5 | BALL BEARING 6000ZZ | 1 | |
| 023A | 183E49-6 | HANDLE SET | 1 | |
| 023A | D10 | INC. 30 | ||
| 023B | 183E50-1 | HANDLE SET | 1 | |
| 023B | D10 | INC. 30 | ||
| 023-1B | 183E50-1 | HANDLE SET | 1 | |
| 023-1B | D10 | INC. 30 | ||
| 024 | 651067-7 | SWITCH | 1 | |
| 025 | 418141-2 | SWITCH LEVER | 1 | |
| 026 | 418139-9 | SWITCH LOCK | 1 | |
| 027 | 231397-8 | COMPRESSION SPRING 4 | 1 | |
| 028 | 281216-8 | HANGER | 1 | |
| 029 | 268101-2 | PIN 6 | 1 | |
| 030A | 183E49-6 | HANDLE SET | 1 | |
| 030A | D10 | INC. 23 | ||
| 030B | 183E50-1 | HANDLE SET | 1 | |
| 030B | D10 | INC. 23 | ||
| 030-1B | 183E50-1 | HANDLE SET | 1 | |
| 030-1B | D10 | INC. 23 | ||
| 031 | 418138-1 | SWITCH BUTTON | 1 | |
| 032 | 266841-6 | TAPPING SCREW 4X18 | 4 | |
| 032-1 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 032-2 | 265652-6 | TAPPING SCREW 4X18 | 4 | |
| 034 | 265104-7 | PAN HEAD SCREW M5X40 | 3 | |
| 038 | 266841-6 | TAPPING SCREW 4X18 | 2 | |
| 038-1 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 038-2 | 265652-6 | TAPPING SCREW 4X18 | 2 | |
| 039 | 687124-5 | STRAIN RELIEF | 1 | |
| 040A | 692730-3 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 040-1A | 692519-9 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 040-1B | 692519-9 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 041A | 682540-6 | CORD GUARD 9.3-90 | 1 | |
| 041-1A | 682574-9 | CORD GUARD 10-90 | 1 | |
| 041-1B | 682574-9 | CORD GUARD 10-90 | 1 | |
| 041-2 | 682585-4 | CORD GUARD 10 | 1 | |
| 042 | 852N80-4 | M2401 NAME PLATE | 1 | |
| 043A | 144054-8 | MOTOR HOUSING COMPLETE | 1 | |
| 043B | 144055-6 | MOTOR HOUSING COMPLETE | 1 | |
| 043-1A | 140X59-0 | MOTOR HOUSING COMPLETE | 1 | |
| 043-1B | 140X63-9 | MOTOR HOUSING COMPLETE | 1 | |
| 043-1B | C10 | 644027-6 | BRUSH HOLDER 7-18 | 2 |
| 043-1B | C11 | 644502-2 | BRUSH HOLDER 7-18 | 2 |
| 044 | 644802-0 | HOLDER CAP | 2 | |
| 045 | 191953-5 | CARBON BRUSH CB-203 | 1 | |
| 045-1 | 194991-6 | CARBON BRUSH SET CB203 | 1 | |
| 046 | 265104-7 | PAN HEAD SCREW M5X40 | 4 | |
| 047 | 593949-6 | FIELD ASS'Y 240V | 1 | |
| 047-1 | 593949-6 | FIELD ASS'Y 240V | 1 | |
| 048A | 266328-8 | TAPPING SCREW 5X80 | 2 | |
| 048-1A | 265A45-3 | TAPPING SCREW 5X80 | 2 | |
| 048-1B | 265A45-3 | TAPPING SCREW 5X80 | 2 | |
| 049 | 418143-8 | BAFFLE PLATE | 1 | |
| 050 | 210070-3 | BALL BEARING 6200ZZ | 1 | |
| 051 | 513494-5 | ARMATURE ASS'Y 240V | 1 | |
| 051 | D10 | INC. 50,52-54,97 | ||
| 052 | 240003-4 | FAN 80 | 1 | |
| 053 | 267274-8 | FLAT WASHER 15 | 1 | |
| 054 | 210156-3 | BALL BEARING 6202ZZ | 1 | |
| 055 | 322665-1 | STOPPER | 1 | |
| 056 | 233372-0 | COMPRESSION SPRING 7 | 1 | |
| 057 | 144057-2 | GEAR HOUSING COMPLETE | 1 | |
| 057 | C10 | 263029-9 | RUBBER PIN 6 | 1 |
| 057 | C11 | 263005-3 | RUBBER PIN 6 | 1 |
| 058 | 951163-4 | SPRING PIN 5-20 | 1 | |
| 059 | 271431-2 | HANDLE 120 | 1 | |
| 060 | 326802-9 | VISE SCREW | 1 | |
| 061 | 265754-8 | THUMB SCREW M6X12 | 1 | |
| 062 | 347084-0 | STOPPER PLATE | 1 | |
| 063 | 251961-9 | H.S.SET SCREW(FLAT POINT)M6X10 | 2 | |
| 064 | 282015-1 | CHAIN | 1 | |
| 065 | 313114-9 | VISE NUT | 1 | |
| 066 | 347083-2 | PLATE | 1 | |
| 067 | 319474-7 | SCREW GUIDE | 1 | |
| 068 | 951175-7 | SPRING PIN 5-36 | 1 | |
| 069 | 951110-5 | SPRING PIN 4-16 | 1 | |
| 070A | 265125-9 | PAN HEAD SCREW M8X30 | 2 | |
| 070-1A | 265A65-7 | PAN HEAD SCREW M8X30 | 2 | |
| 070-1B | 265A65-7 | PAN HEAD SCREW M8X30 | 2 | |
| 071 | 251499-4 | H. S. HEAD BOLT M10X25 WITH WG | 1 | |
| 072 | 251499-4 | H. S. HEAD BOLT M10X25 WITH WG | 1 | |
| 073 | 345315-1 | GUIDE PLATE | 1 | |
| 074 | 931302-2 | HEX. NUT M6 | 1 | |
| 075A | 942151-2 | SPRING WASHER 6 | 1 | |
| 075-1A | 253428-3 | SPRING WASHER 6 | 1 | |
| 075-1B | 253428-3 | SPRING WASHER 6 | 1 | |
| 076 | 922312-0 | HEX. SOCKET HEAD BOLT M6X12 | 1 | |
| 077 | 326801-1 | ROD 16 | 1 | |
| 078 | 232325-6 | TORSION SPRING 20 | 1 | |
| 081 | 345313-5 | SPARK GUARD | 1 | |
| 082A | 265144-5 | PAN HEAD SCREW M6X12 | 1 | |
| 082-1A | 911313-3 | PAN HEAD SCREW M6X12 WITH WR | 1 | |
| 082-1B | 911313-3 | PAN HEAD SCREW M6X12 WITH WR | 1 | |
| 083 | 421834-2 | CUSHION | 3 | |
| 086 | 161528-4 | BASE | 1 | |
| 087 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | |
| 088 | 267257-8 | FLAT WASHER 8 | 1 | |
| 089A | 256334-1 | SHOULDER PIN 10-16 | 1 | |
| 089-1A | 256474-5 | SHOULDER PIN 10-16 | 1 | |
| 089-1B | 256474-5 | SHOULDER PIN 10-16 | 1 | |
| 090 | 961056-7 | RETAINING RING S-16 | 1 | |
| 091 | 267257-8 | FLAT WASHER 8 | 1 | |
| 092 | 347085-8 | VISE PLATE | 1 | |
| 093 | 253903-9 | WAVE WASHER 6 | 1 | |
| 097 | 681630-2 | INSULATION WASHER | 1 | |
| 098 | 135841-6 | VISE ASS'Y | 1 | |
| 098 | D10 | INC. 58-60,65-69,87-92 | ||
| A01 | 783023-0 | HEX. WRENCH 8 | 1 | |
| A02 | A-89545 | CUTTING WHEEL 14" | 1 | |
| A02-1 | A-89545 | CUTTING WHEEL 14" | 1 |
