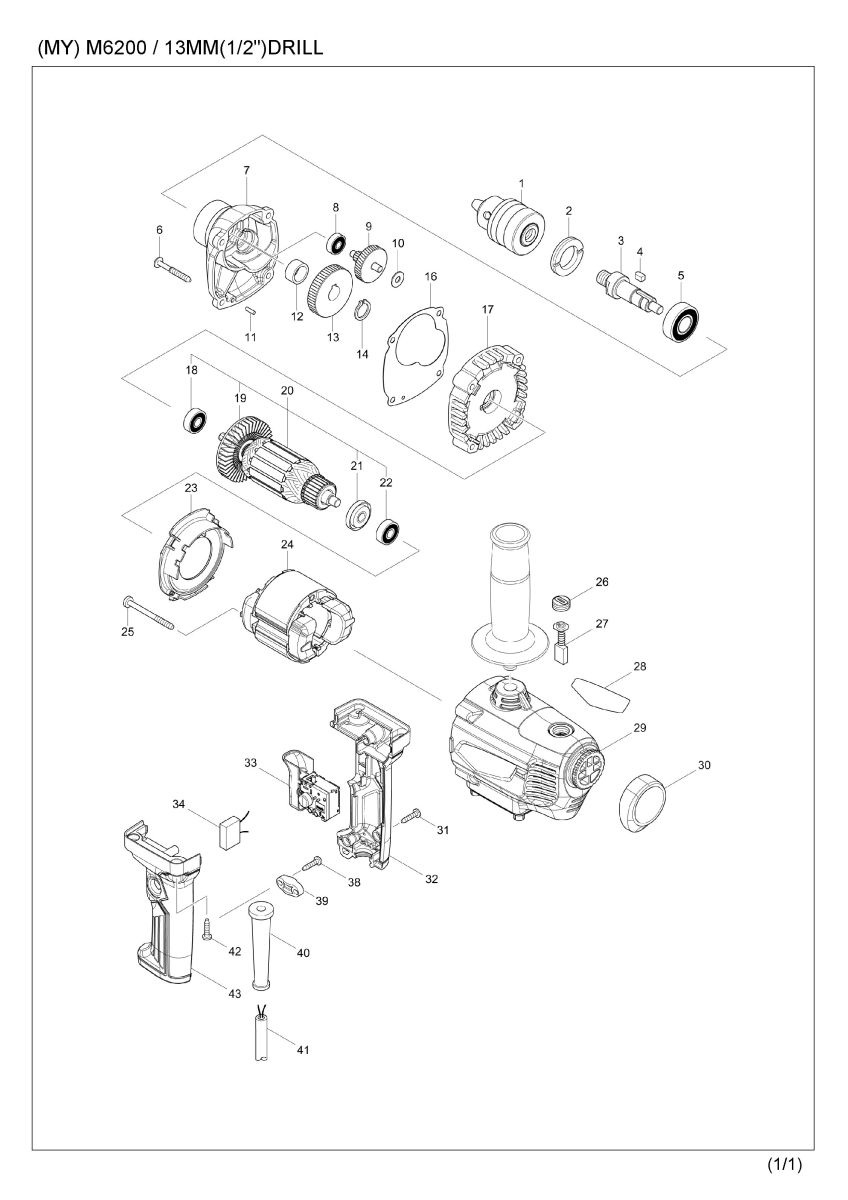

Part Diagram
Total: 57 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 766023-5 | DRILL CHUCK S13 | 1 | |
| 002 | 285848-3 | BEARING RETAINER 23-36 | 1 | |
| 003 | 326600-1 | SPINDLE | 1 | |
| 004 | 254211-1 | KEY 5 | 1 | |
| 005 | 211487-3 | BALL BEARING 6202DDW | 1 | |
| 006 | 266211-9 | TAPPING SCREW 5X40 | 4 | |
| 007 | 142841-9 | GEAR HOUSING COMPLETE | 1 | |
| C10 | 263002-9 | RUBBER PIN 4 | 1 | |
| 008 | 211499-6 | BALL BEARING 626ZZ | 1 | |
| 009 | 226028-2 | GEAR COMPLETE 7-41 | 1 | |
| 010 | 253804-1 | FLAT WASHER 6 | 1 | |
| 011 | 256180-2 | PIN 3 | 1 | |
| 012 | 257018-4 | RING 15 | 1 | |
| 012-1 | 257018-4 | RING 15 | 1 | |
| 013 | 221261-1 | SPUR GEAR 47 | 1 | |
| 014 | 961054-1 | RETAINING RING S-14 | 1 | |
| 016 | 442207-6 | GASKET | 1 | |
| 017 | 142840-1 | GEAR HOUSING COVER COMPLETE | 1 | |
| C10 | 263002-9 | RUBBER PIN 4 | 1 | |
| 018 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 019 | 241850-6 | FAN 60 | 1 | |
| 020 | 518507-7 | ARMATURE ASS'Y 240V | 1 | |
| D10 | INC. 18,19,21,22 | |||
| 021 | 681644-1 | INSULATION WASHER | 1 | |
| 022 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 023 | 455343-9 | BAFFLE PLATE | 1 | |
| 024 | 599056-3 | FIELD ASS'Y 240V | 1 | |
| C20 | 654501-6 | CONNECTOR P-1.25 | 2 | |
| C21 | 654485-8 | PARALLEL SPLICE | 2 | |
| C21 | 654485-8 | PARALLEL SPLICE | 2 | |
| C10 | 654020-2 | RING TERMINAL | 2 | |
| 025 | 266418-7 | TAPPING SCREW 5X55 | 2 | |
| 026A | 644500-6 | HOLDER CAP 7X11 | 2 | |
| 026-1A | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | |
| 026-1B | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | |
| 027 | 191963-2 | CARBON BRUSH CB-303 | 1 | |
| 028 | 850V95-3 | M6200 NAME PLATE | 1 | |
| 029A | 143148-6 | MOTOR HOUSING COMPLETE | 1 | |
| 029B | 143260-2 | MOTOR HOUSING COMPLETE | 1 | |
| C10 | 644501-4 | BRUSH HOLDER 5X11 | 2 | |
| 030 | 424654-3 | CAP | 1 | |
| 031 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 032-1A | 187946-8 | SWITCH HANDLE SET | 1 | |
| 032-1B | 183B04-0 | SWITCH HANDLE SET | 1 | |
| D10 | INC. 43 | |||
| 033 | 650714-7 | SWITCH TN04-6/1BEK | 1 | |
| 038 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 039 | 687123-7 | STRAIN RELIEF | 1 | |
| 040 | 682559-5 | CORD GUARD 8 | 1 | |
| 041 | 692006-8 | POWER SUPPLY CORD 1.0-2-2.0 | 1 | |
| 042 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 043-1A | 187946-8 | SWITCH HANDLE SET | 1 | |
| 043-1B | 183B04-0 | SWITCH HANDLE SET | 1 | |
| D10 | INC. 32 | |||
| A01 | 142088-5 | GRIP 36 COMPLETE | 1 | |
| A02 | 418163-2 | KEY HOLDER 10 | 1 | |
| A03 | 763453-1 | CHUCK KEY S13 | 1 |
