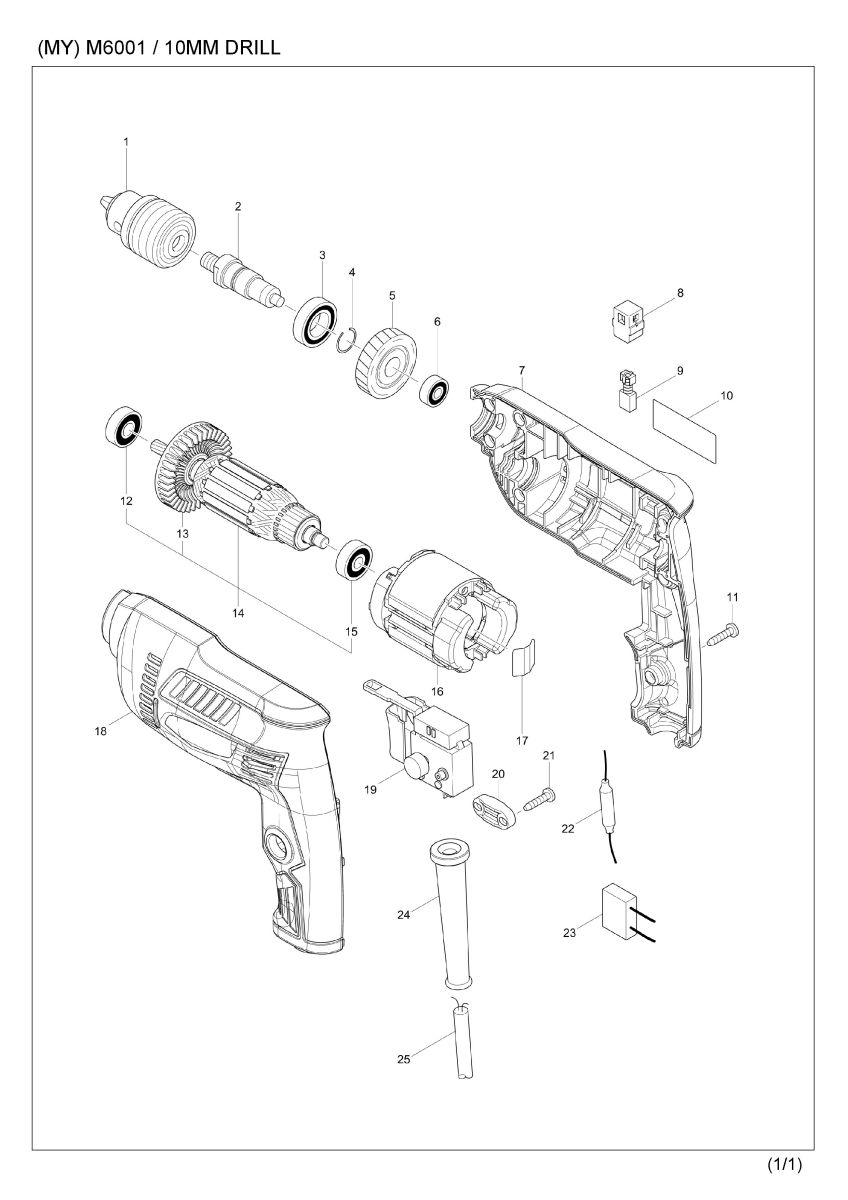

Part Diagram
Total: 47 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 766014-6 | DRILL CHUCK S10 | 1 | |
| 002 | 324376-4 | SPINDLE | 1 | |
| 003A | 211242-3 | BALL BEARING 6902ZZ | 1 | |
| 003-1A | 210153-9 | BALL BEARING 6902ZZ | 1 | |
| 003-1B | 210153-9 | BALL BEARING 6902ZZ | 1 | |
| 004 | 233925-5 | RING SPRING 13 | 1 | |
| 005 | 226578-7 | HELICAL GEAR 35 | 1 | |
| 006A | 210028-2 | BALL BEARING 606ZZ | 1 | |
| 006-1A | 210137-7 | BALL BEARING 606ZZ | 1 | |
| 006-1B | 210137-7 | BALL BEARING 606ZZ | 1 | |
| 007-1A | 183D44-0 | HOUSING SET | 1 | |
| 007-1B | 183D43-2 | HOUSING SET | 1 | |
| 007-1B | D10 | INC. 18 | ||
| 008 | 643566-3 | BRUSH HOLDER 5X8 | 2 | |
| 009 | 191998-3 | CARBON BRUSH CB-85 | 1 | |
| 009-1 | 194973-8 | CARBON BRUSH SET CB-85 | 1 | |
| 010 | 850X24-8 | M6001 NAME PLATE | 1 | |
| 011A | 266326-2 | TAPPING SCREW 4X18 | 7 | |
| 011-1A | 265652-6 | TAPPING SCREW 4X18 | 7 | |
| 011-1B | 265652-6 | TAPPING SCREW 4X18 | 7 | |
| 012A | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 012-1A | 210046-0 | BALL BEARING 608ZZ | 1 | |
| 012-1B | 210046-0 | BALL BEARING 608ZZ | 1 | |
| 012-2 | 211032-4 | BALL BEARING 608ZZ | 1 | |
| 013 | 240066-0 | FAN 52 | 1 | |
| 014 | 515849-0 | ARMATURE ASS'Y 240V | 1 | |
| 014 | D10 | INC. 12,13,15 | ||
| 015A | 210030-5 | BALL BEARING 627ZZ | 1 | |
| 015-1A | 210050-9 | BALL BEARING 627ZZ | 1 | |
| 015-1B | 210050-9 | BALL BEARING 627ZZ | 1 | |
| 016A | 633579-2 | FIELD 240V | 1 | |
| 016-1A | 633934-8 | FIELD | 1 | |
| 016-1B | 633934-8 | FIELD | 1 | |
| 017 | 232210-3 | LEAF SPRING | 1 | |
| 018-1A | 183D44-0 | HOUSING SET | 1 | |
| 018-1B | 183D43-2 | HOUSING SET | 1 | |
| 018-1B | D10 | INC. 7 | ||
| 019 | 650551-9 | SWITCH FA1-3/2BEZ-4 | 1 | |
| 020 | 687123-7 | STRAIN RELIEF | 1 | |
| 021A | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 021-1A | 265652-6 | TAPPING SCREW 4X18 | 2 | |
| 021-1B | 265652-6 | TAPPING SCREW 4X18 | 2 | |
| 024 | 682569-2 | CORD GUARD 8-85 | 1 | |
| 024-1 | 682582-0 | CORD GUARD | 1 | |
| 025-1 | 692006-8 | POWER SUPPLY CORD 1.0-2-2.0 | 1 | |
| A01 | 763447-6 | CHUCK KEY S10 | 1 | |
| A02 | 418163-2 | KEY HOLDER 10 | 1 |
