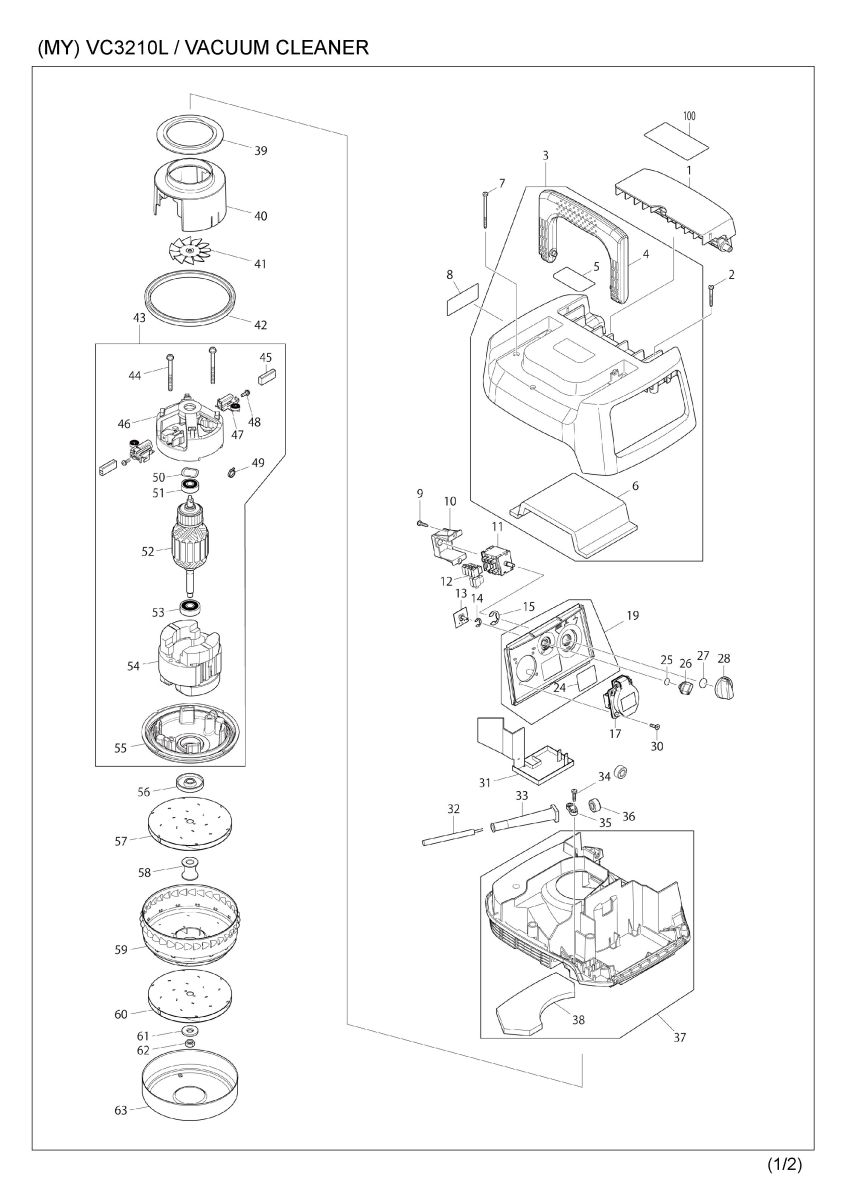

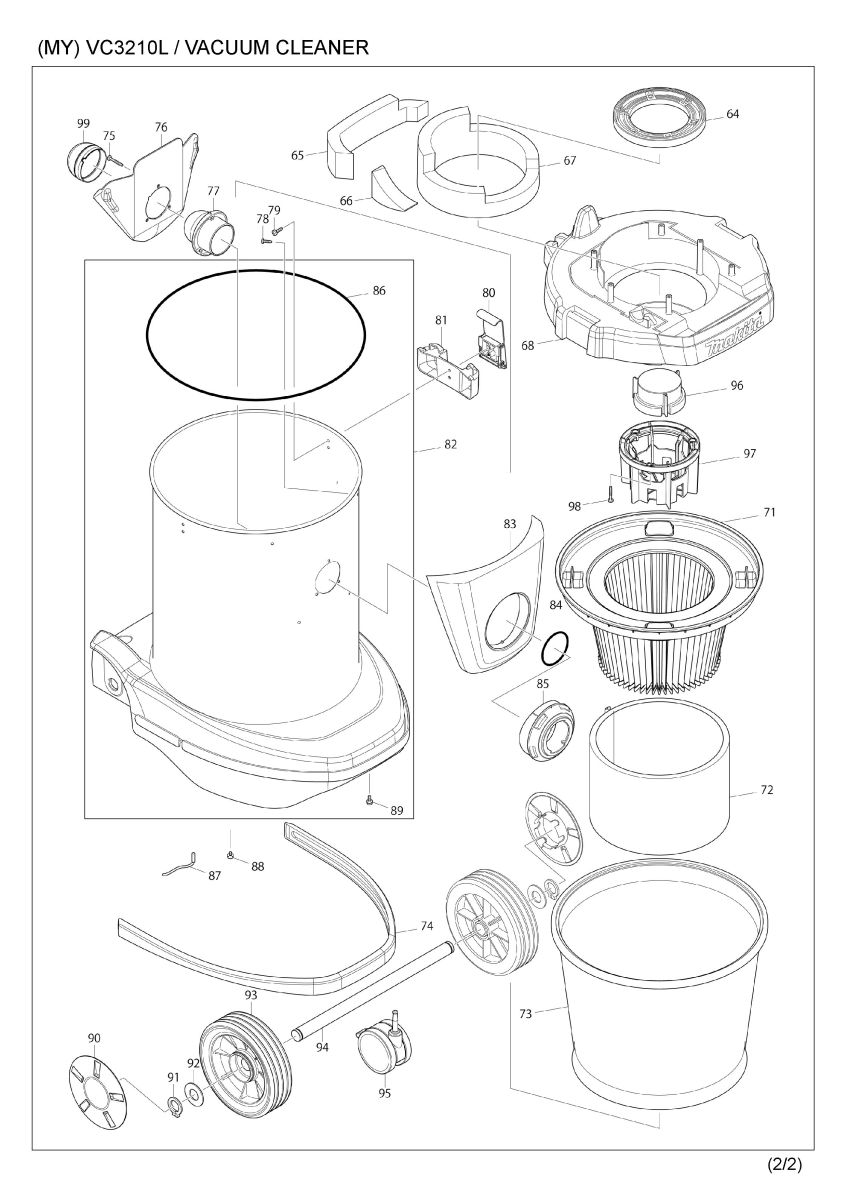

Part Diagram
Total: 152 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 452451-7 | BASE HOOK | 1 | |
| 002 | 266053-1 | TAPPING SCREW 4X35 | 3 | |
| 003 | 140751-4 | COWLING COMPLETE | 1 | |
| 003 | D10 | INC. 4-6 | ||
| 004 | 451340-3 | GRIP | 1 | |
| 005 | 891977-8 | CAUTION LABEL | 1 | |
| 006 | 423393-2 | TOP DAMPER | 1 | |
| 007 | 266060-4 | TAPPING SCREW 4X65 | 3 | |
| 008 | 869061-7 | VC3210L NAME PLATE | 1 | |
| 009 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 010 | 451343-7 | SWITCH HOLDER | 1 | |
| 011 | 650659-9 | SWITCH | 1 | |
| 012 | 686023-8 | RECEPTACLE SLEEVE | 6 | |
| 013 | 631922-9 | SUB CONTROLLER | 1 | |
| 014 | 961013-5 | STOP RING E-7 | 1 | |
| 015 | 961062-2 | STOP RING E-12 | 1 | |
| 017-1 | 655118-8 | OUTLET | 1 | |
| 017-2 | 655124-3 | OUTLET | 1 | |
| 017-3 | 655124-3 | OUTLET | 1 | |
| 018 | 685740-7 | RUBBER SHEET | 1 | |
| 019-1 | 140746-7 | SWITCH BASE COMPLETE | 1 | |
| 019-1 | D10 | INC. 24 | ||
| 019-2 | 140746-7 | SWITCH BASE COMPLETE | 1 | |
| 019-2 | D10 | INC. 24 | ||
| 024-1 | 893030-6 | CAUTION LABEL | 1 | |
| 024-2 | 893030-6 | CAUTION LABEL | 1 | |
| 025 | 213054-0 | O RING 9 | 1 | |
| 026 | 451344-5 | SWITCH DIAL | 1 | |
| 027 | 213176-6 | O RING 14 | 1 | |
| 028 | 451342-9 | SWITCH LEVER | 1 | |
| 030 | 266640-6 | +COUNTERSUNK TAPPING SCREW4X | 4 | |
| 031 | 620033-5 | CONTROLLER | 1 | |
| 032 | 692450-9 | POWER SUPPLY CORD 1.5-3-5.0 | 1 | |
| 033 | 682575-7 | CORD GUARD 12-90 | 1 | |
| 034 | 265999-8 | TAPPING SCREW 4X25 | 2 | |
| 035 | 687149-9 | STRAIN RELIEF | 1 | |
| 037 | 140254-8 | SEPARATOR COMPLETE | 1 | |
| 037 | D10 | INC. 38 | ||
| 038 | 423395-8 | BOTTOM DAMPER | 1 | |
| 039 | 423279-0 | SEAL RING 70 | 1 | |
| 040 | 451338-0 | MOTOR COVER | 1 | |
| 041 | 241512-6 | FAN 62 | 1 | |
| 042 | 424228-0 | RUBBER RING 120 | 1 | |
| 043 | 125876-5 | MOTOR ASSEMBLY | 1 | |
| 043 | C10 | 213406-5 | O RING 30 | 1 |
| 043 | D10 | INC. 44-50,52,54,55 | ||
| 044 | 911283-6 | PAN HEAD SCREW M5X60 | 2 | |
| 045 | 195483-8 | CARBON BRUSH CB-173 | 1 | |
| 046 | 452106-4 | ENDBELL | 1 | |
| 047 | 643610-6 | BRUSH HOLDER 6.5X13.5 | 2 | |
| 048 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | |
| 049 | 687010-0 | BAND | 1 | |
| 050 | 267715-4 | WAVE WASHER 20 | 1 | |
| 051 | 211092-6 | BALL BEARING 629DDW | 1 | |
| 052 | 517849-6 | ARMATURE ASS'Y 240V | 1 | |
| 052 | D10 | INC. 51,53 | ||
| 053 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 054 | 526204-1 | FIELD ASS'Y 240V | 1 | |
| 054 | C10 | 654304-8 | RECEPTACLE | 2 |
| 055-1 | 454480-6 | BASE | 1 | |
| 056 | 316795-8 | FLANGE | 1 | |
| 057 | 241910-4 | FAN 125 | 1 | |
| 058 | 325747-8 | SPACER | 1 | |
| 059 | 346114-4 | RETURN VANE | 1 | |
| 060 | 241910-4 | FAN 125 | 1 | |
| 061 | 316799-0 | FLAT WASHER 10 | 1 | |
| 062 | 931403-6 | HEX. NUT M8 | 1 | |
| 063 | 346115-2 | FAN COVER | 1 | |
| 064 | 424229-8 | SUPPORT RING | 1 | |
| 065 | 423396-6 | REAR BLOCK FILTER | 1 | |
| 066 | 423399-0 | SIDE BLOCK FILTER | 1 | |
| 067 | 423397-4 | BAND DAMPER | 1 | |
| 068 | 451544-7 | TANK COVER | 1 | |
| 071 | 195441-4 | POWDER FILTER SET | 1 | |
| 072 | 424377-3 | DAMPER | 1 | |
| 073-1 | 140312-0 | PRE-FILTER COMPLETE | 1 | |
| 074 | 424270-1 | BUMPER | 1 | |
| 075 | 266257-5 | TAPPING SCREW 4X28 | 3 | |
| 076 | 417587-9 | HOLDER PLATE | 1 | |
| 077 | 451455-6 | HOLDER | 1 | |
| 078 | 266192-7 | TAPPING SCREW 4X14 | 4 | |
| 079 | 266192-7 | TAPPING SCREW 4X14 | 4 | |
| 080 | 168537-4 | HOOK | 2 | |
| 081 | 451545-5 | HOOK SUPPORTER | 2 | |
| 082 | 188824-5 | TANK SET | 1 | |
| 082 | D10 | INC. 86,89 | ||
| 082-1 | 188824-5 | TANK SET | 1 | |
| 082-1 | D10 | INC. 86,89 | ||
| 082-2 | 183M91-5 | TANK SET | 1 | |
| 082-2 | D10 | INC. 86,89 | ||
| 083 | 451546-3 | INLET COVER | 1 | |
| 084 | 213655-4 | O RING 56 | 1 | |
| 085 | 451454-8 | INLET | 1 | |
| 086 | 424346-4 | RUBBER RING T | 1 | |
| 087 | 649150-2 | EARTH LINE 120 | 1 | |
| 088 | 911103-4 | PAN HEAD SCREW M4X6 | 1 | |
| 089 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | |
| 090 | 451643-5 | WHEEL CAP | 2 | |
| 091 | 961060-6 | RETAINING RING S-20 | 2 | |
| 092 | 267299-2 | FLAT WASHER 20 | 2 | |
| 093 | 451642-7 | CASTER 170 | 2 | |
| 094 | 331888-0 | JOINT PIPE 20-350 | 1 | |
| 095 | 168547-1 | CASTER 75 | 1 | |
| 096 | 141019-1 | FLOAT COMPLETE | 1 | |
| 096 | C10 | 423365-7 | SPONGE SEAL 70 | 1 |
| 097 | 452446-0 | FLOAT CAGE | 1 | |
| 098 | 265999-8 | TAPPING SCREW 4X25 | 3 | |
| 099 | 424382-0 | RUBBER HOLDER | 1 | |
| A01-1 | 195433-3 | HOSE COMPLETE 28-3.5 SET | 1 | |
| A01-1 | C20 | 417191-4 | CUFF LOCK | 1 |
| A01-1 | C30 | 417586-1 | STOPPER | 1 |
| A01-1 | C40 | 417662-1 | SLEEVE | 1 |
| A01-1 | C50 | 417766-9 | FRONT CUFF 38 | 1 |
| A01-1 | D10 | INC. A02,A03 | ||
| A02 | 417765-1 | FRONT CUFF 22 | 1 | |
| A03 | 424379-9 | FRONT CUFF 24 | 1 | |
| A04 | 417764-3 | HOLDER 10-33 | 4 | |
| A05 | 195440-6 | POLY BAG SET(800X650) | 1 | |
| F01 | 195549-4 | T-NOZZLE ASSY A SET(DRY)38 | 1 | |
| F02 | 195550-9 | T-NOZZLE ASSY B SET(WET)38 | 1 | |
| F03 | 195551-7 | T-NOZZLE SET 38 | 1 | |
| F04 | 195612-3 | PRE-FILTER SET | 1 | |
| F05 | 195611-5 | FILTER FOR WATER SET | 1 | |
| F08 | 192236-6 | TAPERED NOZZLE SET | 1 | |
| F15 | 195435-9 | HOSE COMPLETE 38-5 SET | 1 | |
| F16 | 195436-7 | HOSE COMPLETE 28-5 SET | 1 | |
| F17 | 195437-5 | HOSE COMPLETE 28-2.5 SET | 1 | |
| F21 | 195544-4 | HOLDER 10-33 SET | 1 | |
| F22 | 195547-8 | FRONT CUFF 22 SET | 1 | |
| F23 | 195545-2 | FRONT CUFF 38 SET | 1 | |
| F24 | 195548-6 | JOINT 22-38 SET | 1 | |
| F25 | 195552-5 | DAMPER SET | 1 | |
| F26 | 195546-0 | FRONT CUFF 24 SET | 1 | |
| F27 | 195637-7 | HOLDER,CUFF SET | 1 | |
| F29-2 | 197323-6 | HOSE STAND SET | 1 | |
| F30 | 198184-7 | F/C SWITCHING T-NOZZLE 38 | 1 | |
| F32 | 198533-8 | F/C SWITCHING T-NOZZLE 38 EU | 1 | |
| F33 | 191G76-1 | MESH SLEEVE HOSE 28-5 SET | 1 | |
| F34 | 191F82-0 | POWDER FILTER H SET | 1 | |
| F86 | 191M77-5 | JOINT A 32 SET | 1 | |
| F87 | 191M78-3 | JOINT B 35 SET | 1 | |
| F88 | 191M79-1 | JOINT C 38 SET | 1 | |
| F89 | 198599-8 | MAKPAC ADAPTER SET | 1 | |
| F89 | C10 | 911233-1 | PAN HEAD SCREW M5X20 | 4 |
| F89 | C20 | 422180-6 | HOSE HOOK | 1 |
| F90 | 198730-6 | MAKPAC ADAPTER SET | 1 | |
| F90 | C10 | 911233-1 | PAN HEAD SCREW M5X20 | 4 |
| F90 | C20 | 422180-6 | HOSE HOOK | 1 |
| F96 | 422A02-6 | CAP | 1 | |
| G09 | 1912G4-5 | TELESCOPIC PIPE COMPLETE SET | 1 | |
| G10 | 1912G5-3 | BENT PIPE COMPLETE SET | 1 | |
| G11 | 413R35-4 | STOPPER | 1 |
