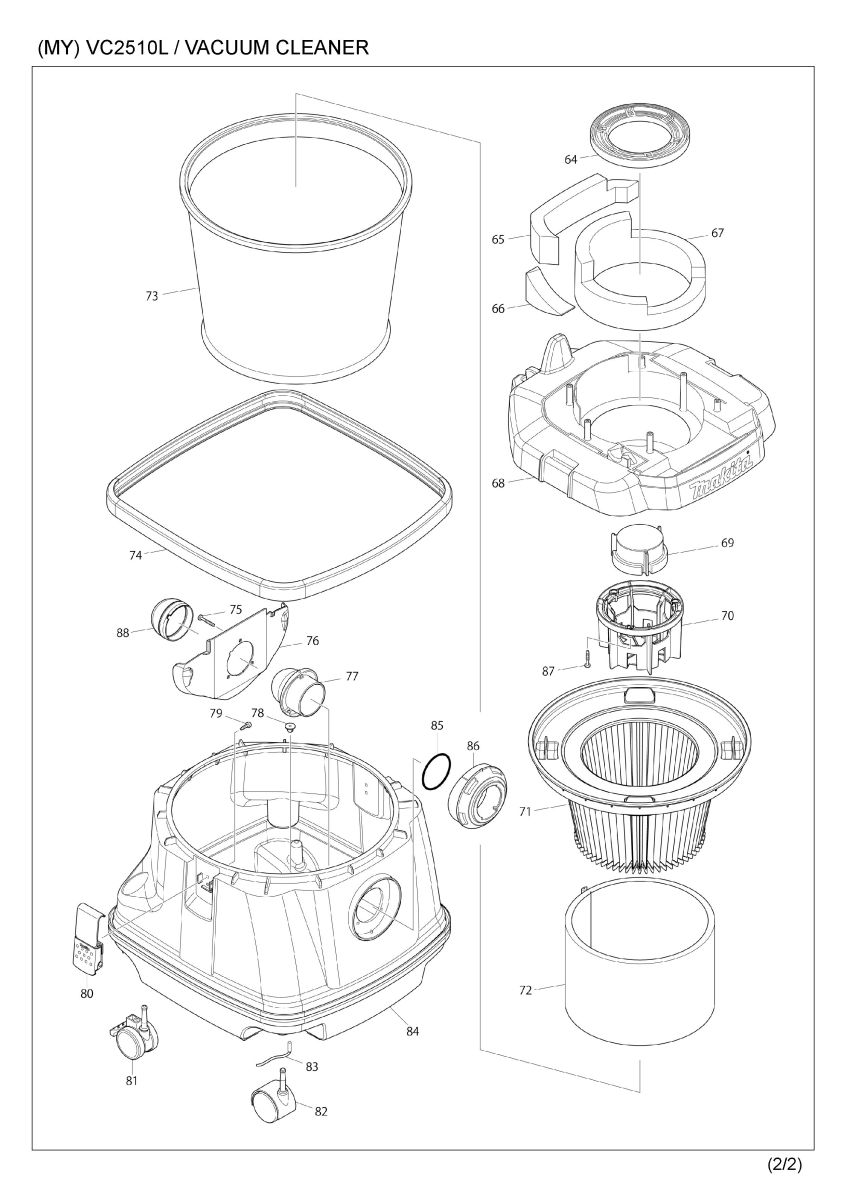

Part Diagram
Total: 103 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 452451-7 | BASE HOOK | 1 | |
| 2 | 266053-1 | TAPPING SCREW 4X35 | 3 | |
| 3 | 140751-4 | COWLING COMPLETE | 1 | |
| 3 | D10 | INC. 4-6 | ||
| 4 | 451340-3 | GRIP | 1 | |
| 5 | 891977-8 | CAUTION LABEL | 1 | |
| 6 | 423393-2 | TOP DAMPER | 1 | |
| 7 | 266060-4 | TAPPING SCREW 4X65 | 3 | |
| 8 | 869050-2 | VC2510L NAME PLATE | 1 | |
| 9 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 10 | 451343-7 | SWITCH HOLDER | 1 | |
| 011-1 | 650659-9 | SWITCH | 1 | |
| 012-1 | 686023-8 | RECEPTACLE SLEEVE | 8 | |
| 13 | 631922-9 | SUB CONTROLLER | 1 | |
| 14 | 961013-5 | STOP RING E-7 | 1 | |
| 15 | 961062-2 | STOP RING E-12 | 1 | |
| 017-1 | 655124-3 | OUTLET | 1 | |
| 017-2 | 655124-3 | OUTLET | 1 | |
| 18 | 685740-7 | RUBBER SHEET | 1 | |
| 19 | 140746-7 | SWITCH BASE COMPLETE | 1 | |
| 19 | D10 | INC. 24 | ||
| 019-1 | 140746-7 | SWITCH BASE COMPLETE | 1 | |
| 019-1 | D10 | INC. 24 | ||
| 24 | 893030-6 | CAUTION LABEL | 1 | |
| 024-1 | 893030-6 | CAUTION LABEL | 1 | |
| 25 | 213054-0 | O RING 9 | 1 | |
| 26 | 451344-5 | SWITCH DIAL | 1 | |
| 27 | 213176-6 | O RING 14 | 1 | |
| 28 | 451342-9 | SWITCH LEVER | 1 | |
| 30 | 266640-6 | +COUNTERSUNK TAPPING SCREW4X25 | 4 | |
| 31 | 620033-5 | CONTROLLER | 1 | |
| 32 | 692450-9 | POWER SUPPLY CORD 1.5-3-5.0 | 1 | |
| 33 | 682575-7 | CORD GUARD 12-90 | 1 | |
| 34 | 265999-8 | TAPPING SCREW 4X25 | 2 | |
| 35 | 687149-9 | STRAIN RELIEF | 1 | |
| 37 | 140254-8 | SEPARATOR COMPLETE | 1 | |
| 37 | D10 | INC. 38 | ||
| 38 | 423395-8 | BOTTOM DAMPER | 1 | |
| 39 | 423279-0 | SEAL RING 70 | 1 | |
| 40 | 451338-0 | MOTOR COVER | 1 | |
| 41 | 241512-6 | FAN 62 | 1 | |
| 42 | 424228-0 | RUBBER RING 120 | 1 | |
| 43 | 125876-5 | MOTOR ASSEMBLY | 1 | |
| 43 | C10 | 213406-5 | O RING 30 | 1 |
| 43 | D10 | INC. 44-50,52,54,55 | ||
| 44 | 911283-6 | PAN HEAD SCREW M5X60 | 2 | |
| 45 | 195483-8 | CARBON BRUSH CB-173 | 1 | |
| 46 | 452106-4 | ENDBELL | 1 | |
| 47 | 643610-6 | BRUSH HOLDER 6.5X13.5 | 2 | |
| 48 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | |
| 49 | 687010-0 | BAND | 1 | |
| 50 | 267715-4 | WAVE WASHER 20 | 1 | |
| 51 | 211092-6 | BALL BEARING 629DDW | 1 | |
| 52 | 517849-6 | ARMATURE ASS'Y 240V | 1 | |
| 52 | D10 | INC. 51,53 | ||
| 53 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 54 | 526204-1 | FIELD ASS'Y 240V | 1 | |
| 54 | C10 | 654304-8 | RECEPTACLE | 2 |
| 055-1 | 454480-6 | BASE | 1 | |
| 56 | 316795-8 | FLANGE | 1 | |
| 57 | 241910-4 | FAN 125 | 1 | |
| 58 | 325747-8 | SPACER | 1 | |
| 59 | 346114-4 | RETURN VANE | 1 | |
| 60 | 241910-4 | FAN 125 | 1 | |
| 61 | 316799-0 | FLAT WASHER 10 | 1 | |
| 62 | 931403-6 | HEX. NUT M8 | 1 | |
| 63 | 346115-2 | FAN COVER | 1 | |
| 64 | 424229-8 | SUPPORT RING | 1 | |
| 65 | 423396-6 | REAR BLOCK FILTER | 1 | |
| 66 | 423399-0 | SIDE BLOCK FILTER | 1 | |
| 67 | 423397-4 | BAND DAMPER | 1 | |
| 68 | 451453-0 | TANK COVER | 1 | |
| 69 | 141019-1 | FLOAT COMPLETE | 1 | |
| 69 | C10 | 423365-7 | SPONGE SEAL 70 | 1 |
| 70 | 452446-0 | FLOAT CAGE | 1 | |
| 71 | 195441-4 | POWDER FILTER SET | 1 | |
| 72 | 424377-3 | DAMPER | 1 | |
| 073-1 | 140280-7 | PRE-FILTER COMPLETE | 1 | |
| 74 | 424250-7 | BUMPER | 1 | |
| 75 | 266257-5 | TAPPING SCREW 4X28 | 3 | |
| 76 | 417190-6 | HOLDER PLATE | 1 | |
| 77 | 451455-6 | HOLDER | 1 | |
| 78 | 421468-1 | CORD SEAL | 1 | |
| 79 | 266192-7 | TAPPING SCREW 4X14 | 4 | |
| 80 | 168537-4 | HOOK | 2 | |
| 81 | 168540-5 | CASTER 50 | 2 | |
| 82 | 168425-5 | CASTER 50 | 2 | |
| 83 | 649150-2 | EARTH LINE 120 | 1 | |
| 84 | 451457-2 | TANK | 1 | |
| 85 | 213655-4 | O RING 56 | 1 | |
| 86 | 451454-8 | INLET | 1 | |
| 87 | 265999-8 | TAPPING SCREW 4X25 | 3 | |
| 88 | 424382-0 | RUBBER HOLDER | 1 | |
| A01-1 | 195433-3 | HOSE COMPLETE 28-3.5 SET | 1 | |
| A01-1 | C20 | 417191-4 | CUFF LOCK | 1 |
| A01-1 | C30 | 417586-1 | STOPPER | 1 |
| A01-1 | C40 | 417662-1 | SLEEVE | 1 |
| A01-1 | C50 | 417766-9 | FRONT CUFF 38 | 1 |
| A01-1 | D10 | INC. A02,A03 | ||
| A02 | 417765-1 | FRONT CUFF 22 | 1 | |
| A03 | 424379-9 | FRONT CUFF 24 | 1 | |
| A04 | 417764-3 | HOLDER 10-33 | 4 | |
| A05 | 195440-6 | POLY BAG SET(800X650) | 1 |
