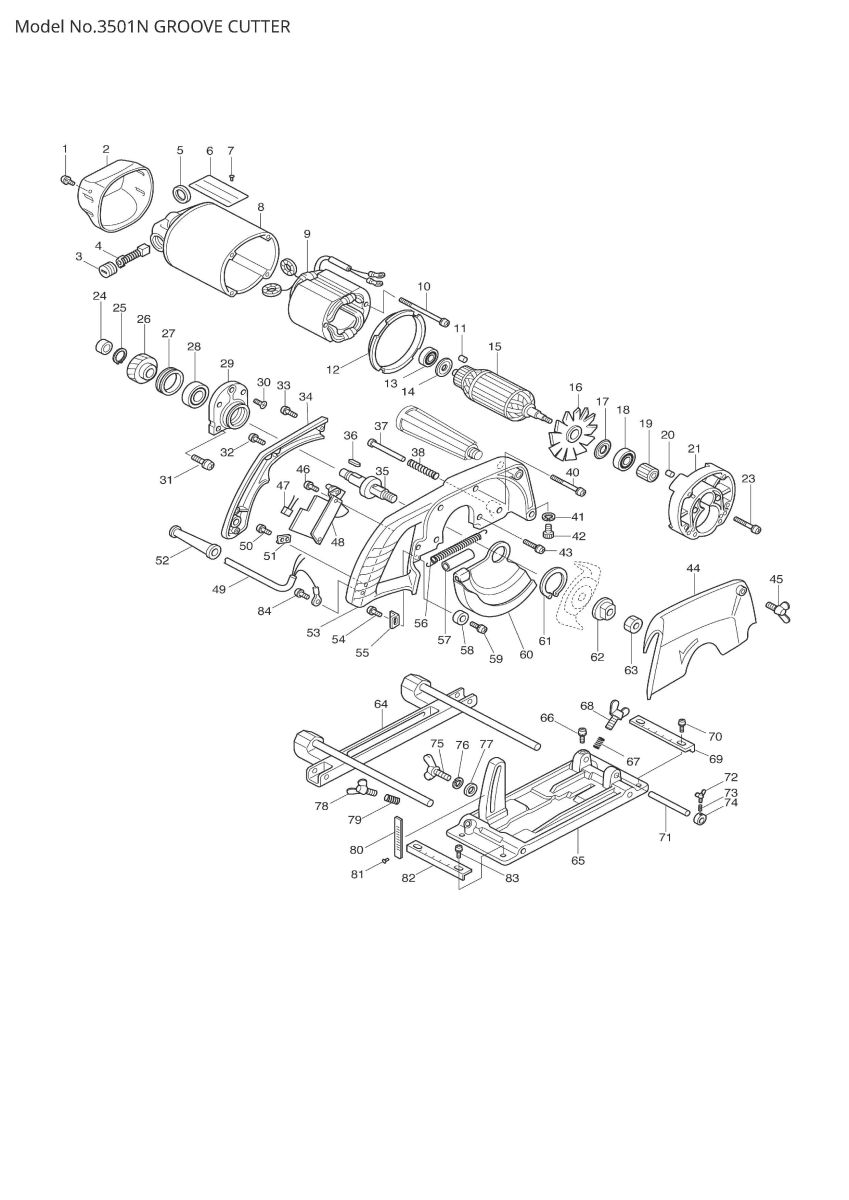

Part Diagram
Total: 126 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 911211-1 | PAN HEAD SCREW M5X12 | 2 | |
| 002 | 284034-3 | REAR COVER | 1 | |
| 002-1 | 284072-5 | REAR COVER | 1 | |
| 003 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 003-1 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 004-2 | 181044-0 | CARBON BRUSH CB-153 | 1 | |
| 004-3 | 194985-1 | CARBON BRUSH SET CB-153 | 1 | |
| 005 | 681002-1 | INSULATION WASHER | 2 | |
| 006-1 | 858576-9 | NAME PLATE 3501N | 1 | |
| 008 | 156150-0 | MOTOR HOUSING | 1 | |
| C10 | 643653-8 | BRUSH HOLDER 6.5-13.5 | 2 | |
| C20 | 913206-0 | SET SCREW M5X8 | 2 | |
| 008 | INC. 11 | |||
| 008-1 | 143400-2 | MOTOR HOUSING COMPLETE | 1 | |
| C10 | 643653-8 | BRUSH HOLDER 6.5-13.5 | 2 | |
| C20 | 913206-0 | SET SCREW M5X8 | 2 | |
| 008-1 | INC. 11 | |||
| 009D_ | 524056-4 | FIELD ASS'Y 230V-250V | 1 | |
| C10 | 654020-2 | RING TERMINAL | 2 | |
| C20 | 654502-4 | CONNECTOR P-2 | 2 | |
| 010-1 | 911938-3 | PAN HEAD SCREW M5X85 | 2 | |
| 011 | 263002-9 | RUBBER PIN 4 | 1 | |
| 012 | 343006-8 | BAFFLE PLATE | 1 | |
| 013 | 211066-7 | BALL BEARING 6200LLB | 1 | |
| 014 | 213051-6 | DUST SEAL 10 | 1 | |
| 015D_ | 514487-5 | ARMATURE ASS'Y 230V-250V | 1 | |
| 015D_ | INC. 13,14,16-18 | |||
| 016-1 | 241513-4 | FAN 92 | 1 | |
| 017 | 213202-1 | DUST SEAL 15 | 1 | |
| 018 | 211206-7 | BALL BEARING 6202LLB | 1 | |
| 019 | 221608-9 | HELICAL GEAR 16 | 1 | |
| 019-1 | 227815-2 | HELICAL GEAR 16 | 1 | |
| 020 | 263005-3 | RUBBER PIN 6 | 1 | |
| 021 | 157027-2 | GEAR HOUSING | 1 | |
| 021 | INC. 20 | |||
| 021-1 | 143401-0 | GEAR HOUSING COMPLETE | 1 | |
| 021-1 | INC. 20 | |||
| 023-1 | 265013-0 | + PAN HEAD SCREW M5X45 | 2 | |
| 024 | 212101-4 | NEEDLE BEARING 1210 | 1 | |
| 025 | 961057-5 | RETAINING RING S-17 | 1 | |
| 026 | 221609-7 | HELICAL GEAR 43 | 1 | |
| 027 | 285810-8 | BEARING RETAINER 29-42 | 1 | |
| 028 | 211256-2 | BALL BEARING 6203LLB | 1 | |
| 029 | 312924-1 | BEARING BOX | 1 | |
| 031 | 911236-5 | PAN HEAD SCREW M5X22 | 4 | |
| 032 | 911151-3 | PAN HEAD SCREW M4X28 | 3 | |
| 033 | 911111-5 | PAN HEAD SCREW M4X10 WITH W | 1 | |
| 034 | 312901-3 | HANDLE COVER | 1 | |
| 034-1 | 316445-5 | HANDLE COVER | 1 | |
| 034-2 | 317392-3 | HANDLE COVER | 1 | |
| 034-3 | 319067-0 | HANDLE COVER | 1 | |
| 035 | 325418-7 | SPINDLE | 1 | |
| 036 | 254206-4 | KEY 4 | 1 | |
| 037 | 325513-3 | STOPPER | 1 | |
| 038 | 231238-8 | COMPRESSION SPRING 8 | 1 | |
| 040-1 | 265012-2 | + PAN HEAD SCREW M5X55 | 2 | |
| 041 | 942101-7 | SPRING WASHER 5 | 1 | |
| 042 | 922202-7 | HEX. SOCKET HEAD BOLT M5X8 | 1 | |
| 043 | 911236-5 | PAN HEAD SCREW M5X22 | 2 | |
| 044 | 312902-1 | CUTTER COVER | 1 | |
| 044-1 | 319065-4 | CUTTER COVER | 1 | |
| 045 | 924336-2 | WING BOLT M6X25 | 1 | |
| 046 | 911106-8 | PAN HEAD SCREW M4X8 | 2 | |
| 048 | 651007-5 | SWITCH NPAHR2-2 | 1 | |
| 048-1 | 651016-4 | SWITCH HPAHR2-2 | 1 | |
| 049C_ | 662372-7 | POWER SUPPLY CORD 1.25-3-5.0 | 1 | |
| 049C1 | 692434-7 | POWER SUPPLY CORD 1.0-3-5.0 | 1 | |
| 050-1 | 911123-8 | PAN HEAD SCREW M4X14 | 2 | |
| 050-2 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | |
| 051C_ | 687600-9 | STRAIN RELIEF | 1 | |
| 051C1 | 687053-2 | STRAIN RELIEF | 1 | |
| 052C_ | 682506-6 | CORD GUARD 12-90 | 1 | |
| 052C1 | 682540-6 | CORD GUARD 9.3-90 | 1 | |
| 052C2 | 682505-8 | CORD GUARD 10-90 | 1 | |
| 053 | 312900-5 | CUTTER CASE | 1 | |
| 053-1 | 316444-7 | CUTTER CASE | 1 | |
| 053-2 | 317277-3 | CUTTER CASE | 1 | |
| 053-3 | 317391-5 | CUTTER CASE | 1 | |
| 053-4 | 319063-8 | CUTTER CASE | 1 | |
| 054 | 911109-2 | PAN HEAD SCREW M4X8 | 1 | |
| 055 | 816005-8 | ARROW PLATE | 1 | |
| 056 | 231735-4 | TENSION SPRING 4 | 1 | |
| 057 | 412032-9 | VINYL TUBE 6.3X7.9X60 | 1 | |
| 058 | 262024-6 | URETHANE RING 8 | 1 | |
| 059 | 251267-5 | + PAN HEAD SCREW M6 | 1 | |
| 060 | 164444-9 | SAFETY COVER | 1 | |
| 061 | 961202-2 | RETAINING RING S-45 | 1 | |
| 062 | 224002-4 | FLANGE 35 | 1 | |
| 063 | 931602-0 | HEX. NUT M12 | 1 | |
| 064 | 164443-1 | GUIDE RULE | 1 | |
| 065-1 | 154274-6 | BASE COMPLETE | 1 | |
| 065-1 | INC. 80 | |||
| 065-2 | 143399-1 | BASE COMPLETE | 1 | |
| 065-2 | INC. 80 | |||
| 066 | 911202-2 | PAN HEAD SCREW M5X8 | 1 | |
| 067 | 231005-1 | COMPRESSION SPRING 7 | 1 | |
| 068 | 924336-2 | WING BOLT M6X25 | 1 | |
| 069-1 | 812051-9 | SCALE PLATE | 1 | |
| 070 | 911109-2 | PAN HEAD SCREW M4X8 | 2 | |
| 071 | 256064-4 | PIN 10 | 1 | |
| 075 | 251854-0 | WING BOLT M8X25 | 1 | |
| 076 | 942201-3 | SPRING WASHER 8 | 1 | |
| 077 | 253022-1 | FLAT WASHER 8 | 1 | |
| 078 | 924326-5 | WING BOLT M6X20 | 1 | |
| 079 | 231005-1 | COMPRESSION SPRING 7 | 1 | |
| 080-1 | 812006-4 | SCALE PLATE | 1 | |
| 082 | 812008-0 | SCALE PLATE | 1 | |
| 083 | 911109-2 | PAN HEAD SCREW M4X8 | 2 | |
| 084 | 652014-1 | PAN HEAD SCREW M4X8 | 1 | |
| 400 | 224106-2 | INNER FLANGE 56 | 1 | |
| 401 | 224051-1 | FLANGE 35 | 1 | |
| 402 | 224003-2 | OUTER FLANGE 56 | 1 | |
| 403 | 792033-6 | COMBINATION SAW BLADE 190 | 1 | |
| 403-1 | A-87507 | T.C.T.SAW BLADE 190X24TX20 | 1 | |
| 404 | 793042-8 | CUTTER BLADE 120-21.0 | 1 | |
| 405 | 161025-0 | GUIDE RULE F/SAW | 1 | |
| 406 | 273404-1 | GRIP 37 | 1 | |
| 407 | 133473-3 | SHIPLAPPING SCALE ASS'Y | 1 | |
| 407 | INC. 408 | |||
| 408 | 911306-0 | PAN HEAD SCREW M6X10 | 2 | |
| 409 | 824002-0 | PLASTIC CASE | 1 | |
| 410 | 783002-8 | (+) SCREWDRIVER 2 | 1 | |
| 411-1 | 781029-2 | WRENCH 21 | 1 | |
| 412 | 781206-6 | WRENCH 19 | 1 | |
| 413 | 794063-3 | DRESSING STONE 100-1200 | 1 | |
| 414-1 | 821082-7 | WOODEN CARRYING CASE | 1 |
