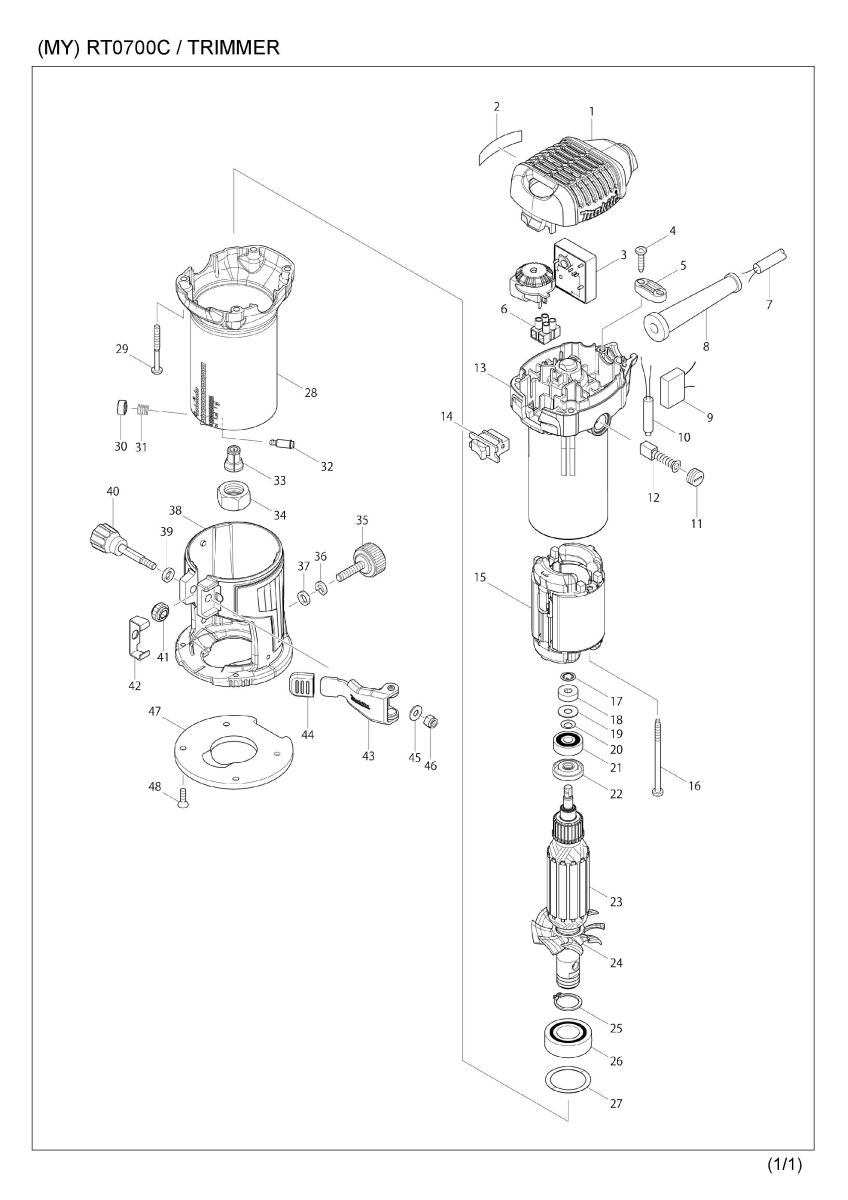

Part Diagram
Total: 114 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 452465-6 | TOP COVER | 1 | |
| 001-1 | 413E90-8 | TOP COVER | 1 | |
| 002 | 869668-9 | RT0700C NAME PLATE | 1 | |
| 003 | 620040-8 | CONTROLLER | 1 | |
| 004 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 005 | 687123-7 | STRAIN RELIEF | 1 | |
| 006 | 654542-2 | TERMINAL BLOCK 2P | 1 | |
| 007 | 692021-2 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 008 | 682569-2 | CORD GUARD 8-85 | 1 | |
| 011 | 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | |
| 012 | 191940-4 | CARBON BRUSH CB-411 | 1 | |
| 013 | 140736-0 | BRACKET COMPLETE | 1 | |
| 013 | C10 | 643455-2 | BRUSH HOLDER 6X9 | 2 |
| 013-1 | 141N79-7 | BRACKET COMPLETE | 1 | |
| 013-1 | C10 | 643455-2 | BRUSH HOLDER 6X9 | 2 |
| 014 | 651527-9 | SWITCH | 1 | |
| 015 | 633769-7 | FIELD 240V | 1 | |
| 015-1 | 593769-8 | FIELD ASS'Y 240V | 1 | |
| 015-1 | C10 | 654100-4 | RING TERMINAL | 1 |
| 015-1 | C20 | 654501-6 | CONNECTOR P-1.25 | 1 |
| 015-1 | C21 | 654485-8 | PARALLEL SPLICE | 1 |
| 016 | 266340-8 | TAPPING SCREW 4X65 | 2 | |
| 017 | 259039-2 | SELF LOCK 6 | 1 | |
| 018 | 688174-3 | MAGNET SLEEVE | 1 | |
| 018-1 | 688117-5 | MAGNET SLEEVE | 1 | |
| 019 | 253332-6 | THIN WASHER 6 | 1 | |
| 020 | 267756-0 | WAVE WASHER 6 | 1 | |
| 021 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 022A | 681668-7 | INSULATION WASHER | 1 | |
| 022-1A | 681668-7 | INSULATION WASHER | 1 | |
| 022-1B | 681668-7 | INSULATION WASHER | 1 | |
| 023 | 515844-0 | ARMATURE ASS'Y 240V | 1 | |
| 023 | D10 | INC. 17-22,24-26 | ||
| 023-1 | 510532-4 | ARMATURE ASS'Y 240V | 1 | |
| 023-1 | D10 | INC. 17-22,24-26 | ||
| 023-2 | 515844-0 | ARMATURE ASS'Y 240V | 1 | |
| 023-2 | D10 | INC. 17-22,24-26 | ||
| 024 | 240125-0 | FAN 55 | 1 | |
| 025 | 961057-5 | RETAINING RING S-17 | 1 | |
| 026 | 210301-0 | BALL BEARING 6003DDW | 1 | |
| 026-1 | 210268-2 | BALL BEARING 6003DDW | 1 | |
| 026-2 | 210301-0 | BALL BEARING 6003DDW | 1 | |
| 027 | 253906-3 | WAVE WASHER 26 | 1 | |
| 028 | 140735-2 | OUTER HOUSING COMPLETE | 1 | |
| 028-1 | 140735-2 | OUTER HOUSING COMPLETE | 1 | |
| 029 | 266560-4 | TAPPING SCREW 4X40 | 4 | |
| 030 | 452468-0 | PUSH BUTTON | 1 | |
| 031 | 233127-3 | COMPRESSION SPRING 7 | 1 | |
| 032 | 256437-1 | PIN 4 | 1 | |
| 033 | 763637-1 | COLLET CONE 1/4" | 1 | |
| 034 | 763615-1 | COLLET NUT | 1 | |
| 035 | 265763-7 | THUMB SCREW M6X25 | 1 | |
| 036 | 942151-2 | SPRING WASHER 6 | 1 | |
| 036-1 | 253428-3 | SPRING WASHER 6 | 1 | |
| 037 | 941151-9 | FLAT WASHER 6 | 1 | |
| 038-1 | 142403-3 | TRIMMER BASE COMPLETE | 1 | |
| 039 | 941151-9 | FLAT WASHER 6 | 1 | |
| 040 | 265792-0 | THUMB SCREW M5X35 | 1 | |
| 041 | 227262-7 | SPUR GEAR 16 | 1 | |
| 042 | 346392-6 | CAM PLATE | 1 | |
| 043 | 163524-8 | LOCK LEVER COMPLETE | 1 | |
| 044 | 424396-9 | RUBBER CAP | 1 | |
| 045 | 941101-4 | FLAT WASHER 5 | 1 | |
| 046 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | |
| 047-1 | 454842-8 | BASE PROTECTOR | 1 | |
| 048 | 912112-6 | COUNTERSUNK HEAD SCREW M4X10 | 4 | |
| A01 | 122965-7 | STRAIGHT GUIDE ASSEMBLY | 1 | |
| A01 | C10 | 252649-4 | THUMB NUT M6 | 1 |
| A01 | C20 | 266339-3 | CAP SQUARE NECK BOLT M6X20 | 1 |
| A01 | C30 | 346382-9 | GUIDE PLATE | 1 |
| A02A | 194733-8 | DUST NOZZLE SET | 1 | |
| A02A | C10 | 213022-3 | O RING 3 | 2 |
| A02A | C20 | 265774-2 | THUMB SCREW M4X19 | 1 |
| A03 | 195559-1 | DUST NOZZLE SET | 1 | |
| A03 | C10 | 265774-2 | THUMB SCREW M4X19 | 1 |
| A04 | 343577-5 | TEMPLET GUIDE 10 | 1 | |
| A05 | 763619-3 | COLLET CONE 3/8" | 1 | |
| A06 | 781011-1 | WRENCH 22 | 1 | |
| A07 | 781039-9 | WRENCH 13 | 1 | |
| A08A | 344364-5 | TEMPLET GUIDE 16 | 1 | |
| A09A | 122703-7 | TRIMMER GUIDE ASS'Y | 1 | |
| A09A | C10 | 251471-6 | - FLAT HEAD SCREW M5 | 1 |
| A09A | C20 | 265135-6 | + COUNTERSUNK HEAD SCREW M4X1 | 1 |
| A09A | C30 | 265763-7 | THUMB SCREW M6X25 | 1 |
| A09A | C40 | 265764-5 | THUMB SCREW M6 | 1 |
| A09A | C50 | 317788-8 | GUIDE HOLDER | 1 |
| A09A | C60 | 324378-0 | ROLLER 11 | 1 |
| A09A | C70 | 341136-9 | HOOK | 1 |
| A09A | C80 | 941151-9 | FLAT WASHER 6 | 1 |
| A10A | 195563-0 | PLUNGE BASE SET | 1 | |
| A10A | D10 | COMPO-PARTS | ||
| A11A | 195561-4 | TILT BASE SET | 1 | |
| A11A | D10 | COMP0-PARTS | ||
| A11-1A | 198985-3 | TILT BASE SET | 1 | |
| A11-2A | 198987-9 | TILT BASE SET | 1 | |
| A12A | 153489-2 | GRIP 36 COMPLETE | 1 | |
| A13A | 195564-8 | GUIDE HOLDER SET | 1 | |
| A13A | C10 | 252649-4 | THUMB NUT M6 | 1 |
| A13A | C20 | 256850-3 | ROD 8 | 2 |
| A13A | C30 | 266339-3 | CAP SQUARE NECK BOLT M6X20 | 1 |
| A14A | 831327-5 | TOOL BAG | 1 | |
| F23 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F24 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F26 | 194416-0 | SHEET 10000 SET | 1 | |
| F27 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F28 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F30-1 | 196664-7 | BEVEL GUIDE SET | 1 | |
| F33 | 194910-2 | POSITION SHEET 1900 SET | 1 | |
| F35 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F38 | 195136-9 | STRAIGHT GUIDE SET | 1 | |
| F39 | 195137-7 | ROD 8 SET | 1 | |
| G19-1 | 196615-0 | TRIMMER BASE SET (12PCS) | 1 | |
| G34 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| G35 | 199141-8 | GUIDE RAIL 1500 SET | 1 |
