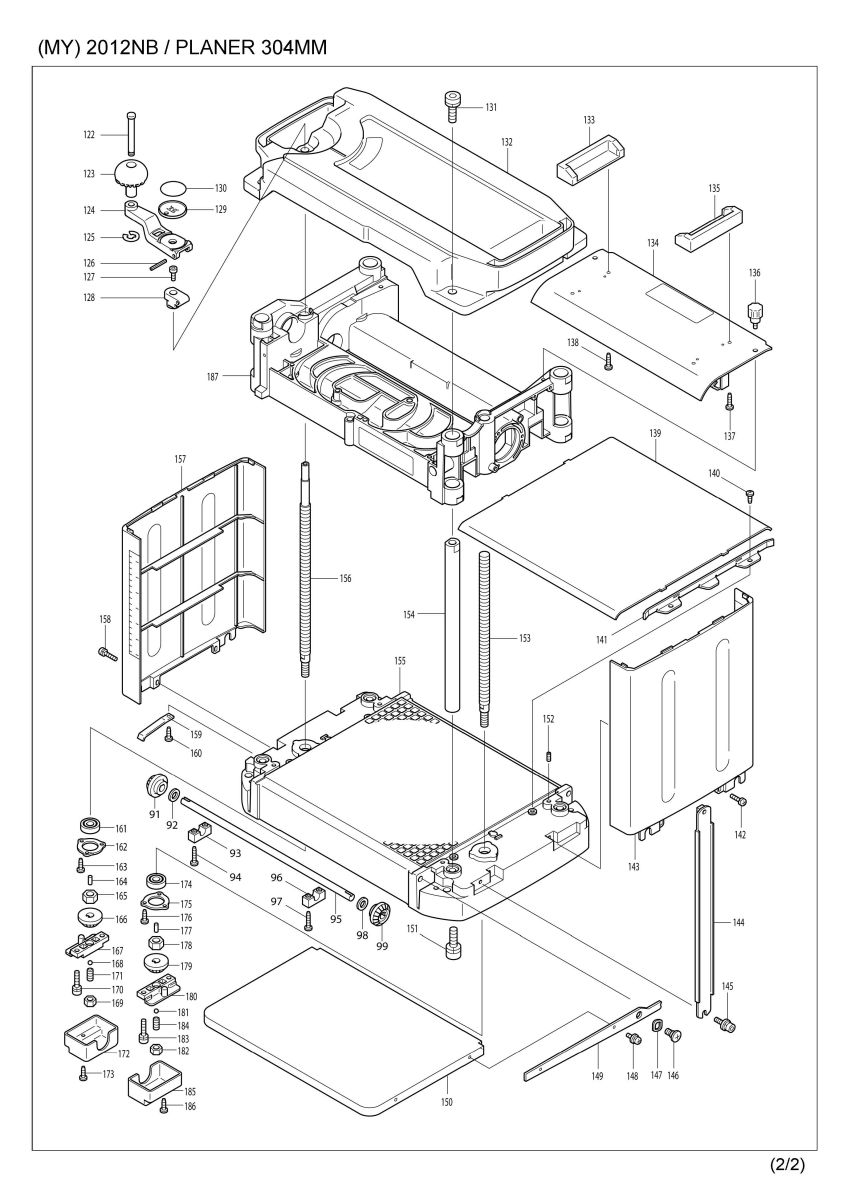

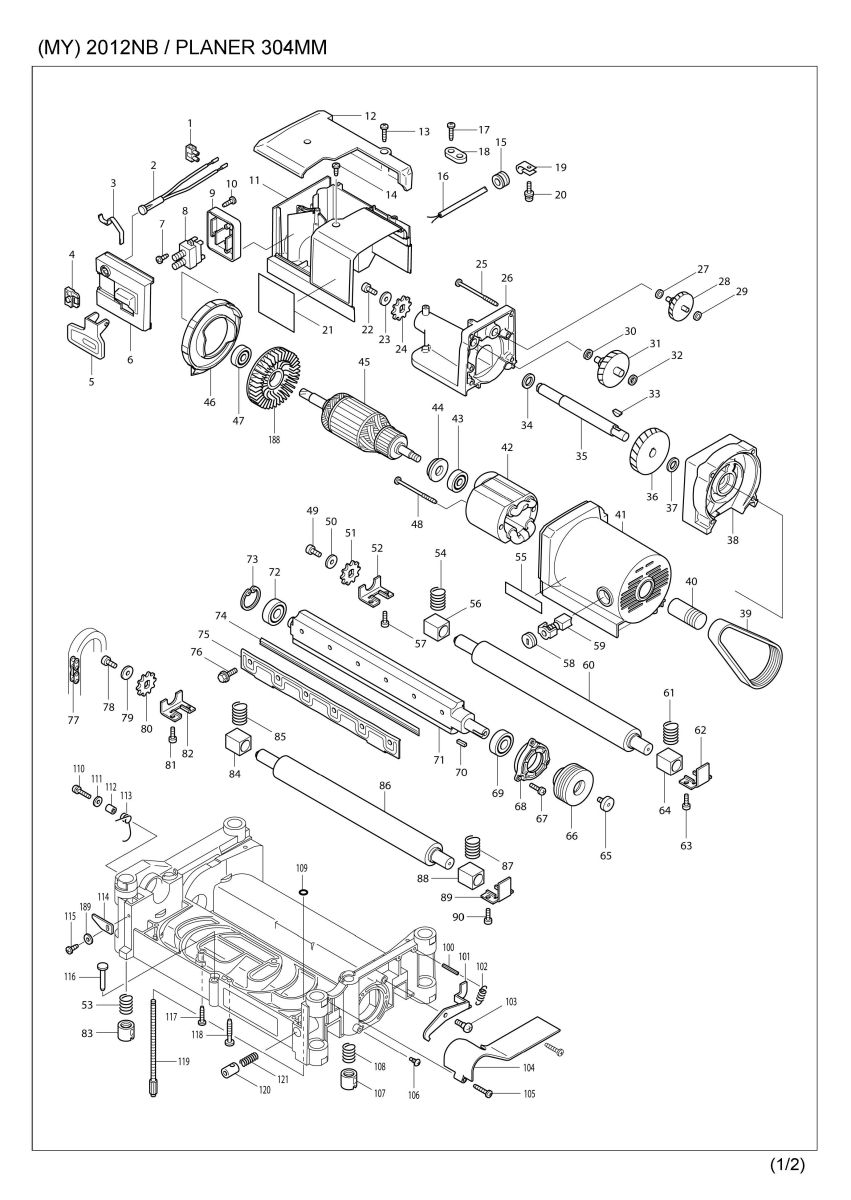

Part Diagram
Total: 220 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 654561-8 | TERMINAL BLOCK | 1 | |
| 002A_ | 631371-0 | PILOT LAMP COMPLETE | 1 | |
| 5 | 417031-6 | SWITCH LEVER | 1 | |
| 6 | 417037-4 | SWITCH COVER | 1 | |
| 7 | 265954-0 | TAPPING SCREW BIND PT3X8 | 2 | |
| 8 | 651510-6 | SWITCH ALA263 | 1 | |
| 008-1 | 651529-5 | SWITCH ELE115AY | 1 | |
| 9 | 417044-7 | SWITCH BASE | 1 | |
| 10 | 266192-7 | TAPPING SCREW 4X14 | 3 | |
| 11 | 417041-3 | SWITCH BOX | 1 | |
| 12 | 417038-2 | SWITCH BOX COVER | 1 | |
| 13 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 14 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | |
| 15 | 682539-1 | GROMMET | 1 | |
| 016G_ | 692527-0 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 17 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 18 | 687052-4 | STRAIN RELIEF | 1 | |
| 018-1 | 687124-5 | STRAIN RELIEF | 1 | |
| 19 | 687042-7 | STRAIN RELIEF | 1 | |
| 20 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | |
| 020-1 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | |
| 21 | 851968-1 | NAME PLATE 2012NB | 1 | |
| 22 | 922317-0 | HEX. SOCKET HEAD BOLT M6X14 | 1 | |
| 022-1 | 922312-0 | HEX. SOCKET HEAD BOLT M6X12 | 1 | |
| 23 | 267080-1 | FLAT WASHER 6 | 1 | |
| 24 | 221525-3 | SPROCKET 10 | 1 | |
| 25 | 266059-9 | TAPPING SCREW 5X75 | 4 | |
| 26 | 151739-9 | GEAR HOUSING COVER COMPLETE | 1 | |
| 26 | C10 | 214014-5 | PLANE BEARING 6 | 1 |
| 26 | C20 | 214022-6 | PLANE BEARING 8 | 1 |
| 26 | C30 | 214156-5 | PLANE BEARING 14 | 1 |
| 26 | C40 | 256041-6 | PIN 6 | 2 |
| 27 | 253715-0 | FLAT WASHER 6 | 1 | |
| 28 | 226134-3 | GEAR COMPLETE 8-50 | 1 | |
| 29 | 253715-0 | FLAT WASHER 6 | 1 | |
| 30 | 253215-0 | FLAT WASHER 8 | 1 | |
| 31 | 226135-1 | GEAR COMPLETE 8-46 | 1 | |
| 32 | 253215-0 | FLAT WASHER 8 | 1 | |
| 33 | 254001-2 | WOODRUFF KEY 4 | 1 | |
| 34 | 253760-5 | FLAT WASHER 14 | 1 | |
| 35 | 323923-8 | DRIVE SHAFT | 1 | |
| 36 | 226518-5 | HELICAL GEAR 47 | 1 | |
| 37 | 253744-3 | FLAT WASHER 12 | 1 | |
| 38 | 151738-1 | GEAR HOUSING COMPLETE | 1 | |
| 38 | C10 | 214014-5 | PLANE BEARING 6 | 1 |
| 38 | C20 | 214022-6 | PLANE BEARING 8 | 1 |
| 38 | C30 | 214109-4 | PLANE BEARING 12 | 1 |
| 39 | 225083-1 | POLY V-BELT 8-341 | 1 | |
| 40 | 222155-3 | V-PULLEY 8-23.5L | 1 | |
| 41 | 151737-3 | MOTOR HOUSING COMPLETE | 1 | |
| 41 | C10 | 643660-1 | BRUSH HOLDER 6.5-13.5 | 2 |
| 41 | C11 | 643653-8 | BRUSH HOLDER 6.5-13.5 | 2 |
| 042B_ | 526104-5 | FIELD ASS'Y 230-240V | 1 | |
| 042B_ | C10 | 654020-2 | RING TERMINAL | 2 |
| 042B_ | C20 | 654502-4 | CONNECTOR P-2 | 2 |
| 43 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 44 | 681623-9 | INSULATION WASHER | 1 | |
| 045B_ | 516813-4 | ARMATURE ASS'Y 220-240V | 1 | |
| 045B_ | D10 | INC. 43,44,47,188 | ||
| 46 | 417033-2 | BAFFLE PLATE | 1 | |
| 47 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 48 | 266059-9 | TAPPING SCREW 5X75 | 2 | |
| 49 | 922317-0 | HEX. SOCKET HEAD BOLT M6X14 | 1 | |
| 049-1 | 922312-0 | HEX. SOCKET HEAD BOLT M6X12 | 1 | |
| 50 | 267080-1 | FLAT WASHER 6 | 1 | |
| 51 | 221525-3 | SPROCKET 10 | 1 | |
| 52 | 343844-8 | METAL COVER (B) | 1 | |
| 53 | 233016-2 | COMPRESSION SPRING 15 | 1 | |
| 54 | 231459-2 | COMPRESSION SPRING 13 | 1 | |
| 56 | 214251-1 | PLANE BEARING 17 | 1 | |
| 57 | 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 2 | |
| 58 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 058-1 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 059A_ | 181044-0 | CARBON BRUSH CB-153 | 1 | |
| 60 | 162216-6 | ROLLER 34-295 | 1 | |
| 61 | 231459-2 | COMPRESSION SPRING 13 | 1 | |
| 62 | 341685-6 | METAL COVER (A) | 1 | |
| 63 | 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 2 | |
| 64 | 214251-1 | PLANE BEARING 17 | 1 | |
| 65 | 265854-4 | HEX. SOCKET HEAD BOLT M6X12 | 1 | |
| 66 | 222154-5 | V-PULLEY 8-54 | 1 | |
| 67 | 911128-8 | P.H.SCREW M4X16 WITH WR | 3 | |
| 68 | 317259-5 | BEARING BOX | 1 | |
| 69 | 211206-7 | BALL BEARING 6202LLB | 1 | |
| 70 | 254204-8 | KEY 4 | 1 | |
| 71 | 323928-8 | DRUM | 1 | |
| 72 | 211206-7 | BALL BEARING 6202LLB | 1 | |
| 73 | 962153-2 | RETAINING RING R-35 | 1 | |
| 74 | 793346-8 | PLANER BLADE 306 | 1 | |
| 75 | 343682-8 | SET PLATE | 2 | |
| 76 | 251609-3 | HEX. FLANGE HEAD BOLT M6X17 | 12 | |
| 77 | 225520-5 | CHAIN 35-46 | 1 | |
| 78 | 922317-0 | HEX. SOCKET HEAD BOLT M6X14 | 1 | |
| 078-1 | 922312-0 | HEX. SOCKET HEAD BOLT M6X12 | 1 | |
| 79 | 267080-1 | FLAT WASHER 6 | 1 | |
| 80 | 221525-3 | SPROCKET 10 | 1 | |
| 81 | 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 2 | |
| 82 | 343844-8 | METAL COVER (B) | 1 | |
| 83 | 252426-4 | NUT M14 | 1 | |
| 84 | 214251-1 | PLANE BEARING 17 | 1 | |
| 85 | 231459-2 | COMPRESSION SPRING 13 | 1 | |
| 86 | 162216-6 | ROLLER 34-295 | 1 | |
| 87 | 231459-2 | COMPRESSION SPRING 13 | 1 | |
| 88 | 214251-1 | PLANE BEARING 17 | 1 | |
| 89 | 341685-6 | METAL COVER (A) | 1 | |
| 90 | 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 2 | |
| 91 | 226786-0 | STRAIGHT BEVEL GEAR 15 | 1 | |
| 92 | 253828-7 | FLAT WASHER 10 | 1 | |
| 93 | 417034-0 | SHAFT RETAINER | 1 | |
| 94 | 266040-0 | TAPPING SCREW CT 4X25 | 2 | |
| 95 | 323926-2 | SHAFT 10 | 1 | |
| 96 | 417034-0 | SHAFT RETAINER | 1 | |
| 97 | 266040-0 | TAPPING SCREW CT 4X25 | 2 | |
| 98 | 253828-7 | FLAT WASHER 10 | 1 | |
| 99 | 226786-0 | STRAIGHT BEVEL GEAR 15 | 1 | |
| 100 | 951122-8 | SPRING PIN 4-28 | 1 | |
| 101 | 344815-8 | LOCK PLATE | 1 | |
| 102 | 231793-0 | TENSION SPRING 5 | 1 | |
| 103 | 251283-7 | + PAN HEAD SCREW M5 | 1 | |
| 104 | 417035-8 | BELT COVER | 1 | |
| 105 | 266040-0 | TAPPING SCREW CT 4X25 | 2 | |
| 106 | 251322-3 | + PAN HEAD SCREW M5X12 | 2 | |
| 107 | 252427-2 | NUT M14L | 1 | |
| 108 | 233016-2 | COMPRESSION SPRING 15 | 1 | |
| 109 | 213009-5 | O RING 4 | 1 | |
| 110 | 911233-1 | PAN HEAD SCREW M5X20 | 1 | |
| 111 | 253194-2 | FLAT WASHER 5 | 1 | |
| 112 | 257600-9 | SLEEVE 6 | 1 | |
| 113 | 231588-1 | TORSION SPRING 9 | 1 | |
| 114 | 344068-9 | POINTER | 1 | |
| 115 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 116 | 322229-1 | GAUGE | 1 | |
| 117 | 266040-0 | TAPPING SCREW CT 4X25 | 2 | |
| 118 | 266173-1 | TAPPING SCREW 5X30 | 2 | |
| 119 | 265736-0 | SCREW M6X135 | 1 | |
| 120 | 323927-0 | HALF NUT | 1 | |
| 121 | 231226-5 | COMPRESSION SPRING 11 | 1 | |
| 122 | 256688-6 | PIN 8 | 1 | |
| 123 | 271296-2 | KNOB 45 | 1 | |
| 124 | 272026-4 | HANDLE 160 | 1 | |
| 124-1 | 272028-0 | HANDLE 160 | 1 | |
| 125 | 961012-7 | STOP RING E-6 | 1 | |
| 126 | 951122-8 | SPRING PIN 4-28 | 1 | |
| 127 | 266086-6 | HEX. SOCKET HEAD BOLT M5X16 | 1 | |
| 128 | 317261-8 | JOINT | 1 | |
| 128-1 | 317760-0 | JOINT | 1 | |
| 129 | 417032-4 | GAUGE | 1 | |
| 130A_ | 816358-5 | SCALE LABEL | 1 | |
| 131 | 266240-2 | HEX. SOCKET HEAD BOLT M10X25 | 4 | |
| 132 | 151920-2 | TOP COVER COMPLETE | 1 | |
| 132 | C10 | 816359-3 | INDICATION LABEL | 1 |
| 132 | C20 | 817737-0 | CAUTION LABEL | 1 |
| 132-1 | 153781-6 | TOP COVER COMPLETE | 1 | |
| 132-1 | C10 | 816359-3 | INDICATION LABEL | 1 |
| 132-1 | C20 | 817737-0 | CAUTION LABEL | 1 |
| 133 | 417036-6 | TOOL BOX HOLDER | 1 | |
| 134 | 165272-5 | CHIP COVER | 1 | |
| 134-1 | 165379-7 | CHIP COVER | 1 | |
| 135 | 417036-6 | TOOL BOX HOLDER | 1 | |
| 136 | 265716-6 | SCREW M5X10 | 2 | |
| 137 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 138 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 139 | 344816-6 | TABLE PLATE | 1 | |
| 140 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 4 | |
| 141 | 344819-0 | GUIDE PLATE | 2 | |
| 142 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 143 | 417040-5 | SIDE COVER | 1 | |
| 144 | 344820-5 | SIDE BEAM | 2 | |
| 145 | 922323-5 | HEX.SOCKET HEAD BOLT M6X16 | 4 | |
| 146 | 251217-0 | + BINDING HEAD SCREW M8 | 4 | |
| 147 | 253932-2 | WAVE WASHER 10 | 4 | |
| 148 | 911108-4 | PAN HEAD SCREW M4X8 | 8 | |
| 149 | 344818-2 | ARM | 4 | |
| 150 | 344817-4 | SUB TABLE PLATE | 2 | |
| 151 | 266240-2 | HEX. SOCKET HEAD BOLT M10X25 | 4 | |
| 152 | 266213-5 | H.S.SET SCREW(FLAT POINT)M5X12 | 4 | |
| 153 | 323925-4 | SCREW L | 1 | |
| 154 | 331562-0 | COLUMN 20 | 4 | |
| 155 | 317266-8 | TABLE | 1 | |
| 155-1 | 317763-4 | TABLE | 1 | |
| 156 | 323924-6 | SCREW R | 1 | |
| 157 | 151886-6 | SIDE COVER COMPLETE | 1 | |
| 157 | C10 | 816354-3 | SCALE LABEL | 1 |
| 158 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 159 | 232195-3 | LEAF SPRING | 2 | |
| 160 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | |
| 161 | 211088-7 | BALL BEARING 6000DDW | 1 | |
| 162 | 285698-6 | BEARING RETAINER 33 | 1 | |
| 163 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 3 | |
| 164 | 256226-4 | PIN 4 | 1 | |
| 165 | 252164-8 | HEX.NUT M10-17 | 1 | |
| 166 | 226791-7 | STRAIGHT BEVEL GEAR 15 | 1 | |
| 167 | 317260-0 | SUPPORTER | 1 | |
| 168 | 216011-7 | STEEL BALL 5.6 | 1 | |
| 169 | 931403-6 | HEX. NUT M8 | 1 | |
| 170 | 922231-0 | HEX. SOCKET HEAD BOLT M5X20 | 2 | |
| 171 | 265846-3 | H.S.SET SCREW(CUP POINT)M8X16 | 1 | |
| 172 | 417030-8 | GEAR COVER | 1 | |
| 173 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 174 | 211088-7 | BALL BEARING 6000DDW | 1 | |
| 175 | 285698-6 | BEARING RETAINER 33 | 1 | |
| 176 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 3 | |
| 177 | 256226-4 | PIN 4 | 1 | |
| 178 | 252164-8 | HEX.NUT M10-17 | 1 | |
| 179 | 226791-7 | STRAIGHT BEVEL GEAR 15 | 1 | |
| 180 | 317260-0 | SUPPORTER | 1 | |
| 181 | 216011-7 | STEEL BALL 5.6 | 1 | |
| 182 | 931403-6 | HEX. NUT M8 | 1 | |
| 183 | 922231-0 | HEX. SOCKET HEAD BOLT M5X20 | 2 | |
| 184 | 265846-3 | H.S.SET SCREW(CUP POINT)M8X16 | 1 | |
| 185 | 417030-8 | GEAR COVER | 1 | |
| 186 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 187A_ | 317265-0 | MAIN FRAME | 1 | |
| 187A1 | 317762-6 | MAIN FRAME | 1 | |
| 188 | 240003-4 | FAN 80 | 1 | |
| 189 | 941051-3 | FLAT WASHER 4 | 1 | |
| A01 | 762014-4 | MAGNETIC HOLDER | 2 | |
| A02 | 782203-5 | SOCKET WRENCH 9 | 1 | |
| A03 | 783208-8 | HEX. WRENCH 2.5 | 1 | |
| A08 | 824002-0 | PLASTIC CASE | 1 |
