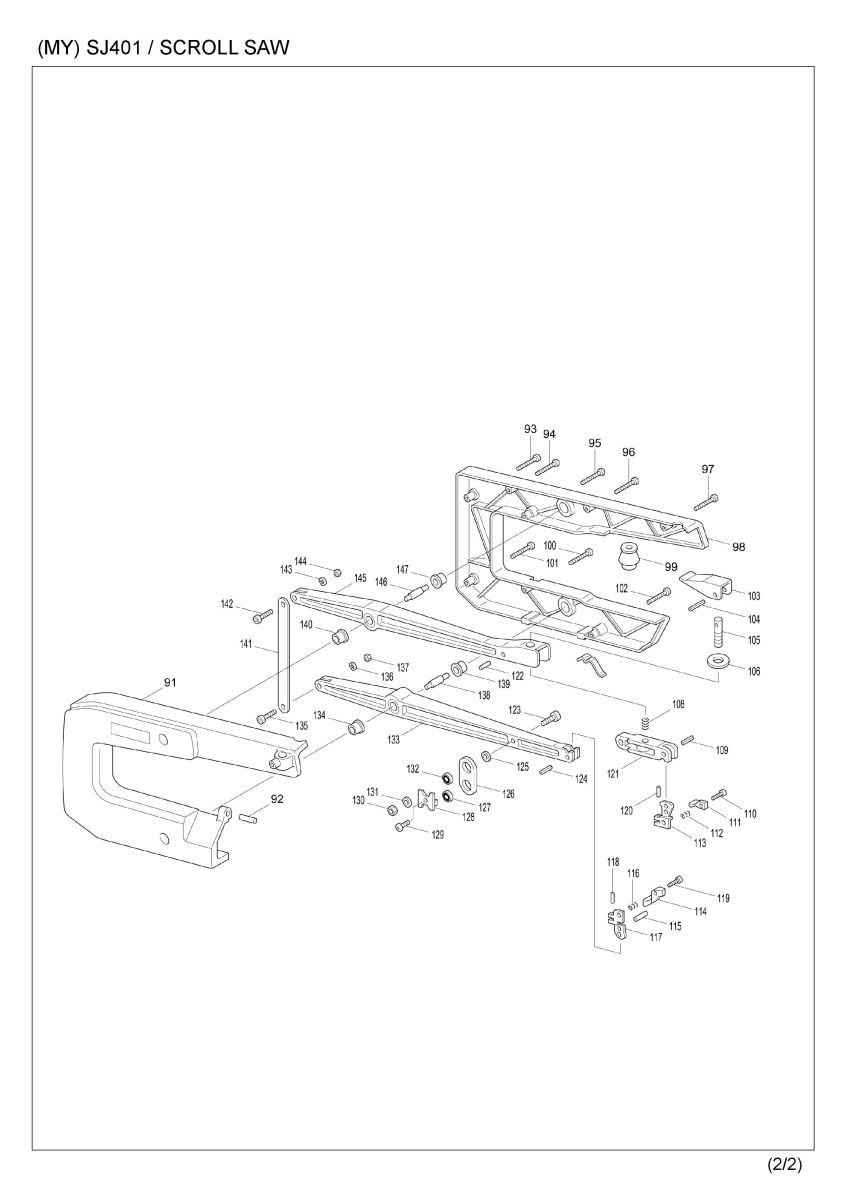

Part Diagram
Total: 148 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 002 | 303209-000 | HOSE | 1 | |
| 003 | 303071-001 | KNOB | 1 | |
| 005 | 021200-001 | SPRING WASHER | 1 | |
| 006 | 021101-027 | FLAT WASHER | 1 | |
| 007 | 020613-001 | HEX.SOCKET BOLT | 1 | |
| 008 | 270310-000 | BLADE SUPPORTER & GUARD | 1 | |
| 009 | 021104-023 | FLAT WASHER | 1 | |
| 010 | 020601-003 | HEX.SOCKET BOLT | 1 | |
| 011 | 290081-000 | DUST BLOWER | 1 | |
| 012 | 021104-023 | FLAT WASHER | 1 | |
| 013 | 020601-003 | HEX.SOCKET BOLT | 1 | |
| 015 | 290079-000 | SUPPORT ROD | 1 | |
| 016 | 026104-001 | PIN SPRINGR | 1 | |
| 017 | 020601-003 | HEX.SOCKET BOLT | 1 | |
| 018 | 021104-023 | FLAT WASHER | 1 | |
| 019 | 270309-000 | HOLD DOWN FOOT | 1 | |
| 020 | 020505-003 | SET SCREW | 1 | |
| 021 | 225070-000 | HOLD DOWN BLOCK | 1 | |
| 022 | 303204-003 | MOTOR REAR COVER | 1 | |
| 022 | C10 | 303205-001 | BRUSH HOLDER | 2 |
| 023 | 050007-000 | BEARING | 1 | |
| 024 | 900312-000 | FIELD ASS'Y WITH MOTOR HOUSING | 1 | |
| 027 | 375009-001 | CARBON BRUSH | 2 | |
| 028 | 303000-001 | BRUSH HOLDER CAP | 2 | |
| 029 | 224053-000 | TABLE | 1 | |
| 030 | 021402-001 | WAVE WASHER | 1 | |
| 031 | 020614-001 | SOCKET HEAD SCREW | 1 | |
| 032 | 270311-000 | TILT BRACKET | 1 | |
| 033 | 021101-025 | FLAT WASHER | 1 | |
| 035 | 900403-000 | LOCK HANDLE ASS'Y | 1 | |
| 038 | 080181-001 | POWER CORD | 1 | |
| 039 | 020219-001 | SCREW | 3 | |
| 040 | 880084-000 | ARMATURE ASS'Y WITH BEARINGS | 1 | |
| 040 | D10 | INC. 23,41 | ||
| 041 | 050015-100 | BEARING | 1 | |
| 042 | 225083-000 | MOTOR FRONT COVER | 1 | |
| 043 | 240051-000 | BASE | 1 | |
| 044 | 020103-015 | SCREW | 1 | |
| 045 | 913002-000 | BUSHING | 1 | |
| 046 | 913002-000 | BUSHING | 1 | |
| 047 | 020103-015 | SCREW | 1 | |
| 048 | 270248-000 | BUSHING SET COVER | 1 | |
| 049 | 302043-003 | SWITCH CASE | 1 | |
| 050 | 020103-015 | SCREW | 1 | |
| 053 | 863305-006 | INDICATION LABEL | 1 | |
| 054 | 022804-000 | NUT | 1 | |
| 055 | 290080-000 | LOCK POST | 1 | |
| 056 | 020228-001 | SCREW | 1 | |
| 057 | 303259-001 | SWITCH COVER | 1 | |
| 058 | 021308-001 | EXT.TOOTH WASHER | 1 | |
| 059 | 020103-015 | SCREW | 1 | |
| 060 | 022301-001 | NUT | 1 | |
| 061 | 020103-015 | SCREW | 1 | |
| 062 | 020103-015 | SCREW | 1 | |
| 063 | 020228-001 | SCREW | 1 | |
| 065 | 303207-000 | CONTROL KNOB | 1 | |
| 067 | 370021-000 | SWITCH,WASHER & NUT | 1 | |
| 068 | 020726-001 | PAN HEAD SCREW | 1 | |
| 069 | 270249-000 | POINTER | 1 | |
| 069-1 | 303242-000 | POINTER | 1 | |
| 071 | 021306-001 | LOCK WASHER | 1 | |
| 073 | 020103-015 | SCREW | 2 | |
| 074 | 021306-001 | LOCK WASHER | 1 | |
| 075 | 020720-003 | SCREW & WASHER | 2 | |
| 076 | 020720-003 | SCREW & WASHER | 2 | |
| 077 | 240042-000 | COUNTERWEIGHT | 1 | |
| 078 | 060047-000 | SPACER | 1 | |
| 079 | 020508-001 | SET SCREW | 1 | |
| 080 | 020723-007 | SCREW & WASHER | 3 | |
| 081 | 270308-000 | PLATE COVER | 1 | |
| 082 | 020106-013 | SCREW | 1 | |
| 083 | 024201-001 | PULL NAIL | 1 | |
| 084 | 024201-001 | PULL NAIL | 1 | |
| 085 | 303202-000 | BLADE STORAGE CASE | 1 | |
| 086 | 020106-013 | SCREW | 1 | |
| 087 | 020200-017 | SCREW | 2 | |
| 088 | 020200-017 | SCREW | 2 | |
| 089 | 900782-008 | BOARD COVER ASSY (220V) | 1 | |
| 090 | 900625-006 | CONTROL BOARD ASS'Y (240V) | 1 | |
| 091 | 225112-000 | ARM COVER(LEFT) | 1 | |
| 091-1 | 900570-000 | ARM COVER SET | 1 | |
| 092 | 026202-007 | PIN | 1 | |
| 093 | 020702-001 | COVER SET SCREW | 1 | |
| 094 | 020702-001 | COVER SET SCREW | 1 | |
| 095 | 020702-001 | COVER SET SCREW | 1 | |
| 096 | 020702-001 | COVER SET SCREW | 1 | |
| 097 | 020702-001 | COVER SET SCREW | 1 | |
| 098 | 225111-000 | ARM COVER(RIGHT) | 1 | |
| 099 | 330026-000 | AIR DIAPHRAGM | 1 | |
| 100 | 020702-001 | COVER SET SCREW | 1 | |
| 101 | 020702-001 | COVER SET SCREW | 1 | |
| 102 | 020702-001 | COVER SET SCREW | 1 | |
| 103 | 225069-000 | BLADE TENSION LEVER | 1 | |
| 104 | 026104-009 | PIN | 1 | |
| 105 | 290078-000 | TENSION ADJUSTING BOLT | 1 | |
| 106 | 021100-011 | FLAT WASHER | 1 | |
| 108 | 029141-001 | SPRING | 1 | |
| 109 | 026103-015 | ROLL PIN | 1 | |
| 110 | 020608-003 | HEX.SOCKET BOLT | 1 | |
| 111 | 250006-000 | UPPER BLADE NUT | 1 | |
| 112 | 029144-001 | COMPRESSION SPRING | 1 | |
| 113 | 250005-000 | UPPER BLADE HOLDER | 1 | |
| 114 | 250004-000 | LOWER BLADE NUT | 1 | |
| 115 | 026103-015 | ROLL PIN | 1 | |
| 116 | 029144-001 | COMPRESSION SPRING | 1 | |
| 117 | 250003-000 | LOWER BLADE HOLDER | 1 | |
| 118 | 026107-001 | PIN | 1 | |
| 119 | 020608-003 | HEX.SOCKET BOLT | 1 | |
| 120 | 026107-001 | PIN | 1 | |
| 121 | 225073-000 | BLADE SUPPORT | 1 | |
| 122 | 026102-007 | PIN | 1 | |
| 123 | 020600-001 | HEX. SOCKET BOLT | 1 | |
| 124 | 026103-015 | ROLL PIN | 1 | |
| 125 | 060052-000 | SPACER | 1 | |
| 126 | 303201-000 | ARM LINK | 1 | |
| 127 | 050012-000 | BEARING | 1 | |
| 128 | 270252-000 | BEARING FENCE | 1 | |
| 129 | 020200-015 | SCREW | 1 | |
| 130 | 022101-001 | NUT | 1 | |
| 131 | 021101-027 | FLAT WASHER | 1 | |
| 132 | 050012-000 | BEARING | 1 | |
| 133 | 224042-000 | LOWER ARM | 1 | |
| 134 | 053014-000 | BEARING FLANGE | 1 | |
| 135 | 028935-001 | SET SCREW | 1 | |
| 136 | 021202-003 | SPRING WASHER | 1 | |
| 137 | 022101-001 | NUT | 1 | |
| 138 | 290077-000 | ARM PIN | 1 | |
| 139 | 053014-000 | BEARING FLANGE | 1 | |
| 140 | 053014-000 | BEARING FLANGE | 1 | |
| 141 | 270251-000 | CONNECTOR | 1 | |
| 142 | 028935-001 | SET SCREW | 1 | |
| 143 | 021202-003 | SPRING WASHER | 1 | |
| 144 | 022101-001 | NUT | 1 | |
| 145 | 224041-000 | UPPER ARM | 1 | |
| 146 | 290077-000 | ARM PIN | 1 | |
| 147 | 053014-000 | BEARING FLANGE | 1 | |
| 148 | 914019-000 | SPONGE | 1 | |
| 149 | 020127-003 | SCREW | 2 | |
| 150 | 090042-000 | SWITCH | 1 | |
| 151 | 020216-005 | SCREW | 2 | |
| 152 | 990026-004 | MOTOR | 1 | |
| 152 | D10 | INC. 22-24,27,28,40-42,149 | ||
| 152 | D11 | INC. 22-24,27,28,40-42,149,153 | ||
| 153 | 303205-001 | BRUSH HOLDER | 2 | |
| 154 | 021410-001 | WASHER | 1 | |
| A02 | 040026-001 | BLADE CHANGING ROD | 1 | |
| A03 | 040005-003 | HEX WRENCH "L" M3 | 1 | |
| A04 | 040006-001 | HEX WRENCH "L" M4 | 1 |
