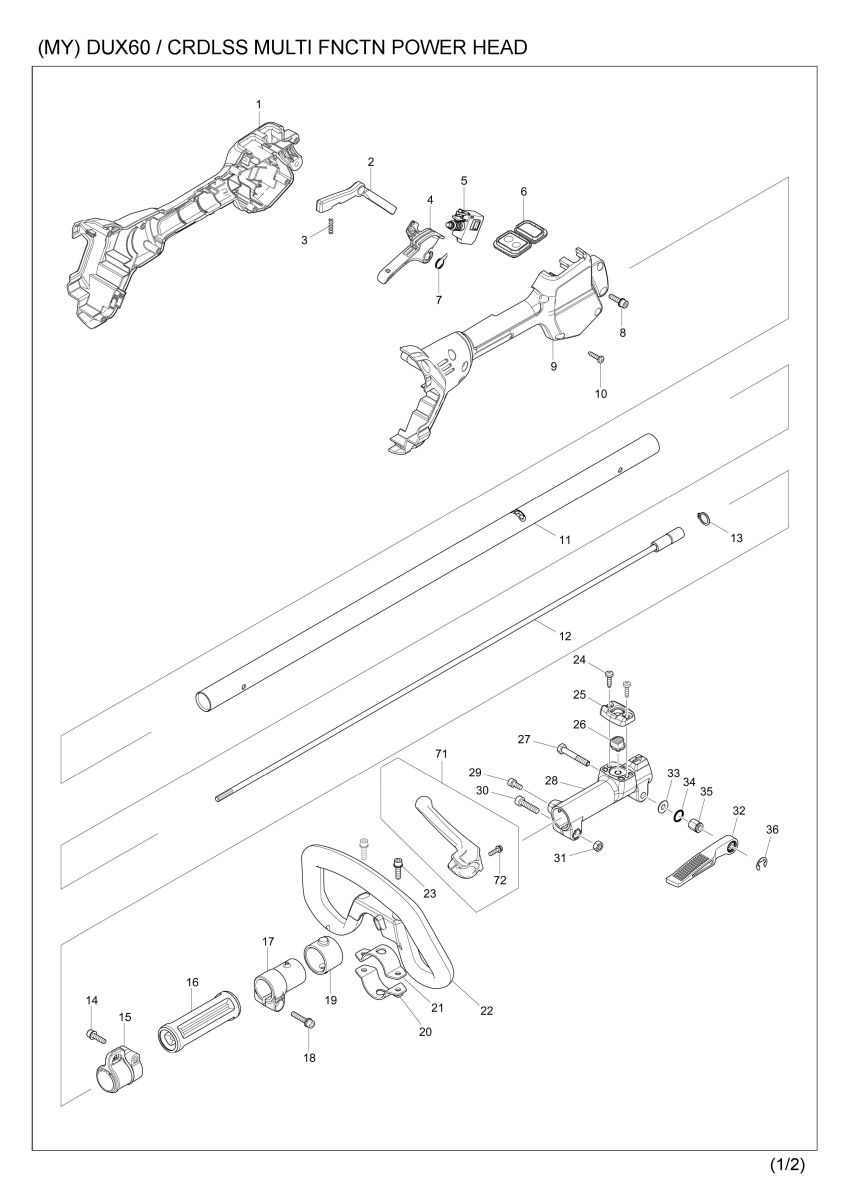

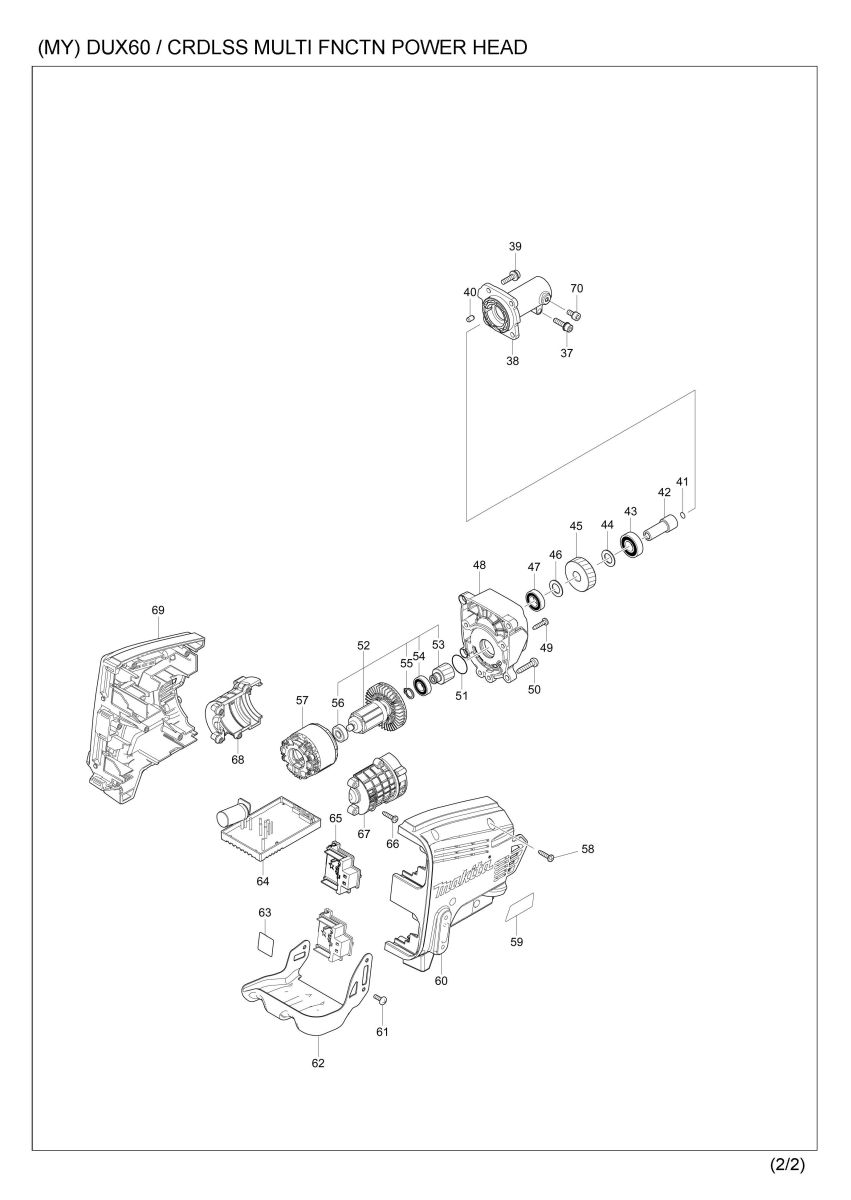

Part Diagram
Total: 116 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183G31-7 | GRIP SET | ||
| 1 | C10 | 931202-6 | HEX. NUT M5 | |
| 1 | D10 | INC. 9 | ||
| 2 | 457773-0 | LOCK OFF LEVER | ||
| 3 | 233101-1 | COMPRESSION SPRING 4 | ||
| 4 | 457771-4 | SWITCH LEVER | ||
| 5 | 650709-0 | SWITCH C3JW-1A-P | ||
| 6 | 144570-0 | SUB CONTROLLER COMPLETE | ||
| 006-1 | 141J14-1 | SUB CONTROLLER COMPLETE | ||
| 7 | 233540-5 | TORSION SPRING 11 | ||
| 8 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | ||
| 9 | 183G31-7 | GRIP SET | ||
| 9 | C10 | 931202-6 | HEX. NUT M5 | |
| 9 | D10 | INC. 1 | ||
| 10 | 266326-2 | TAPPING SCREW 4X18 | ||
| 11 | 141500-2 | SHAFT PIPE B COMPLETE | ||
| 11 | C10 | 808723-2 | CAUTION LABEL | |
| 12 | 141238-9 | SHAFT B COMPLETE | ||
| 13 | 961052-5 | RETAINING RING (EXT) S-12 | ||
| 14 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | ||
| 15 | 168478-4 | HANGER | ||
| 15 | C10 | 931202-6 | HEX. NUT M5 | |
| 16 | 451601-1 | SPACER 24 | ||
| 17 | 457269-1 | PIPE HOLDER 24 | ||
| 18 | 922244-1 | H.S.H.BOLT M5X25 WITH WG | ||
| 19 | 424942-8 | DAMPER | ||
| 20 | 347114-7 | LOWER CLAMP 35 | ||
| 21 | 347113-9 | UPPER CLAMP 35 | ||
| 22 | 457772-2 | LOOP HANDLE | ||
| 22 | C10 | 263005-3 | RUBBER PIN 6 | |
| 23 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | ||
| 24 | 266034-5 | TAPPING SCREW CT 4X16 | ||
| 25 | 452840-6 | RELEASE BUTTON COVER | ||
| 26 | 452839-1 | RELEASE BUTTON | ||
| 27 | 265596-0 | HEX.BOLT M6X40 | ||
| 28 | 318750-6 | JOINT 24 | ||
| 028-1 | 312D49-5 | JOINT24 | ||
| 29 | 922211-6 | H.S.H.BOLT M5X12 WITH W | ||
| 30 | 922342-1 | HEX. SOCKET HEAD BOLT M6X25 | ||
| 31 | 931302-2 | HEX. NUT M6 | ||
| 32 | 272268-0 | LEVER 94 | ||
| 33 | 253332-6 | THIN WASHER 6 | ||
| 34 | 213105-9 | O RING 11 | ||
| 35 | 252159-1 | HEX. NUT M6 | ||
| 36 | 961014-3 | STOP RING E-8 | ||
| 37 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | ||
| 38 | 319609-0 | PIPE BRACKET | ||
| 038-1 | 319919-5 | PIPE BRACKET | ||
| 39 | 911233-1 | PAN HEAD SCREW M5X20 | ||
| 40 | 263002-9 | RUBBER PIN 4 | ||
| 41 | 213045-1 | O-RING 6 | ||
| 42 | 325811-5 | SPINDLE HUB | ||
| 43 | 211148-5 | BALL BEARING 6001ZZ | ||
| 44 | 253744-3 | FLAT WASHER 12 | ||
| 45 | 227720-3 | HELICAL GEAR 33 | ||
| 46 | 253744-3 | FLAT WASHER 12 | ||
| 47 | 211150-8 | BALL BEARING 6901ZZ | ||
| 047-1 | 210260-8 | BALL BEARING 6901ZZ | ||
| 48 | 319608-2 | GEAR BOX | ||
| 49 | 266326-2 | TAPPING SCREW 4X18 | ||
| 50 | 266041-8 | TAPPING SCREW 5X25 | ||
| 51 | 213961-7 | O RING 22 | ||
| 52 | 519447-2 | ROTOR ASS'Y | ||
| 52 | D10 | INC. 53-56 | ||
| 052-1 | 510506-5 | ROTOR ASS'Y | ||
| 052-1 | D10 | INC. 53-56 | ||
| 53 | 227721-1 | HELICAL GEAR 16 | ||
| 54 | 210069-8 | BALL BEARING 6900DDW | ||
| 054-1 | 210258-5 | BALL BEARING 6900DDW | ||
| 55 | 961006-2 | RETAINING RING S-10 | ||
| 56 | 210062-2 | BALL BEARING 607ZZ | ||
| 056-1 | 210269-0 | BALL BEARING 607ZZ | ||
| 57 | 629269-3 | STATOR | ||
| 057-1 | 629C03-9 | STATOR | ||
| 58 | 266326-2 | TAPPING SCREW 4X18 | ||
| 59 | 853S61-1 | DUX60 NAME PLATE | ||
| 60 | 183G29-4 | HOUSING SET | ||
| 60 | C10 | 263005-3 | RUBBER PIN 6 | |
| 60 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | |
| 60 | D10 | INC. 69 | ||
| 61 | 251314-2 | + SCREW M4X12 | ||
| 62 | 346858-6 | BATTERY GUARD | ||
| 63 | 853S66-1 | DUX60 SERIAL NO. LABEL | ||
| 64 | 620677-1 | CONTROLLER | ||
| 064-1 | 620A24-2 | CONTROLLER | ||
| 064-2 | 620A24-2 | CONTROLLER | ||
| 064-3 | 620L73-5 | CONTROLLER | ||
| 65 | 644809-6 | TERMINAL | ||
| 66 | 266326-2 | TAPPING SCREW 4X18 | ||
| 67 | 183G30-9 | MOTOR HOUSING SET | ||
| 67 | D10 | INC. 68 | ||
| 68 | 183G30-9 | MOTOR HOUSING SET | ||
| 68 | D10 | INC. 67 | ||
| 69 | 183G29-4 | HOUSING SET | ||
| 69 | C10 | 263005-3 | RUBBER PIN 6 | |
| 69 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | |
| 69 | D10 | INC. 60 | ||
| 70 | 922211-6 | H.S.H.BOLT M5X12 WITH W | ||
| 71 | 144315-6 | BARRIER COMPLETE | ||
| 71 | D10 | INC. 72 | ||
| 72 | 911128-8 | P.H.SCREW M4X16 WITH WR | ||
| 73 | 620K74-7 | CONTROLLER B | ||
| 74 | 652119-7 | PAN HEAD SCREW M2X6 | ||
| A01 | 125516-5 | BAND ASSEMBLY | ||
| A02 | 783202-0 | HEX. WRENCH 4 | ||
| A04 | 831304-7 | ACCESSORY BAG | ||
| A05B | 782210-8 | SOCKET WRENCH 17 | ||
| A05-1B | 782238-6 | BOX WRENCH 17 | ||
| A07B | 451252-0 | TOOL COVER | ||
| A08B | 195298-3 | CUTTER BLADE SET | ||
| A09B | ***EM403MP | BRUSH CUTTER ATTACHMENT | ||
| A09B | D10 | INC. A05,A06 | ||
| A09B | D11 | INC. A05 | ||
| A10B | 195638-5 | TOOL BAG SET | ||
| F47 | 1915D8-4 | TRIMMER HEAD ASSEMBLY 98-M10L | ||
| F48 | 1914R8-6 | TRIMMER HEAD ASSEMBLY 98-M10L |
