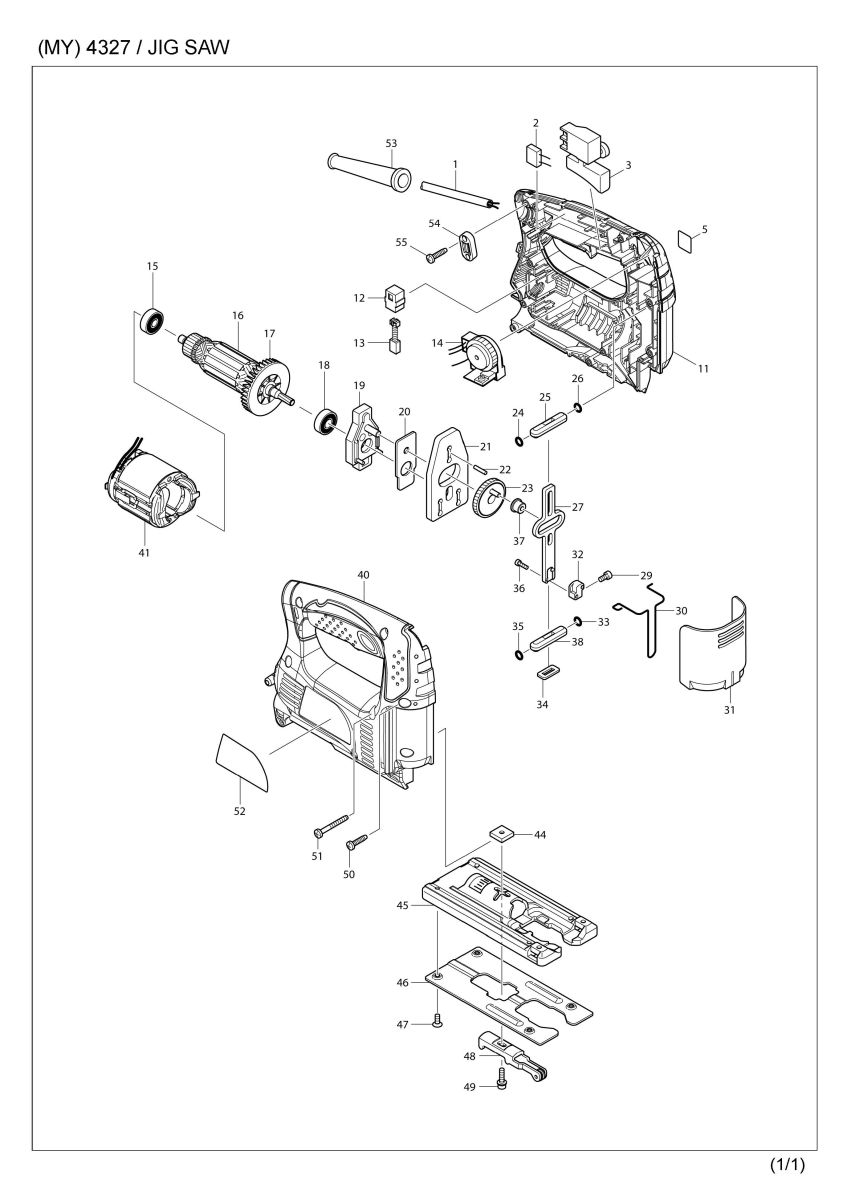

Part Diagram
Total: 62 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 692006-8 | POWER SUPPLY CORD 1.0-2-2.0 | 1 | |
| 3 | 651286-5 | SWITCH SGEL206C-5 | 1 | |
| 003-1 | 651286-5 | SWITCH SGEL206C-5 | 1 | |
| 11 | 188342-3 | HOUSING SET | 1 | |
| 11 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| 11 | D10 | INC. 40 | ||
| 012-1 | 643552-4 | BRUSH HOLDER 5-8 | 2 | |
| 13 | 191627-8 | CARBON BRUSH CB-64 | 1 | |
| 013-1 | 194968-1 | CARBON BRUSH SET CB-64 | 1 | |
| 14 | 631777-2 | CONTROLLER | 1 | |
| 014-1 | 620411-9 | CONTROLLER | 1 | |
| 15 | 210025-8 | BALL BEARING 627LLB | 1 | |
| 16 | 515719-3 | ARMATURE ASS'Y 240V | 1 | |
| 16 | D10 | INC. 15,17,18 | ||
| 17 | 241881-5 | FAN 52 | 1 | |
| 18 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 19 | 152577-2 | BEARING CASE COMPLETE | 1 | |
| 20 | 344615-6 | THRUST PLATE | 1 | |
| 21 | 344614-8 | BALANCE PLATE | 1 | |
| 22 | 256254-9 | PIN 3 | 1 | |
| 23 | 153254-9 | GEAR COMPLETE | 1 | |
| 24 | 213038-8 | O RING 5 | 1 | |
| 25 | 313082-6 | SLIDER GUIDE | 1 | |
| 26 | 213038-8 | O RING 5 | 1 | |
| 27 | 344613-0 | SLIDER | 1 | |
| 29 | 922107-1 | HEX. SOCKET HEAD BOLT M4X8 | 1 | |
| 30 | 323748-0 | SAFETY WIRE | 1 | |
| 31 | 416476-5 | DUST COVER | 1 | |
| 32 | 313140-8 | BLADE CLAMP | 1 | |
| 33 | 213038-8 | O RING 5 | 1 | |
| 34 | 423307-1 | POLYURETHANE SPONGE SEAL | 1 | |
| 35 | 213038-8 | O RING 5 | 1 | |
| 36 | 266177-3 | HEX. SOCKET HEAD BOLT M3X10 | 2 | |
| 37 | 257683-9 | COLLAR SLEEVE | 1 | |
| 38 | 313082-6 | SLIDER GUIDE | 1 | |
| 40 | 188342-3 | HOUSING SET | 1 | |
| 40 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| 40 | D10 | INC. 11 | ||
| 41 | 633658-6 | FIELD 220-240V | 1 | |
| 44 | 343540-8 | HOLDER | 1 | |
| 45 | 163397-9 | BASE | 1 | |
| 48 | 158393-0 | RETAINER COMPLETE | 1 | |
| 49 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 1 | |
| 50 | 265995-6 | TAPPING SCREW 4X18 | 9 | |
| 51 | 266053-1 | TAPPING SCREW 4X35 | 1 | |
| 52 | 863950-8 | 4327 NAME PLATE | 1 | |
| 53 | 682569-2 | CORD GUARD 8-85 | 1 | |
| 54 | 687123-7 | STRAIN RELIEF | 1 | |
| 55 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| A01-1 | A-85628 | JIGSAW BLADE NO.B10 | 1 | |
| A02 | 783201-2 | HEX. WRENCH 3 | 1 | |
| F01 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| F03 | 192557-6 | ANTI-SPLITERING DEVICE | 1 | |
| F04 | 199141-8 | GUIDE RAIL 1500 SET | 1 | |
| F05 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F06 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F07 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F08 | 194416-0 | SHEET 10000 SET | 1 | |
| F09 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F10 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F11 | 194910-2 | POSITION SHEET 1900 SET | 1 | |
| F15 | 198704-7 | GUIDE RAIL ADAPTER SET | 1 |
