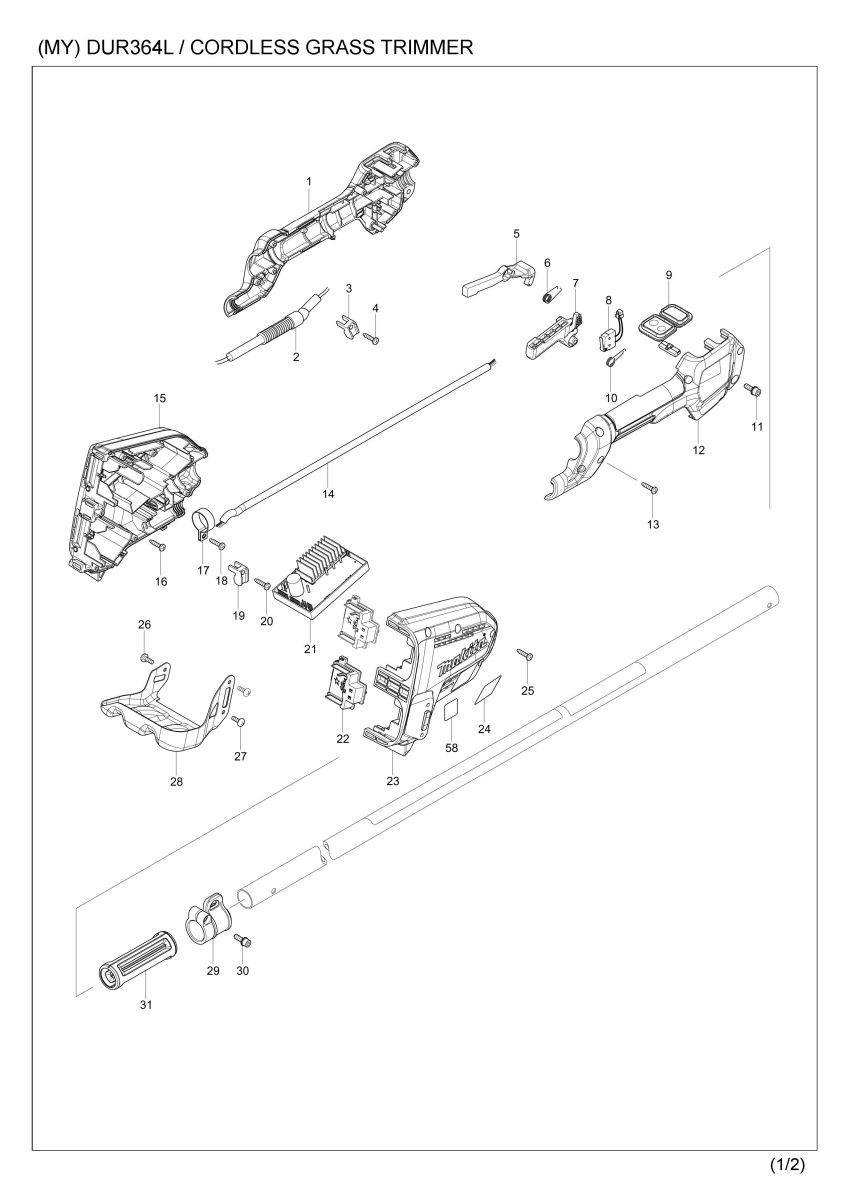

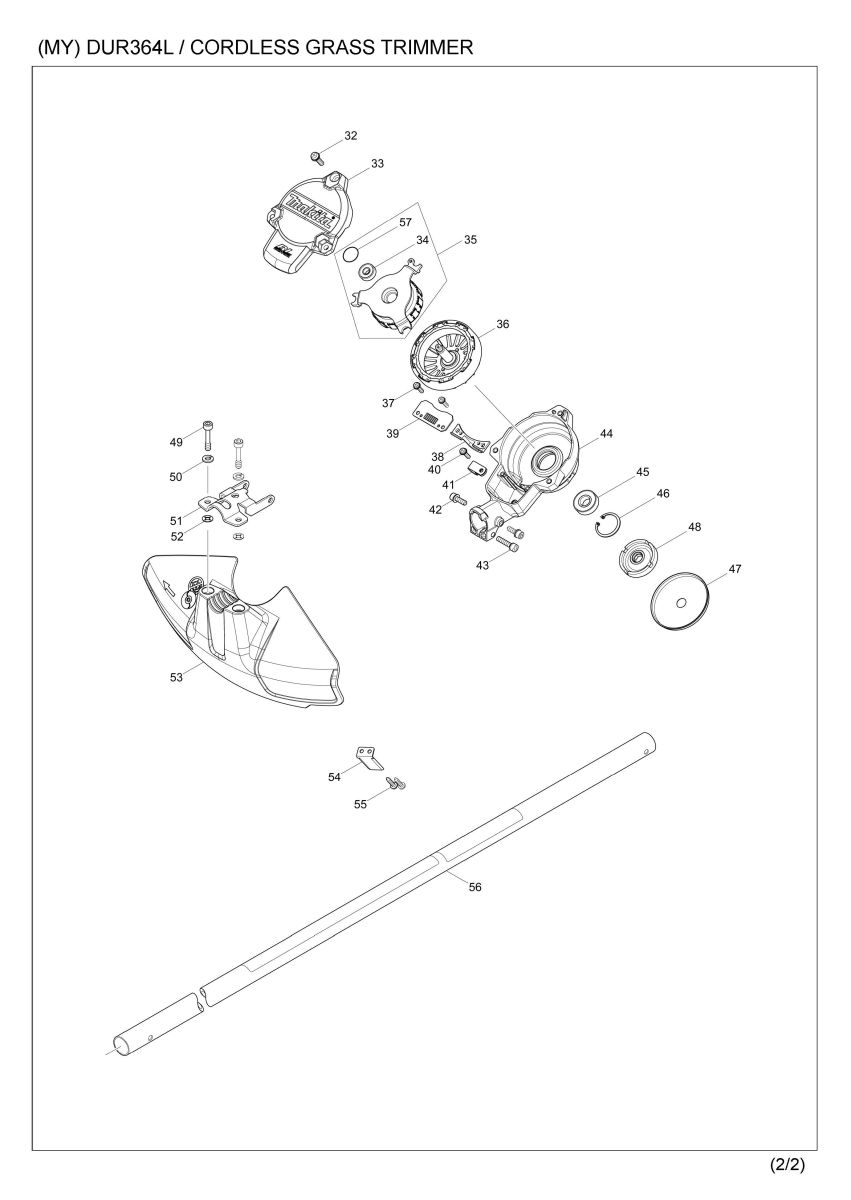

Part Diagram
Total: 130 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183A19-1 | GRIP SET | 1 | |
| 1 | D10 | INC. 12 | ||
| 2 | 699068-7 | POWER SUPPLY CORD UNIT | 1 | |
| 3 | 687261-5 | STRAIN RELIEF | 1 | |
| 4 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 5 | 455629-1 | LOCK OFF LEVER | 1 | |
| 005-1 | 413Y35-6 | LOCK OFF LEVER | 1 | |
| 6 | 233621-5 | TORSION SPRING 9 | 1 | |
| 7 | 455625-9 | SWITCH LEVER | 1 | |
| 8 | 632E26-0 | SWITCH UNIT | 1 | |
| 9 | 143040-6 | SUB CONTROLLER COMPLETE | 1 | |
| 10 | 233612-6 | TORSION SPRING 10 | 1 | |
| 11 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | |
| 12 | 183A19-1 | GRIP SET | 1 | |
| 12 | D10 | INC. 1 | ||
| 13 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 14 | 699067-9 | POWER SUPPLY CORD UNIT | 1 | |
| 15 | 183A64-6 | HOUSING SET | 1 | |
| 15 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 15 | D10 | INC. 23 | ||
| 015-1 | 183A64-6 | HOUSING SET | 1 | |
| 015-1 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 015-1 | D10 | INC. 23 | ||
| 16 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 17 | 346248-3 | CLAMP 24 | 1 | |
| 18 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 19 | 687261-5 | STRAIN RELIEF | 1 | |
| 20 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 021A | 143061-8 | CONTROLLER COMPLETE | 1 | |
| 021B | 143061-8 | CONTROLLER COMPLETE | 1 | |
| 021-1A | 144367-7 | CONTROLLER COMPLETE | 1 | |
| 021-1B | 144367-7 | CONTROLLER COMPLETE | 1 | |
| 021-1C | 144367-7 | CONTROLLER COMPLETE | 1 | |
| 22 | 644808-8 | TERMINAL | 2 | |
| 23 | 183A64-6 | HOUSING SET | 1 | |
| 23 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 23 | D10 | INC. 15 | ||
| 023-1 | 183A64-6 | HOUSING SET | 1 | |
| 023-1 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 023-1 | D10 | INC. 15 | ||
| 24 | 850N97-1 | DUR364L NAME PLATE | 1 | |
| 25 | 266326-2 | TAPPING SCREW 4X18 | 7 | |
| 26 | 251314-2 | + SCREW M4X12 | 1 | |
| 27 | 251314-2 | + SCREW M4X12 | 2 | |
| 28 | 346858-6 | BATTERY GUARD | 1 | |
| 29 | 168478-4 | HANGER | 1 | |
| 30 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | |
| 31 | 451601-1 | SPACER 24 | 1 | |
| 32 | 911233-1 | PAN HEAD SCREW M5X20 | 3 | |
| 33 | 455626-7 | TOP COVER | 1 | |
| 34 | 210062-2 | BALL BEARING 607ZZ | 1 | |
| 034-1 | 210269-0 | BALL BEARING 607ZZ | 1 | |
| 35 | 529146-8 | STATOR ASS'Y | 1 | |
| 35 | D10 | INC. 34,57 | ||
| 035-1 | 529146-8 | STATOR ASS'Y | 1 | |
| 035-1 | D10 | INC. 34,57 | ||
| 035-2 | 520136-4 | STATOR ASS'Y | 1 | |
| 035-2 | D10 | INC. 34,57 | ||
| 035-3 | 520135-6 | STATOR ASS'Y | 1 | |
| 035-3 | D10 | INC. 34,57 | ||
| 035-4 | 592E25-3 | STATOR ASS'Y | 1 | |
| 035-4 | D10 | INC. 34,57 | ||
| 36 | 619360-5 | ROTOR | 1 | |
| 036-1 | 619460-1 | ROTOR | 1 | |
| 37 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 38 | 455628-3 | INNER COVER | 1 | |
| 039A | 620401-2 | CONTROLLER B | 1 | |
| 039B | 620401-2 | CONTROLLER B | 1 | |
| 039-1A | 620562-8 | CONTROLLER B | 1 | |
| 039-1B | 620562-8 | CONTROLLER B | 1 | |
| 039-1C | 620562-8 | CONTROLLER B | 1 | |
| 039-2 | 620E48-2 | CONTROLLER B | 1 | |
| 40 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | |
| 41 | 687042-7 | STRAIN RELIEF | 1 | |
| 42 | 922223-9 | H.S.H.BOLT M5X16 WITH WR | 2 | |
| 43 | 922241-7 | HEX. SOCKET HEAD BOLT M5X25 | 1 | |
| 44 | 143039-1 | MOTOR HOUSING COMPLETE | 1 | |
| 45 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 46 | 962106-1 | RETAINING RING R-28 | 1 | |
| 47 | 346857-8 | GUARD | 1 | |
| 48 | 319245-2 | RECEIVE WASHER | 1 | |
| 49 | 266579-3 | HEX SOCKET HEAD BOLT M6X30 | 2 | |
| 50 | 942151-2 | SPRING WASHER 6 | 2 | |
| 050-1 | 253428-3 | SPRING WASHER 6 | 2 | |
| 51 | 346073-2 | PROTECTOR CLAMP | 1 | |
| 52 | 413143-3 | WASHER | 2 | |
| 53 | 455622-5 | PROTECTOR | 1 | |
| 54 | 346855-2 | CUTTER | 1 | |
| 55 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 56 | 143011-3 | PIPE COMPLETE A | 1 | |
| 56 | C10 | 805V85-1 | CAUTION LABEL | 1 |
| 56 | C20 | 819312-8 | MAKITA LOGO LABEL | 1 |
| 57 | 213325-5 | O RING 19 | 1 | |
| 059A | 326586-9 | RING 14 | 1 | |
| 059B | 326586-9 | RING 14 | 1 | |
| 059C | 326586-9 | RING 14 | 1 | |
| A01 | 123291-7 | TRIMMER HEAD ASSEMBLY 90-M8R | 1 | |
| A02 | 195246-2 | SAFETY GOGGLE | 1 | |
| A03 | 195626-2 | LOOP HANDLE SET | 1 | |
| A03 | C10 | 346467-1 | CLAMP 24 | 1 |
| A03 | C11 | 347094-7 | CLAMP 24 | 1 |
| A03 | C10 | 346467-1 | CLAMP 24 | 1 |
| A03 | C11 | 347094-7 | CLAMP 24 | 1 |
| A03 | C11 | 347094-7 | CLAMP 24 | 1 |
| A03 | C20 | 346468-9 | CLAMP 33 | 1 |
| A03 | C30 | 452843-0 | CLAMP COVER B | 1 |
| A03 | C40 | 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 2 |
| A04 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A05 | 783217-7 | HEX. WRENCH 5 | 1 | |
| A06 | 831304-7 | ACCESSORY BAG | 1 | |
| A07B | 450128-8 | BATTERY COVER | 2 | |
| A07C | 450128-8 | BATTERY COVER | 2 | |
| A08B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A08C | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| A09B | 196399-0 | BATTERY BL1840 SET | 2 | |
| A09-1B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A09-1C | 197265-4 | BATTERY BL1840B SET | 4 | |
| A09-2B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A09-2C | 197265-4 | BATTERY BL1840B SET | 4 | |
| F01-2 | 197267-0 | BATTERY BL1840B SET | 1 | |
| F02-2 | 197267-0 | BATTERY BL1840B SET | 1 | |
| F03-2 | 197265-4 | BATTERY BL1840B SET | 1 | |
| F04-2 | 197265-4 | BATTERY BL1840B SET | 1 | |
| F06-2 | 197273-5 | BATTERY BL1840B SET(2PIECES) | 1 | |
| F10 | 197472-9 | NYLON CORD 2.0-15M SET | 1 | |
| F11 | 197473-7 | NYLON CORD 2.0-30M SET | 1 | |
| F12 | 197474-5 | NYLON CORD 2.0-160M SET | 1 | |
| F13 | 197475-3 | NYLON CORD 2.0-280M SET | 1 | |
| F14 | 197297-1 | TRIMMER HEAD 90-M8R SET ME | 1 | |
| F40 | 191D92-5 | TRIMMER HEAD 96-M8R SET | 1 |
