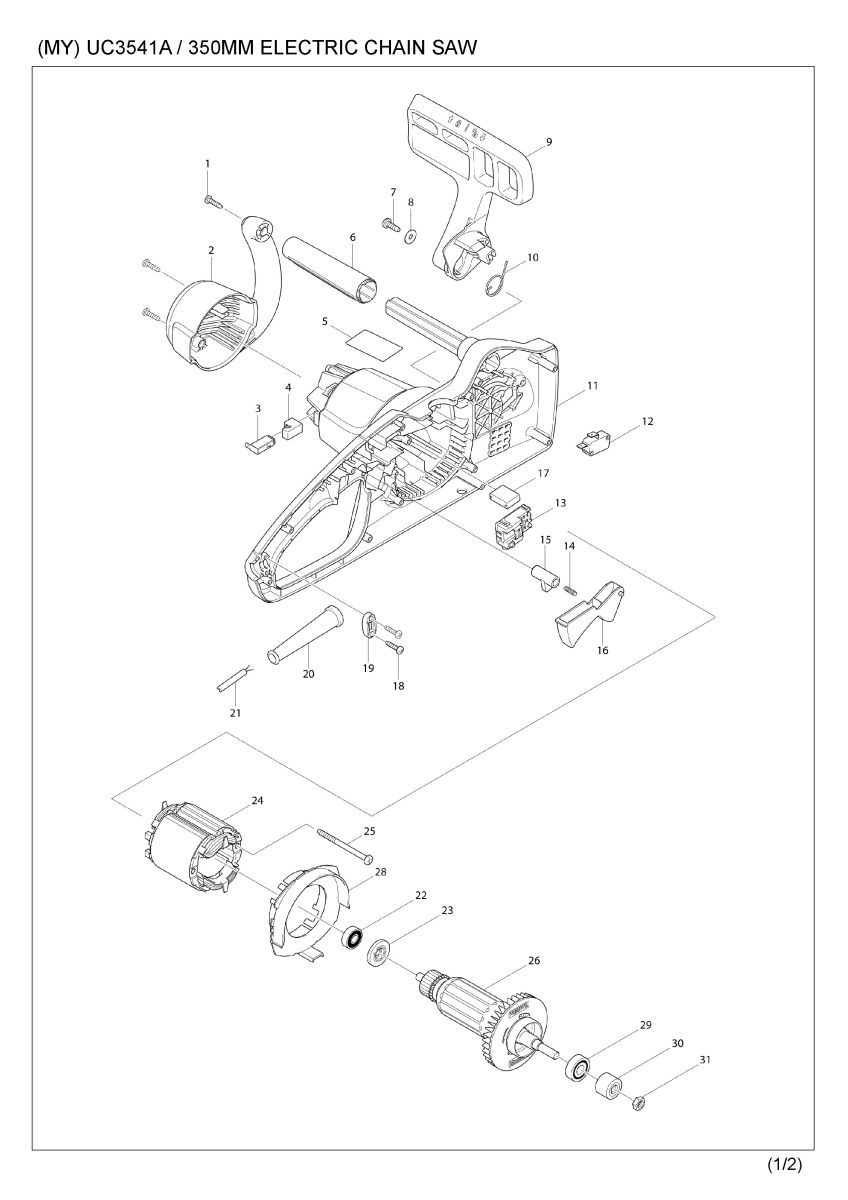

Part Diagram
Total: 101 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 002 | 454725-2 | REAR COVER | 1 | |
| 003 | 191972-1 | CARBON BRUSH CB-132 | 1 | |
| 003-1 | 194984-3 | CARBON BRUSH SET CB-132 | 1 | |
| 004 | 682211-5 | RUBBER SLEEVE | 2 | |
| 005 | 815A83-1 | UC3541A NAME PLATE | 1 | |
| 006 | 424600-6 | FRONT GRIP | 1 | |
| 007 | 266388-0 | TAPPING SCREW 5X16 | 1 | |
| 008 | 253807-5 | FLAT WASHER 5 | 1 | |
| 009 | 142279-8 | FRONT HAND GUARD COMPLETE | 1 | |
| 009 | C10 | 802K54-7 | INDICATION LABEL | 1 |
| 010 | 231640-5 | TORSION SPRING 20 | 1 | |
| 011 | 187869-0 | HOUSING SET | 1 | |
| 011 | C10 | 802G51-9 | CAUTION LABEL | 1 |
| 011 | D10 | INC. 62 | ||
| 012 | 650577-1 | SWITCH SD-006-BB2AA-AA | 1 | |
| 013 | 650716-3 | SWITCH TGC31B | 1 | |
| 014 | 233173-6 | COMPRESSION SPRING 4 | 1 | |
| 014-1 | 233194-8 | COMPRESSION SPRING 4 | 1 | |
| 015 | 416178-3 | LOCK-OFF BUTTON | 1 | |
| 016 | 455185-1 | SWITCH LEVER | 1 | |
| 018 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 019 | 687124-5 | STRAIN RELIEF | 1 | |
| 020 | 682540-6 | CORD GUARD 9.3-90 | 1 | |
| 020-1 | 682574-9 | CORD GUARD 10-90 | 1 | |
| 021 | 692552-1 | POWER SUPPLY CORD 1.0-2-0.7 | 1 | |
| 022 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 023 | 681644-1 | INSULATION WASHER | 1 | |
| 024-1 | 593869-4 | FIELD ASS'Y 220-240V | 1 | |
| 024-1 | C10 | 654069-2 | RECEPTACLE | 2 |
| 024-1 | C20 | 654208-4 | RECEPTACLE | 1 |
| 024-2 | 590103-3 | FIELD ASS'Y 220-240V | 1 | |
| 024-2 | C10 | 654086-2 | RECEPTACLE | 2 |
| 024-2 | C20 | 654199-9 | RECEPTACLE | 1 |
| 025 | 266389-8 | TAPPING SCREW 5X70 | 2 | |
| 026 | 513893-1 | ARMATURE ASS'Y 220-240V | 1 | |
| 026 | D10 | INC. 22,23,29 | ||
| 026-1 | 511A83-6 | ARMATURE ASS'Y 220-240V | 1 | |
| 026-1 | D10 | INC. 22,23,29 | ||
| 028 | 419238-0 | BAFFLE PLATE | 1 | |
| 029 | 211061-7 | BALL BEARING 6000LLB | 1 | |
| 029-1 | 211097-6 | BALL BEARING 6000LLB | 1 | |
| 030 | 227153-2 | SPUR GEAR 12 | 1 | |
| 031 | 931403-6 | HEX. NUT M8 | 1 | |
| 032 | 142282-9 | TANK CAP COMPLETE | 1 | |
| 034 | 454729-4 | OIL TANK | 1 | |
| 037 | 424602-2 | OIL TUBE | 1 | |
| 038 | 231975-4 | SPRING | 1 | |
| 039 | 416274-7 | CAP | 1 | |
| 040 | 268238-5 | PIN 5 | 1 | |
| 041 | 158047-9 | LINK PLATE COMPLETE | 1 | |
| 042 | 233175-2 | COMPRESSION SPRING 9 | 1 | |
| 044 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 044-1 | 265620-9 | TAPPING SCREW FLANGE 4X18 | 1 | |
| 045 | 267195-4 | FLAT WASHER 4 | 1 | |
| 046 | 168321-7 | BRAKE BAND | 1 | |
| 047 | 346739-4 | BRAKE RING | 1 | |
| 048 | 231817-2 | TENSION SPRING 5 | 1 | |
| 049 | 454720-2 | BEARING HOUSING | 1 | |
| 049-1 | 413J59-2 | BEARING HOUSING | 1 | |
| 050 | 213017-6 | O RING 6 | 1 | |
| 051 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 052 | 424601-4 | CONNECTOR | 1 | |
| 053 | 135615-5 | SPUR GEAR 43 ASS'Y | 1 | |
| 055 | 210106-8 | BALL BEARING 6001LLB | 1 | |
| 056 | 961006-2 | RETAINING RING S-10 | 1 | |
| 057 | 210033-9 | BALL BEARING 696ZZ | 1 | |
| 058 | 326359-0 | ROD | 1 | |
| 060 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 061 | 345651-5 | SPIKE BUMPER | 1 | |
| 062 | 187869-0 | HOUSING SET | 1 | |
| 062 | C10 | 802G51-9 | CAUTION LABEL | 1 |
| 062 | D10 | INC. 11 | ||
| 063 | 266326-2 | TAPPING SCREW 4X18 | 7 | |
| 064 | 221526-1 | SPROCKET | 1 | |
| 065 | 259036-8 | STOP RING E-8 | 1 | |
| 066 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 3 | |
| 067 | 454727-8 | TENSION COVER | 1 | |
| 068 | 454726-0 | DIAL 30 | 1 | |
| 069 | 326360-5 | SHAFT | 1 | |
| 070 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | |
| 071 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | |
| 072 | 324620-9 | ADJUST SCREW | 1 | |
| 073-1 | 346859-4 | TENSION SLIDE | 1 | |
| 074 | 424603-0 | GROMMET | 1 | |
| 075-1 | 142156-4 | OIL PUMP COMPLETE | 1 | |
| 075-2 | 142156-4 | OIL PUMP COMPLETE | 1 | |
| 076 | 221427-3 | WORM GEAR | 1 | |
| 077 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 078 | 266427-6 | TAPPING SCREW 4X12 | 3 | |
| 079 | 142281-1 | SPROCKET COVER COMPLETE | 1 | |
| 079 | C10 | 802E36-3 | INDICATION LABEL | 1 |
| 080 | 454728-6 | COVER | 1 | |
| 081 | 142235-8 | NUT COMPLETE | 1 | |
| A01 | 158024-1 | HOOK COMPLETE | 1 | |
| A02 | 165246-6 | GUIDE BAR 14 | 1 | |
| A02-1 | 165246-6 | GUIDE BAR 14 | 1 | |
| A03 | 419288-5 | CHAIN COVER | 1 | |
| A03-1 | 419288-5 | CHAIN COVER | 1 | |
| A04 | 196741-5 | SAW CHAIN SET | 1 | |
| A04-1 | 191H02-6 | SAW CHAIN 14 SET | 1 |
