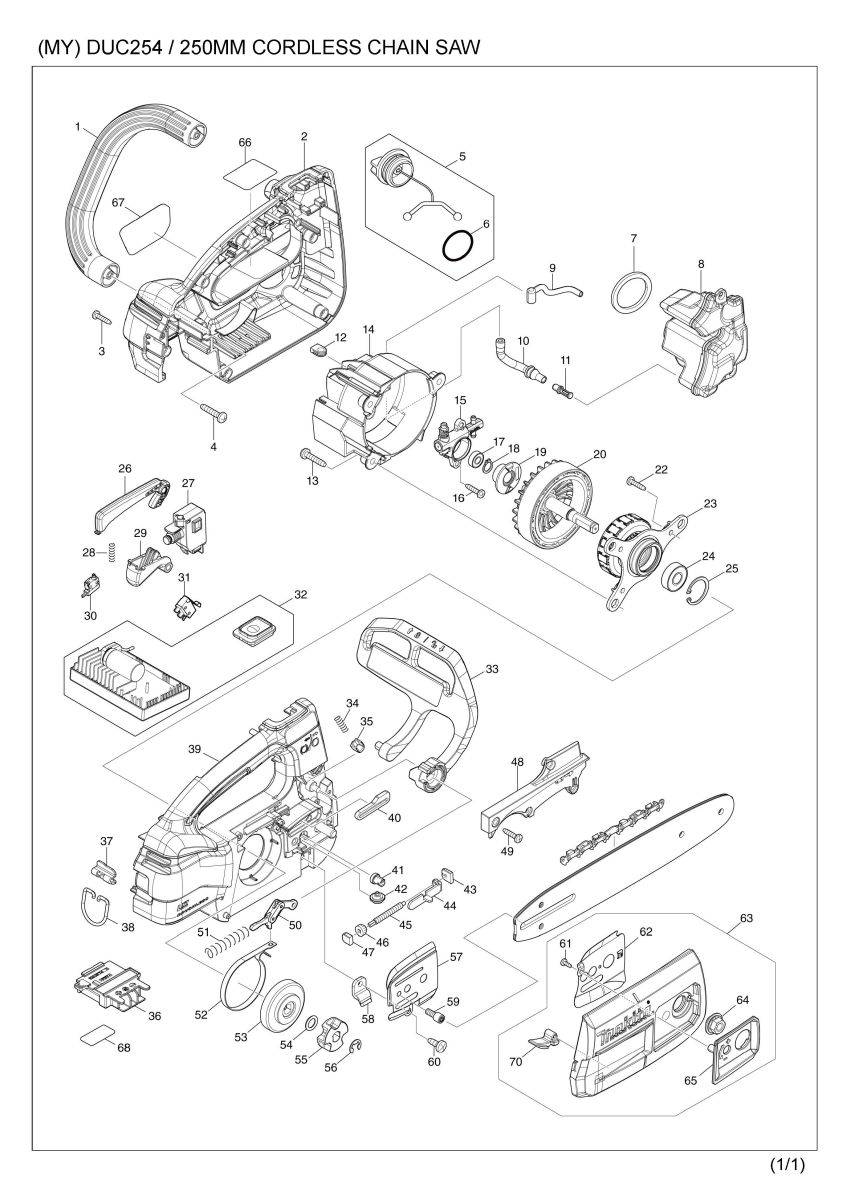

Part Diagram
Total: 156 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 458490-5 | SIDE HANDLE | 1 | |
| 002A | 183J27-6 | HOUSING SET | 1 | |
| 002A | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 002A | D10 | INC. 39 | ||
| 002-1A | 183U63-8 | HOUSING SET | 1 | |
| 002-1A | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 002-1A | D10 | INC. 39 | ||
| 002-1B | 183U63-8 | HOUSING SET | 1 | |
| 002-1B | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 002-1B | D10 | INC. 39 | ||
| 3 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 004A | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 004-1A | 266459-3 | TAPPING SCREW 5X25 | 2 | |
| 004-1B | 266459-3 | TAPPING SCREW 5X25 | 2 | |
| 5 | 168508-1 | TANK CAP COMPLETE | 1 | |
| 5 | D10 | INC. 6 | ||
| 005-1 | 162A04-7 | TANK CAP COMPLETE | 1 | |
| 005-1 | D10 | INC. 6 | ||
| 6 | 213355-6 | O-RING 25 | 1 | |
| 006-1 | 213A11-4 | O-RING 25 | 1 | |
| 7 | 421959-2 | SPONGE SEAL | 1 | |
| 8 | 140A75-4 | OIL TANK COMPLETE | 1 | |
| 9 | 422271-3 | CONNECTOR A | 1 | |
| 10 | 422272-1 | CONNECTOR B | 1 | |
| 010-1 | 122F58-6 | CONNECTOR B ASSEMBLY | 1 | |
| 010-1 | C10 | 413L02-3 | NIPPLE | 1 |
| 010-1 | C20 | 232774-7 | COMPRESSION SPRING 6 | 1 |
| 010-1 | C30 | 422985-4 | CONNECTOR B | 1 |
| 11 | 450437-5 | FILTER | 1 | |
| 12 | 424612-9 | GROMMET | 1 | |
| 013A | 266041-8 | TAPPING SCREW 5X25 | 3 | |
| 013-1A | 266459-3 | TAPPING SCREW 5X25 | 3 | |
| 013-1B | 266459-3 | TAPPING SCREW 5X25 | 3 | |
| 14 | 458489-0 | MOTOR HOUSING | 1 | |
| 15 | 142857-4 | OIL PUMP COMPLETE | 1 | |
| 16 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 017A | 210026-6 | BALL BEARING 696ZZ | 1 | |
| 017-1A | 210187-2 | BALL BEARING 696ZZ | 1 | |
| 017-1B | 210187-2 | BALL BEARING 696ZZ | 1 | |
| 18 | 961006-2 | RETAINING RING S-10 | 1 | |
| 19 | 221428-1 | WORM GEAR | 1 | |
| 20 | 619518-6 | ROTOR | 1 | |
| 22 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 23 | 629378-8 | STATOR COMPLETE | 1 | |
| 024A | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 024-1A | 210274-7 | BALL BEARING 6000DDW | 1 | |
| 024-1B | 210274-7 | BALL BEARING 6000DDW | 1 | |
| 25 | 962105-3 | RETAINING RING R-26 | 1 | |
| 26 | 458497-1 | CATCH LEVER | 1 | |
| 27 | 651365-9 | SWITCH C3JW-6BM-P | 1 | |
| 28 | 233476-8 | COMPRESSION SPRING 4 | 1 | |
| 29 | 458495-5 | SWITCH LEVER | 1 | |
| 30 | 632L49-0 | SWITCH UNIT | 1 | |
| 31 | 632L48-2 | SWITCH UNIT | 1 | |
| 032A | 140A77-0 | CONTROLLER COMPLETE | 1 | |
| 032A | C10 | 810D46-0 | SWITCH LABEL | 1 |
| 032-1A | 140P57-6 | CONTROLLER COMPLETE | 1 | |
| 032-1A | C10 | 810D46-0 | SWITCH LABEL | 1 |
| 032-1B | 140P57-6 | CONTROLLER COMPLETE | 1 | |
| 032-1B | C10 | 810D46-0 | SWITCH LABEL | 1 |
| 33 | 140A71-2 | FRONT HAND GUARD COMPLETE | 1 | |
| 33 | C10 | 816U30-5 | CAUTION LABEL | 1 |
| 34 | 232453-7 | COMPRESSION SPRING 3 | 1 | |
| 035A | 310879-4 | HAND GUARD GUIDE | 1 | |
| 035-1A | 313379-3 | HAND GUARD GUIDE | 1 | |
| 035-1B | 313379-3 | HAND GUARD GUIDE | 1 | |
| 36 | 643874-2 | TERMINAL | 1 | |
| 37 | 347377-5 | HOOK SUPPORT | 1 | |
| 38 | 281222-3 | HOOK | 1 | |
| 039A | 183J27-6 | HOUSING SET | 1 | |
| 039A | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 039A | D10 | INC. 2 | ||
| 039-1A | 183U63-8 | HOUSING SET | 1 | |
| 039-1A | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 039-1A | D10 | INC. 2 | ||
| 039-1B | 183U63-8 | HOUSING SET | 1 | |
| 039-1B | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 039-1B | D10 | INC. 2 | ||
| 40 | 422270-5 | GROMET | 1 | |
| 41 | 227620-7 | DRIVE GEAR 14 | 1 | |
| 42 | 227634-6 | STRAIGHT BEVEL GEAR 14 | 1 | |
| 043A | 455241-7 | CLAMP SCREW | 1 | |
| 044A | 347376-7 | TENSION SLIDE | 1 | |
| 044-1A | 347569-6 | TENSION SLIDE | 1 | |
| 044-1B | 347569-6 | TENSION SLIDE | 1 | |
| 045A | 327120-8 | ADJUST SCREW | 1 | |
| 045-1A | 327900-2 | ADJUST SCREW | 1 | |
| 045-1B | 327900-2 | ADJUST SCREW | 1 | |
| 46 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | |
| 047A | 455242-5 | CLAMP SCREW | 1 | |
| 48 | 458491-3 | HOUSING R COVER | 1 | |
| 49 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 50 | 140A74-6 | LINK PLATE COMPLETE | 1 | |
| 051A | 232452-9 | COMPRESSION SPRING 7 | 1 | |
| 051-1A | 232599-9 | COMPRESSION SPRING 7 | 1 | |
| 051-1B | 232599-9 | COMPRESSION SPRING 7 | 1 | |
| 52 | 347372-5 | BRAKE BAND | 1 | |
| 53 | 161871-1 | BRAKE DRUM COMPLETE | 1 | |
| 54 | 213060-5 | O RING 10 | 1 | |
| 055A | 221464-7 | SPROCKET 6 | 1 | |
| 055B | 227947-5 | SPROCKET 7 | 1 | |
| 055-1B | 1911W5-9 | SPROCKET 7 SET | 1 | |
| 56 | 961013-5 | STOP RING E-7 | 1 | |
| 057A | 347374-1 | GUIDE PLATE L | 1 | |
| 057-1A | 347567-0 | GUIDE PLATE L | 1 | |
| 057-1B | 347567-0 | GUIDE PLATE L | 1 | |
| 58 | 347373-3 | CHAIN CATCHER | 1 | |
| 59 | 266905-6 | H.L. SOCKET HEAD BOLT M5X12 | 1 | |
| 60 | 266388-0 | TAPPING SCREW 5X16 | 1 | |
| 061A | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | |
| 061-1A | 266421-8 | TAPPING SCREW 3X10 | 1 | |
| 061-1B | 266421-8 | TAPPING SCREW 3X10 | 1 | |
| 062A | 347375-9 | GUIDE PLATE R | 1 | |
| 062-1A | 347568-8 | GUIDE PLATE R | 1 | |
| 062-2A | 347568-8 | GUIDE PLATE R | 1 | |
| 062-2B | 347568-8 | GUIDE PLATE R | 1 | |
| 063A | 136010-2 | SPROCKET COVER ASS'Y | 1 | |
| 063A | D10 | INC. 61,62,64,65,70 | ||
| 063-1A | 136010-2 | SPROCKET COVER ASS'Y | 1 | |
| 063-1A | D10 | INC. 61,62,64,65,70,71 | ||
| 063-2A | 136036-4 | SPROCKET COVER ASS'Y | 1 | |
| 063-2A | D10 | INC. 61,62,64,65,70,71 | ||
| 063-3A | 136122-1 | SPROCKET COVER ASS'Y | 1 | |
| 063-3A | D10 | INC. 61,62,64,65,70,71 | ||
| 063-3B | 136122-1 | SPROCKET COVER ASS'Y | 1 | |
| 063-3B | D10 | INC. 61,62,64,65,70,71 | ||
| 064A | 161870-3 | FRANGE NUT COMPLETE | 1 | |
| 064-1A | 162494-8 | FLANGE NUT COMPLETE | 1 | |
| 064-1B | 162494-8 | FLANGE NUT COMPLETE | 1 | |
| 65 | 458499-7 | NUT COVER | 1 | |
| 66 | 854G31-1 | DUC254 NAME PLATE | 1 | |
| 066-1 | 854G31-1 | DUC254 NAME PLATE | 1 | |
| 67 | 816U21-6 | DUC254 MODEL NO. LABEL | 1 | |
| 68 | 854G38-7 | DUC254 SERIAL NO. LABE | 1 | |
| 70 | 422310-9 | CHIP GUIDE | 1 | |
| 071A | 458493-9 | SPROCKET COVER | 1 | |
| 071-1A | 459771-0 | SPROCKET COVER | 1 | |
| 071-1B | 459771-0 | SPROCKET COVER | 1 | |
| A01A | 161846-0 | GUIDE BAR 10 | 1 | |
| A01-1A | 161846-0 | GUIDE BAR 10 | 1 | |
| A01-1B | 191T85-8 | GUIDE BAR 10 SET | 1 | |
| A02 | 458501-6 | GUIDE BAR CASE | 1 | |
| A02-1 | 458501-6 | GUIDE BAR CASE | 1 | |
| A03A | 199075-5 | SAW CHAIN SET | 1 | |
| A03B | 191T89-0 | SAW CHAIN 10 SET | 1 | |
| A03-1A | 191H00-0 | SAW CHAIN 10 SET | 1 | |
| A04 | 782023-7 | WRENCH 13-16 | 1 | |
| A09 | 831304-7 | ACCESSORY BAG | 1 | |
| F10 | 199075-5 | SAW CHAIN SET | 1 | |
| F13 | 195923-6 | ROUND FILE 4.5 SET | 1 | |
| F13-1 | D-70954 | FILE HOLDER SET 4.5MM(11/64") | 1 | |
| F15 | 198457-8 | CHAIN EDGER SET | 1 | |
| F15-1 | D-70948 | FILE HOLDER SET 4.0MM(5/32") | 1 | |
| F18 | 191D60-8 | SAW CHAIN 10 SET | 1 | |
| F44 | 1914F1-6 | SAW CHAIN 10 SET | 1 | |
| F45 | 1914F5-8 | SAW CHAIN 10 SET | 1 |
