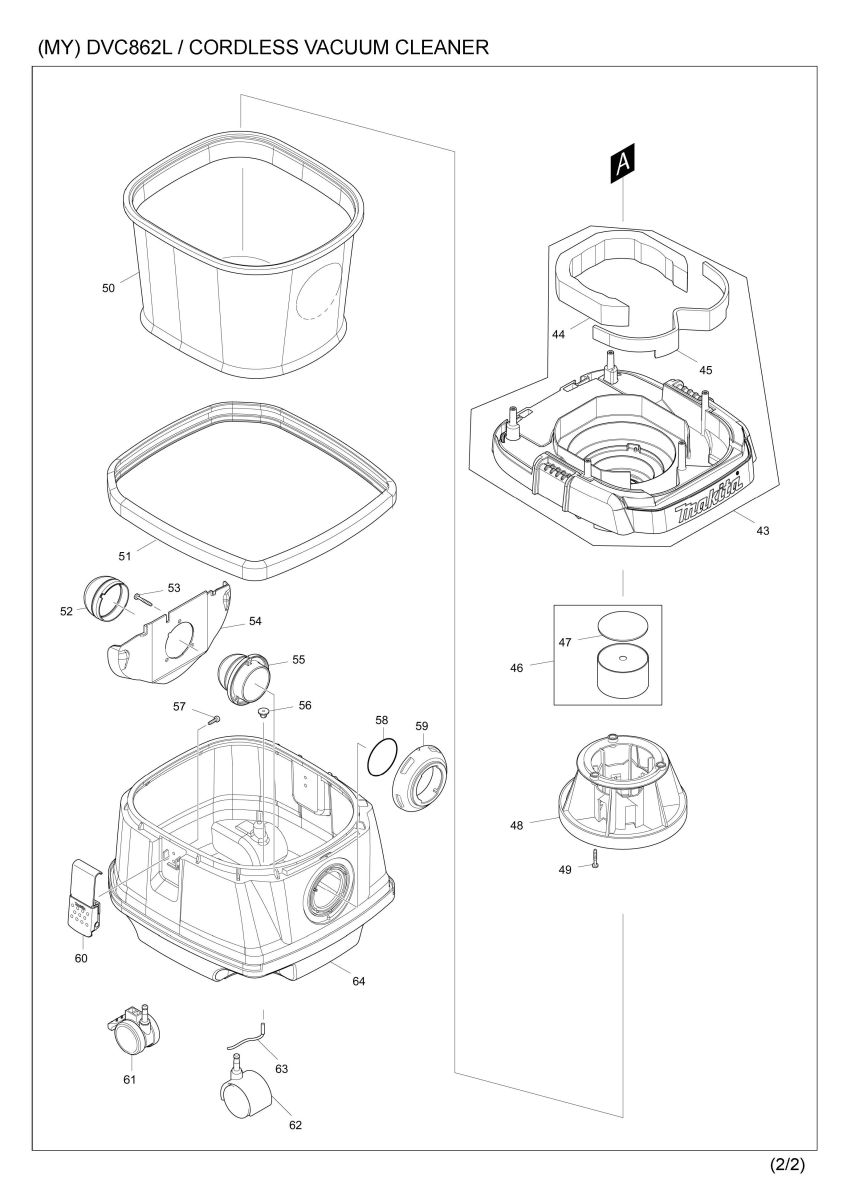

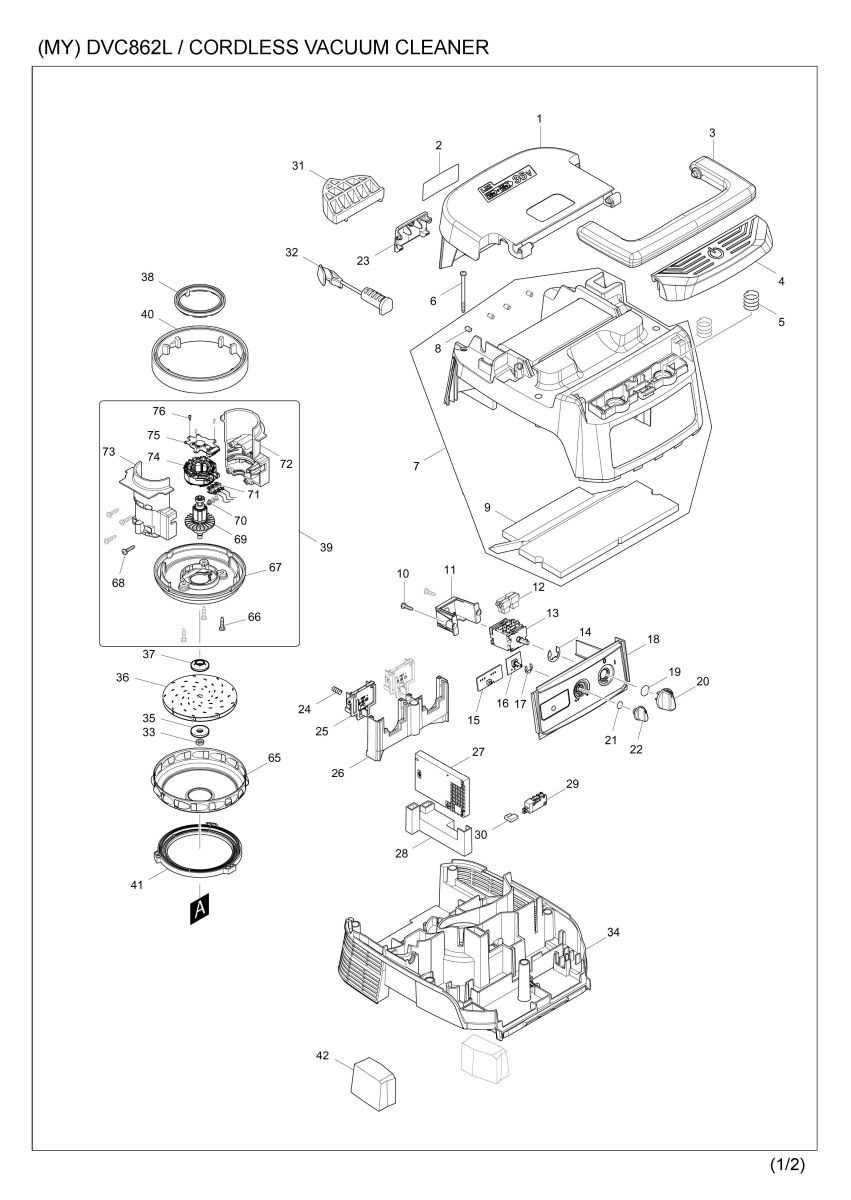

Part Diagram
Total: 144 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 143174-5 | BATTERY COVER COMPLETE | 1 | |
| 1 | C10 | 891977-8 | CAUTION LABEL | 1 |
| 2 | 853B24-5 | DVC862L NAME PLATE | 1 | |
| 3 | 455734-4 | GRIP | 1 | |
| 004A | 455730-2 | SWITCH BUTTON | 1 | |
| 004B | 455730-2 | SWITCH BUTTON | 1 | |
| 004-1A | 459262-1 | SWITCH BUTTON | 1 | |
| 004-1B | 459262-1 | SWITCH BUTTON | 1 | |
| 004-1C | 459262-1 | SWITCH BUTTON | 1 | |
| 5 | 234273-5 | COMPRESSION SPRING 20 | 2 | |
| 6 | 266340-8 | TAPPING SCREW 4X65 | 6 | |
| 7 | 144409-7 | COWLING COMPLETE | 1 | |
| 7 | D10 | INC. 8,9 | ||
| 8 | 263005-3 | RUBBER PIN 6 | 4 | |
| 9 | 424688-6 | TOP DAMPER | 1 | |
| 10 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 11 | 451343-7 | SWITCH HOLDER | 1 | |
| 12 | 686023-8 | RECEPTACLE SLEEVE | 4 | |
| 13 | 650622-2 | SWITCH | 1 | |
| 14 | 961062-2 | STOP RING E-12 | 1 | |
| 15 | 620649-6 | LED CIRCUIT | 1 | |
| 16 | 631922-9 | SUB CONTROLLER | 1 | |
| 17 | 961013-5 | STOP RING E-7 | 1 | |
| 18 | 144479-6 | SWITCH BASE COMPLETE | 1 | |
| 19 | 213176-6 | O RING 14 | 1 | |
| 20 | 455733-6 | SWITCH LEVER | 1 | |
| 21 | 213054-0 | O RING 9 | 1 | |
| 22 | 451344-5 | SWITCH DIAL | 1 | |
| 23 | 455728-9 | BATTERY COVER HOOK | 1 | |
| 24 | 231240-1 | COMPRESSION SPRING 7 | 1 | |
| 25 | 644808-8 | TERMINAL | 2 | |
| 26 | 455729-7 | TERMINAL BASE | 1 | |
| 27 | 620639-9 | CONTROLLER | 1 | |
| 28 | 457609-3 | CONTROLLER HOLDER | 1 | |
| 29 | 651910-0 | SWITCH D2VW-01-3HS | 1 | |
| 30 | 686039-3 | RECEPTACLE SLEEVE | 1 | |
| 31 | 424981-8 | SPACER | 1 | |
| 32 | 424980-0 | CAP | 1 | |
| 033A | 931303-0 | HEX. NUT M6 | 1 | |
| 033B | 931303-0 | HEX. NUT M6 | 1 | |
| 033-1A | 252268-6 | HEX. NUT M6 | 1 | |
| 033-1B | 252268-6 | HEX. NUT M6 | 1 | |
| 033-1C | 252268-6 | HEX. NUT M6 | 1 | |
| 34 | 455726-3 | SEPARATER | 1 | |
| 35 | 253752-4 | FLAT WASHER 8 | 1 | |
| 36 | 240178-9 | FAN 104 | 1 | |
| 37 | 313062-2 | FLANGE | 1 | |
| 38 | 424685-2 | RUBBER RING 60 | 1 | |
| 39 | 123974-9 | MOTOR ASSEMBLY | 1 | |
| 39 | D10 | INC. 66-76 | ||
| 40 | 424686-0 | RUBBER RING 120 | 1 | |
| 41 | 424687-8 | SUPPORT RING | 1 | |
| 42 | 424690-9 | REAR BLOCK FILTER | 2 | |
| 43 | 143175-3 | TANK COVER COMPLETE | 1 | |
| 43 | D10 | INC. 44,45 | ||
| 44 | 424691-7 | BAND DAMPER | 1 | |
| 45 | 424689-4 | FRONT DAMPER | 1 | |
| 46 | 158166-1 | FLOAT COMPLETE | 1 | |
| 46 | D10 | INC. 47 | ||
| 47 | 423365-7 | SPONGE SEAL 70 | 1 | |
| 48 | 419725-9 | FLOAT CAGE | 1 | |
| 49 | 266374-1 | TAPPING SCREW 4X25 | 3 | |
| 50 | 140248-3 | CLOTH FILTER COMPLETE | 1 | |
| 51 | 422148-2 | BUMPER | 1 | |
| 52 | 424382-0 | RUBBER HOLDER | 1 | |
| 53 | 266257-5 | TAPPING SCREW 4X28 | 3 | |
| 54 | 419351-4 | HOLDER PLATE | 1 | |
| 55 | 419350-6 | HOLDER | 1 | |
| 56 | 421468-1 | CORD SEAL | 1 | |
| 57 | 266192-7 | TAPPING SCREW 4X14 | 4 | |
| 58 | 213655-4 | O RING 56 | 1 | |
| 59 | 451348-7 | INLET | 1 | |
| 60 | 168537-4 | HOOK | 2 | |
| 61 | 168535-8 | CASTER 50 | 2 | |
| 62 | 168434-4 | CASTER 50 | 2 | |
| 63 | 649150-2 | EARTH LINE 120 | 1 | |
| 64 | 451334-8 | TANK | 1 | |
| 65 | 347171-5 | FAN COVER | 1 | |
| 66 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 67 | 457486-3 | FAN BASE | 1 | |
| 68 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 69 | 619431-8 | ROTOR | 1 | |
| 069-1 | 619431-8 | ROTOR | 1 | |
| 70 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 71 | 632J83-8 | LEAD UNIT | 1 | |
| 72 | 183F90-5 | MOTOR HOUSING SET | 1 | |
| 72 | D10 | INC. 73 | ||
| 73 | 183F90-5 | MOTOR HOUSING SET | 1 | |
| 73 | D10 | INC. 72 | ||
| 74 | 629256-2 | STATOR | 1 | |
| 75 | 620648-8 | CONTROLLER B | 1 | |
| 76 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| A01 | 122512-4 | NOZZLE ASS'Y 38 | 1 | |
| A01 | C01 | 151449-8 | ROLLER 40 COMPLETE | 2 |
| A01 | C06 | 415962-3 | ROLLER 14 | 2 |
| A01 | C11 | 256241-8 | PIN 3 | 2 |
| A01 | C16 | 265871-4 | TAPPING SCREW BT 4X16 | 6 |
| A01 | C21 | 154427-7 | ELBOW JOINT COMPLETE | 1 |
| A01 | C26 | 415965-7 | UPPER NOZZLE | 1 |
| A01 | C31 | 415964-9 | JOINT HOLDER | 1 |
| A01 | C36 | 743328-0 | BRUSH | 1 |
| A01 | C41 | 743327-2 | WIPER | 1 |
| A02 | 195434-1 | HOSE COMPLETE 38-2.5 SET | 1 | |
| A02 | C10 | 417191-4 | CUFF LOCK | 1 |
| A02 | C20 | 417306-3 | SLEEVE | 2 |
| A02 | C30 | 417307-1 | FRONT CUFF | 1 |
| A02 | C40 | 417586-1 | STOPPER | 2 |
| A03 | 195432-5 | POLY BAG SET(650X650) | 1 | |
| A04 | 192563-1 | STRAIGHT PIPE SET 565-38 | 1 | |
| A05 | 192562-3 | BENDING PIPE | 1 | |
| A06 | 410306-2 | CORNER NOZZLE | 1 | |
| A07 | 451350-0 | STOPPER | 1 | |
| A08 | 455732-8 | TOOL BOX | 1 | |
| A09 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| A10B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A10C | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| A11B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A11C | 197280-8 | BATTERY BL1850B SET | 2 | |
| A11-1B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A11-1C | 197280-8 | BATTERY BL1850B SET | 2 | |
| F12 | 192236-6 | TAPERED NOZZLE SET | 0 | |
| F18 | 195435-9 | HOSE COMPLETE 38-5 SET | 1 | |
| F19 | 195436-7 | HOSE COMPLETE 28-5 SET | 1 | |
| F20 | 195437-5 | HOSE COMPLETE 28-2.5 SET | 1 | |
| F22 | 195544-4 | HOLDER 10-33 SET | 1 | |
| F23 | 195545-2 | FRONT CUFF 38 SET | 1 | |
| F24 | 195546-0 | FRONT CUFF 24 SET | 1 | |
| F25 | 195547-8 | FRONT CUFF 22 SET | 1 | |
| F26 | 195548-6 | JOINT 22-38 SET | 1 | |
| F27 | 195549-4 | T-NOZZLE ASSY A SET(DRY)38 | 1 | |
| F28 | 195550-9 | T-NOZZLE ASSY B SET(WET)38 | 1 | |
| F29 | 195551-7 | T-NOZZLE SET 38 | 1 | |
| F30 | 195552-5 | DAMPER SET | 1 | |
| F31 | 195553-3 | PRE-FILTER SET | 1 | |
| F32 | 195555-9 | FILTER FOR WATER SET | 1 | |
| F33 | 195557-5 | FILTER BAG SET 15L(5PCS) | 1 | |
| F33-1 | 1912R3-4 | FILTER BAG SET | 1 | |
| F34 | 195637-7 | HOLDER,CUFF SET | 1 | |
| F37-1 | 197265-4 | BATTERY BL1840B SET | 1 | |
| F38-1 | 197267-0 | BATTERY BL1840B SET | 1 | |
| F41-1 | 197273-5 | BATTERY BL1840B SET(2PIECES) | 1 | |
| F45 | 198184-7 | F/C SWITCHING T-NOZZLE 38 | 1 | |
| F46 | 198533-8 | F/C SWITCHING T-NOZZLE 38 EU | 1 | |
| F61 | 191G76-1 | MESH SLEEVE HOSE 28-5 SET | 1 |
