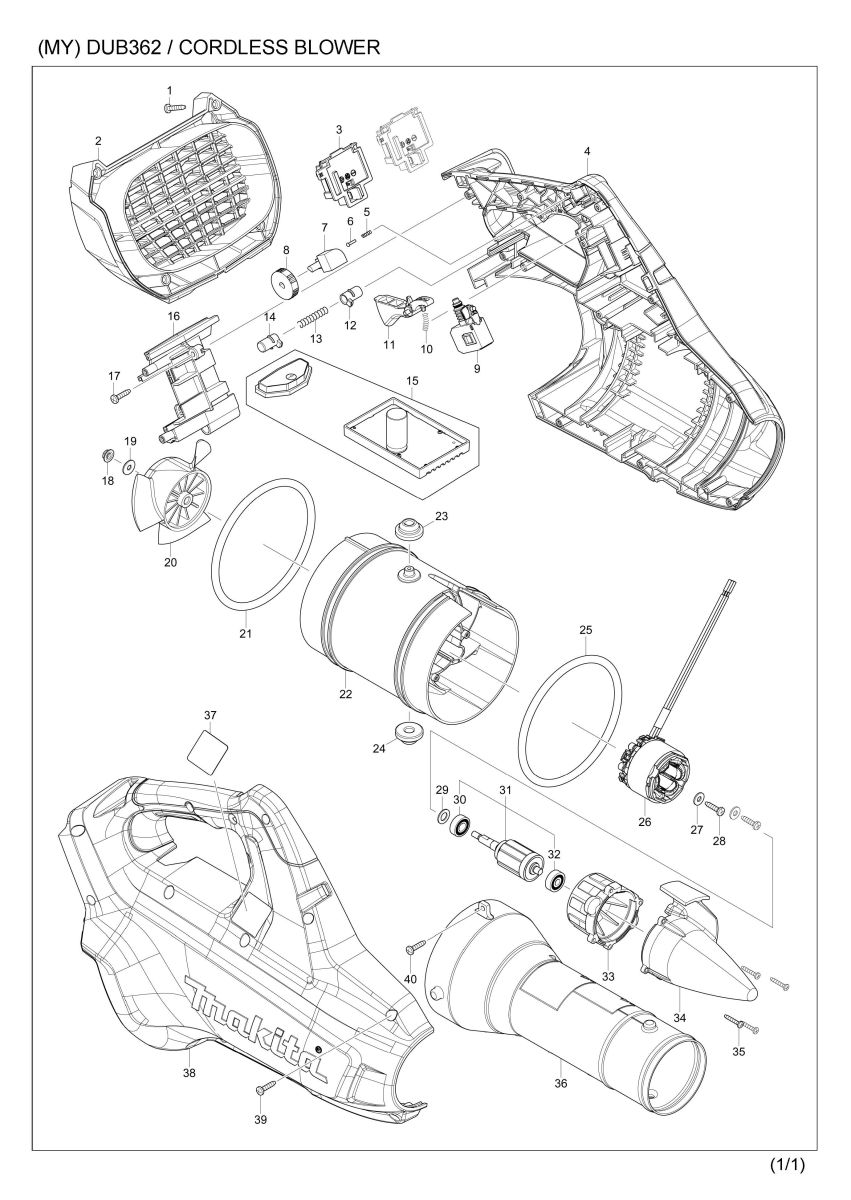

Part Diagram
Total: 121 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 2 | 455912-6 | REAR COVER | 1 | |
| 3 | 644808-8 | TERMINAL | 2 | |
| 4 | 183A81-6 | HOUSING SET | 1 | |
| 4 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 4 | C20 | 806D81-4 | CAUTION LABEL | 1 |
| 4 | C21 | 8011Y4-4 | CAUTION LABEL | 1 |
| 4 | D10 | INC. 38 | ||
| 004-1 | 183A81-6 | HOUSING SET | 1 | |
| 004-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 004-1 | C21 | 8012T7-9 | CAUTION LABEL | 1 |
| 004-1 | D10 | INC. 38 | ||
| 5 | 233002-3 | COMPRESSION SPRING 3 | 1 | |
| 6 | 255058-6 | RIVET 2 | 1 | |
| 7 | 620415-1 | SUB CONTROLLER | 1 | |
| 8 | 271427-3 | DIAL 28 | 1 | |
| 9 | 650709-0 | SWITCH C3JW-1A-P | 1 | |
| 10 | 233101-1 | COMPRESSION SPRING 4 | 1 | |
| 011A | 455913-4 | SWITCH LEVER | 1 | |
| 011B | 455913-4 | SWITCH LEVER | 1 | |
| 011-1A | 458864-0 | SWITCH LEVER | 1 | |
| 011-1B | 458864-0 | SWITCH LEVER | 1 | |
| 011-1C | 458864-0 | SWITCH LEVER | 1 | |
| 12 | 418881-2 | LOCK ON BUTTON | 1 | |
| 13 | 233092-6 | COMPRESSION SPRING 5 | 1 | |
| 14 | 418881-2 | LOCK ON BUTTON | 1 | |
| 15 | 143166-4 | CONTROLLER COMPLETE | 1 | |
| 015-1 | 141N60-8 | CONTROLLER COMPLETE | 1 | |
| 16 | 143146-0 | CENTER CASE COMPLETE | 1 | |
| 16 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 17 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 018A | 264111-7 | CORNED DISK SPRING HEX.NUT M5 | 1 | |
| 018-1A | 252103-8 | HEX. LOCK NUT M5-8 | 1 | |
| 018-1B | 252103-8 | HEX. LOCK NUT M5-8 | 1 | |
| 018-2A | 252286-4 | COLLARED HEX.LOCK NUT M5-8 | 1 | |
| 018-2B | 252286-4 | COLLARED HEX.LOCK NUT M5-8 | 1 | |
| 018-2C | 252286-4 | COLLARED HEX.LOCK NUT M5-8 | 1 | |
| 019A | 253194-2 | FLAT WASHER 5 | 1 | |
| 019B | 253194-2 | FLAT WASHER 5 | 1 | |
| 020A | 240158-5 | FAN 110 | 1 | |
| 020-1A | 240177-1 | FAN 110 | 1 | |
| 020-1B | 240177-1 | FAN 110 | 1 | |
| 020-1C | 240177-1 | FAN 110 | 1 | |
| 21 | 424721-4 | RUBBER RING 115 | 1 | |
| 22 | 455907-9 | MOTOR HOUSING | 1 | |
| 022-1 | 455907-9 | MOTOR HOUSING | 1 | |
| 23 | 424194-1 | RUBBER RING 8 | 1 | |
| 24 | 424194-1 | RUBBER RING 8 | 1 | |
| 25 | 424721-4 | RUBBER RING 115 | 1 | |
| 26 | 629153-2 | STATOR DC36V | 1 | |
| 026-1 | 629B73-2 | STATOR | 1 | |
| 027A | 253184-5 | FLAT WASHER 5 | 2 | |
| 027B | 253184-5 | FLAT WASHER 5 | 2 | |
| 028A | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 028B | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 028-1A | 265620-9 | TAPPING SCREW FLANGE 4X18 | 2 | |
| 028-1B | 265620-9 | TAPPING SCREW FLANGE 4X18 | 2 | |
| 028-1C | 265620-9 | TAPPING SCREW FLANGE 4X18 | 2 | |
| 029A | 253835-0 | FLAT WASHER 8 | 1 | |
| 30 | 210040-2 | BALL BEARING 698LLU | 1 | |
| 031A | 519366-2 | ROTOR ASS'Y | 1 | |
| 031A | D10 | INC. 30,32 | ||
| 031-1A | 519444-8 | ROTOR ASS'Y | 1 | |
| 031-1A | D10 | INC. 30,32 | ||
| 031-1B | 519444-8 | ROTOR ASS'Y | 1 | |
| 031-1B | D10 | INC. 30,32 | ||
| 031-1C | 519444-8 | ROTOR ASS'Y | 1 | |
| 031-1C | D10 | INC. 30,32 | ||
| 031-2 | 519444-8 | ROTOR ASS'Y | 1 | |
| 031-2 | D10 | INC. 30,32 | ||
| 32 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 33 | 455908-7 | MOTOR HOUSING COVER | 1 | |
| 34 | 455909-5 | CAP | 1 | |
| 034-1 | 455909-5 | CAP | 1 | |
| 35 | 265935-4 | TAPPING SCREW 3X20 | 4 | |
| 36 | 455914-2 | FRONT NOZZLE | 1 | |
| 37 | 850U44-4 | DUB362 NAME PLATE | 1 | |
| 38 | 183A81-6 | HOUSING SET | 1 | |
| 38 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 38 | C20 | 806D81-4 | CAUTION LABEL | 1 |
| 38 | C21 | 8011Y4-4 | CAUTION LABEL | 1 |
| 38 | D10 | INC. 4 | ||
| 038-1 | 183A81-6 | HOUSING SET | 1 | |
| 038-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 038-1 | C21 | 8012T7-9 | CAUTION LABEL | 1 |
| 038-1 | D10 | INC. 4 | ||
| 39 | 266326-2 | TAPPING SCREW 4X18 | 12 | |
| 040A | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 040-1A | 266300-0 | TAPPING SCREW 4X18 | 2 | |
| 040-1B | 266300-0 | TAPPING SCREW 4X18 | 2 | |
| 040-2A | 265678-8 | TAPPING SCREW 4X18 | 2 | |
| 040-2B | 265678-8 | TAPPING SCREW 4X18 | 2 | |
| 040-2C | 265678-8 | TAPPING SCREW 4X18 | 2 | |
| 41 | 620K96-7 | CONTROLLER B | 1 | |
| 42 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| A01A | 166094-6 | SHOULDER BELT | 1 | |
| A01B | 166094-6 | SHOULDER BELT | 1 | |
| A01C | 166094-6 | SHOULDER BELT | 1 | |
| A02 | 455915-0 | LONG NOZZLE | 1 | |
| A02-1 | 455915-0 | LONG NOZZLE | 1 | |
| A02-2 | 183R02-0 | LONG NOZZLE SET | 1 | |
| A04B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A04C | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A05-1B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A05-2B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A05-2C | 197280-8 | BATTERY BL1850B SET | 2 | |
| F02-2 | 197267-0 | BATTERY BL1840B SET | 1 | |
| F03-2 | 197267-0 | BATTERY BL1840B SET | 1 | |
| F04-2 | 197265-4 | BATTERY BL1840B SET | 1 | |
| F05-2 | 197265-4 | BATTERY BL1840B SET | 1 | |
| F07-2 | 197273-5 | BATTERY BL1840B SET(2PIECES) | 1 | |
| F10 | 197888-8 | EXTENSION NOZZLE SET | 1 | |
| F11 | 197889-6 | FLAT NOZZLE SET | 1 | |
| F16 | 191B03-8 | GUTTER NOZZLE SET | 1 | |
| F16 | C10 | 459816-4 | EXTENSION PIPE 72 | 3 |
| F16 | C20 | 162790-4 | END NOZZLE COMPLETE | 1 |
| F16 | C30 | 281030-2 | HOSE CLAMP 75-90 | 2 |
| F16 | C40 | 281031-0 | HOSE CLAMP 85-100 | 1 |
| F17 | 191J13-3 | ADAPTER PIPE 71 SET | 1 | |
| F18 | 197254-9 | BATTERY BL1820B SET | 1 | |
| F19-1 | 197599-5 | BATTERY BL1830B SET | 1 |
