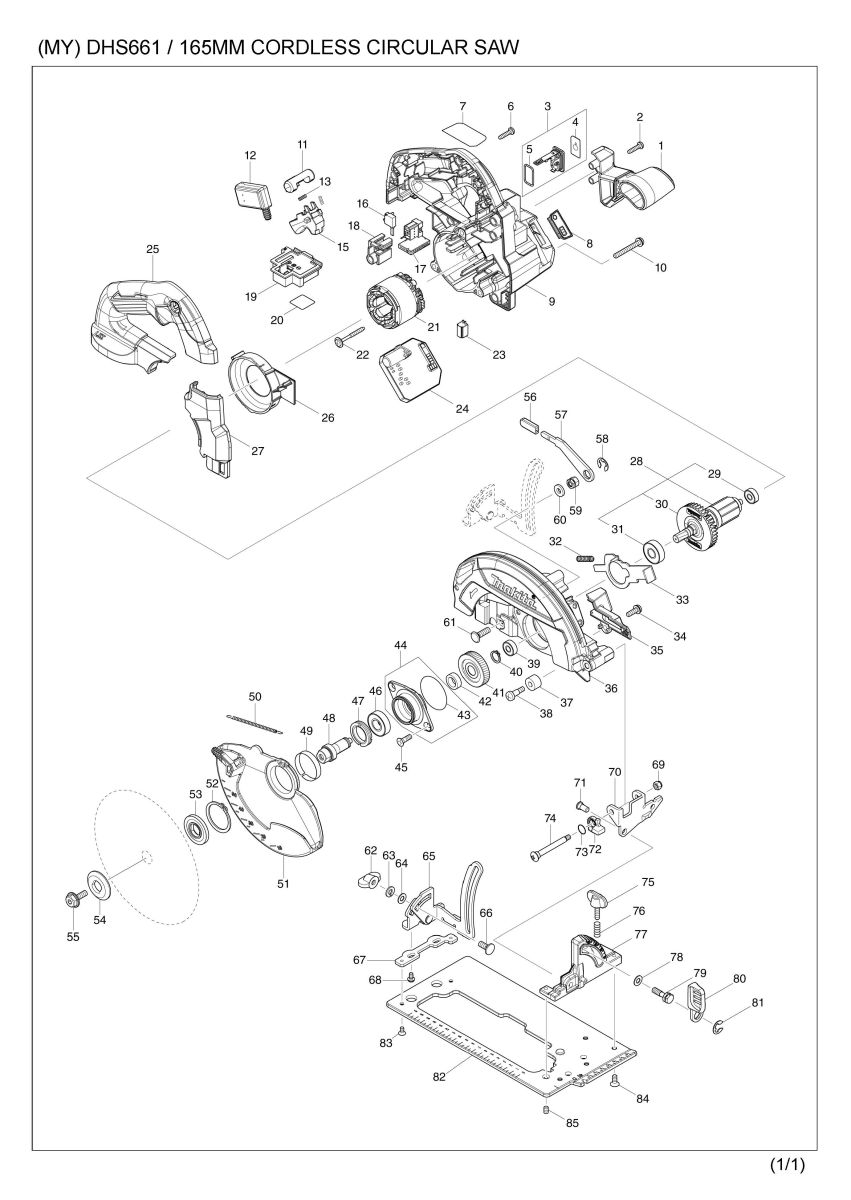

Part Diagram
Total: 131 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 458590-1 | FRONT GRIP | 1 | |
| 2 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 3 | 183J85-2 | CAP SET | 1 | |
| 3 | D10 | INC. 4,5 | ||
| 003-1 | 140G30-2 | CAP COMPLETE | 1 | |
| 003-1 | D10 | INC. 4,5 | ||
| 4 | 813T75-8 | CAP LABEL | 1 | |
| 004-1 | 818H48-4 | CAP LABEL | 1 | |
| 5 | 213218-6 | O RING 16 | 1 | |
| 005-1 | 213A05-9 | O-RING16 | 1 | |
| 6 | 265995-6 | TAPPING SCREW 4X18 | 7 | |
| 7 | 854N98-1 | DHS661 NAME PLATE | 1 | |
| 8 | 144251-6 | INDICATION PLATE COMPLETE | 1 | |
| 9 | 140C49-7 | MOTOR HOUSING COMPLETE | 1 | |
| 9 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 10 | 911263-2 | PAN HEAD SCREW M5X40 | 3 | |
| 11 | 419704-7 | LOCK OFF BUTTON | 1 | |
| 12 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 13 | 231433-0 | COMPRESSION SPRING 4 | 2 | |
| 15 | 458594-3 | SWITCH LEVER | 1 | |
| 16 | 632L80-6 | SWITCH UNIT | 1 | |
| 17 | 620754-9 | SUB CONTROLLER | 1 | |
| 18 | 458588-8 | HOLDER | 1 | |
| 19 | 644809-6 | TERMINAL | 1 | |
| 20 | 854P03-0 | DHS661 SERIAL NO. LABEL | 1 | |
| 21 | 629362-3 | STATOR | 1 | |
| 021-1 | 629B61-9 | STATOR | 1 | |
| 22 | 251517-8 | TAPPING SCREW 4X40 | 2 | |
| 23 | 620936-3 | LED CIRCUIT | 1 | |
| 24 | 620937-1 | CONTROLLER | 1 | |
| 024-1 | 620A73-9 | CONTROLLER | 1 | |
| 024-2 | 620L11-7 | CONTROLLER | 1 | |
| 25 | 458584-6 | HANDLE COVER | 1 | |
| 26 | 458586-2 | BAFFLE PLATE | 1 | |
| 27 | 458592-7 | COVER | 1 | |
| 28 | 519527-4 | ROTOR ASS'Y | 1 | |
| 28 | D10 | INC. 29-31 | ||
| 29 | 211012-0 | BALL BEARING 606ZZ | 1 | |
| 30 | 240045-8 | FAN 55 | 1 | |
| 31 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 32 | 233117-6 | COMPRESSION SPRING 6 | 1 | |
| 032-1 | 233342-9 | COMPRESSION SPRING 6 | 1 | |
| 33 | 347400-6 | SHAFT LOCK | 1 | |
| 34 | 911223-4 | PAN HEAD SCREW M5X16 | 1 | |
| 35 | 458589-6 | DUCT | 1 | |
| 36 | 140D07-9 | BLADE CASE COMPLETE | 1 | |
| 36 | C10 | 213821-3 | O-RING 26 | 1 |
| 37 | 262511-5 | RUBBER SLEEVE 6 | 1 | |
| 38 | 265115-2 | + PAN HEAD SCREW M5 | 1 | |
| 39 | 211012-0 | BALL BEARING 606ZZ | 1 | |
| 40 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 41 | 226192-9 | HELICAL GEAR 49 | 1 | |
| 041-1 | 226192-9 | HELICAL GEAR 49 | 1 | |
| 42 | 257173-2 | RING 12 | 1 | |
| 43 | 213512-6 | O RING 39 | 1 | |
| 44 | 135993-3 | BEARING BOX ASSEMBLY | 1 | |
| 44 | D10 | INC. 43 | ||
| 45 | 265034-2 | + COUNTERSUNK HEAD SCREW M5X1 | 2 | |
| 46 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 47 | 285843-3 | BEARING RETAINER 19-29 | 1 | |
| 48 | 327143-6 | SPINDLE | 1 | |
| 048-1 | 327244-0 | SPINDLE | 1 | |
| 49 | 345469-4 | THICKNESS RING | 1 | |
| 50 | 231832-6 | TENSION SPRING 3 | 1 | |
| 51 | 458680-0 | SAFETY COVER | 1 | |
| 52 | 961152-1 | RETAINING RING (EXT) S-34 | x | |
| 53 | 224593-5 | INNER FLANGE 35 | 1 | |
| 54 | 224409-4 | OUTER FLANGE 35 | 1 | |
| 55 | 266925-0 | HEX.SOCKET HEX.BOLT M6X18 | 1 | |
| 56 | 286036-5 | CAP | 1 | |
| 57 | 347399-5 | LEVER PLATE | 1 | |
| 58 | 257982-9 | BOW STOP RING E-8 | 1 | |
| 59 | 264096-7 | HEX. NUT M6 | 1 | |
| 059-1 | 252265-2 | HEX. NUT M6 | 1 | |
| 60 | 267118-2 | FLAT WASHER 6 | 1 | |
| 61 | 266737-1 | FLAT HEAD SQ. NECK BOLT M6X20 | 1 | |
| 62 | 252631-3 | THUMB NUT M6 | 1 | |
| 63 | 942151-2 | SPRING WASHER 6 | 1 | |
| 063-1 | 253428-3 | SPRING WASHER 6 | 1 | |
| 64 | 941151-9 | FLAT WASHER 6 | 1 | |
| 65 | 161899-9 | DEPTH GUIDE COMPLETE | 1 | |
| 66 | 265939-6 | FLAT HEAD SQ. NECK BOLT M6X14 | 1 | |
| 67 | 347401-4 | REAR GUIDE PLATE | 1 | |
| 68 | 265648-7 | PAN HEAD SCREW M4X8 | 2 | |
| 69 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | |
| 70 | 345590-9 | ANGULAR GUIDE | 1 | |
| 71 | 256480-0 | SHOULDER PIN 6-7 | 1 | |
| 72 | 318823-5 | STOPPER | 1 | |
| 73 | 213977-2 | O RING 7 | 1 | |
| 74 | 266734-7 | + TRUSS HEAD SCREW M5 | 1 | |
| 75 | 251896-4 | SCREW M5X20 | 1 | |
| 76 | 231007-7 | COMPRESSION SPRING 6 | 1 | |
| 77 | 319715-1 | ANGULAR PLATE | 1 | |
| 78 | 941151-9 | FLAT WASHER 6 | 1 | |
| 79 | 266735-5 | HEX.BOLT M6X20 | 1 | |
| 079-1 | 265B21-3 | HEX.BOLT M6X20 | 1 | |
| 80 | 271446-9 | LEVER 45 | 1 | |
| 81 | 257982-9 | BOW STOP RING E-8 | 1 | |
| 82 | 347398-7 | BASE | 1 | |
| 83 | 265085-5 | + COUNTERSUNK HEAD SCREW M4X8 | 2 | |
| 84 | 912212-2 | COUNTERSUNK HEAD SCREW M5X12 | 4 | |
| 85 | 266436-5 | H.S.SET SCREW(FLAT POINT)M5X8 | 3 | |
| 86 | 620K37-3 | CONTROLLER B | 1 | |
| 87 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| A01 | 783203-8 | HEX. WRENCH 5 | 1 | |
| A02 | B-63018 | TCT BLADE 165X25T WOOD EFFICUT | 1 | |
| A03 | 164095-8 | GUIDE RULE | 1 | |
| A04 | 199230-9 | DUST NOZZLE SET | 1 | |
| A04 | C10 | 911233-1 | PAN HEAD SCREW M5X20 | 1 |
| A05B | 817N45-3 | DHS661RFJ INDICATION LABEL | 1 | |
| A06B | 817N46-1 | DHS661RFJ PLASTIC CASE LABEL | 2 | |
| A07B | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A07B | C10 | 453974-8 | LATCH | 4 |
| A08B | 839752-4 | INNER TRAY | 1 | |
| A09B | 450128-8 | BATTERY COVER | 1 | |
| A10B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A10B | D10 | COMPO-PARTS | ||
| A11B | 197600-6 | BATTERY BL1830B SET | 2 | |
| A11-1B | 197600-6 | BATTERY BL1830B SET | 2 | |
| F01 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| F02 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F03 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F04 | 199141-8 | GUIDE RAIL 1500 SET | 1 | |
| F05 | 194416-0 | SHEET 10000 SET | 1 | |
| F06 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F07 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F09 | 194910-2 | POSITION SHEET 1900 SET | 1 | |
| F11 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F13 | 196664-7 | BEVEL GUIDE SET | 1 | |
| F15 | 199231-7 | HOOK SET | 1 | |
| F16 | 199232-5 | GUIDE RAIL ADAPTER I SET | 1 |
