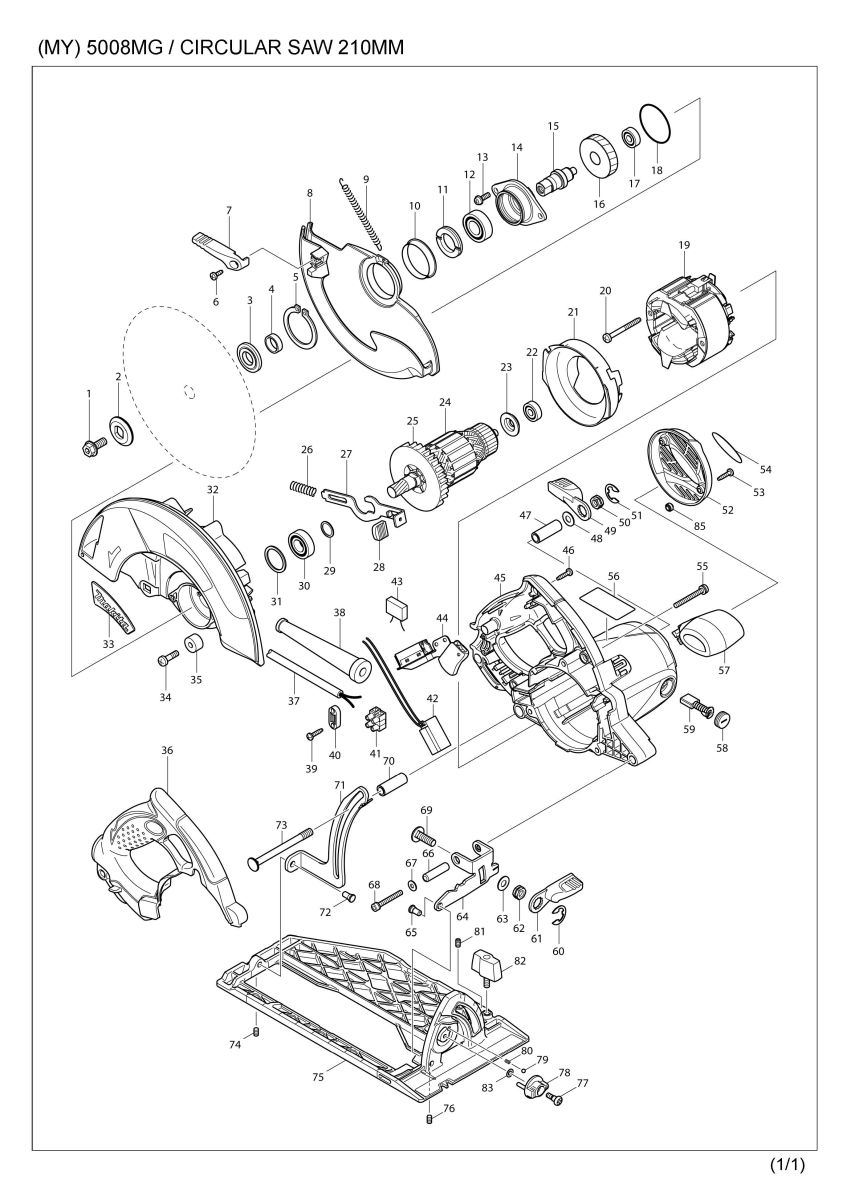

Part Diagram
Total: 102 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266283-4 | HEX. SOCKET HEX. BOLT M8X20 | 1 | |
| 2 | 224409-4 | OUTER FLANGE 35 | 1 | |
| 3 | 224410-9 | INNER FLANGE 35 | 1 | |
| 4 | 257279-6 | RING 17 | 1 | |
| 5 | 961201-4 | RETAINING RING S-42 | 1 | |
| 6 | 266398-7 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 7 | 272252-5 | LEVER 65 | 1 | |
| 007-1 | 271444-3 | LEVER 37 | 1 | |
| 8 | 318175-4 | SAFETY COVER | 1 | |
| 9 | 231848-1 | TENSION SPRING 4 | 1 | |
| 010-1 | 346880-3 | SPACER | 1 | |
| 11 | 285848-3 | BEARING RETAINER 23-36 | 1 | |
| 012-1 | 210301-0 | BALL BEARING 6003DDW | 1 | |
| 13 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | |
| 14 | 318056-2 | BEARING BOX | 1 | |
| 15 | 324690-8 | SPINDLE | 1 | |
| 16 | 226662-8 | HELICAL GEAR 43 | 1 | |
| 17 | 211031-6 | BALL BEARING 608LLB | 1 | |
| 18 | 213623-7 | O RING 46 | 1 | |
| 19 | 596289-1 | FIELD ASS'Y 240V | 1 | |
| 19 | C10 | 654020-2 | RING TERMINAL | 2 |
| 19 | C20 | 654502-4 | CONNECTOR P-2 | 2 |
| 20 | 266397-9 | TAPPING SCREW BIND 5X50 | 2 | |
| 21 | 419548-5 | BAFFLE PLATE | 1 | |
| 22 | 211031-6 | BALL BEARING 608LLB | 1 | |
| 23 | 681625-5 | INSULATION WASHER | 1 | |
| 24 | 517764-4 | ARMATURE ASS'Y 240V | 1 | |
| 24 | D10 | INC. 22,23,25,29,30 | ||
| 25 | 240003-4 | FAN 80 | 1 | |
| 26 | 231297-2 | COMPRESSION SPRING 9 | 1 | |
| 27 | 345717-1 | SHAFT LOCK | 1 | |
| 28 | 286275-7 | CAP | 1 | |
| 29 | 267280-3 | FLAT WASHER 15 | 1 | |
| 30 | 211236-8 | BALL BEARING 6002DDW | 1 | |
| 31 | 261132-0 | URETHANE WASHER 26 | 1 | |
| 32 | 188446-1 | BLADE CASE SET | 1 | |
| 32 | C10 | 213459-4 | O RING 32 | 1 |
| 32 | C20 | 263002-9 | RUBBER PIN 4 | 1 |
| 32 | C30 | 816892-5 | SCALE LABEL | 1 |
| 32 | C31 | 816892-5 | SCALE LABEL | 1 |
| 32 | D10 | INC. 33 | ||
| 33 | 819234-2 | MAKITA LOGO PLATE | 1 | |
| 34 | 251247-1 | + PAN HEAD SCREW M6X20 | 1 | |
| 35 | 262552-1 | RUBBER SLEEVE 6 | 1 | |
| 36 | 419553-2 | HANDLE COVER | 1 | |
| 37 | 692527-0 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 38 | 682564-2 | CORD GUARD | 1 | |
| 39 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 40 | 687124-5 | STRAIN RELIEF | 1 | |
| 41 | 654531-7 | TERMINAL BLOCK 2P | 1 | |
| 42 | 631710-4 | LIGHT CIRCUIT | 1 | |
| 44 | 651189-3 | SWITCH TG933TN-2 | 1 | |
| 45 | 158100-1 | MOTOR HOUSING COMPLETE | 1 | |
| 45 | C10 | 643653-8 | BRUSH HOLDER 6.5-13.5 | 2 |
| 045-1 | 141T68-8 | MOTOR HOUSING COMPLETE | 1 | |
| 045-1 | C10 | 643653-8 | BRUSH HOLDER 6.5-13.5 | 2 |
| 46 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 47 | 331719-3 | PIPE 9 | 1 | |
| 48 | 941201-0 | FLAT WASHER 8 | 1 | |
| 49 | 272253-3 | LEVER 56 | 1 | |
| 50 | 252199-9 | HEX. NUT M8-13 | 1 | |
| 51 | 257953-6 | BOW STOP RING E-12 | 1 | |
| 52 | 188448-7 | REAR COVER SET | 1 | |
| 52 | D10 | INC. 54 | ||
| 53 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 54 | 819237-6 | MAKITA LOGO LABEL | 1 | |
| 55 | 911268-2 | PAN HEAD SCREW M5X45 | 3 | |
| 56 | 863999-8 | 5008MG NAME PLATE | 1 | |
| 57 | 419550-8 | FRONT GRIP | 1 | |
| 58 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 058-1 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 59 | 181044-0 | CARBON BRUSH CB-153 | 1 | |
| 059-1 | 194985-1 | CARBON BRUSH SET CB-153 | 1 | |
| 60 | 257953-6 | BOW STOP RING E-12 | 1 | |
| 61 | 272253-3 | LEVER 56 | 1 | |
| 62 | 252199-9 | HEX. NUT M8-13 | 1 | |
| 63 | 941201-0 | FLAT WASHER 8 | 1 | |
| 64 | 345835-5 | ANGULAR GUIDE | 1 | |
| 065-1 | 256511-5 | SHOULDER PIN 6-7 | 1 | |
| 66 | 257759-2 | SLEEVE 6 | 1 | |
| 67 | 941101-4 | FLAT WASHER 5 | 1 | |
| 68 | 922261-1 | HEX. SOCKET HEAD BOLT M5X40 | 1 | |
| 69 | 266396-1 | FLATHEAD SQUARENECKBOLT M8X24 | 1 | |
| 70 | 331719-3 | PIPE 9 | 1 | |
| 71 | 345833-9 | DEPTH GUIDE | 1 | |
| 072-1 | 256511-5 | SHOULDER PIN 6-7 | 1 | |
| 73 | 266237-1 | CAP SQUARE NECK BOLT M8X90 | 1 | |
| 74 | 266229-0 | H.S.SET SCREW(CUP POINT)M5X8 | 1 | |
| 75 | 158423-7 | BASE COMPLETE | 1 | |
| 75 | C10 | 816894-1 | SCALE PLATE | 1 |
| 76 | 266229-0 | H.S.SET SCREW(CUP POINT)M5X8 | 1 | |
| 77 | 251370-2 | + PAN HEAD SCREW M5 | 1 | |
| 78 | 419549-3 | DIAL 27 | 1 | |
| 79 | 216008-6 | STEEL BALL 4 | 1 | |
| 80 | 233314-4 | COMPRESSION SPRING 4 | 1 | |
| 81 | 266229-0 | H.S.SET SCREW(CUP POINT)M5X8 | 1 | |
| 82 | 251858-2 | DIAL SCREW M6X15 | 1 | |
| 83 | 253811-4 | FLAT WASHER 5 | 1 | |
| 85 | 450351-5 | SPACER | 2 | |
| A01 | 164095-8 | GUIDE RULE | 1 | |
| A02 | 783204-6 | HEX. WRENCH 6 | 1 | |
| A03 | D-29066 | T.C.T.SAW BLADE 210X25.4X24T | 1 |
