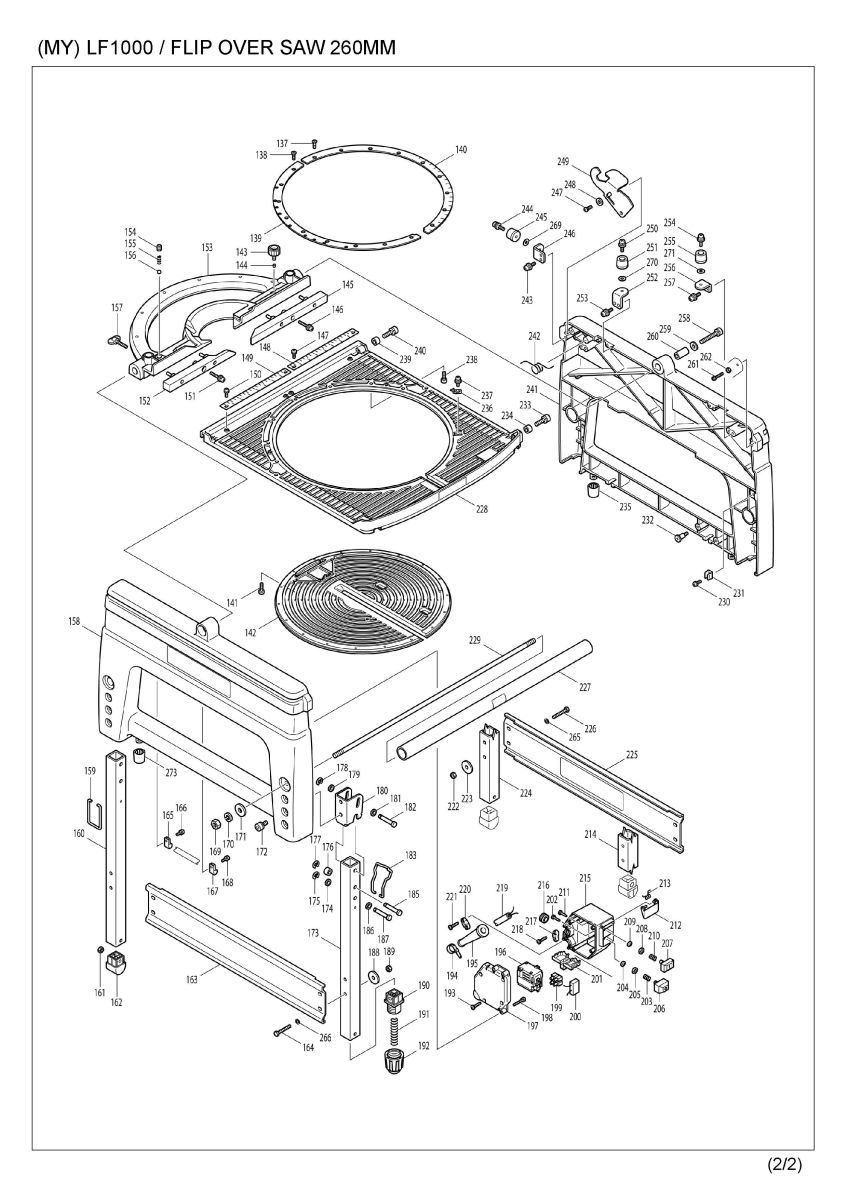

Part Diagram
Total: 344 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 265999-8 | TAPPING SCREW 4X25 | 2 | |
| 002 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 003-1 | 687149-9 | STRAIN RELIEF | 1 | |
| 004 | 662971-5 | POWER SUPPLY CORD 1.0-6-1.56 | 1 | |
| 005 | 682506-6 | CORD GUARD 12-90 | 1 | |
| 006 | 688140-0 | LINE FILTER | 1 | |
| 007 | 687010-0 | BAND | 1 | |
| 008 | 645006-7 | NOISE SUPPRESSOR | 1 | |
| 009 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 010 | 416356-5 | LOCK-OFF LEVER | 1 | |
| 011-1 | 233483-1 | COMPRESSION SPRING 4 | 1 | |
| 012 | 416404-0 | SWITCH BUTTON | 1 | |
| 012-1 | 451037-4 | SWITCH BUTTON | 1 | |
| 013 | 651923-1 | SWITCH TG70B | 1 | |
| 014 | 651941-9 | SWITCH V-15-2A5 | 1 | |
| 015 | 416357-3 | SWITCH LEVER | 1 | |
| 015-1 | 458790-3 | SWITCH LEVER | 1 | |
| 016-1 | 188063-7 | HANDLE SET | 1 | |
| 016-1 | C10 | 810087-2 | CAUTION LABEL | 1 |
| 016-1 | D10 | INC. 263 | ||
| 017 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 018 | 861365-3 | LF1000 NAME PLATE | 1 | |
| 019 | 911383-2 | PAN HEAD SCREW M6X60 | 4 | |
| 020-1 | 631947-3 | CONTROLLER | 1 | |
| 021 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 022 | 416362-0 | REAR COVER | 1 | |
| 023 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 024-1 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 025 | 181044-0 | CARBON BRUSH CB-153 | 1 | |
| 026 | 154569-7 | MOTOR HOUSING COMPLETE | 1 | |
| 026 | C13 | 643653-8 | BRUSH HOLDER 6.5-13.5 | 2 |
| 026 | C14 | 643536-2 | BRUSH HOLDER 6.5X13.5 | 2 |
| 026 | C15 | 643653-8 | BRUSH HOLDER 6.5-13.5 | 2 |
| 026 | C16 | 643536-2 | BRUSH HOLDER 6.5X13.5 | 2 |
| 026 | C20 | 810086-4 | CAUTION LABEL | 1 |
| 027 | 596273-6 | FIELD ASS'Y 220-240V | 1 | |
| 027 | C10 | 654020-2 | RING TERMINAL | 2 |
| 027 | C20 | 654502-4 | CONNECTOR P-2 | 2 |
| 028 | 266044-2 | TAPPING SCREW 5X60 | 2 | |
| 029 | 416361-2 | BAFFLE PLATE | 1 | |
| 030 | 211061-7 | BALL BEARING 6000LLB | 1 | |
| 030-1 | 211097-6 | BALL BEARING 6000LLB | 1 | |
| 031 | 681642-5 | INSULATION WASHER | 1 | |
| 032 | 516748-9 | ARMATURE ASS'Y 220-240V | 1 | |
| 032 | D10 | INC. 30,31,34,35,264 | ||
| 033 | 345574-7 | SHAFT LOCK | 1 | |
| 034-1 | 267320-7 | FLAT WASHER 15 | 1 | |
| 035 | 211206-7 | BALL BEARING 6202LLB | 1 | |
| 036-1 | 233467-9 | COMPRESSION SPRING 9 | 1 | |
| 037 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 038 | 416006-2 | LEVER 100 | 1 | |
| 039 | 252192-3 | HEX.NUT M10-17 | 1 | |
| 040-2 | 231266-3 | COMPRESSION SPRING 5 | 1 | |
| 041 | 331691-9 | SPACER | 1 | |
| 042-1 | 264005-6 | HEX. LOCK NUT M10-17 | 1 | |
| 043 | 253197-6 | FLAT WASHER 10 | 1 | |
| 044 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 045 | 816825-0 | INDICATION PLATE | 1 | |
| 046-1 | 265551-2 | HEX. SOCKET HEAD BOLT M6X20 | 1 | |
| 047-1 | 267325-7 | FLAT WASHER 6 | 1 | |
| 048 | 257270-4 | RING 6 | 1 | |
| 049-1 | 141540-0 | LINK PLATE COMPLETE | 1 | |
| 050 | 265532-6 | HEX.BOLT M10 | 1 | |
| 051-1 | 267323-1 | FLAT WASHER 16 | 1 | |
| 052-1 | 141133-3 | ARM COMPLETE | 1 | |
| 052-1 | C10 | 816833-1 | BEVEL SCALE LABEL | 1 |
| 053 | 231681-1 | TORSION SPRING 34 | 1 | |
| 054 | 416358-1 | SLEEVE 17 | 2 | |
| 055 | 256488-4 | PIN 7 | 1 | |
| 056 | 233429-7 | COMPRESSION SPRING 7 | 1 | |
| 057 | 271601-3 | KNOB 20 | 1 | |
| 058 | 951063-8 | SPRING PIN 3-16 | 1 | |
| 059 | 687049-3 | STRAIN RELIEF | 1 | |
| 060 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 061 | 271319-6 | KNOB 40 | 1 | |
| 062-1 | 216030-3 | STEEL BALL 6 | 2 | |
| 063 | 257750-0 | SLEEVE 13 | 1 | |
| 064 | 257748-7 | SLEEVE 6 | 1 | |
| 065-1 | 267313-4 | FLAT WASHER 6 | 1 | |
| 066-1 | 265552-0 | HEX. SOCKET HEAD BOLT M6X30 | 1 | |
| 067 | 331689-6 | ADJUST NUT | 1 | |
| 068 | 922557-0 | HEX. SOCKET HEAD BOLT M10X35 | 1 | |
| 069 | 942251-8 | SPRING WASHER 10 | 1 | |
| 070 | 941252-3 | FLAT WASHER 10 | 1 | |
| 071 | 257747-9 | SLEEVE 10 | 1 | |
| 072 | 265984-1 | HEX.SOCKET BUTTON HEAD BOLT M6 | 1 | |
| 073-1 | 267326-5 | FLAT WASHER 7 | 1 | |
| 074 | 345553-5 | STOPPER PLATE | 1 | |
| 075 | 216004-4 | STEEL BALL 7.9 | 1 | |
| 076-1 | 233466-1 | COMPRESSION SPRING 6 | 1 | |
| 077 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 078 | 266085-8 | H.S.SET SCREW(FLAT POINT)M6X10 | 1 | |
| 079 | 931502-4 | HEX. NUT M10 | 1 | |
| 080 | 942251-8 | SPRING WASHER 10 | 1 | |
| 081 | 941252-3 | FLAT WASHER 10 | 1 | |
| 082 | 317889-2 | CONNECTING ROD | 1 | |
| 083-1 | 419277-0 | DUST NOZZLE | 1 | |
| 084 | 213460-9 | O RING 35 | 1 | |
| 085 | 253197-6 | FLAT WASHER 10 | 1 | |
| 086 | 931302-2 | HEX. NUT M6 | 1 | |
| 087 | 921342-8 | HEX. BOLT M6X25 | 1 | |
| 088 | 257746-1 | SLEEVE 5 | 1 | |
| 089-1 | 265550-4 | HEX. SOCKET HEAD BOLT M5X20 | 1 | |
| 090 | 266085-8 | H.S.SET SCREW(FLAT POINT)M6X10 | 2 | |
| 091 | 317887-6 | SUB ARM | 1 | |
| 092 | 266377-5 | BOLT M10 | 1 | |
| 093 | 912112-6 | COUNTERSUNK HEAD SCREW M4X10 | 2 | |
| 094 | 231836-8 | TENSION SPRING 4 | 1 | |
| 095-1 | 453711-0 | SAFETY COVER | 1 | |
| 096-1 | 210043-6 | BALL BEARING 608LLB | 1 | |
| 097 | 961055-9 | RETAINING RING S-15 | 1 | |
| 098 | 226600-0 | HELICAL GEAR 46 | 1 | |
| 099 | 254202-2 | KEY 4 | 1 | |
| 100 | 257266-5 | RING 15 | 1 | |
| 101 | 213623-7 | O RING 46 | 1 | |
| 102-1 | 285846-7 | BEARING RETAINER 25-36 | 1 | |
| 103 | 211206-7 | BALL BEARING 6202LLB | 1 | |
| 104 | 317888-4 | BEARING BOX | 1 | |
| 105 | 912222-9 | COUNTERSUNK HEAD SCREW M5X16 | 4 | |
| 106 | 961201-4 | RETAINING RING S-42 | 1 | |
| 107 | 224333-1 | FLANGE 53 | 1 | |
| 108-1 | 257295-8 | RING 16 | 1 | |
| 109 | 324543-1 | SPINDLE | 1 | |
| 110 | 224400-2 | OUTER FLANGE 53 | 1 | |
| 111-1 | 266762-2 | HEX. SOCKET HEAD BOLT M8X22 | 1 | |
| 112-1 | 266763-0 | HEX. SOCKET HEAD BOLT M8X97 | 1 | |
| 113 | 942201-3 | SPRING WASHER 8 | 1 | |
| 114-1 | 267312-6 | FLAT WASHER 8 | 1 | |
| 116 | 163461-6 | RIVING KNIFE | 1 | |
| 117 | 331690-1 | KNIFE SUPPORT | 1 | |
| 118-1 | 267312-6 | FLAT WASHER 8 | 1 | |
| 119 | 252641-0 | WING NUT M8 | 1 | |
| 120 | 961011-9 | STOP RING E-4 | 1 | |
| 121 | 154571-0 | BLADE CASE COMPLETE | 1 | |
| 121 | C10 | 268076-5 | PIN 6 | 2 |
| 121 | C20 | 817667-5 | CAUTION LABEL | 1 |
| 121 | C30 | 819174-4 | MAKITA LOGO LABEL | 1 |
| 121 | C40 | 951163-4 | SPRING PIN 5-20 | 1 |
| 122-1 | 324664-9 | GUARD SHAFT | 1 | |
| 123 | 345554-3 | GUARD | 1 | |
| 124 | 345558-5 | GUARD HOLDER | 1 | |
| 125 | 911213-7 | PAN HEAD SCREW M5X12 | 1 | |
| 126-1 | 267327-3 | FLAT WASHER 10 | 1 | |
| 127 | 231675-6 | TORSION SPRING 11 | 1 | |
| 128 | 265533-4 | HEX.BOLT M6 | 1 | |
| 129-1 | 210043-6 | BALL BEARING 608LLB | 1 | |
| 130-1 | 267313-4 | FLAT WASHER 6 | 1 | |
| 131 | 961012-7 | STOP RING E-6 | 1 | |
| 132 | 421589-9 | CAP | 1 | |
| 133 | 345552-7 | LOCK LEVER | 1 | |
| 134-1 | 233467-9 | COMPRESSION SPRING 9 | 1 | |
| 135 | 256855-3 | ROD 8 | 1 | |
| 136 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 2 | |
| 137 | 912112-6 | COUNTERSUNK HEAD SCREW M4X10 | 9 | |
| 138 | 912112-6 | COUNTERSUNK HEAD SCREW M4X10 | 9 | |
| 139 | 345541-2 | SLIDE PLATE L | 1 | |
| 140 | 345542-0 | SLIDE PLATE R | 1 | |
| 141-1 | 265551-2 | HEX. SOCKET HEAD BOLT M6X20 | 4 | |
| 142-1 | 141631-7 | TURN TABLE COMPLETE | 1 | |
| 142-1 | C10 | 256253-1 | PIN 5 | 1 |
| 143 | 251815-0 | SCREW M6X25 | 1 | |
| 144 | 268068-4 | PIN 5 | 1 | |
| 147 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 2 | |
| 148 | 816827-6 | SCALE PLATE R | 1 | |
| 149 | 816826-8 | SCALE PLATE L | 1 | |
| 150 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 2 | |
| 153-2 | 142820-7 | GUIDE FENCE COMPLETE | 1 | |
| 153-2 | C10 | 256253-1 | PIN 5 | 2 |
| 154-1 | 266392-9 | H.S.SET SCREW(FLATPOINT)M10X12 | 1 | |
| 155-1 | 233466-1 | COMPRESSION SPRING 6 | 1 | |
| 156 | 216004-4 | STEEL BALL 7.9 | 1 | |
| 157 | 265710-8 | THUMB SCREW M6X33 | 1 | |
| 158-1 | 188862-7 | FRAME SET | 1 | |
| 158-1 | D10 | INC. 273 | ||
| 159 | 345547-0 | HOOK | 1 | |
| 160 | 331687-0 | SQUARE PIPE 32-510 | 1 | |
| 161 | 931302-2 | HEX. NUT M6 | 3 | |
| 162 | 418927-4 | FOOT | 3 | |
| 163 | 154592-2 | SUPPORT BRACKET COMPLETE | 1 | |
| 163 | C10 | 816831-5 | INDICATION LABEL | 1 |
| 164 | 921367-2 | HEX. BOLT M6X45 | 4 | |
| 165 | 687049-3 | STRAIN RELIEF | 1 | |
| 166 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 167 | 687049-3 | STRAIN RELIEF | 1 | |
| 168 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 169 | 931502-4 | HEX. NUT M10 | 4 | |
| 170 | 942251-8 | SPRING WASHER 10 | 4 | |
| 171-1 | 267328-1 | FLAT WASHER 10 | 4 | |
| 172-1 | 265553-8 | HEX. SOCKET HEAD BOLT M8X20 | 8 | |
| 173 | 331686-2 | SQUARE PIPE 32-475 | 1 | |
| 174-1 | 267321-5 | FLAT WASHER 8 | 2 | |
| 175 | 961012-7 | STOP RING E-6 | 2 | |
| 176 | 257749-5 | SLEEVE 8 | 4 | |
| 177 | 961012-7 | STOP RING E-6 | 4 | |
| 178 | 961012-7 | STOP RING E-6 | 4 | |
| 179-1 | 267321-5 | FLAT WASHER 8 | 4 | |
| 180 | 345543-8 | BRACKET | 4 | |
| 181-1 | 267321-5 | FLAT WASHER 8 | 4 | |
| 182 | 268127-4 | PIN 8 | 4 | |
| 183 | 345548-8 | STOPPER HOOK | 2 | |
| 185 | 268127-4 | PIN 8 | 4 | |
| 186-1 | 267321-5 | FLAT WASHER 8 | 2 | |
| 187 | 268141-0 | PIN 8 | 2 | |
| 188-1 | 267312-6 | FLAT WASHER 8 | 4 | |
| 189 | 931302-2 | HEX. NUT M6 | 4 | |
| 190 | 418925-8 | FOOT BOLT | 1 | |
| 191-1 | 233468-7 | COMPRESSION SPRING 13 | 1 | |
| 192 | 418926-6 | FOOT NUT | 1 | |
| 193 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 194 | 687209-7 | BAND | 1 | |
| 195 | 682540-6 | CORD GUARD 9.3-90 | 1 | |
| 195-1 | 682574-9 | CORD GUARD 10-90 | 1 | |
| 196 | 652772-9 | RELAY 305.232.01 | 1 | |
| 196-1 | 652772-9 | RELAY 305.232.01 | 1 | |
| 196-2 | 652772-9 | RELAY 305.232.01 | 1 | |
| 197 | 418924-0 | SWITCH BOX COVER | 1 | |
| 198 | 911148-2 | PAN HEAD SCREW M4X25 | 3 | |
| 199 | 654561-8 | TERMINAL BLOCK | 1 | |
| 200 | 645206-9 | NOISE SUPPRESSOR | 1 | |
| 201 | 686035-1 | RECEPTACLE SLEEVE | 5 | |
| 202 | 418618-7 | PIN | 1 | |
| 203-1 | 233464-5 | COMPRESSION SPRING 8 | 1 | |
| 204 | 443103-1 | FELT RING 6 | 1 | |
| 205-1 | 267322-3 | FLAT WASHER 7 | 1 | |
| 206 | 418617-9 | SWITCH BUTTON OFF | 1 | |
| 207 | 418616-1 | SWITCH BUTTON ON | 1 | |
| 208-1 | 267322-3 | FLAT WASHER 7 | 1 | |
| 209 | 443103-1 | FELT RING 6 | 1 | |
| 210-1 | 233464-5 | COMPRESSION SPRING 8 | 1 | |
| 211 | 418618-7 | PIN | 1 | |
| 212 | 418929-0 | SWITCH COVER | 1 | |
| 213 | 231682-9 | TORSION SPRING 5 | 1 | |
| 214 | 331686-2 | SQUARE PIPE 32-475 | 1 | |
| 215 | 418923-2 | SWITCH BOX | 1 | |
| 216 | 682511-3 | GROMMET | 1 | |
| 216-1 | 682103-8 | GROMMET | 1 | |
| 217-1 | 687149-9 | STRAIN RELIEF | 1 | |
| 218 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 219 | 692527-0 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 220-1 | 687124-5 | STRAIN RELIEF | 1 | |
| 221 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 222 | 931302-2 | HEX. NUT M6 | 4 | |
| 223-1 | 267312-6 | FLAT WASHER 8 | 4 | |
| 224 | 331686-2 | SQUARE PIPE 32-475 | 1 | |
| 225 | 345546-2 | SUPPORT BRACKET | 1 | |
| 226 | 921367-2 | HEX. BOLT M6X45 | 4 | |
| 227 | 154593-0 | PIPE 32 COMPLETE | 2 | |
| 227 | C10 | 819212-2 | MAKITA LOGO LABEL | 2 |
| 228 | 154572-8 | TABLE COMPLETE | 1 | |
| 228 | C10 | 810086-4 | CAUTION LABEL | 1 |
| 228 | C20 | 810965-6 | CAUTION LABEL | 1 |
| 229 | 266360-2 | SCREW M10 | 2 | |
| 231-1 | 410047-0 | WRENCH HOLDER 5.6 | 1 | |
| 232-1 | 266391-1 | SHOULDER SCREW M6 | 2 | |
| 233-1 | 265554-6 | HEX. SOCKET HEAD BOLT M8X25 | 1 | |
| 234 | 257749-5 | SLEEVE 8 | 1 | |
| 235 | 418931-3 | CAP | 2 | |
| 236-1 | 816856-9 | INDICATION PLATE | 1 | |
| 237 | 911108-4 | PAN HEAD SCREW M4X8 | 1 | |
| 238-1 | 265551-2 | HEX. SOCKET HEAD BOLT M6X20 | 9 | |
| 239 | 257749-5 | SLEEVE 8 | 1 | |
| 240-1 | 265554-6 | HEX. SOCKET HEAD BOLT M8X25 | 1 | |
| 241-1 | 188862-7 | FRAME SET | 1 | |
| 241-1 | D10 | INC. 235 | ||
| 242 | 231680-3 | TORSION SPRING 17 | 1 | |
| 243 | 911333-7 | PAN HEAD SCREW M6X20 | 4 | |
| 244 | 911333-7 | PAN HEAD SCREW M6X20 | 2 | |
| 245 | 421906-3 | CUSHION | 2 | |
| 246 | 345550-1 | STOPPER BRACKET R | 2 | |
| 247 | 265984-1 | HEX.SOCKET BUTTON HEAD BOLT M6 | 2 | |
| 248-1 | 267326-5 | FLAT WASHER 7 | 2 | |
| 249 | 345551-9 | LEVER | 1 | |
| 250 | 911333-7 | PAN HEAD SCREW M6X20 | 2 | |
| 251 | 421906-3 | CUSHION | 2 | |
| 252 | 345550-1 | STOPPER BRACKET R | 2 | |
| 253 | 911333-7 | PAN HEAD SCREW M6X20 | 4 | |
| 254 | 911333-7 | PAN HEAD SCREW M6X20 | 2 | |
| 255 | 421906-3 | CUSHION | 2 | |
| 256 | 345549-6 | STOPPER BRACKET F | 2 | |
| 257 | 911333-7 | PAN HEAD SCREW M6X20 | 4 | |
| 258-1 | 265555-4 | HEX. SOCKET HEAD BOLT M8X50 | 2 | |
| 259-1 | 267399-8 | FLAT WASHER 8 | 2 | |
| 260 | 257751-8 | SLEEVE 8 | 2 | |
| 261-1 | 265549-9 | HEX. SOCKET HEAD BOLT M4X20 | 1 | |
| 262-1 | 931102-0 | HEX. NUT M4 | 1 | |
| 263-1 | 188063-7 | HANDLE SET | 1 | |
| 263-1 | C10 | 810087-2 | CAUTION LABEL | 1 |
| 263-1 | D10 | INC. 16 | ||
| 264 | 240003-4 | FAN 80 | 1 | |
| 265 | 941152-7 | FLAT WASHER 6 | 4 | |
| 266 | 941152-7 | FLAT WASHER 6 | 4 | |
| 267 | 216413-7 | THRUST NEEDLE CAGE 1024 | 1 | |
| 268 | 253024-7 | FLAT WASHER 10 | 1 | |
| 269-1 | 267319-2 | FLAT WASHER 6 | 2 | |
| 271-1 | 267319-2 | FLAT WASHER 6 | 3 | |
| 272-1 | 267319-2 | FLAT WASHER 6 | 3 | |
| 273 | 418931-3 | CAP | 2 | |
| A01-1 | 122729-9 | RULER ASS'Y | 1 | |
| A01-1 | C10 | 251858-2 | DIAL SCREW M6X15 | 1 |
| A01-1 | C20 | 265730-2 | THUMB SCREW M6X35 | 1 |
| A01-1 | C30 | 266085-8 | H.S.SET SCREW(FLAT POINT)M6X10 | 1 |
| A01-1 | C40 | 345692-1 | GUIDE PLATE | 1 |
| A01-1 | C51 | 346628-3 | NUT PLATE | 1 |
| A01-1 | C60 | 331692-7 | RULER A | 1 |
| A01-1 | D10 | INC. A15 | ||
| A02-1 | 122732-0 | DUST COVER ASS'Y | 1 | |
| A02-1 | C10 | 264004-8 | HEX. LOCK NUT M5-8 | 1 |
| A02-1 | C20 | 265746-7 | THUMB SCREW M5X37 | 1 |
| A03-1 | 122852-0 | DUST BAG ASS'Y | 1 | |
| A03-1 | C10 | 410602-8 | FASTENER | 1 |
| A04-1 | 122728-1 | VISE ASS'Y | 1 | |
| A04-1 | C10 | 251887-5 | SCREW M6X10 | 1 |
| A04-1 | C20 | 267325-7 | FLAT WASHER 6 | 1 |
| A04-1 | C30 | 265153-4 | + PAN HEAD SCREW M5 | 1 |
| A04-1 | C40 | 271303-1 | KNOB 40 | 1 |
| A04-1 | C50 | 317892-3 | VISE ARM | 1 |
| A04-1 | C60 | 324663-1 | VISE ROD | 1 |
| A04-1 | C70 | 345575-5 | VISE PLATE | 1 |
| A05-1 | 122730-4 | ANGLE RULE ASS'Y | 1 | |
| A05-1 | C10 | 163454-3 | GUIDE PLATE | 1 |
| A05-1 | C20 | 252631-3 | THUMB NUT M6 | 1 |
| A05-1 | C30 | 267319-2 | FLAT WASHER 6 | 1 |
| A05-1 | C40 | 271401-1 | KNOB 32 | 1 |
| A05-1 | C50 | 331693-5 | RULER B | 1 |
| A05-1 | C61 | 266371-7 | CUP SQUARE NECK BOLT M6X18 | 1 |
| A06-2 | 123104-2 | TOP COVER ASS'Y | 1 | |
| A06-2 | C10 | 233469-5 | COMPRESSION SPRING 7 | 1 |
| A06-2 | C20 | 268129-0 | PIN 8 | 1 |
| A06-2 | C30 | 961012-7 | STOP RING E-6 | 1 |
| A06-2 | C40 | 817283-3 | CAUTION LABEL | 1 |
| A07 | 345555-1 | FIX PLATE | 3 | |
| A08 | 416368-8 | ELBOW | 1 | |
| A09 | 419043-5 | PUSH STICK | 1 | |
| A10 | 762001-3 | TRIANGULAR RULE | 1 | |
| A11 | 921322-4 | HEX. BOLT M6X16 | 3 | |
| A12-1 | 783204-6 | HEX. WRENCH 6 | 1 | |
| A15 | 154580-9 | RULE HOLDER COMPLETE | 1 | |
| A15 | C10 | 810191-7 | CAUTION LABEL | 1 |
| A16 | 257060-5 | RING 15.8 | 1 | |
| A17 | 783201-2 | HEX. WRENCH 3 | 1 | |
| A18 | 123262-4 | SUB FENCE ASSEMBLY | 1 | |
| A18 | C10 | 142819-2 | SUB FENCE COMPLETE | 1 |
| A18 | C20 | 213021-5 | O RING 5 | 1 |
| A18 | C30 | 265753-0 | THUMB SCREW M5X24 | 1 |
Back Download
