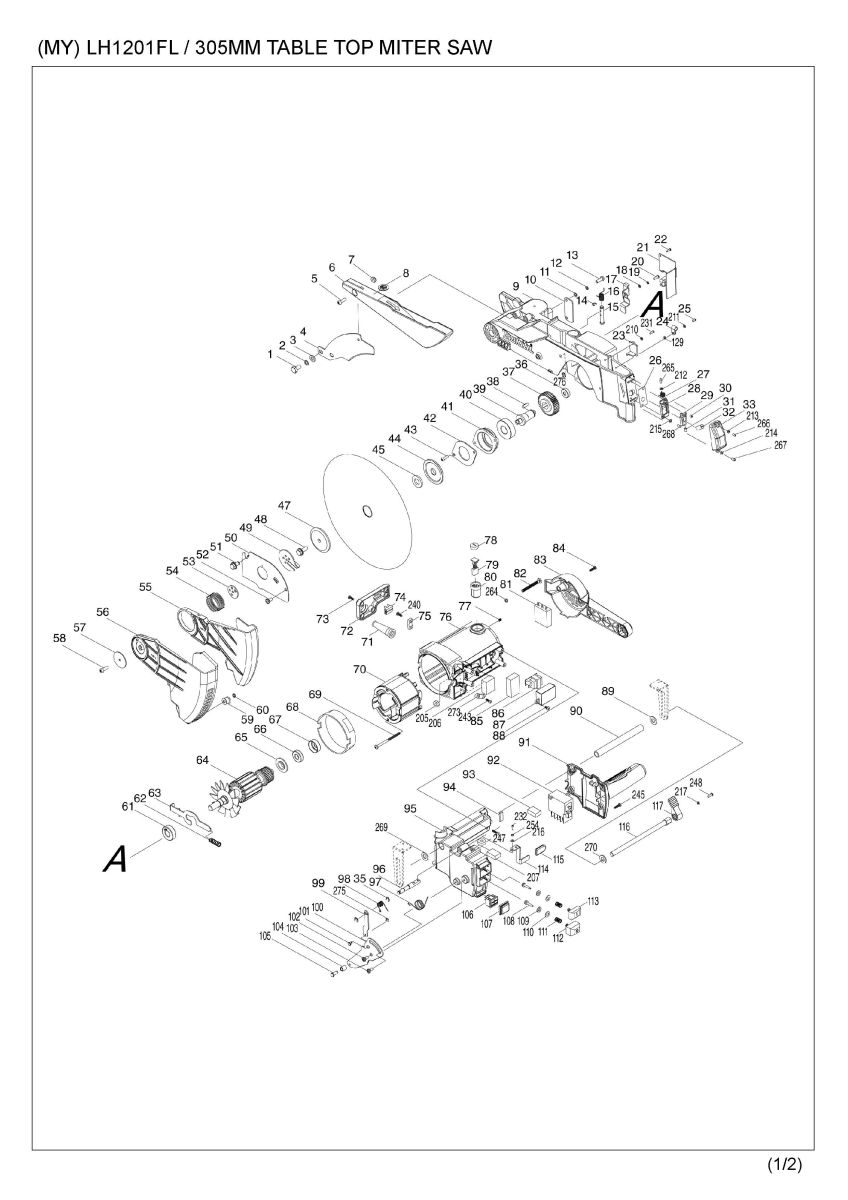

Part Diagram
Total: 399 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | JM23300009 | HEX BOLT M8X16 | 2 | |
| 002 | JM23300010 | SPRING WASHER 8 | 2 | |
| 003 | JM23300011 | FLAT WASHER 8 | 2 | |
| 004 | JM23300012 | RIVING KNIFE | 1 | |
| 005 | JM23300013 | PAN HEAD SCREW M6X16 | 1 | |
| 006 | JM23300300 | UP BLADE GUARD COMPLETE | 1 | |
| 006 | D10 | INC. 8 | ||
| 007 | JM23300015 | HEX LOCK NUT M6 | 1 | |
| 007-1 | JM23300015 | HEX LOCK NUT M6 | 1 | |
| 008 | JM27080060 | WARNING LABEL | 1 | |
| 008-1 | JM2708B060 | CAUTION LABEL | 1 | |
| 009 | JM23300244 | BLADE CASE COMPLETE | 1 | |
| 009-1 | JM23300244 | BLADE CASE COMPLETE | 1 | |
| 009-2 | D10 | INC. 36,143 | ||
| 010 | JM23300239 | FENCE PRESS PLAT | 1 | |
| 011 | JM23300019 | FLAT WASHER 6 | 2 | |
| 012 | JM23300020 | SPRING WASHER 6 | 2 | |
| 013 | JM23300248 | PAN HEAD SCREW M6X16 | 2 | |
| 014 | JM23300022 | E SHAPE RETAINING RING 5 | 1 | |
| 014-1 | JM23300022 | E SHAPE RETAINING RING 5 | 1 | |
| 015 | JM23300023 | LIFTING LIMITED PLATE SHAFT | 1 | |
| 016 | JM23300024 | TORSION SPRING | 1 | |
| 017 | JM23300025 | LIFTING LIMITED PLATE | 1 | |
| 018 | JM23300026 | FLAT WASHER 4 | 2 | |
| 019 | JM23300027 | SPRING WASHER 4 | 2 | |
| 020 | JM23300028 | PAN HEAD SCREW M4X12 | 2 | |
| 021 | JM23300029 | PROTECTION COVER | 1 | |
| 022 | JM23300030 | PAN HEAD SCREW M4X10 | 2 | |
| 023 | JM23300031 | LASER TERMINAL BOX COVER | 1 | |
| 024 | JM23300032 | CORD CLAMP | 1 | |
| 025 | JM23300033 | PAN HEAD SCREW M4X8 | 1 | |
| 026 | JM23300034 | LASER DUST-PROOF WASHER | 1 | |
| 027 | JM23300035 | LASER SPRING | 1 | |
| 028 | JM23300036 | LASER BRACKET | 1 | |
| 029 | JM23300037 | LASER TURNING BRACKET | 1 | |
| 030 | JM23300038 | HEX SOCKET SET SCREW M4X6 | 1 | |
| 031 | JM23300039 | HEX SOCKET SET SCREW M4X8 | 1 | |
| 031-1 | JM23300039 | HEX SOCKET SET SCREW M4X8 | 1 | |
| 032 | JM23300040 | LASER DIODE | 1 | |
| 033 | JM23300041 | LASER COVER | 1 | |
| 035 | JM23300042 | E SHAPE RETAINING RING 6 | 2 | |
| 035-1 | JM23300042 | E SHAPE RETAINING RING 6 | 1 | |
| 036 | JM23300043 | BEARING 608 | 1 | |
| 037 | JM23300044 | HELICAL GEAR 41 | 1 | |
| 037-1 | JM23300044 | HELICAL GEAR 41 | 1 | |
| 038 | JM23300045 | KEY 6X16 | 1 | |
| 039 | JM23300046 | SPINDLE | 1 | |
| 040 | JM23300047 | BEARING 6204 | 1 | |
| 041 | JM23300048 | BEARING BRACKET | 1 | |
| 042 | JM23300049 | BEARING COVER | 1 | |
| 043 | JM23300050 | H.S.PAN HEAD SCREW M5X16 | 2 | |
| 043-1 | JM23300050 | H.S.PAN HEAD SCREW M5X16 | 2 | |
| 044 | JM23300051 | INNER FLANGE | 1 | |
| 045 | JM23100191 | RING 25.4 | 1 | |
| 047 | JM23300053 | OUTER FLANGE | 1 | |
| 048 | JM23300054 | HEX FLANGED BOLT M8X20 LH | 1 | |
| 048-1 | JM23300054 | HEX FLANGED BOLT M8X20 LH | 1 | |
| 049 | JM23300055 | CENTER PLATE | 1 | |
| 050 | JM23300056 | GUARD FIX PLATE | 1 | |
| 051 | JM23300057 | GUARD SCREW M8X12 | 1 | |
| 052 | JM23300058 | STEPPED SCREW M5X12 | 1 | |
| 052-1 | JM23300058 | STEPPED SCREW M5X12 | 1 | |
| 053 | JM23300059 | CENTER WASHER | 1 | |
| 054 | JM23300060 | GUARD TORSION SPRING | 1 | |
| 055 | JM23300061 | INNER GUARD | 1 | |
| 056 | JM23300310 | OUTER GUARD COMPLETE | 1 | |
| 056 | D10 | INC. 59,60 | ||
| 057 | JM23300063 | FIX PLATE | 1 | |
| 058 | JM23300064 | PAN HEAD SCREW M5X25 | 1 | |
| 059 | JM23300065 | GUARD ROLLER SLEEVE | 1 | |
| 060 | JM23300066 | PUSH NUT 5 | 1 | |
| 060-1 | JM23300066 | PUSH NUT 5 | 1 | |
| 061 | JM23300067 | BEARING 6202-RS | 1 | |
| 062 | JM23300068 | COMPRESSION SPRING | 1 | |
| 063 | JM23300069 | SHAFT LOCK PLATE | 1 | |
| 064 | JM23300001 | ARMATURE 230V | 1 | |
| 064 | D10 | INC. 61, 65, 66 | ||
| 065 | JM23300070 | DUST PROOF COVER | 1 | |
| 066 | JM23300071 | BEARING 6001-RS | 1 | |
| 067 | JM23300072 | BUFFER PAD | 1 | |
| 068 | JM23300073 | BAFFLE PLATE | 1 | |
| 069 | JM23300074 | TAPPING SCREW ST4.8X75 | 2 | |
| 070 | JM23300003 | FIELD 230V | 1 | |
| 071 | JM23300075 | PROTECTION TUBE | 1 | |
| 072 | JM23300076 | TERMINAL BOX COVER | 1 | |
| 073 | JM23300077 | TAPPING SCREW ST4.2X12 | 5 | |
| 073-1 | JM23300088 | TAPPING SCREW ST4.2X16 | 5 | |
| 074 | JM23300078 | CONNECTION TERMINAL | 1 | |
| 075 | JM23300079 | CORD CLAMP | 1 | |
| 076 | JM23300320 | MOTOR HOUSING COMPLETE | 1 | |
| 076 | D10 | INC. 77,80 | ||
| 077 | JM23300081 | H.S.SETTING SCREW M5X8 | 2 | |
| 078 | JM23300082 | CARBON BRUSH COVER | 2 | |
| 079 | JM23000123 | CARBON BRUSH 2PCS/SET | 1 | |
| 080 | JM23300084 | CARBON BRUSH HOLDER | 2 | |
| 081 | JM23300085 | SOFT STARTER HV | 1 | |
| 081-1 | JM23300085 | SOFT STARTER HV | 1 | |
| 082 | JM23300086 | PAN HEAD SCREW M6X55 | 4 | |
| 083 | JM23300087 | REAR COVER | 1 | |
| 084 | JM23300088 | TAPPING SCREW ST4.2X16 | 4 | |
| 085 | JM23300089 | SPONGE 70X45X13 | 1 | |
| 085-1 | JM23300089 | SPONGE 70X45X13 | 1 | |
| 086 | JM23300090 | TRANSFORMER HV | 1 | |
| 086-1 | JM23300090 | TRANSFORMER HV | 1 | |
| 087 | JM23300091 | TRANSFORMER COVER | 1 | |
| 088 | JM23300092 | TAPPING SCREW ST4.2X8 | 2 | |
| 088-1 | JM23300077 | TAPPING SCREW ST4.2X12 | 2 | |
| 089 | JM23300093 | FLAT WASHER 10 | 1 | |
| 090 | JM23300094 | TABLE LOCK TUBE | 1 | |
| 091 | JM23300095 | HANDLE COVER | 1 | |
| 092 | JM23300096 | SWITCH HV | 1 | |
| 092-1 | JM23300096 | SWITCH HV | 1 | |
| 093 | JM23300097 | CAPACITOR | 1 | |
| 094 | JM23300098 | SPONGE B | 1 | |
| 095 | JM23300099 | HANDLE | 1 | |
| 096 | JM23300100 | TURNING SHAFT | 1 | |
| 097 | JM23300101 | TORSION SPRING | 1 | |
| 098 | JM23300102 | TORSION SPRING | 1 | |
| 099 | JM23300103 | LOCK LEVER B | 1 | |
| 100 | JM23300330 | LOCKING PLATE COMPLETE | 1 | |
| 100 | D10 | INC. 104,105 | ||
| 101 | JM23300105 | FLANGED PIN 5X7 | 1 | |
| 101-1 | JM23300105 | FLANGED PIN 5X7 | 1 | |
| 102 | JM23300106 | STEPPED SCREW M6X12 | 1 | |
| 102-1 | JM23300106 | STEPPED SCREW M6X12 | 1 | |
| 103 | JM23300107 | STEPPED SCREW M5X11 | 1 | |
| 103-1 | JM23300107 | STEPPED SCREW M5X11 | 1 | |
| 104 | JM23300108 | TURNING SLEEVE | 1 | |
| 105 | JM23300109 | PIN | 1 | |
| 106 | JM23300110 | SWITCH HY39-2 | 1 | |
| 107 | JM23300111 | SWITCH COVER HY39-2 | 1 | |
| 108 | JM23300112 | PRESS BUTTON CAP A | 1 | |
| 108-1 | JM23300112 | PRESS BUTTON CAP A | 1 | |
| 109 | JM23300113 | FELT RING | 2 | |
| 110 | JM23300114 | WASHER | 2 | |
| 111 | JM23300115 | SPRING | 2 | |
| 112 | JM23300116 | SWITCH OFF BUTTON | 1 | |
| 113 | JM23300117 | SWITCH ON BUTTON | 1 | |
| 114 | JM23300118 | LOCK LEVER | 1 | |
| 115 | JM23300119 | LEVER CAP | 1 | |
| 116 | JM23300120 | TABLE LOCK BOLT | 1 | |
| 117 | JM23300121 | TABLE LOCKING LEVER | 1 | |
| 118 | JM23300245 | INTERLOCK PLATE | 1 | |
| 119 | JM23300123 | HEX LOCK NUT M5 | 2 | |
| 119-1 | JM23300123 | HEX LOCK NUT M5 | 2 | |
| 120 | JM23300124 | FLAT HEAD SCREW M5X14 | 2 | |
| 120-1 | JM23300124 | FLAT HEAD SCREW M5X14 | 2 | |
| 121 | JM23300125 | TAPPING SCREW ST3.5X14 | 4 | |
| 122 | JM23300126 | WORKING TABLE | 1 | |
| 123 | JM23300236 | TABLE LIFTING SQUARE TUBE | 1 | |
| 124 | JM23300128 | PRESS WASHER | 1 | |
| 125 | JM23300129 | LOCK SPRING | 1 | |
| 126 | JM23300130 | TABLE LOCKING BOLT M10X80 | 1 | |
| 126-1 | JM23300130 | TABLE LOCKING BOLT M10X80 | 1 | |
| 127 | JM23300131 | TABLE SCALE LABEL | 1 | |
| 128 | JM23300132 | TABLE SUPPORT PLATE | 1 | |
| 128-1 | JM23300132 | TABLE SUPPORT PLATE | 2 | |
| 129 | JM23300133 | OUTER STAR WASHER 4 | 1 | |
| 130 | JM23300134 | CORD CLIP | 1 | |
| 131 | JM23300135 | TERMINAL BOX | 1 | |
| 132 | JM23300136 | TERMINAL BOX COVER | 1 | |
| 133 | JM23300137 | PAN HEAD SCREW M4X14 | 3 | |
| 134 | JM23300138 | LAMP COVER | 1 | |
| 135 | JM23300139 | LAMP BOX | 1 | |
| 136 | JM23300140 | TAPPING SCREW ST3.5X9.5 | 2 | |
| 136-1 | JM23300140 | TAPPING SCREW ST3.5X9.5 | 2 | |
| 137 | JM23300141 | UNDER GUARD | 1 | |
| 138 | JM23300142 | COMPRESSION SPRING | 1 | |
| 139 | JM23300143 | HEX SOCKET SET SCREW M6X16 | 1 | |
| 139-1 | JM23300143 | HEX SOCKET SET SCREW M6X16 | 1 | |
| 140 | JM23300144 | LINK PLATE SCREW | 1 | |
| 141 | JM23300340 | LINK PLATE COMPLETE | 1 | |
| 141 | D10 | INC. 146-148 | ||
| 142 | JM23300146 | SLEEVE | 1 | |
| 143 | JM23300147 | LINK PIN | 1 | |
| 144 | JM23300148 | LINK PIN RING | 1 | |
| 145 | JM23300149 | THIN FLAT WASHER 6 | 1 | |
| 146 | JM23300150 | FLAT WASHER 5 | 1 | |
| 147 | JM23300151 | BEARING 619-6-2Z | 1 | |
| 148 | JM23300152 | LINK PIN SHAFT | 1 | |
| 149 | JM23300153 | COMPRESSION SPRING | 1 | |
| 150 | JM23300154 | SPRING COVER | 1 | |
| 151 | JM23300155 | HEX SOCKET BOLT M6X12 | 1 | |
| 151-1 | JM23300155 | HEX SOCKET BOLT M6X12 | 1 | |
| 152 | JM23300156 | SPRING BRACKET | 1 | |
| 153 | JM23300157 | SPRING SUPPORT BRACKET | 1 | |
| 154 | JM23300158 | BALL TYPE KNOB | 1 | |
| 155 | JM23300159 | BEVEL BRACKET | 1 | |
| 156 | JM23300160 | O TYPE RING 8.5X1.8 | 1 | |
| 156-1 | JM23300160 | O TYPE RING 8.5X1.8 | 1 | |
| 157 | JM23300161 | LOCK PIN | 1 | |
| 158 | JM23300162 | BEVEL LOCK HANDLE | 1 | |
| 159 | JM23300163 | HEX LOCK NUT M12 | 1 | |
| 159-1 | JM23300163 | HEX LOCK NUT M12 | 1 | |
| 160 | JM23300164 | FLAT WASHER 12 | 1 | |
| 161 | JM23300165 | BEVEL LOCK ROD | 1 | |
| 162 | JM23300166 | BEVEL SHAFT | 1 | |
| 163 | JM23300167 | HEX NUT M8 | 3 | |
| 163-1 | JM23300167 | HEX NUT M8 | 1 | |
| 164 | JM23300168 | BUFFER WASHER | 1 | |
| 165 | JM23300169 | HEX BOLT M8X50 | 1 | |
| 166 | JM23300170 | HEX SOCKET PAN HEAD SCREW M5X8 | 4 | |
| 166-1 | JM23300170 | HEX SOCKET PAN HEAD SCREW M5X8 | 4 | |
| 167 | JM23300171 | SPRING WASHER 5 | 4 | |
| 168 | JM23300172 | GUARD FIX PLATE | 1 | |
| 169 | JM23300173 | GUARD BRACKET | 1 | |
| 170 | JM23300174 | SPRING SCREW | 1 | |
| 171 | JM23300175 | BEVEL SCALE LABEL | 1 | |
| 172 | JM23300176 | HEX BOLT M8X44 | 1 | |
| 172-1 | JM23300176 | HEX BOLT M8X44 | 1 | |
| 173 | JM23300178 | SPRING | 1 | |
| 174 | JM23300177 | CUTTING DEPTH ADJUSTING NUT | 1 | |
| 175 | JM23300179 | PIVOT | 1 | |
| 176 | JM23300180 | WRENCH CLIP | 1 | |
| 177 | JM23300181 | BACK SUPPORT | 1 | |
| 178 | JM23300182 | MITER POINTER | 1 | |
| 179 | JM23300183 | DUST PORT | 1 | |
| 180 | JM23300184 | SPRING PIN 4X35 | 1 | |
| 180-1 | JM23300184 | SPRING PIN 4X35 | 1 | |
| 181 | JM23300185 | SLIDE PLATE | 2 | |
| 181-1 | JM23300185 | SLIDE PLATE | 2 | |
| 182 | JM23300186 | DUST-PROOF COVER | 1 | |
| 183 | JM23300187 | WING KNOT | 2 | |
| 184 | JM23300188 | HEX BOLT M8X30 | 4 | |
| 185 | JM23300189 | FLAT WASHER 8 (L) | 5 | |
| 185-1 | JM23300189 | FLAT WASHER 8 (L) | 4 | |
| 186 | JM23300190 | GUIDE FENCE | 1 | |
| 187 | JM23300191 | TABLE KERF RIGHT | 1 | |
| 188 | JM23300192 | TABLE KERF LEFT | 1 | |
| 189 | JM23300193 | HEX LOCK NUT M8 | 1 | |
| 189-1 | JM23300193 | HEX LOCK NUT M8 | 1 | |
| 190 | JM23300194 | BEVEL POINTER | 1 | |
| 191 | JM23300195 | MITER WORKING TABLE | 1 | |
| 192 | JM23300196 | INSERT PLATE | 1 | |
| 193 | JM23300197 | WING LOCK KNOB | 2 | |
| 194 | JM23300350 | BASE COMPLETE | 1 | |
| 194 | D10 | INC. 196 | ||
| 196 | JM23300199 | MITER SCALE LABEL | 1 | |
| 197 | JM23300200 | WORKING TABLE PRESS PLAE A | 1 | |
| 198 | JM23300201 | MITER LOCK ROD | 1 | |
| 199 | JM23300202 | MITER LOCK SPRING | 1 | |
| 200 | JM23300203 | MITER LOCK PRESS PLATE | 1 | |
| 201 | JM23300204 | TABLE TURNING KNOB | 1 | |
| 202 | JM23300205 | WORKING TABLE LOCKING PIN | 1 | |
| 203 | JM23300206 | HEX BOLT M8X35 | 1 | |
| 204 | JM23300207 | BUFFER PAD | 4 | |
| 205 | JM23300208 | STRAIN & RELIEF | 1 | |
| 206 | JM23300209 | SPONGE 50X35X5 | 1 | |
| 206-1 | JM23300209 | SPONGE 50X35X5 | 1 | |
| 207 | JM23300210 | SPONGE D | 1 | |
| 208 | JM23300360 | ARM COMPLETE | 1 | |
| 208 | D10 | INC. 171 | ||
| 209 | JM23000152 | PW SUPPLY CORD H05VV-F 1-2 BSI | 1 | |
| 209-1 | JM23000152 | PW SUPPLY CORD H05VV-F 1-2 BSI | 1 | |
| 210 | JM23300026 | FLAT WASHER 4 | 1 | |
| 211 | JM23300026 | FLAT WASHER 4 | 1 | |
| 212 | JM23300026 | FLAT WASHER 4 | 1 | |
| 213 | JM23300026 | FLAT WASHER 4 | 1 | |
| 214 | JM23300026 | FLAT WASHER 4 | 1 | |
| 215 | JM23300026 | FLAT WASHER 4 | 2 | |
| 216 | JM23300026 | FLAT WASHER 4 | 2 | |
| 217 | JM23300026 | FLAT WASHER 4 | 1 | |
| 218 | JM23300026 | FLAT WASHER 4 | 1 | |
| 219 | JM23300026 | FLAT WASHER 4 | 1 | |
| 220 | JM23300026 | FLAT WASHER 4 | 3 | |
| 221 | JM23300026 | FLAT WASHER 4 | 1 | |
| 222 | JM23300026 | FLAT WASHER 4 | 3 | |
| 223 | JM23300026 | FLAT WASHER 4 | 1 | |
| 224 | JM23300026 | FLAT WASHER 4 | 4 | |
| 224-1 | JM23300026 | FLAT WASHER 4 | 5 | |
| 225 | JM23300026 | FLAT WASHER 4 | 1 | |
| 226 | JM23300026 | FLAT WASHER 4 | 2 | |
| 227 | JM23300026 | FLAT WASHER 4 | 4 | |
| 228 | JM23300026 | FLAT WASHER 4 | 1 | |
| 228-1 | JM23300027 | SPRING WASHER 4 | 1 | |
| 229 | JM23300026 | FLAT WASHER 4 | 2 | |
| 230 | JM23300026 | FLAT WASHER 4 | 1 | |
| 231 | JM23300030 | PAN HEAD SCREW M4X10 | 1 | |
| 232 | JM23300030 | PAN HEAD SCREW M4X10 | 2 | |
| 233 | JM23300030 | PAN HEAD SCREW M4X10 | 1 | |
| 234 | JM23300030 | PAN HEAD SCREW M4X10 | 1 | |
| 235 | JM23300030 | PAN HEAD SCREW M4X10 | 1 | |
| 236 | JM23300030 | PAN HEAD SCREW M4X10 | 4 | |
| 236-1 | JM23300030 | PAN HEAD SCREW M4X10 | 5 | |
| 237 | JM23300030 | PAN HEAD SCREW M4X10 | 2 | |
| 238 | JM23300030 | PAN HEAD SCREW M4X10 | 1 | |
| 239 | JM23300030 | PAN HEAD SCREW M4X10 | 2 | |
| 240 | JM23300077 | TAPPING SCREW ST4.2X12 | 2 | |
| 241 | JM23300077 | TAPPING SCREW ST4.2X12 | 4 | |
| 242 | JM23300077 | TAPPING SCREW ST4.2X12 | 2 | |
| 243 | JM23300077 | TAPPING SCREW ST4.2X12 | 2 | |
| 244 | JM23300088 | TAPPING SCREW ST4.2X16 | 4 | |
| 244-1 | JM23300088 | TAPPING SCREW ST4.2X16 | 4 | |
| 245 | JM23300088 | TAPPING SCREW ST4.2X16 | 4 | |
| 246 | JM23300133 | OUTER STAR WASHER 4 | 1 | |
| 247 | JM23300208 | STRAIN & RELIEF | 1 | |
| 248 | JM23300028 | PAN HEAD SCREW M4X12 | 1 | |
| 249 | JM23300028 | PAN HEAD SCREW M4X12 | 1 | |
| 250 | JM23300028 | PAN HEAD SCREW M4X12 | 1 | |
| 251 | JM23300028 | PAN HEAD SCREW M4X12 | 1 | |
| 252 | JM23300028 | PAN HEAD SCREW M4X12 | 4 | |
| 253 | JM23300028 | PAN HEAD SCREW M4X12 | 3 | |
| 254 | JM23300027 | SPRING WASHER 4 | 2 | |
| 255 | JM23300027 | SPRING WASHER 4 | 3 | |
| 256 | JM23300027 | SPRING WASHER 4 | 1 | |
| 257 | JM23300027 | SPRING WASHER 4 | 2 | |
| 258 | JM23300027 | SPRING WASHER 4 | 1 | |
| 258-1 | JM23300026 | FLAT WASHER 4 | 1 | |
| 259 | JM23300027 | SPRING WASHER 4 | 2 | |
| 260 | JM23300124 | FLAT HEAD SCREW M5X14 | 4 | |
| 260-1 | JM23300124 | FLAT HEAD SCREW M5X14 | 4 | |
| 261 | JM23300124 | FLAT HEAD SCREW M5X14 | 2 | |
| 261-1 | JM23300124 | FLAT HEAD SCREW M5X14 | 2 | |
| 262 | JM23300124 | FLAT HEAD SCREW M5X14 | 4 | |
| 262-1 | JM23300124 | FLAT HEAD SCREW M5X14 | 4 | |
| 263 | JM23300010 | SPRING WASHER 8 | 4 | |
| 264 | JM23300019 | FLAT WASHER 6 | 4 | |
| 265 | JM23300033 | PAN HEAD SCREW M4X8 | 1 | |
| 266 | JM23300033 | PAN HEAD SCREW M4X8 | 1 | |
| 267 | JM23300033 | PAN HEAD SCREW M4X8 | 1 | |
| 268 | JM23300033 | PAN HEAD SCREW M4X8 | 2 | |
| 269 | JM23300093 | FLAT WASHER 10 | 1 | |
| 270 | JM23300093 | FLAT WASHER 10 | 1 | |
| 271 | JM23300093 | FLAT WASHER 10 | 1 | |
| 272 | JM23300093 | FLAT WASHER 10 | 1 | |
| 273 | JM23300079 | CORD CLAMP | 1 | |
| 274 | JM23300079 | CORD CLAMP | 2 | |
| 275 | JM23300022 | E SHAPE RETAINING RING 5 | 1 | |
| 275-1 | JM27100079 | E SHAPE RETAINING RING 4 | 1 | |
| 276 | JM23300022 | E SHAPE RETAINING RING 5 | 1 | |
| 276-1 | JM23300042 | E SHAPE RETAINING RING 6 | 1 | |
| 277 | JM23300022 | E SHAPE RETAINING RING 5 | 1 | |
| 277-1 | JM23300022 | E SHAPE RETAINING RING 5 | 1 | |
| 278 | JM27080060 | WARNING LABEL | 2 | |
| 278-1 | JM2708B060 | CAUTION LABEL | 2 | |
| 279 | JM23300121 | TABLE LOCKING LEVER | 1 | |
| 280 | JM23300169 | HEX BOLT M8X50 | 1 | |
| 281 | JM23300226 | RETAINING RING S-18 | 1 | |
| 281-1 | JM23300226 | RETAINING RING S-18 | 1 | |
| 282 | JM23300227 | PRESS BUTTON CAP L | 1 | |
| 282-1 | JM23300227 | PRESS BUTTON CAP L | 1 | |
| 283 | JM23300246 | LIFTING RACK | 1 | |
| 284 | JM23300124 | FLAT HEAD SCREW M5X14 | 2 | |
| 284-1 | JM23300124 | FLAT HEAD SCREW M5X14 | 2 | |
| 285 | JM23300247 | RING | 2 | |
| 286 | JM23300241 | LIFTING GEAR | 1 | |
| 287 | JM23300242 | LIFTING KNOB | 1 | |
| 288 | JM23300243 | FIX BOLT M6X61 | 1 | |
| 288-1 | JM23300243 | FIX BOLT M6X61 | 1 | |
| 289 | JM23310001 | SUB FENCE COMPLETE | 1 | |
| 290 | JM23300237 | COUTERSUNK HEAD SCREW M6X35 | 1 | |
| 291 | JM23100110 | HEX LOCK NUT M6 | 1 | |
| 291-1 | JM23100110 | HEX LOCK NUT M6 | 1 | |
| 292 | JM23300238 | FIX PLATE | 1 | |
| 293 | JM23100033 | PAN HEAD SCREW M4X12 | 1 | |
| 294 | JM23000137 | SPRING WASHER4 | 1 | |
| 295 | JM23100071 | THIN FLAT WASHER 6 | 1 | |
| 296 | JM27080108 | LABEL(RIVING KNIFE SETTING) | 1 | |
| 297 | JM23300093 | FLAT WASHER 10 | 1 | |
| 298 | JM23300026 | FLAT WASHER 4 | 1 | |
| 299 | JM23300150 | FLAT WASHER 5 | 1 | |
| 300 | JM00000362 | INSERT BAR | 1 | |
| 301 | JM2318A058 | CAUTION LABEL | 1 | |
| 302 | JM23180059 | CAUTION LABEL | 1 | |
| 303 | JM23300008 | RIP FENCE ASSY | 1 | |
| 303 | D10 | INC. 304 | ||
| 304 | 810191-7 | CAUTION LABEL | 1 | |
| 305 | JM23300217 | LOW PROTECTION GUARD | 1 | |
| 305 | D10 | INC. 306 | ||
| 306 | JM23380059 | LOGO LABEL | 1 | |
| 307 | JM23300167 | HEX NUT M8 | 1 | |
| 308 | JM23300167 | HEX NUT M8 | 1 | |
| 309 | JM23300189 | FLAT WASHER 8 (L) | 1 | |
| 311 | JM23100502 | VISE ASSEMBLY | 1 | |
| 313 | JM23100500 | HOLDER | 2 | |
| 314 | JM23180056 | CAUTION LABEL | 1 | |
| 315 | JM23380098 | NAME PLATE | 1 | |
| 316 | JM23300142 | COMPRESSION SPRING | 1 | |
| 317 | JM23300042 | E SHAPE RETAINING RING 6 | 1 | |
| A01 | JM23300005 | SAW BLADE 305(BORE 25.4) | 1 | |
| A01-1 | JM23300005 | SAW BLADE 305(BORE 25.4) | 1 | |
| A02 | JM23300008 | RIP FENCE ASSY | 1 | |
| A02 | C10 | JM23300228 | FENCE KNOB | 1 |
| A02 | C20 | JM23300229 | FENCE ORIENTAION PIN | 1 |
| A02 | C30 | JM23300230 | FENCE BRACKET | 1 |
| A02 | C40 | JM23300231 | FENCE | 1 |
| A02 | C50 | JM23300232 | FENCE LOCK PLATE | 1 |
| A02 | C60 | JM23300233 | LOCKING BRACKET | 1 |
| A02 | C70 | JM23300234 | ADJUSTABLE SCREW | 1 |
| A02 | C80 | JM23300235 | FENCE LOCK KNOB | 1 |
| A02 | C90 | JM23300019 | FLAT WASHER 6 | 1 |
| A03 | JM23300217 | LOW PROTECTION GUARD | 1 | |
| A04 | JM23100197 | BOX WRENCH 13-3 | 1 | |
| A05 | JM23100500 | HOLDER | 2 | |
| A06 | JM23100501 | DUST BAG ASSEMBLY | 1 | |
| A07 | JM23100502 | VISE ASSEMBLY | 1 | |
| A08 | JM27000086 | PUSH STICK | 1 | |
| A09 | JM27000328 | TRIANGLE PLATE | 1 | |
| A10 | JM23100191 | RING 25.4 | 1 |
Back Download
