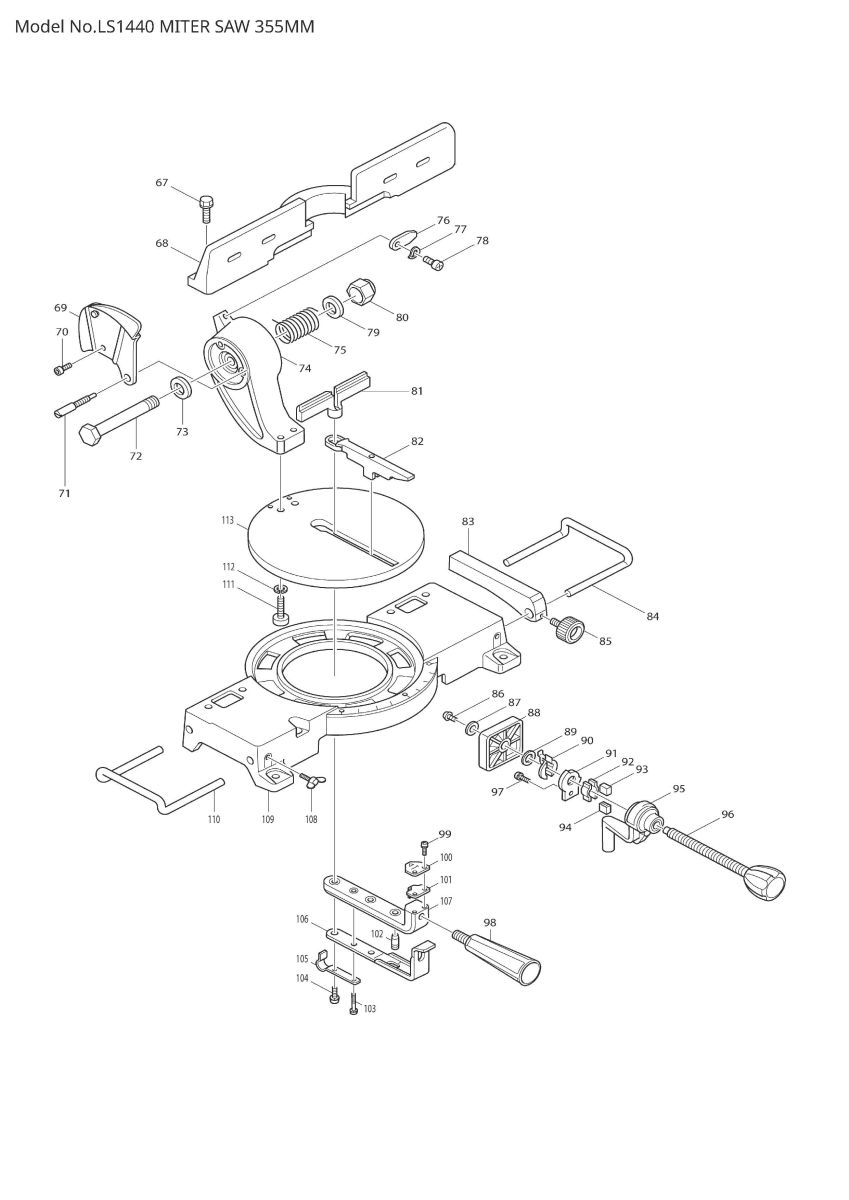

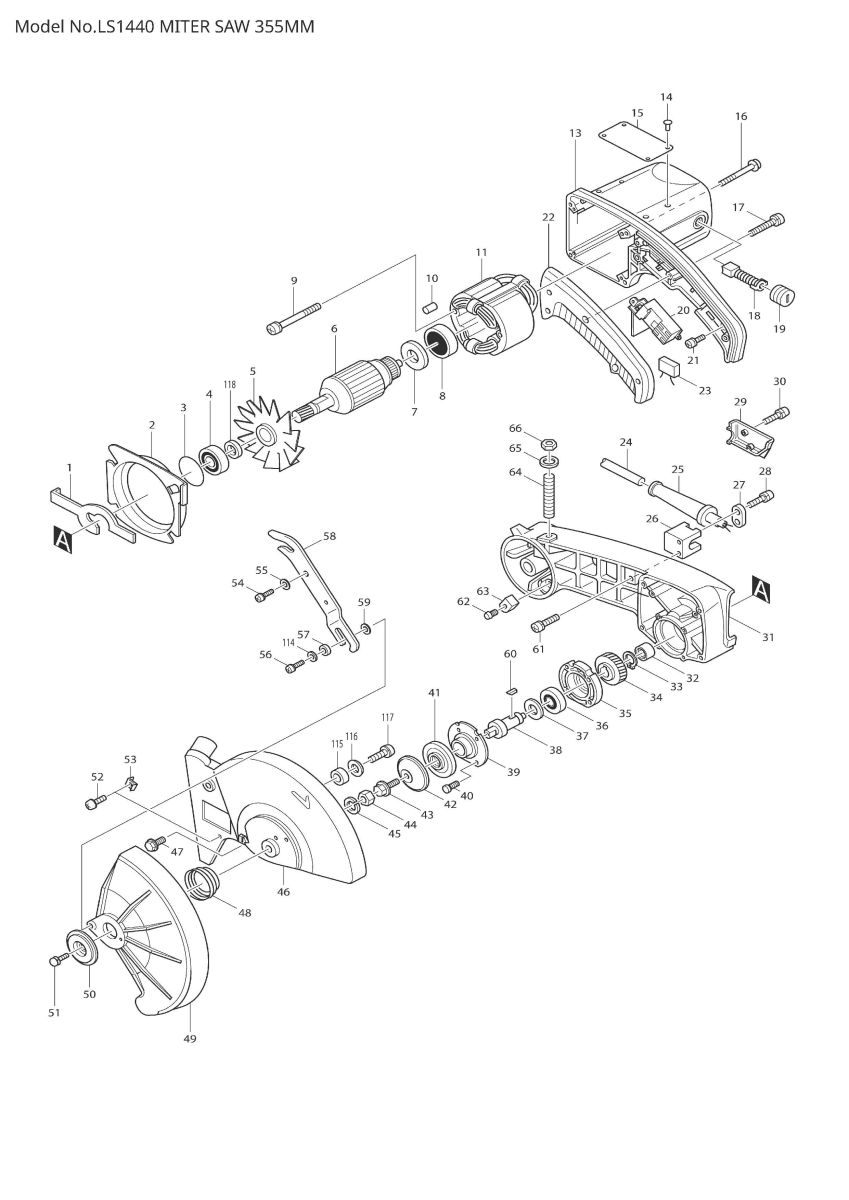

Part Diagram
Total: 164 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 163100-8 | SHAFT LOCK | 1 | |
| 2 | 411466-3 | BAFFLE PLATE | 1 | |
| 3 | 213459-4 | O RING 32 | 1 | |
| 004-1 | 211201-7 | BALL BEARING 6002LLB | 1 | |
| 005-1 | 241514-2 | FAN 92 | 1 | |
| 006D1 | 514989-1 | ARMATURE ASS'Y 240V | 1 | |
| 006D1 | D10 | INC. 5,7,8 | ||
| 006D2 | 516729-3 | ARMATURE ASS'Y 240V | 1 | |
| 006D2 | D10 | INC. 5,7,8 | ||
| 7 | 681623-9 | INSULATION WASHER | 1 | |
| 8 | 211068-3 | BALL BEARING 6200LB | 1 | |
| 009-1 | 911290-9 | PAN HEAD SCREW M5X65 | 2 | |
| 10 | 263013-4 | RUBBER PIN 4 | 1 | |
| 011D_ | 524779-4 | FIELD ASS'Y 240V | 1 | |
| 011D_ | C10 | 654020-2 | RING TERMINAL | 2 |
| 011D_ | C20 | 654502-4 | CONNECTOR P-2 | 2 |
| 011D1 | 526009-9 | FIELD ASS'Y 240V | 1 | |
| 011D1 | C10 | 654020-2 | RING TERMINAL | 2 |
| 011D1 | C20 | 654502-4 | CONNECTOR P-2 | 2 |
| 13 | 157734-7 | MOTOR HOUSING | 1 | |
| 13 | C10 | 643653-8 | BRUSH HOLDER 6.5-13.5 | 2 |
| 13 | C11 | 643660-1 | BRUSH HOLDER 6.5-13.5 | 2 |
| 13 | C30 | 817880-5 | CAUTION LABEL | 1 |
| 13 | D10 | INC. 10 | ||
| 013-1 | 152937-8 | MOTOR HOUSING COMPLETE | 1 | |
| 013-1 | C10 | 643660-1 | BRUSH HOLDER 6.5-13.5 | 2 |
| 013-1 | C20 | 817880-5 | CAUTION LABEL | 1 |
| 013-1 | D10 | INC. 10 | ||
| 14 | 953106-2 | RIVET 0-5 | 4 | |
| 15 | 856017-9 | NAME PLATE LS1440 | 1 | |
| 015-1 | 854L85-8 | LS1440 NAME PLATE | 1 | |
| 015-2 | 855H32-8 | LS1440 NAME PLATE | 1 | |
| 16 | 251335-4 | + PAN HEAD SCREW M5X80 | 4 | |
| 17 | 911158-9 | PAN HEAD SCREW M4X30 | 4 | |
| 018B_ | 181044-0 | CARBON BRUSH CB-153 | 1 | |
| 19 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 019-1 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 20 | 651135-6 | SWITCH SGE220RD-1 | 1 | |
| 020-1 | 651153-4 | SWITCH SGE220RD-1 | 1 | |
| 21 | 911101-8 | PAN HEAD SCREW M4X6 | 1 | |
| 22 | 410836-3 | HANDLE COVER | 1 | |
| 024X_ | 692076-7 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 025A_ | 682503-2 | CORD GUARD 8-90 | 1 | |
| 025A1 | 682505-8 | CORD GUARD 10-90 | 1 | |
| 26 | 411468-9 | CLAMP BASE | 1 | |
| 027A_ | 687001-1 | STRAIN RELIEF | 1 | |
| 28 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | |
| 29 | 411467-1 | CLAMP COVER | 1 | |
| 30 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 31 | 157859-7 | GEAR HOUSING | 1 | |
| 31 | C10 | 213459-4 | O RING 32 | 1 |
| 31 | C20 | 951157-9 | SPRING PIN 5-16 | 2 |
| 32 | 212113-7 | NEEDLE BEARING 1212 | 1 | |
| 33 | 961060-6 | RETAINING RING S-20 | 1 | |
| 034-1 | 226411-3 | HELICAL GEAR 41 | 1 | |
| 35 | 315055-5 | BEARING BOX | 1 | |
| 36 | 211306-3 | BALL BEARING 6204LLB | 1 | |
| 37 | 253327-9 | THIN WASHER 20 | 1 | |
| 38 | 321729-8 | SPINDLE | 1 | |
| 39 | 285649-9 | BEARING RETAINER 72 | 1 | |
| 40 | 912231-8 | COUNTERSUNK HEAD SCREW M5X20 | 4 | |
| 41 | 224264-4 | INNER FLANGE 65 | 1 | |
| 042-1 | 224310-3 | OUTER FLANGE 65 | 1 | |
| 43 | 251644-1 | HEX. FLANGE HEAD BOLT M8X20 | 1 | |
| 44 | 931302-2 | HEX. NUT M6 | 1 | |
| 45 | 942151-2 | SPRING WASHER 6 | 1 | |
| 46 | 151281-0 | BLADE CASE | 1 | |
| 46 | C10 | 817931-4 | CAUTION LABEL | 1 |
| 046-1 | 154925-1 | BLADE CASE COMPLETE | 1 | |
| 046-1 | C10 | 817931-4 | CAUTION LABEL | 1 |
| 47 | 265324-3 | HEX. FLANGE HEAD BOLT M8X12 | 1 | |
| 48 | 231939-8 | SPRING 30 | 1 | |
| 49 | 414084-6 | SAFETY COVER | 1 | |
| 049-1 | 419482-9 | SAFETY COVER | 1 | |
| 50 | 343358-7 | CENTER PLATE | 1 | |
| 51 | 923311-5 | CAP SQUARE NECK BOLT M6X12 | 1 | |
| 52 | 911206-4 | PAN HEAD SCREW M5X10 | 2 | |
| 53 | 343492-3 | BLADE STOPPER | 2 | |
| 54 | 251333-8 | + PAN HEAD SCREW M8 | 1 | |
| 55 | 253878-2 | FLAT WASHER 10 | 1 | |
| 56 | 251339-6 | + PAN HD. SCREW M8 | 1 | |
| 57 | 257146-5 | RING 10 | 1 | |
| 058-1 | 343792-1 | GUIDE ARM | 1 | |
| 59 | 253731-2 | FLAT WASHER 8 | 1 | |
| 60 | 254203-0 | KEY 4 | 1 | |
| 61 | 911121-2 | PAN HEAD SCREW M4X14 | 2 | |
| 062-1 | 251399-8 | + PAN HEAD SCREW M5 | 1 | |
| 63 | 411479-4 | CUSHION | 1 | |
| 64 | 251959-6 | -SCREW (FLAT POINT)M10X80 | 1 | |
| 65 | 941252-3 | FLAT WASHER 10 | 1 | |
| 66 | 931501-6 | HEX. NUT M10 | 1 | |
| 67 | 921551-9 | HEX. BOLT M10X30 | 4 | |
| 68 | 316030-4 | GUIDE FENCE | 1 | |
| 068-1 | 318866-7 | GUIDE RULE | 1 | |
| 69 | 163279-5 | SUPPORTER | 1 | |
| 70 | 922331-6 | HEX. SOCKET HEAD BOLT M6X20 | 1 | |
| 71 | 322144-9 | SET SCREW M10 | 1 | |
| 72 | 251698-8 | HEX. BOLT M16 | 1 | |
| 73 | 253771-0 | FLAT WASHER 16 | 1 | |
| 74 | 154358-0 | ARM COMPLETE | 1 | |
| 74 | C11 | 256738-7 | PIN 5 | 2 |
| 074-1 | 154358-0 | ARM COMPLETE | 1 | |
| 074-1 | C11 | 256738-7 | PIN 5 | 1 |
| 074-2 | 154929-3 | ARM COMPLETE | 1 | |
| 074-2 | C11 | 256738-7 | PIN 5 | 1 |
| 75 | 231533-6 | TORSION SPRING 33 | 1 | |
| 76 | 341926-0 | HANDLE LATCH | 1 | |
| 77 | 253948-7 | WAVE WASHER 8 | 1 | |
| 78 | 251298-4 | + PAN HEAD SCREW M8 | 1 | |
| 79 | 253771-0 | FLAT WASHER 16 | 1 | |
| 80 | 252044-8 | HEX. NUT M16-24 | 1 | |
| 81 | 414092-7 | FENCE PLATE | 1 | |
| 081-1 | 419483-7 | FENCE PLATE | 1 | |
| 82 | 410849-4 | KERF BOARD | 1 | |
| 082-1 | 453636-8 | KERF BOARD | 1 | |
| 83 | 312511-6 | SET PLATE | 1 | |
| 84 | 322027-3 | HOLDER | 1 | |
| 85 | 251804-5 | SCREW M6X13 | 1 | |
| 86 | 911317-5 | PAN HEAD SCREW M6X14 | 1 | |
| 87 | 253047-5 | FLAT WASHER 6 | 1 | |
| 88 | 315891-9 | VISE PLATE | 1 | |
| 89 | 253744-3 | FLAT WASHER 12 | 1 | |
| 90 | 341912-1 | NUT HOLDER | 1 | |
| 91 | 342967-9 | SET PLATE | 1 | |
| 92 | 341911-3 | PROTECTER | 2 | |
| 93 | 321490-7 | RELEASE NUT R | 1 | |
| 94 | 321491-5 | RELEASE NUT L | 1 | |
| 95 | 151202-2 | VICE ARM COMPLETE | 1 | |
| 95 | C10 | 816136-3 | INDICATION LABEL | 1 |
| 095-1 | 151201-4 | VISE ARM COMPLETE | 1 | |
| 095-1 | C10 | 816182-6 | INDICATION LABEL | 1 |
| 96 | 271275-0 | KNOB 45 | 1 | |
| 97 | 911216-1 | PAN HEAD SCREW M5X14 | 1 | |
| 98 | 273436-8 | GRIP 37 | 1 | |
| 99 | 911108-4 | PAN HEAD SCREW M4X8 | 2 | |
| 100 | 816173-7 | INDICATION LABEL | 1 | |
| 101 | 342823-3 | PLATE | 1 | |
| 102 | 321981-8 | LATCH PIN | 1 | |
| 103 | 911256-9 | PAN HEAD SCREW M5X35 | 1 | |
| 104 | 921456-3 | HEX. BOLT M8X35 | 2 | |
| 105 | 232093-1 | LEAF SPRING | 1 | |
| 106 | 343359-5 | LATCH SPRING | 1 | |
| 107 | 311795-3 | TURNING STAY | 1 | |
| 108-1 | 924216-2 | WING BOLT M5X15 | 2 | |
| 109 | 151248-8 | BASE COMPLETE | 1 | |
| 109 | C10 | 817837-6 | CAUTION LABEL | 1 |
| 109 | C20 | 953206-8 | RIVET 2-5 | 3 |
| 109 | C30 | 813L22-1 | CAUTION LABEL | 2 |
| 110 | 322027-3 | HOLDER | 1 | |
| 111 | 922562-7 | HEX. SOCKET HEAD BOLT M10X40 | 2 | |
| 112 | 942251-8 | SPRING WASHER 10 | 2 | |
| 113 | 311796-1 | TURN BASE | 1 | |
| 114 | 253878-2 | FLAT WASHER 10 | 1 | |
| 115 | 262044-0 | RUBBER RING 12 | 1 | |
| 116 | 253011-6 | FLAT WASHER 6 | 1 | |
| 117 | 911216-1 | PAN HEAD SCREW M5X14 | 1 | |
| 118 | 267710-4 | WASHER 15 | 1 | |
| 400 | 782212-4 | SOCKET WRENCH 13 | 1 | |
| 402 | 122330-0 | DUST BAG ASS'Y | 1 | |
| 402 | D10 | INC. 403 | ||
| 403 | 410602-8 | FASTENER | 1 | |
| 404B_ | A-85488 | T.C.T.SAW BLADE 355X25.4X60T | 1 | |
| 500-2 | 122563-7 | VISE ASS'Y | 1 | |
| 500-2 | D10 | INC. 86-97 |
