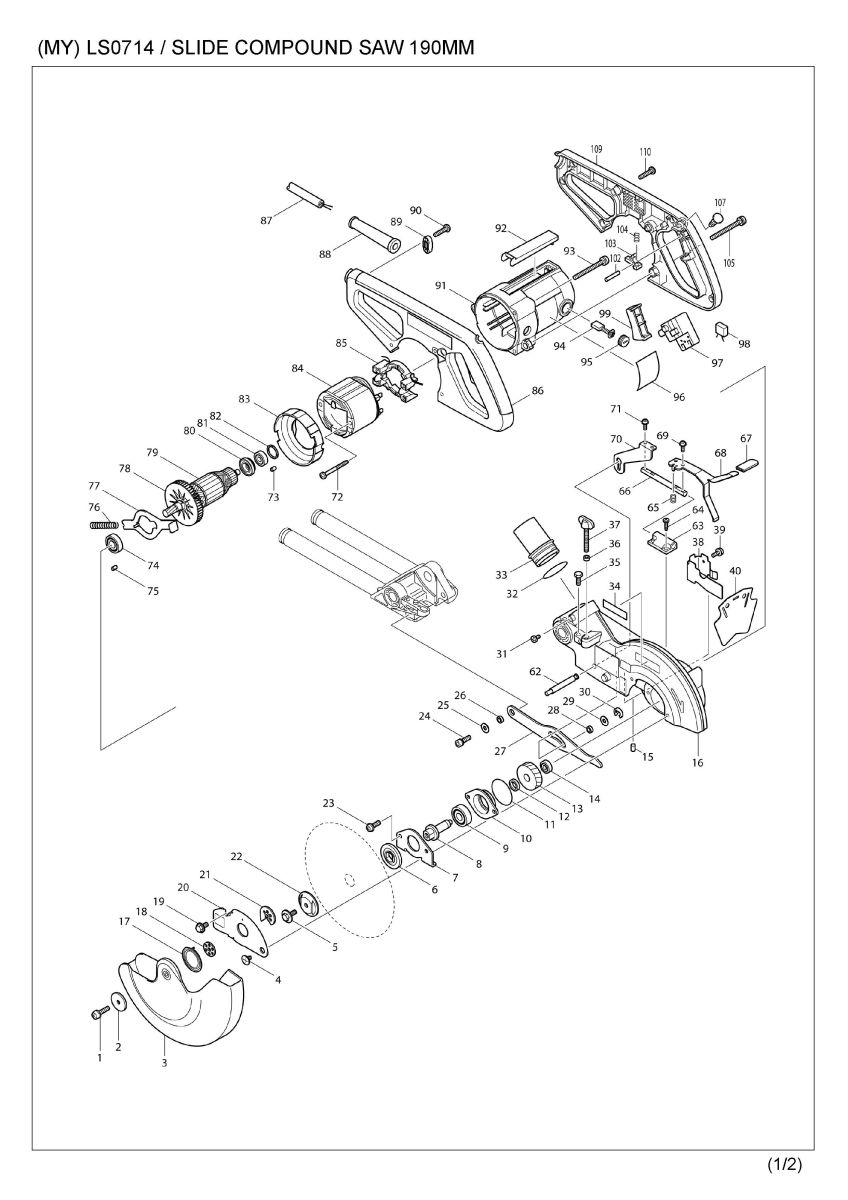

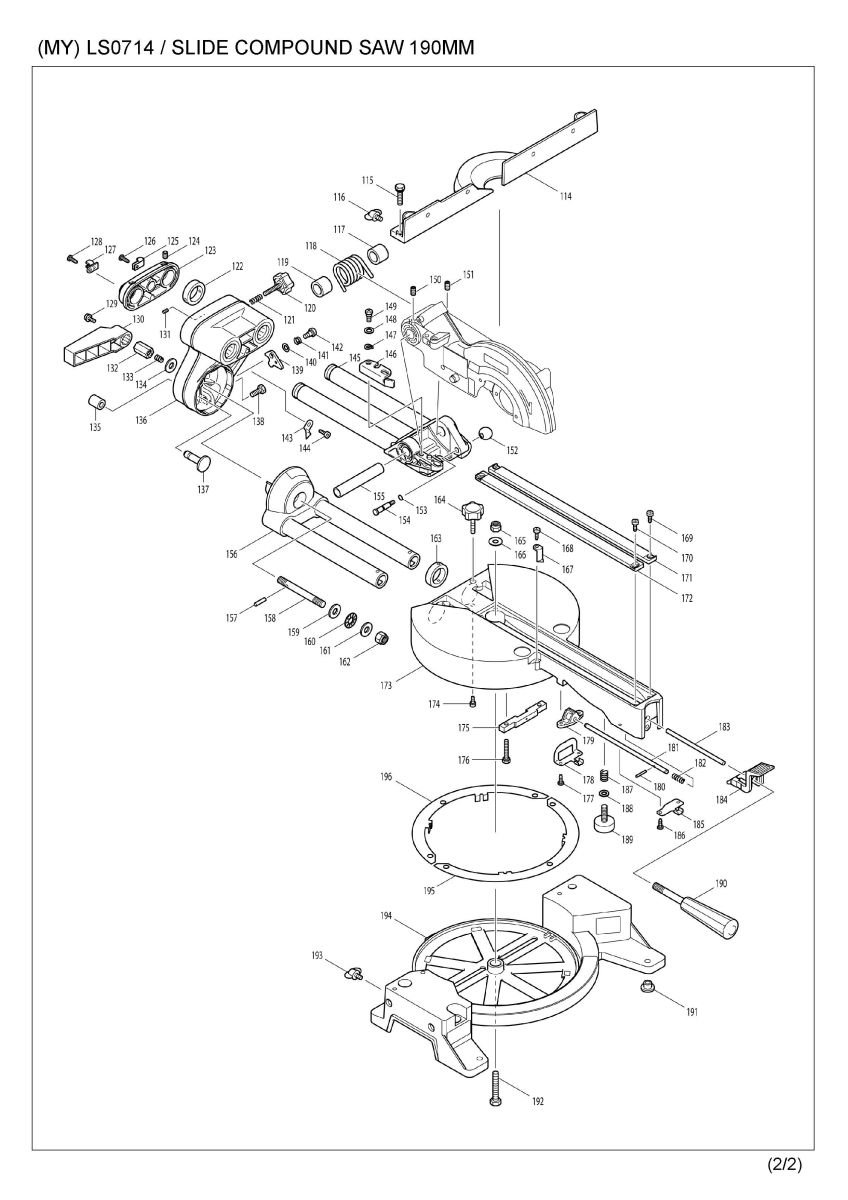

Part Diagram
Total: 208 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 911228-4 | PAN HEAD SCREW M5X18 | 1 | |
| 001-1 | 265491-4 | H.S. BUTTON HEAD BOLT M5X16 | 1 | |
| 002 | 267136-0 | FLAT WASHER 5 | 1 | |
| 003-3 | 453297-4 | SAFETY COVER | 1 | |
| 003-4 | 458785-6 | SAFETY COVER | 1 | |
| 004 | 265008-3 | + FLAT HEAD SCREW M5 | 1 | |
| 005-1 | 266733-9 | HEX. S.F.H. BOLT M6X16 | 1 | |
| 006-1 | 224370-5 | INNER FLANGE 40 | 1 | |
| 007 | 285715-2 | BEARING RETAINER 55 | 1 | |
| 008 | 323798-5 | SPINDLE | 1 | |
| 009 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 010 | 317037-3 | BEARING BOX | 1 | |
| 011 | 213565-5 | O RING 42 | 1 | |
| 012 | 257010-0 | RING 12 | 1 | |
| 013 | 226497-7 | HELICAL GEAR 47 | 1 | |
| 014 | 211021-9 | BALL BEARING 607LLB | 1 | |
| 015 | 263005-3 | RUBBER PIN 6 | 1 | |
| 016-2 | 153955-9 | BLADE CASE COMPLETE | 1 | |
| 016-2 | C10 | 810968-0 | CAUTION LABEL | 1 |
| 016-2 | C20 | 817667-5 | CAUTION LABEL | 1 |
| 016-2 | D10 | INC. 15,75 | ||
| 017 | 231934-8 | SPIRAL SPRING 26 | 1 | |
| 018-1 | 345589-4 | CENTER WASHER | 1 | |
| 019-1 | 266732-1 | HEX. SOCKET HEAD BOLT M6X16 | 1 | |
| 020 | 344641-5 | CENTER COVER | 1 | |
| 021-1 | 345585-2 | CENTER PLATE | 1 | |
| 022-1 | 224275-9 | OUTER FLANGE 40 | 1 | |
| 023 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | |
| 024 | 922331-6 | HEX. SOCKET HEAD BOLT M6X20 | 1 | |
| 025 | 253804-1 | FLAT WASHER 6 | 1 | |
| 026 | 257163-5 | RING 6 | 1 | |
| 027-1 | 154643-1 | LINK PLATE COMPLETE | 1 | |
| 028 | 257163-5 | RING 6 | 1 | |
| 029 | 253804-1 | FLAT WASHER 6 | 1 | |
| 030 | 961018-5 | STOP RING E-5 | 1 | |
| 031 | 266061-2 | TAPPING SCREW BIND CT 4X8 | 1 | |
| 032 | 213460-9 | O RING 35 | 1 | |
| 033-1 | 419277-0 | DUST NOZZLE | 1 | |
| 035-1 | 266757-5 | HEX. SOCKET HEAD BOLT M6X16 | 1 | |
| 036 | 262001-8 | URETHANE RING 5 | 1 | |
| 036-1 | 262190-9 | URETHANE RING 5 | 1 | |
| 037 | 265717-4 | SCREW M6X43 | 1 | |
| 038 | 345438-5 | GUARD PLATE | 1 | |
| 039 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 040 | 423333-0 | GUARD | 1 | |
| 072 | 266046-8 | TAPPING SCREW 5X50 | 2 | |
| 073 | 263002-9 | RUBBER PIN 4 | 1 | |
| 074 | 211101-1 | BALL BEARING 6001LLB | 1 | |
| 075 | 263002-9 | RUBBER PIN 4 | 1 | |
| 076 | 233092-6 | COMPRESSION SPRING 5 | 1 | |
| 077 | 344642-3 | SHAFT LOCK | 1 | |
| 078 | 240030-1 | FAN 70 | 1 | |
| 079 | 510060-9 | ARMATURE ASS'Y 240V | 1 | |
| 079 | D10 | INC. 74,78,80,81 | ||
| 080 | 681644-1 | INSULATION WASHER | 1 | |
| 081 | 211031-6 | BALL BEARING 608LLB | 1 | |
| 082 | 261110-0 | URETHANE WASHER 18 | 1 | |
| 083 | 416537-1 | BAFFLE PLATE | 1 | |
| 084-1 | 634559-1 | FIELD 240V | 1 | |
| 084-2 | 594559-2 | FIELD ASS'Y 240V | 1 | |
| 084-2 | C10 | 654020-2 | RING TERMINAL | 2 |
| 084-2 | C20 | 654485-8 | PARALLEL SPLICE | 2 |
| 086-1 | 188113-8 | HANDLE SET | 1 | |
| 086-1 | C10 | 810966-4 | CAUTION LABEL | 1 |
| 086-1 | D10 | INC. 109 | ||
| 087 | 692533-5 | POWER SUPPLY CORD 1.0-2-3.0 | 1 | |
| 088 | 682540-6 | CORD GUARD 9.3-90 | 1 | |
| 088-1 | 682574-9 | CORD GUARD 10-90 | 1 | |
| 089-1 | 687124-5 | STRAIN RELIEF | 1 | |
| 090 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 091 | 151900-8 | MOTOR HOUSING COMPLETE | 1 | |
| 091 | C10 | 643708-9 | BRUSH HOLDER 5-11 | 2 |
| 091 | C20 | 810964-8 | CAUTION LABEL | 1 |
| 091 | D10 | INC. 73 | ||
| 092 | 416538-9 | UPPER COVER | 1 | |
| 093 | 911273-9 | PAN HEAD SCREW M5X50 | 3 | |
| 094 | 191963-2 | CARBON BRUSH CB-303 | 1 | |
| 094-1 | 194996-6 | CARBON BRUSH SET CB-303 | 1 | |
| 095 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | |
| 095-1 | 643515-0 | HOLDER CAP 7-11 | 2 | |
| 096-1 | 862821-6 | NAME PLATE LS0714 | 1 | |
| 097 | 651922-3 | SWITCH TG71B | 1 | |
| 099 | 416534-7 | SWITCH LEVER | 1 | |
| 099-1 | 452130-7 | SWITCH LEVER | 1 | |
| 102 | 256098-7 | PIN 5 | 1 | |
| 103 | 416533-9 | LOCK OFF LEVER | 1 | |
| 104 | 231026-3 | COMPRESSION SPRING 4 | 1 | |
| 105 | 911273-9 | PAN HEAD SCREW M5X50 | 3 | |
| 107 | 411478-6 | SWITCH BUTTON | 1 | |
| 107-1 | 417113-4 | SWITCH BUTTON | 1 | |
| 109-1 | 188113-8 | HANDLE SET | 1 | |
| 109-1 | C10 | 810966-4 | CAUTION LABEL | 1 |
| 109-1 | D10 | INC. 86 | ||
| 110 | 265995-6 | TAPPING SCREW 4X18 | 5 | |
| 114-1 | 317948-2 | GUIDE FENCE | 1 | |
| 115-1 | 922344-7 | H.S.H.BOLT M6X25 WITH WG | 3 | |
| 116 | 251887-5 | SCREW M6X10 | 1 | |
| 117 | 416535-5 | SLEEVE 17 | 1 | |
| 118 | 231638-2 | TORSION SPRING 28 | 1 | |
| 119 | 416535-5 | SLEEVE 17 | 1 | |
| 120 | 251897-2 | SCREW M6X33 | 1 | |
| 121 | 231325-3 | COMPRESSION SPRING 6 | 1 | |
| 122 | 257214-4 | RING 26 | 1 | |
| 123 | 317617-5 | PIPE HOLDER | 1 | |
| 124 | 266208-8 | H.S.SET SCREW(CUP POINT)M6X8 | 2 | |
| 125 | 687042-7 | STRAIN RELIEF | 1 | |
| 126 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 127-1 | 687045-1 | STRAIN RELIEF | 1 | |
| 129 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 130 | 416006-2 | LEVER 100 | 1 | |
| 131 | 913106-4 | SET SCREW M4X8 | 1 | |
| 132 | 252144-4 | HEX. NUT M10-17 | 1 | |
| 133 | 231266-3 | COMPRESSION SPRING 5 | 1 | |
| 134 | 253024-7 | FLAT WASHER 10 | 1 | |
| 135 | 286236-7 | CAP 16 | 1 | |
| 136 | 153463-0 | ARM COMPLETE | 1 | |
| 137 | 324295-4 | RELEASE PIN | 1 | |
| 138-1 | 266757-5 | HEX. SOCKET HEAD BOLT M6X16 | 2 | |
| 139 | 345299-3 | STOPPER PLATE | 1 | |
| 140 | 253726-5 | FLAT WASHER 6 | 1 | |
| 141 | 231663-3 | TORSION SPRING 8 | 1 | |
| 142 | 265113-6 | +PAN HEAD SCREW M5 | 1 | |
| 143 | 343678-9 | POINTER | 1 | |
| 144 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 145 | 153462-2 | FRONT ARM COMPLETE | 1 | |
| 146 | 344643-1 | STOPPER ARM | 1 | |
| 147 | 253948-7 | WAVE WASHER 8 | 1 | |
| 148 | 253835-0 | FLAT WASHER 8 | 1 | |
| 149 | 251267-5 | + PAN HEAD SCREW M6 | 1 | |
| 150 | 251961-9 | H.S.SET SCREW(FLAT POINT)M6X10 | 1 | |
| 151 | 251961-9 | H.S.SET SCREW(FLAT POINT)M6X10 | 1 | |
| 152 | 271601-3 | KNOB 20 | 1 | |
| 153 | 213021-5 | O RING 5 | 1 | |
| 154 | 324183-5 | STOPPER PIN | 1 | |
| 155-1 | 331350-5 | PIN 16-90 | 1 | |
| 156 | 153482-6 | ARM HOLDER COMPLETE | 1 | |
| 156 | C10 | 816392-5 | BEVEL SCALE LABEL | 1 |
| 157 | 256100-6 | PIN 5 | 1 | |
| 158 | 266320-4 | SCREW M10 | 1 | |
| 159 | 253024-7 | FLAT WASHER 10 | 1 | |
| 160 | 216413-7 | THRUST NEEDLE CAGE 1024 | 1 | |
| 161 | 253024-7 | FLAT WASHER 10 | 1 | |
| 162 | 252130-5 | HEX. LOCK NUT M10-17 | 1 | |
| 163 | 257214-4 | RING 26 | 1 | |
| 164 | 251897-2 | SCREW M6X33 | 1 | |
| 165 | 252105-4 | HEX. LOCK NUT M8-13 | 1 | |
| 166 | 253731-2 | FLAT WASHER 8 | 1 | |
| 167 | 416355-7 | INDICATION PLATE | 1 | |
| 168 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 169 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | |
| 170 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | |
| 171 | 417993-8 | KERF BOARD | 1 | |
| 172 | 417993-8 | KERF BOARD | 1 | |
| 173-1 | 154659-6 | TURN BASE COMPLETE | 1 | |
| 173-1 | C10 | 211376-2 | LINEAR BALL BEARING 2560 | 2 |
| 173-1 | C20 | 262077-5 | FELT RING 25 | 4 |
| 173-1 | C30 | 263005-3 | RUBBER PIN 6 | 1 |
| 173-1 | C40 | 344638-4 | CAP 35 | 2 |
| 173-1 | C50 | 817283-3 | CAUTION LABEL | 2 |
| 173-2 | 140H16-2 | TURN BASE COMPLETE | 1 | |
| 173-2 | C10 | 211376-2 | LINEAR BALL BEARING 2560 | 2 |
| 173-2 | C20 | 262077-5 | FELT RING 25 | 4 |
| 173-2 | C30 | 263005-3 | RUBBER PIN 6 | 1 |
| 173-2 | C40 | 344638-4 | CAP 35 | 2 |
| 173-2 | C50 | 813L22-1 | CAUTION LABEL | 2 |
| 174 | 922111-0 | HEX. SOCKET HEAD BOLT M4X10 | 1 | |
| 175 | 153580-6 | SQUARE ROD COMPLETE | 1 | |
| 175 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 176 | 925251-3 | HEX.BOLT M5X30 | 2 | |
| 177 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 178 | 344601-7 | LOCK PLATE | 1 | |
| 179 | 317616-7 | PIN HOLDER | 1 | |
| 180 | 256158-5 | PIN 3 | 1 | |
| 181 | 324288-1 | LOCK PIN | 1 | |
| 182 | 231325-3 | COMPRESSION SPRING 6 | 1 | |
| 183 | 324289-9 | ROD 6 | 1 | |
| 184 | 416450-3 | LOCK LEVER | 1 | |
| 185 | 345272-3 | LOCK LEVER PLATE | 1 | |
| 186 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 187 | 231418-6 | COMPRESSION SPRING 9 | 1 | |
| 188 | 253731-2 | FLAT WASHER 8 | 1 | |
| 189-1 | 266432-3 | ADJUST BOLT M8X27 | 1 | |
| 190 | 273515-2 | GRIP 32 | 1 | |
| 191 | 286212-1 | CAP 20 | 5 | |
| 192 | 921472-5 | HEX. BOLT M8X50 | 1 | |
| 193 | 251887-5 | SCREW M6X10 | 2 | |
| 193-1 | 911318-3 | P.H.SCREW M6X14 WITH WR | 2 | |
| 194 | 153949-4 | BASE COMPLETE | 1 | |
| 194 | C10 | 816339-9 | MITER SCALE PLATE | 1 |
| 194 | C20 | 810965-6 | CAUTION LABEL | 1 |
| 195 | 344646-5 | SLIDE PLATE | 1 | |
| 196 | 344646-5 | SLIDE PLATE | 1 | |
| A01-1 | 122852-0 | DUST BAG ASS'Y | 1 | |
| A01-1 | C10 | 410602-8 | FASTENER | 1 |
| A02 | 122571-8 | VICE ASS'Y | 1 | |
| A02 | C10 | 316938-2 | VISE ARM | 1 |
| A02 | C20 | 251887-5 | SCREW M6X10 | 1 |
| A02 | C30 | 322313-2 | VISE ROD | 1 |
| A02 | C40 | 265733-6 | THUMB SCREW M10X60 | 1 |
| A02 | C50 | 253804-1 | FLAT WASHER 6 | 1 |
| A02 | C60 | 343651-9 | VISE PLATE | 1 |
| A02 | C70 | 251370-2 | + PAN HEAD SCREW M5 | 1 |
| A03 | 411478-6 | SWITCH BUTTON | 2 | |
| A04 | 762001-3 | TRIANGULAR RULE | 1 | |
| A05 | 322312-4 | HOLDER | 2 | |
| A06 | B-03850 | T.C.T.SAW BLADE 190X20X24 | 1 | |
| A07-1 | 783203-8 | HEX. WRENCH 5 | 1 | |
| F05-1 | 198688-9 | STAND SET | 1 |
