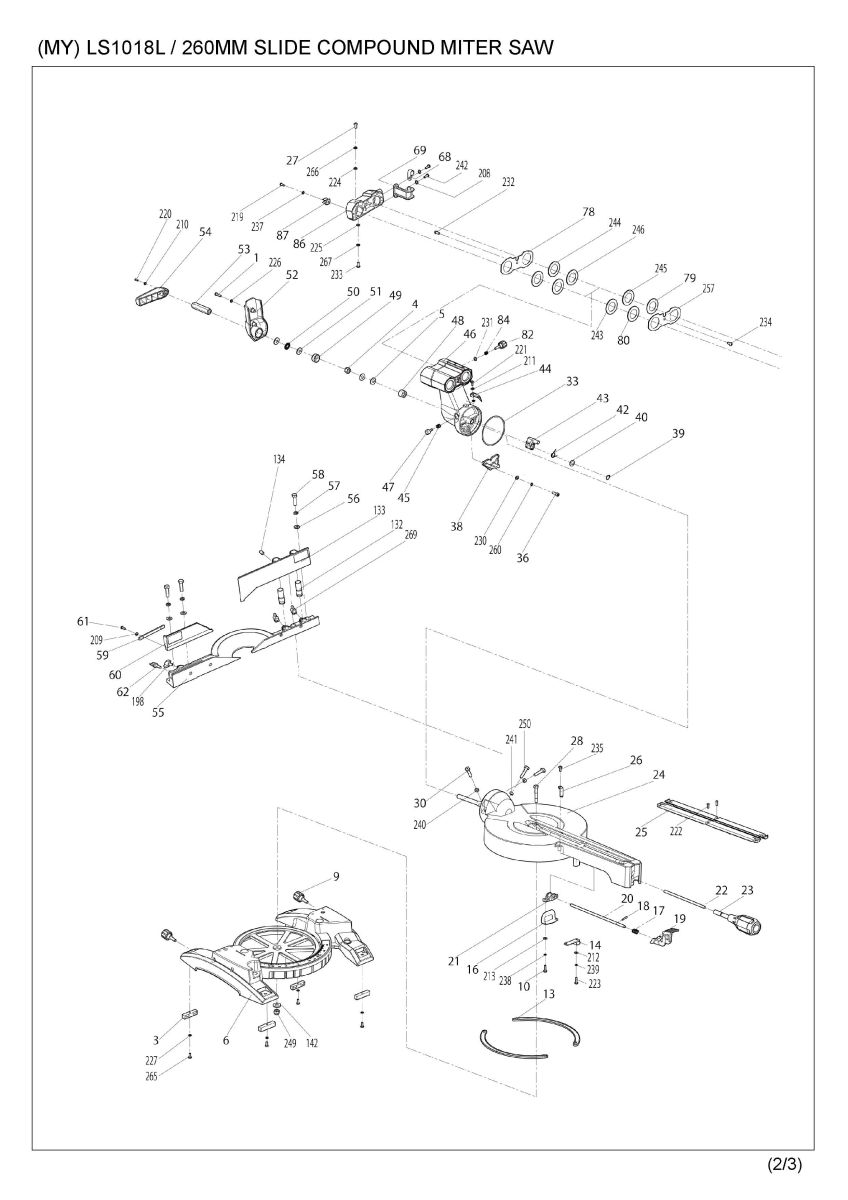

Part Diagram
Total: 410 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | JM23100006 | CROSS HEAD SCREW M5X20 | 2 | |
| 2 | JM23100007 | FLAT WASHER 5 | 2 | |
| 3 | JM23100008 | PAD | 4 | |
| 4 | JM23100009 | LOCKNUT M10 | 1 | |
| 5 | JM23100010 | FLAT WASHER 10 | 2 | |
| 6 | JM23100300 | BASE COMPLETE | 1 | |
| 6 | C10 | JM2708A060 | CAUTION LABEL | 2 |
| 6 | C20 | JM23100012 | MITER SCALE LABEL | 1 |
| 6 | D10 | INC. 7 | ||
| 6 | D11 | INC. 289 | ||
| 6 | D12 | INC. 007, 289 | ||
| 7 | JM23100012 | MITER SCALE LABEL | 1 | |
| 007-1 | JM23100012 | MITER SCALE LABEL | 1 | |
| 9 | JM23100013 | KNOB FOR EXT.WING | 2 | |
| 009-1 | JM00000074 | PAN HEAD SCREW M6X20 | 2 | |
| 009-2 | JM23100013 | KNOB FOR EXT.WING | 2 | |
| 10 | JM23100014 | CROSS HEAD SCREW M4X15 | 2 | |
| 13 | JM23100017 | FRICTION PLATE | 2 | |
| 14 | JM23100018 | LOCK PLATE A | 1 | |
| 15 | JM23100019 | CROSS HEAD SCREW M4X18 | 2 | |
| 015-1 | JM23100019 | CROSS HEAD SCREW M4X18 | 1 | |
| 16 | JM23100020 | LOCK PLATE B | 1 | |
| 17 | JM23100021 | LOCK SPRING | 1 | |
| 18 | JM23100022 | LOCK PIN | 1 | |
| 19 | JM23100023 | PRESS PLATE | 1 | |
| 20 | JM23100024 | LOCK SHAFT B | 1 | |
| 21 | JM23100025 | WORKING TABLE LOCKING BRACKET | 1 | |
| 22 | JM23100026 | LOCK SHAFT A | 1 | |
| 23 | JM23100027 | MITER LOCKING HANDLE | 1 | |
| 24 | JM23200100 | WORKING TABLE COMPLETE | 1 | |
| 24 | C10 | JM23200004 | BEVEL SCALE | 1 |
| 24 | C20 | JM23100038 | ELASTIC PIN 4X20 | 1 |
| 24 | C30 | JM23100039 | LOCKING ROD | 1 |
| 24 | C40 | JM23100009 | LOCKNUT M10 | 1 |
| 24 | D10 | INC. 32,34,35 | ||
| 24 | D11 | INC. 292-295 | ||
| 24 | D12 | INC. 292-295, 308 | ||
| 25 | JM23100029 | TABLE INSERT | 2 | |
| 26 | JM23100030 | MITER POINTER | 1 | |
| 27 | JM23100031 | CROSS HEAD SCREW M5X15 | 2 | |
| 28 | JM23100032 | PIVOT SHAFT | 1 | |
| 30 | JM23100034 | HEX BOLT M6X28 | 1 | |
| 31 | JM23100035 | ANTI-LOOSEN RING | 2 | |
| 031-1 | JM23100035 | ANTI-LOOSEN RING | 1 | |
| 32 | JM23200004 | BEVEL SCALE | 1 | |
| 33 | JM23100037 | FRICTION RING | 1 | |
| 34 | JM23100038 | ELASTIC PIN 4X20 | 1 | |
| 35 | JM23100039 | LOCKING ROD | 1 | |
| 36 | JM23100040 | H.S.BOLT M6X20 | 3 | |
| 37 | JM23100041 | FLAT WASHER 6 | 4 | |
| 38 | JM23200005 | 45DEGREE LIMIT BRACKET | 1 | |
| 39 | JM23100043 | RETAINING RING 10 | 1 | |
| 039-1 | JM27100102 | RETAINING RING 12 | 1 | |
| 40 | JM23100044 | FLAT WASHER 12X20X1 | 1 | |
| 41 | JM23100045 | ANGLE LIMIT SHAFT | 1 | |
| 041-1 | JM23100045 | ANGLE LIMIT SHAFT | 1 | |
| 42 | JM23100046 | 90DEGREE BLOCK SPRING | 1 | |
| 43 | JM23100047 | 90DEGREE BLOCK | 1 | |
| 44 | JM23100048 | BEVEL POINTER | 1 | |
| 45 | JM23100049 | MITER PRESSION SPRING | 1 | |
| 46 | JM23100330 | SUPPORT ARM COMPLETE | 1 | |
| 46 | C10 | JM23100045 | ANGLE LIMIT SHAFT | 1 |
| 46 | C20 | JM23100081 | BUFFER A | 1 |
| 46 | C30 | JM23100085 | LINEAR BEARING | 1 |
| 46 | C40 | JM23100087 | LOCK SCREW M6X8 | 1 |
| 46 | C50 | JM23100081 | BUFFER A | 1 |
| 46 | D10 | INC. 77,79-81,83,243-246,256 | ||
| 46 | D11 | INC. 79-80,243-246 | ||
| 46 | D12 | INC. 79,80,243-246,296-303 | ||
| 47 | JM23100051 | LIMITED KNOB | 1 | |
| 48 | JM23100052 | CLAMP PLATE | 1 | |
| 49 | JM23100053 | BOWL TYPE PLATE | 1 | |
| 50 | JM23100054 | SURFACE BEARING | 1 | |
| 51 | JM23100055 | BIG FLAT WASHER 10X26X2.5 | 2 | |
| 52 | JM23100056 | SLIDING BRACKET COVER | 1 | |
| 53 | JM23100057 | HEX NUT | 1 | |
| 54 | JM23100058 | BEVEL LOCKING HANDLE | 1 | |
| 55 | JM23100059 | RIP FENCE | 1 | |
| 055-1 | JM23200037 | RIP FENCE | 1 | |
| 56 | JM23100060 | FLAT WASHER 8 | 4 | |
| 57 | JM23100061 | SPRING WASHER 8 | 4 | |
| 58 | JM23100062 | HEX BOLT M8X30 | 4 | |
| 59 | JM23100063 | KEY | 1 | |
| 60 | JM23100320 | SUB FENCE COMPLETE | 1 | |
| 60 | C10 | JM23180060 | CAUTION LABEL | 1 |
| 60 | D10 | INC. 311, 312 | ||
| 61 | JM23100065 | CROSS HEAD SCREW M4X8 | 2 | |
| 62 | JM23100066 | WING KNOB M6X20 | 1 | |
| 63 | JM23100067 | H.S.BOLT M4X12 | 1 | |
| 063-1 | JM23100146 | H.S.BOLT M4X10 | 1 | |
| 64 | JM23100068 | LASER MOVING FIX PLATE | 1 | |
| 65 | JM23100069 | LASER CORD CLAMP | 1 | |
| 66 | JM23100070 | LASER | 1 | |
| 67 | JM23100071 | THIN FLAT WASHER 6 | 1 | |
| 68 | JM23100072 | CORD CLAMP | 1 | |
| 69 | JM23100073 | CORD WRAP BRACKET | 1 | |
| 70 | JM23100340 | UP BLADE GUARD BRACKET | 1 | |
| 70 | C10 | JM23180059 | CAUTION LABEL | 1 |
| 70 | D10 | INC. 76,141 | ||
| 070-1 | JM23100342 | UP BLADE GUARD BRACKET CMPLT | 1 | |
| 070-1 | C10 | JM23100145 | ELASTIC PIN 5X30 | 2 |
| 070-1 | C20 | JM23180059 | CAUTION LABEL | 1 |
| 070-1 | D10 | INC. 76,141 | ||
| 070-2 | JM23100343 | UP BLADE GUARD BRACKET CMPLT | 1 | |
| 070-2 | C20 | JM23180059 | CAUTION LABEL | 1 |
| 070-3 | JM23100342 | UP BLADE GUARD BRACKET CMPLT | 1 | |
| 070-3 | D11 | INC. 314 | ||
| 71 | JM23100075 | LASER BASE | 1 | |
| 72 | JM23100076 | H.S.SCREW M4X10 | 1 | |
| 072-1 | JM23300038 | HEX SOCKET SET SCREW M4X6 | 1 | |
| 73 | JM23100077 | CONNECTION SHAFT | 1 | |
| 74 | JM23100078 | TORSION SPRING | 1 | |
| 75 | JM23100079 | LOCATION TUBE | 2 | |
| 76 | JM23100080 | SLIDING BAR | 2 | |
| 77 | JM23100081 | BUFFER A | 1 | |
| 78 | JM23100082 | BEARING BAFFLE | 1 | |
| 79 | JM23100083 | LIMITED BRACKET | 2 | |
| 079-1 | JM23100083 | LIMITED BRACKET | 1 | |
| 80 | JM23100084 | DUSTPROOF RING | 1 | |
| 080-1 | JM23100083 | LIMITED BRACKET | 1 | |
| 81 | JM23100085 | LINEAR BEARING | 3 | |
| 82 | JM23100086 | SLIDING BAR LOCKING KNOB | 1 | |
| 83 | JM23100087 | LOCK SCREW M6X8 | 2 | |
| 84 | JM23100088 | PRESSURE SPRING | 1 | |
| 85 | JM23100089 | CROSS HEAD SCREW M5X12 | 2 | |
| 86 | JM23100090 | SLIDING BAR REAR COVER | 1 | |
| 87 | JM23100091 | WRENCH CLIP | 1 | |
| 89 | JM23100092 | CUTTING DEPTH ADJUSTABLE PLATE | 1 | |
| 90 | JM23100093 | PIN C | 1 | |
| 090-1 | JM23100193 | PIN C | 1 | |
| 91 | JM23100094 | WAVE SPRING WASHER | 1 | |
| 92 | JM23100095 | FLAT WASHER 8X14X1 | 1 | |
| 93 | JM23100096 | DEPTH ADJUSTABLE PLATE BOLT | 1 | |
| 94 | JM23100097 | PIN CAP | 1 | |
| 95 | JM23100098 | LINK SLEEVE | 1 | |
| 96 | JM23100099 | LINK | 1 | |
| 97 | JM23100350 | LOWER BLADE GUARD COMPLETE | 1 | |
| 97 | C10 | JM23100101 | GUARD RIVET | 3 |
| 97 | C20 | JM23100105 | LOWER BLADE GUARD PLATE | 1 |
| 97 | C30 | JM23100104 | FLAT WASHER 5 | 3 |
| 97 | D10 | INC. 98,101,102 | ||
| 97 | D11 | INC. 101 | ||
| 097-1 | JM23210008 | LOWER BLADE GUARD COMPLETE | 1 | |
| 98 | JM23100101 | GUARD RIVET | 3 | |
| 99 | JM23100102 | GUARD WHEEL | 1 | |
| 100 | JM23100103 | WHEEL LOCK RING | 1 | |
| 102 | JM23100105 | LOWER BLADE GUARD PLATE | 1 | |
| 103 | JM23100106 | SQUARE NECK BOLT M6X12 | 1 | |
| 104 | JM23100107 | GUARD SPRING | 1 | |
| 105 | JM23100108 | BOWL PLATE | 1 | |
| 106 | JM23100109 | GUARD FIX PLATE | 1 | |
| 107 | JM23100110 | LOCKNUT M6 | 1 | |
| 108 | JM23200006 | H.S.BOLT M6X22 | 4 | |
| 109 | JM23100112 | HEX BOLT FOR GUARD | 1 | |
| 110 | JM23100113 | CROSSHEAD SCREW FOR GUARD | 1 | |
| 111 | JM23100114 | LINK PIN | 1 | |
| 112 | JM23100115 | RETAINING RING 5 | 1 | |
| 113 | JM23100116 | LOCK SCREW M6X12 | 2 | |
| 114 | JM23100117 | DUST PORT | 1 | |
| 115 | JM23100118 | HEX BOLT M6X25 | 1 | |
| 116 | JM23100119 | LIMITED KNOB | 1 | |
| 117 | JM23100120 | H.S.SET BOLT M6X16 | 1 | |
| 118 | JM23100360 | UP BLADE GUARD COMPLETE | 1 | |
| 118 | C10 | JM23180058 | CAUTION LABEL | 1 |
| 118 | D10 | INC. 143 | ||
| 118-1 | JM23200141 | UP BLADE GUARD COMPLETE | 1 | |
| 118-1 | C10 | JM23180058 | CAUTION LABEL | 1 |
| 118-1 | D10 | INC. 143 | ||
| 118-2 | JM23200146 | UP BLADE GUARD COMPLETE | 1 | |
| 118-2 | C10 | JM23180058 | CAUTION LABEL | 1 |
| 118-2 | C20 | JM23100114 | LINK PIN | 1 |
| 118-2 | C30 | JM23100147 | BUFFER | 1 |
| 118-2 | D10 | INC. 143 | ||
| 118-3 | JM23200147 | UP BLADE GUARD COMPLETE | 1 | |
| 118-3 | C10 | JM23180058 | CAUTION LABEL | 1 |
| 118-3 | C20 | JM23100114 | LINK PIN | 1 |
| 118-3 | C30 | JM23100147 | BUFFER | 1 |
| 118-3 | D10 | INC. 305,306 | ||
| 119 | JM23100122 | DUST GUIDE PLATE | 1 | |
| 120 | JM23100123 | COPPER CONNECTION PLATE | 1 | |
| 121 | JM23100124 | BLADE FLANGE | 1 | |
| 123 | JM23100125 | BATTERY BOX | 1 | |
| 124 | JM23100126 | LASER CORD TUBE | 1 | |
| 125 | JM23100127 | LASER SWITCH COVER | 1 | |
| 126 | JM23100128 | BATTERY BOX COVER | 1 | |
| 127 | JM23100129 | LASER SWITCH | 1 | |
| 128 | JM23100130 | SELF-TAPPING SCREW 2.9X12 | 2 | |
| 129 | JM23100131 | ANODE COPPER SHEET | 1 | |
| 130 | JM23100132 | CATHODE COPPER SHEET | 1 | |
| 131 | JM23100133 | BATTERY BOX SPRING | 2 | |
| 132 | JM23200007 | RIGHT SUB FENCE CONNECTION PIN | 2 | |
| 133 | JM23200110 | RIGHT SUB FENCE COMPLETE | 1 | |
| 133 | C10 | JM23280056 | CAUTION LABEL | 1 |
| 133-1 | JM00000077 | RIGHT SUB FENCE COMPLETE | 1 | |
| 133-1 | C10 | JM23280056 | CAUTION LABEL | 1 |
| 133-2 | JM23200008 | RIGHT SUB FENCE | 1 | |
| 134 | JM23200009 | H.S.SCREW WITH DOG POINT M6X10 | 2 | |
| 140 | JM23100191 | RING 25.4 | 1 | |
| 141 | JM23100145 | ELASTIC PIN 5X30 | 2 | |
| 142 | JM23100154 | BIG FLAT WASHER 10 | 1 | |
| 143 | JM23100147 | BUFFER | 1 | |
| 145 | JM23200012 | OUTPUT SHAFT RING 15.88 | 1 | |
| 146 | JM23200013 | COUNTERSUNK HEAD BOLT M4X10 | 2 | |
| 147 | JM23200014 | COUNTERSUNK HEAD BOLT M6X15 | 2 | |
| 148 | JM23200015 | BEARING PRESS PLATE | 1 | |
| 149 | JM23200016 | BEARING COVER | 1 | |
| 150 | JM23200017 | OUTPUT SHAFT | 1 | |
| 151 | JM23200018 | KEY 4X10 | 1 | |
| 152 | JM23200019 | BEARING 6003 | 1 | |
| 152-1 | JM23200031 | BEARING 6003 | 1 | |
| 152-2 | JM23200019 | BEARING 6003 | 1 | |
| 153 | JM23200020 | GEAR | 1 | |
| 154 | JM23200021 | SHAFT WASHER | 1 | |
| 155 | JM23200022 | RETAINING RING 14 | 1 | |
| 156 | JM23200023 | OIL BUSH | 1 | |
| 157 | JM23200130 | GEAR BOX COMPLETE | 1 | |
| 157 | C10 | JM23200023 | OIL BUSH | 1 |
| 157 | D10 | INC. 156 | ||
| 158 | JM23200025 | GEAR LOCK SPRING | 1 | |
| 159 | JM23200026 | GEAR LOCK PIN | 1 | |
| 160 | JM23200027 | RETAINING RING 10.5X1 | 1 | |
| 161 | JM23200028 | SHAFT FIX COVER | 1 | |
| 162 | JM23200029 | CROSS HEAD SCREW M5X18 | 2 | |
| 163 | JM23200030 | RETAINING RING 16 | 1 | |
| 164 | JM23200031 | BEARING 6003 | 1 | |
| 164-1 | JM23200019 | BEARING 6003 | 1 | |
| 165 | JM23100168 | BAFFLE RING | 1 | |
| 166 | JM23200001 | ROTOR ASSEMBLY | 1 | |
| 166 | D10 | INC. 161,164,167 | ||
| 167 | JM23200032 | BEARING 6001 | 1 | |
| 168 | JM23100170 | SELF-TAPPING SCREW M5X70 | 2 | |
| 169 | JM23100001 | STATOR ASSEMBLY | 1 | |
| 170 | JM23100172 | ABSORBER RING | 1 | |
| 171 | JM23200120 | MOTOR HOUSE COMPLETE | 1 | |
| 171 | C10 | JM23180056 | CAUTION LABEL | 1 |
| 171 | C20 | JM23180057 | CAUTION LABEL | 1 |
| 171 | C30 | JM23280021 | NAME PLATE | 1 |
| 171 | C40 | JM23100184 | CARBON BRUSH HOUSE | 2 |
| 171 | C50 | JM23100185 | H.S.SCREW M5X8 | 2 |
| 171 | D10 | INC. 190,191 | ||
| 171-1 | JM23200121 | MOTOR HOUSE COMPLETE | 1 | |
| 171-1 | C10 | JM23180056 | CAUTION LABEL | 1 |
| 171-1 | C20 | JM23180057 | CAUTION LABEL | 1 |
| 171-1 | C30 | JM23280021 | NAME PLATE | 1 |
| 171-1 | C40 | JM23100184 | CARBON BRUSH HOUSE | 2 |
| 171-1 | C50 | JM23100185 | H.S.SCREW M5X8 | 2 |
| 172 | JM23100167 | SELF TAPPING SCREW M4X16 | 2 | |
| 172-1 | JM23000106 | SELF TAPING SCREWST4.2X12 | 2 | |
| 173 | JM23100166 | CORD CLAMP | 1 | |
| 174 | JM23100165 | PROTECTION TUBE | 1 | |
| 175 | JM23000152 | POWER SUPPLY CORD | 1 | |
| 176 | JM23100169 | CAPACITOR | 1 | |
| 177 | JM23200034 | RIGHT HANDLE | 1 | |
| 178 | JM23100176 | SWITCH HANDLE SPRING | 1 | |
| 179 | JM23100171 | TERMINAL POLE | 1 | |
| 180 | JM23100174 | SWITCH HANDLE | 1 | |
| 181 | JM23100175 | SWITCH LOCK PLATE | 1 | |
| 182 | JM23100177 | BRAKE SYSTEM SWITCH KEY | 1 | |
| 183 | JM23100173 | SWITCH LOCK BRACKET | 1 | |
| 184 | JM23100178 | BRAKE SYSTEM SWITCH | 1 | |
| 185 | JM23100179 | ELECTRIC SWITCH | 1 | |
| 186 | JM23200035 | CROSS HEAD SCREW M6X50 | 4 | |
| 187 | JM23200036 | LEFT HANDLE | 1 | |
| 188 | JM23100182 | SCREW CAP | 2 | |
| 189 | JM23100183 | CARBON BRUSH | 2 | |
| 189-1 | JM23000123 | CARBON BRUSH 2PCS/SET | 2 | |
| 189-2 | JM23000123 | CARBON BRUSH 2PCS/SET | 1 | |
| 190 | JM23100184 | CARBON BRUSH HOUSE | 2 | |
| 191 | JM23100185 | H.S.SCREW M5X8 | 2 | |
| 192 | JM23100186 | SOFT STARTER | 1 | |
| 193 | JM23100188 | MOTOR REAR COVER | 1 | |
| 194 | JM23100146 | H.S.BOLT M4X10 | 2 | |
| 195 | JM23100148 | H.S.BOLT M6X20 WITH GLUE | 1 | |
| 196 | JM23100150 | SEALING RING | 1 | |
| 197 | JM23100149 | SPRING WASHER 5 | 2 | |
| 198 | JM23100152 | WING KNOB,M6X10 | 1 | |
| 199 | JM23100151 | SPRING WASHER 6 | 4 | |
| 200 | JM23100153 | BLADE BOLT | 1 | |
| 201 | JM23100190 | SPECIAL WASHER 6 | 4 | |
| 202 | JM23100016 | FLAT WASHER 4 | 2 | |
| 203 | JM23100016 | FLAT WASHER 4 | 1 | |
| 204 | JM23100016 | FLAT WASHER 4 | 1 | |
| 205 | JM23100016 | FLAT WASHER 4 | 1 | |
| 206 | JM23100016 | FLAT WASHER 4 | 2 | |
| 207 | JM23100016 | FLAT WASHER 4 | 2 | |
| 207-1 | JM23100016 | FLAT WASHER 4 | 1 | |
| 208 | JM23100016 | FLAT WASHER 4 | 1 | |
| 209 | JM23100016 | FLAT WASHER 4 | 2 | |
| 210 | JM23100016 | FLAT WASHER 4 | 1 | |
| 211 | JM23100016 | FLAT WASHER 4 | 1 | |
| 212 | JM23100016 | FLAT WASHER 4 | 2 | |
| 213 | JM23100016 | FLAT WASHER 4 | 2 | |
| 214 | JM23100033 | PAN HEAD SCREW M4X12 | 2 | |
| 215 | JM23100033 | PAN HEAD SCREW M4X12 | 1 | |
| 216 | JM23100033 | PAN HEAD SCREW M4X12 | 1 | |
| 217 | JM23100033 | PAN HEAD SCREW M4X12 | 1 | |
| 218 | JM23100033 | PAN HEAD SCREW M4X12 | 1 | |
| 219 | JM23100033 | PAN HEAD SCREW M4X12 | 1 | |
| 220 | JM23100033 | PAN HEAD SCREW M4X12 | 1 | |
| 221 | JM23100033 | PAN HEAD SCREW M4X12 | 1 | |
| 222 | JM23100033 | PAN HEAD SCREW M4X12 | 6 | |
| 223 | JM23100033 | PAN HEAD SCREW M4X12 | 2 | |
| 224 | JM23100007 | FLAT WASHER 5 | 2 | |
| 225 | JM23100007 | FLAT WASHER 5 | 2 | |
| 226 | JM23100007 | FLAT WASHER 5 | 2 | |
| 227 | JM23100007 | FLAT WASHER 5 | 4 | |
| 228 | JM23100007 | FLAT WASHER 5 | 2 | |
| 229 | JM23100007 | FLAT WASHER 5 | 2 | |
| 230 | JM23100041 | FLAT WASHER 6 | 3 | |
| 231 | JM23100041 | FLAT WASHER 6 | 1 | |
| 232 | JM23100089 | CROSS HEAD SCREW M5X12 | 1 | |
| 233 | JM23100089 | CROSS HEAD SCREW M5X12 | 2 | |
| 234 | JM23100089 | CROSS HEAD SCREW M5X12 | 1 | |
| 235 | JM23100089 | CROSS HEAD SCREW M5X12 | 1 | |
| 236 | JM23100015 | SPRING WASHER 4 | 1 | |
| 237 | JM23100015 | SPRING WASHER 4 | 1 | |
| 238 | JM23100015 | SPRING WASHER 4 | 2 | |
| 239 | JM23100015 | SPRING WASHER 4 | 2 | |
| 240 | JM23100035 | ANTI-LOOSEN RING | 1 | |
| 241 | JM23100035 | ANTI-LOOSEN RING | 2 | |
| 241-1 | JM23100035 | ANTI-LOOSEN RING | 1 | |
| 242 | JM23100019 | CROSS HEAD SCREW M4X18 | 2 | |
| 242-1 | JM23100019 | CROSS HEAD SCREW M4X18 | 1 | |
| 243 | JM23100083 | LIMITED BRACKET | 1 | |
| 243-1 | JM23100084 | DUSTPROOF RING | 1 | |
| 244 | JM23100083 | LIMITED BRACKET | 1 | |
| 245 | JM23100084 | DUSTPROOF RING | 2 | |
| 245-1 | JM23100084 | DUSTPROOF RING | 1 | |
| 246 | JM23100084 | DUSTPROOF RING | 1 | |
| 247 | JM23100104 | FLAT WASHER 5 | 3 | |
| 248 | JM23100009 | LOCKNUT M10 | 1 | |
| 249 | JM23100009 | LOCKNUT M10 | 1 | |
| 250 | JM23100034 | HEX BOLT M6X28 | 2 | |
| 250-1 | JM23100034 | HEX BOLT M6X28 | 1 | |
| 251 | JM23100069 | LASER CORD CLAMP | 1 | |
| 252 | JM23100069 | LASER CORD CLAMP | 1 | |
| 253 | JM23100071 | THIN FLAT WASHER 6 | 1 | |
| 254 | JM23100072 | CORD CLAMP | 1 | |
| 255 | JM23100073 | CORD WRAP BRACKET | 1 | |
| 256 | JM23100081 | BUFFER A | 1 | |
| 257 | JM23100082 | BEARING BAFFLE | 1 | |
| 258 | JM23100098 | LINK SLEEVE | 1 | |
| 259 | JM23100124 | BLADE FLANGE | 1 | |
| 260 | JM23100151 | SPRING WASHER 6 | 3 | |
| 261 | JM23100167 | SELF TAPPING SCREW M4X16 | 5 | |
| 261-1 | JM00000217 | SELF TAPPING SCREW ST4.2X18 | 6 | |
| 262 | JM23100167 | SELF TAPPING SCREW M4X16 | 1 | |
| 262-1 | JM00000217 | SELF TAPPING SCREW ST4.2X18 | 1 | |
| 263 | JM23100167 | SELF TAPPING SCREW M4X16 | 2 | |
| 263-1 | JM00000217 | SELF TAPPING SCREW ST4.2X18 | 1 | |
| 264 | JM23100167 | SELF TAPPING SCREW M4X16 | 2 | |
| 264-1 | JM00000217 | SELF TAPPING SCREW ST4.2X18 | 2 | |
| 265 | JM23100006 | CROSS HEAD SCREW M5X20 | 4 | |
| 265-1 | JM23200029 | CROSS HEAD SCREW M5X18 | 4 | |
| 266 | JM23100149 | SPRING WASHER 5 | 2 | |
| 267 | JM23100149 | SPRING WASHER 5 | 2 | |
| 268 | JM23100149 | SPRING WASHER 5 | 2 | |
| 269 | JM23100066 | WING KNOB M6X20 | 2 | |
| 270 | JM23100390 | LASER ASSEMBLY | 1 | |
| 270 | D10 | INC. 64,66,71,72,120,123-131, | ||
| 270 | D20 | INC. 194,202,206,214 | ||
| 272 | JM23100500 | HOLDER | 2 | |
| 273 | JM23100016 | FLAT WASHER 4 | 1 | |
| 274 | JM23100019 | CROSS HEAD SCREW M4X18 | 1 | |
| 275 | JM23100016 | FLAT WASHER 4 | 1 | |
| 276 | JM23100019 | CROSS HEAD SCREW M4X18 | 1 | |
| 277 | JM23100016 | FLAT WASHER 4 | 1 | |
| 278 | JM00000217 | SELF TAPPING SCREW ST4.2X18 | 1 | |
| 279 | JM23100007 | FLAT WASHER 5 | 1 | |
| 280 | JM23100007 | FLAT WASHER 5 | 1 | |
| 281 | JM23500053 | EXTERNAL TOOTHED LOCK WASHER 4 | 1 | |
| 282 | JM23100035 | ANTI-LOOSEN RING | 1 | |
| 283 | JM23100034 | HEX BOLT M6X28 | 1 | |
| 284 | JM23100007 | FLAT WASHER 5 | 1 | |
| 285 | JM00000216 | EXTERNAL TOOTHED LOCK WASHER 5 | 1 | |
| 286 | JM23100035 | ANTI-LOOSEN RING | 1 | |
| 287 | JM23100041 | FLAT WASHER 6 | 1 | |
| 288 | JM23100016 | FLAT WASHER 4 | 1 | |
| 289 | JM2708B060 | CAUTION LABEL | 2 | |
| 292 | JM23100039 | LOCKING ROD | 1 | |
| 293 | JM23100038 | ELASTIC PIN 4X20 | 1 | |
| 294 | JM23100009 | LOCKNUT M10 | 1 | |
| 295 | JM23100028 | WORKING TABLE | 1 | |
| 296 | JM23100083 | LIMITED BRACKET | 1 | |
| 297 | JM23100084 | DUSTPROOF RING | 1 | |
| 298 | JM23100081 | BUFFER A | 1 | |
| 299 | JM23100087 | LOCK SCREW M6X8 | 2 | |
| 300 | JM23100081 | BUFFER A | 1 | |
| 301 | JM23100085 | LINEAR BEARING | 1 | |
| 302 | JM23100085 | LINEAR BEARING | 1 | |
| 303 | JM23100085 | LINEAR BEARING | 1 | |
| 305 | JM23100114 | LINK PIN | 1 | |
| 306 | JM23100147 | BUFFER | 1 | |
| 308 | JM23200004 | BEVEL SCALE | 1 | |
| 311 | JM23180060 | CAUTION LABEL | 1 | |
| 312 | JM23100064 | SUB FENCE | 1 | |
| 313 | JM23280056 | CAUTION LABEL | 1 | |
| 314 | JM23180059 | CAUTION LABEL | 1 | |
| 315 | JM00000061 | CAUTION LABEL | 1 | |
| 317 | JM23280074 | NAME PLATE | 1 | |
| 318 | JM23180057 | CAUTION LABEL | 1 | |
| 319 | JM23180056 | CAUTION LABEL | 1 | |
| A01 | JM23100500 | HOLDER | 1 | |
| A01-1 | JM23100500 | HOLDER | 2 | |
| A02 | 782230-2 | BOX WRENCH 13-3 | 1 | |
| A02-1 | JM23100197 | BOX WRENCH 13-3 | 1 | |
| A03 | JM23100004 | SAW BLADE | 1 | |
| A04 | JM27000328 | TRIANGLE PLATE | 1 | |
| A05 | JM23100501 | DUST BAG ASSEMBLY | 1 | |
| A06 | JM23100502 | VISE ASSEMBLY | 1 |
Back Download
