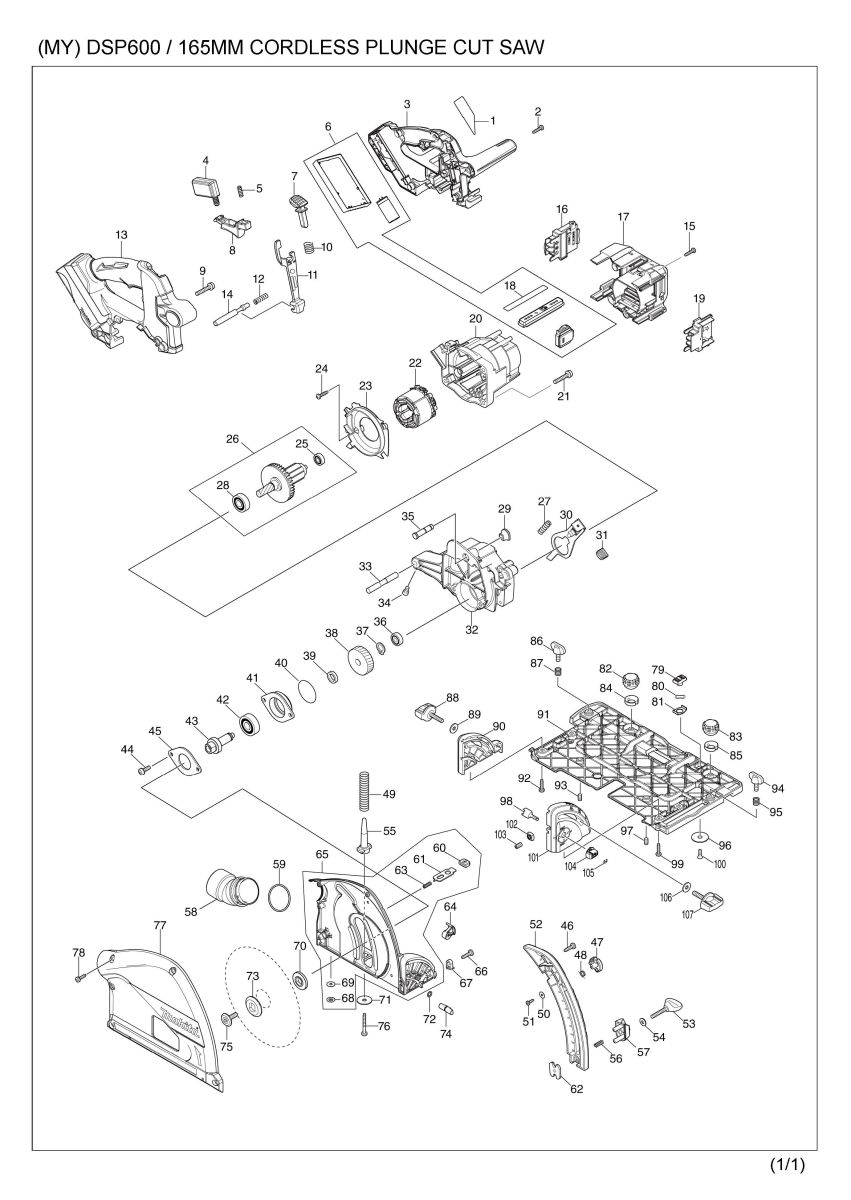

Part Diagram
Total: 174 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 853K64-7 | DSP600 NAME PLATE | 1 | |
| 2 | 265995-6 | TAPPING SCREW 4X18 | 8 | |
| 3 | 183H46-0 | HANDLE REAR COVER SET | 1 | |
| 3 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 3 | D10 | INC. 13,17 | ||
| 4 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 5 | 234173-9 | COMPRESSION SPRING 4 | 1 | |
| 6 | 135900-6 | CONTROLLER ASSY | 1 | |
| 6 | C10 | 620691-7 | SUB CONTROLLER | 1 |
| 6 | D10 | INC. 18 | ||
| 006-1 | 135973-9 | CONTROLLER ASSY | 1 | |
| 006-1 | C10 | 620691-7 | SUB CONTROLLER | 1 |
| 006-1 | D10 | INC. 18 | ||
| 006-2 | 136856-6 | CONTROLLER ASS'Y | 1 | |
| 006-2 | C10 | 620691-7 | SUB CONTROLLER | 1 |
| 006-2 | D10 | INC. 18 | ||
| 7 | 419629-5 | LOCK OFF BUTTON | 1 | |
| 8 | 457748-9 | SWITCH LEVER | 1 | |
| 9 | 911253-5 | PAN HEAD SCREW M5X30 | 2 | |
| 009-1 | 911253-5 | PAN HEAD SCREW M5X30 | 2 | |
| 10 | 233089-5 | COMPRESSION SPRING 12 | 1 | |
| 11 | 457749-7 | LOCK PLATE | 1 | |
| 12 | 233267-7 | COMPRESSION SPRING 7 | 1 | |
| 13 | 183H46-0 | HANDLE REAR COVER SET | 1 | |
| 13 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 13 | D10 | INC. 3,17 | ||
| 14 | 324709-3 | LOCK PIN 8 | 1 | |
| 15 | 265995-6 | TAPPING SCREW 4X18 | 5 | |
| 16 | 643874-2 | TERMINAL | 1 | |
| 17 | 183H46-0 | HANDLE REAR COVER SET | 1 | |
| 17 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 17 | C20 | 813D01-1 | CAUTION LABEL | 1 |
| 17 | D10 | INC. 3,13 | ||
| 18 | 813D03-7 | INDICATION LABEL | 1 | |
| 19 | 643874-2 | TERMINAL | 1 | |
| 20 | 457750-2 | MOTOR HOUSING | 1 | |
| 21 | 911253-5 | PAN HEAD SCREW M5X30 | 4 | |
| 22 | 629275-8 | STATOR | 1 | |
| 022-1 | 629B69-3 | STATOR | 1 | |
| 23 | 457751-0 | BAFFLE PLATE | 1 | |
| 24 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 25 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 26 | 519448-0 | ROTOR ASSY | 1 | |
| 26 | D10 | INC. 25,28 | ||
| 026-1 | 519448-0 | ROTOR ASSY | 1 | |
| 026-1 | D10 | INC. 25,28 | ||
| 27 | 233084-5 | COMPRESSION SPRING 6 | 1 | |
| 28 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 29 | 286040-4 | CAP | 1 | |
| 30 | 345742-2 | SHAFT LOCK | 1 | |
| 31 | 286039-9 | CAP | 1 | |
| 32 | 144586-5 | GEAR HOUSING COMPLETE | 1 | |
| 32 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 33 | 326960-1 | PIN 8 | 1 | |
| 033-1 | 324716-6 | PIN 8 | 1 | |
| 033-2 | 327B66-0 | PIN 8 | 1 | |
| 34 | 265907-9 | HEX. SOCKET HEAD BOLT M5X10 | 1 | |
| 35 | 324708-5 | STOPPER PIN 8 | 1 | |
| 36 | 211021-9 | BALL BEARING 607LLB | 1 | |
| 37 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 38 | 221548-1 | HELICAL GEAR 41 | 1 | |
| 39 | 257010-0 | RING 12 | 1 | |
| 40 | 213512-6 | O RING 39 | 1 | |
| 41 | 318088-9 | BEARING BOX | 1 | |
| 42 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 43 | 324707-7 | SPINDLE | 1 | |
| 44 | 911221-8 | PAN HEAD SCREW M5X16 | 2 | |
| 45 | 285689-7 | BEARING RETAINER 55 | 1 | |
| 46 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 47 | 419630-0 | LOCK LEVER | 1 | |
| 48 | 231665-9 | TORSION SPRING 7 | 1 | |
| 49 | 233479-2 | COMPRESSION SPRING 11 | 1 | |
| 50 | 253821-1 | FLAT WASHER 3 | 1 | |
| 51 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | |
| 52 | 457756-0 | DEPTH GUIDE | 1 | |
| 53 | 251867-1 | THUMB SCREW M5X30 | 1 | |
| 54 | 941101-4 | FLAT WASHER 5 | 1 | |
| 55 | 419624-5 | SPRING HOLDER | 1 | |
| 56 | 231372-4 | COMPRESSION SPRING 5 | 1 | |
| 57 | 419623-7 | STOPPER BLOCK | 1 | |
| 58 | 457752-8 | DUST NOZZLE | 1 | |
| 59 | 213460-9 | O RING 35 | 1 | |
| 60 | 286041-2 | CAP 14 | 2 | |
| 61 | 345747-2 | SPACER PLATE | 2 | |
| 62 | 345744-8 | NUT PLATE | 1 | |
| 63 | 233025-1 | COMPRESSION SPRING 2 | 2 | |
| 64 | 144867-7 | LEVER 20 COMPLETE | 1 | |
| 64 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 65 | 144868-5 | BLADE CASE COMPLETE | 1 | |
| 65 | D10 | INC. 60,61,63,68,69 | ||
| 065-1 | 140D56-6 | BLADE CASE COMPLETE | 1 | |
| 065-1 | D10 | INC. 60,61,63,68,69 | ||
| 065-2 | 141U30-9 | BLADE CASE COMPLETE | 1 | |
| 065-2 | D10 | INC. 60,61,63,68,69 | ||
| 66 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | |
| 67 | 419632-6 | POSITION PLATE | 1 | |
| 68 | 259008-3 | PUSH NUT 4 | 2 | |
| 69 | 253874-0 | FLAT WASHER 4 | 2 | |
| 069-1 | 347392-9 | PLATE | 2 | |
| 70 | 224473-5 | INNER FLANGE 35 | 1 | |
| 070-1 | 224593-5 | INNER FLANGE 35 | 1 | |
| 71 | 253010-8 | FLAT WASHER 6 | 1 | |
| 72 | 213021-5 | O RING 5 | 1 | |
| 73 | 224409-4 | OUTER FLANGE 35 | 1 | |
| 74 | 324710-8 | PIN 8 | 1 | |
| 75 | 266403-0 | HEX. SOCKET HEAD BOLT M6 | 1 | |
| 76 | 266053-1 | TAPPING SCREW 4X35 | 1 | |
| 77 | 319605-8 | BLADE CASE COVER | 1 | |
| 077-1 | 319702-0 | BLADE CASE COVER | 1 | |
| 78 | 266034-5 | TAPPING SCREW CT 4X16 | 5 | |
| 79 | 458092-7 | SLIDE LEVER | 1 | |
| 80 | 253932-2 | WAVE WASHER 10 | 1 | |
| 81 | 345977-5 | PLATE | 1 | |
| 82 | 265775-0 | THUMB SCREW M4X3 | 1 | |
| 83 | 265775-0 | THUMB SCREW M4X3 | 1 | |
| 84 | 419627-9 | HOLDER | 1 | |
| 85 | 419627-9 | HOLDER | 1 | |
| 86 | 265701-9 | THUMB SCREW M6X14 | 1 | |
| 87 | 231316-4 | COMPRESSION SPRING 7 | 1 | |
| 087-1 | 231240-1 | COMPRESSION SPRING 7 | 1 | |
| 88 | 265776-8 | THUMB SCREW M6X26 | 1 | |
| 89 | 253111-2 | FLAT WASHER 6 | 1 | |
| 90 | 419596-4 | REAR ANGULAR GUIDE | 1 | |
| 91 | 319604-0 | BASE | 1 | |
| 091-1 | 312B95-6 | BASE | 1 | |
| 92 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 93 | 266225-8 | H.S.SET SCREW(FLAT POINT)M6X8 | 1 | |
| 94 | 265701-9 | THUMB SCREW M6X14 | 1 | |
| 95 | 231316-4 | COMPRESSION SPRING 7 | 1 | |
| 095-1 | 231240-1 | COMPRESSION SPRING 7 | 1 | |
| 96 | 345748-0 | LOCK WASHER | 1 | |
| 97 | 266225-8 | H.S.SET SCREW(FLAT POINT)M6X8 | 1 | |
| 98 | 324731-0 | STOPPER PIN | 1 | |
| 99 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 100 | 912112-6 | COUNTERSUNK HEAD SCREW M4X10 | 1 | |
| 101 | 419595-6 | FRONT ANGULAR GUIDE | 1 | |
| 101-1 | 413A11-6 | FRONT ANGULAR GUIDE | 1 | |
| 102 | 252157-5 | SQUARE NUT M6 | 1 | |
| 103 | 266225-8 | H.S.SET SCREW(FLAT POINT)M6X8 | 1 | |
| 104 | 457963-5 | DIAL 22 | 1 | |
| 105 | 961017-7 | STOP RING E-3 | 1 | |
| 106 | 253111-2 | FLAT WASHER 6 | 1 | |
| 107 | 265776-8 | THUMB SCREW M6X26 | 1 | |
| 108 | 213045-1 | O-RING 6 | 2 | |
| 109 | 620L68-8 | CONTROLLER B | 1 | |
| 110 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| A01 | B-57059 | TCT BLADE165X20X55T WOOD/MDF | 1 | |
| A01-1 | B-57364 | TCT BLADE165X20X56TWOOD/MDF D | 1 | |
| A01-2 | B-57364 | TCT BLADE165X20X56TWOOD/MDF D | 1 | |
| A02 | 783203-8 | HEX. WRENCH 5 | 1 | |
| F03 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F03 | C10 | 413102-7 | SEAT 3000 | 2 |
| F03 | C20 | 423360-7 | POSITION SHEET 3000 | 1 |
| F03 | C30 | 423362-3 | RUBBER SEAT 3000 | 2 |
| F03 | C40 | 819212-2 | MAKITA LOGO LABEL | 1 |
| F04 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F04 | C10 | 413101-9 | SEAT 1400 | 2 |
| F04 | C20 | 423359-2 | POSITION SHEET 1400 | 1 |
| F04 | C30 | 423361-5 | RUBBEER SEAT 1400 | 2 |
| F04 | C40 | 819212-2 | MAKITA LOGO LABEL | 1 |
| F06 | 194416-0 | SHEET 10000 SET | 1 | |
| F07 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F08 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F10 | 194910-2 | POSITION SHEET 1900 SET | 1 | |
| F12 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F12 | C10 | 423386-9 | POSITION SHEET 1900 | 1 |
| F12 | C20 | 423390-8 | RUBBER SHEET 1900 | 2 |
| F12 | C30 | 451330-6 | SHEET 1900 | 2 |
| F12 | C40 | 819212-2 | MAKITA LOGO LABEL | 1 |
| F14 | 195546-0 | FRONT CUFF 24 SET | 1 | |
| F15 | 196664-7 | BEVEL GUIDE SET | 1 | |
| F17 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| F18 | 199141-8 | GUIDE RAIL 1500 SET | 1 | |
| F28 | 1913K7-3 | PARALLEL GUIDE SET(MM) | 1 |
