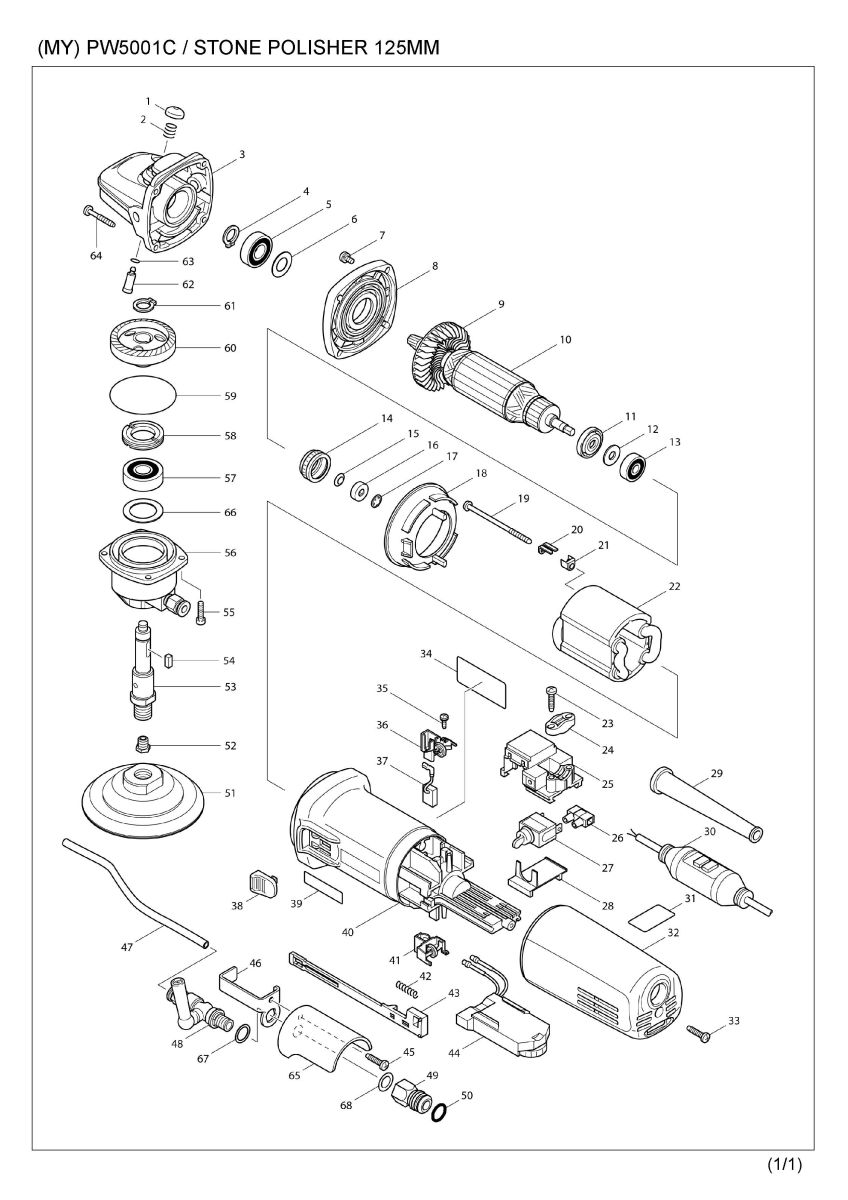

Part Diagram
Total: 85 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001-1 | 418067-8 | PIN CAP | 1 | |
| 002 | 233072-2 | COMPRESSION SPRING 8 | 1 | |
| 003-1 | 153488-4 | GEAR HOUSING COMPLETE | 1 | |
| 004 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 005-1 | 210105-0 | BALL BEARING 6001LLU | 1 | |
| 006 | 253084-9 | FLAT WASHER 12 | 1 | |
| 007 | 652014-1 | PAN HEAD SCREW M4X8 | 1 | |
| 008 | 317736-7 | GEAR HOUSING COVER | 1 | |
| 009 | 240033-5 | FAN 57 | 1 | |
| 010 | 515268-0 | ARMATURE ASS'Y 220V | 1 | |
| 010 | D10 | INC. 9,11,12,13 | ||
| 011 | 681656-4 | INSULATION WASHER | 1 | |
| 012 | 253823-7 | FLAT WASHER 7 | 1 | |
| 013 | 210027-4 | BALL BEARING 627DDW | 1 | |
| 014 | 421738-8 | LABYRINTH RUBBER RING 22 | 1 | |
| 014-1 | 422750-1 | LABYRINTH RUBBER RING 22 | 1 | |
| 015 | 267756-0 | WAVE WASHER 6 | 1 | |
| 016 | 688117-5 | MAGNET SLEEVE | 1 | |
| 017 | 259039-2 | SELF LOCK 6 | 1 | |
| 018 | 418452-5 | BAFFLE PLATE | 1 | |
| 019 | 266258-3 | TAPPING SCREW 4X70 | 2 | |
| 020 | 344871-8 | RETAINER | 2 | |
| 021 | 417237-6 | INSULATION COVER | 2 | |
| 022 | 626548-0 | FIELD 220V | 1 | |
| 023 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 024 | 687053-2 | STRAIN RELIEF | 1 | |
| 025 | 632999-7 | SWITCH BLOCK | 1 | |
| 026 | 654532-5 | TERMINAL BLOCK 1P | 1 | |
| 027 | 651418-4 | SWITCH ST115A-40 | 1 | |
| 027-1 | 651418-4 | SWITCH ST115A-40 | 1 | |
| 028 | 687113-0 | COVER | 1 | |
| 029 | 682566-8 | CORD GUARD 10 | 1 | |
| 030 | 699030-2 | POWER SUPPLY CORD UNIT | 1 | |
| 030 | C10 | 652751-7 | RESIDUAL CURRENT DEVICE | 1 |
| 031-1 | 816398-3 | INDICATION LABEL | 1 | |
| 032 | 418453-3 | REAR COVER | 1 | |
| 033 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 034 | 860103-0 | NAME PLATE PW5001C | 1 | |
| 035 | 266256-7 | TAPPING SCREW PT3X10 | 4 | |
| 036 | 643765-7 | BRUSH HOLDER | 1 | |
| 037 | 191978-9 | A.C. CARBON BRUSH CB-318 | 1 | |
| 038 | 417813-6 | SWITCH KNOB | 1 | |
| 040-1 | 418512-3 | MOTOR HOUSING | 1 | |
| 041 | 643765-7 | BRUSH HOLDER | 1 | |
| 042 | 233071-4 | COMPRESSION SPRING 4 | 1 | |
| 043 | 417186-7 | SWITCH LEVER | 1 | |
| 044 | 631636-0 | CONTROLLER | 1 | |
| 045 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 046 | 345372-9 | PLATE | 1 | |
| 047 | 245031-4 | HOSE | 1 | |
| 048-1 | 154649-9 | COCK COMPLETE | 1 | |
| 048-1 | C10 | 243098-6 | JOINT | 1 |
| 049 | 331669-2 | HOSE JOINT | 1 | |
| 050 | 213107-5 | O RING 12 | 1 | |
| 051 | 743080-0 | PAD 100 | 1 | |
| 052-1 | 325967-4 | NOZZLE | 1 | |
| 053 | 324409-5 | SPINDLE | 1 | |
| 054 | 254202-2 | KEY 4 | 1 | |
| 055 | 265490-6 | HEX. SOCKET HEAD BOLT M4X16 | 4 | |
| 056 | 153717-5 | BEARING BOX COMPLETE | 1 | |
| 056 | C10 | 213280-1 | OIL SEAL 17 | 2 |
| 056 | C20 | 243098-6 | JOINT | 1 |
| 057 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 058 | 285841-7 | BEARING RETAINER | 1 | |
| 059 | 213673-2 | O RING 52 | 1 | |
| 060 | 227455-6 | SPIRAL BEVEL GEAR 38 | 1 | |
| 061 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 062 | 256459-1 | PIN | 1 | |
| 063 | 213048-5 | O RING 6 | 1 | |
| 064 | 266257-5 | TAPPING SCREW 4X28 | 4 | |
| 066 | 267126-3 | FLAT WASHER 22 | 1 | |
| 067 | 261128-1 | RUBBER WASHER 12 | 1 | |
| 068-1 | 261127-3 | FLUOROPLASTIC WASHER 10 | 1 | |
| 068-2 | 261127-3 | FLUOROPLASTIC WASHER 10 | 1 | |
| 068-3 | 261127-3 | FLUOROPLASTIC WASHER 10 | 1 | |
| A01 | 152490-4 | GRIP 36 COMPLETE | 1 | |
| A02 | 265083-9 | + FLAT HEAD SCREW M8X11 | 2 | |
| A03 | 417322-5 | HEAD COVER | 1 | |
| A04 | 781008-0 | WRENCH 17 | 1 | |
| E01 | 154662-7 | DUST COVER COMPLETE | 1 | |
| E01 | C10 | 443121-9 | DUST COLLECT BRUSH | 1 |
| E02 | 345587-8 | BAND A | 1 | |
| E03 | 345588-6 | BAND B | 1 | |
| E04 | 251391-4 | PAN HEAD SCREW M5X16 | 2 | |
| F04 | 194233-8 | DUST COVER SET | 1 |
