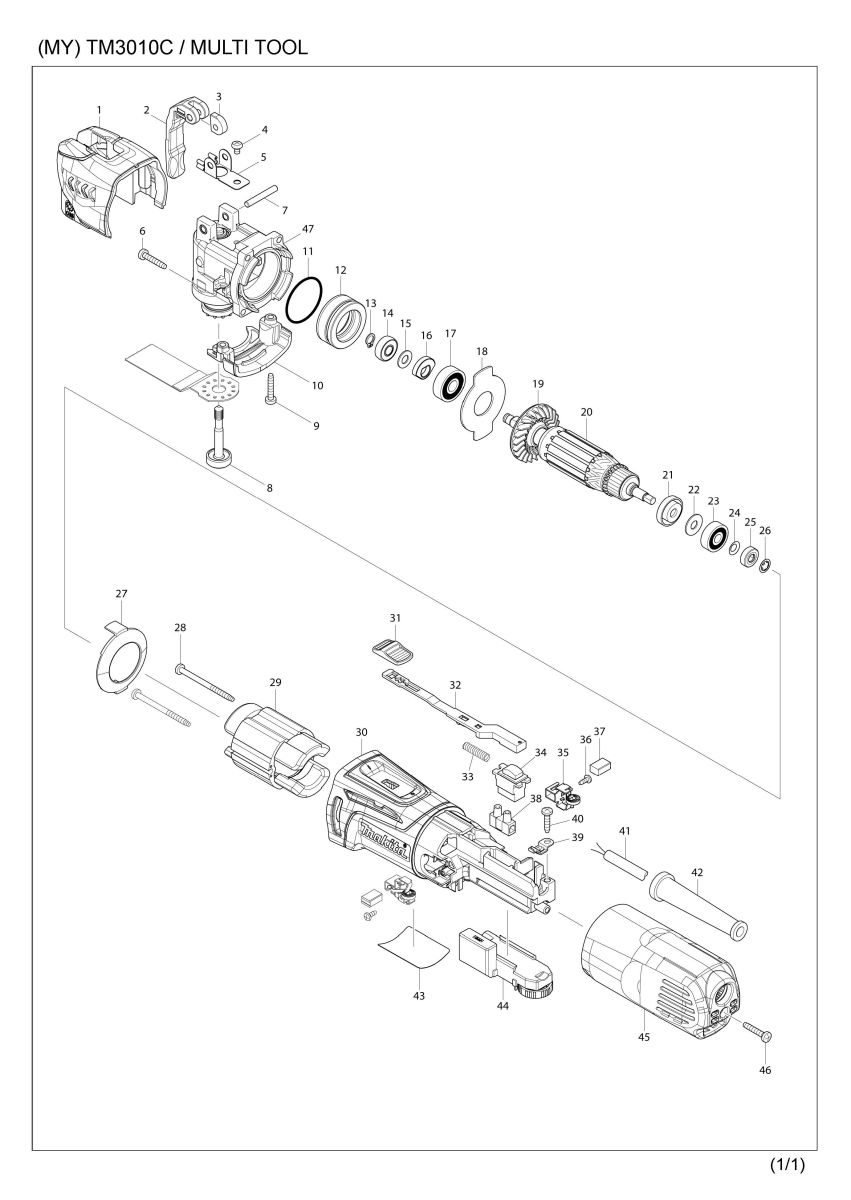

Part Diagram
Total: 89 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001A | 454634-5 | UPPER HEAD COVER | 1 | |
| 001-1A | 455272-6 | UPPER HEAD COVER | 1 | |
| 001-1B | 455272-6 | UPPER HEAD COVER | 1 | |
| 002 | 319059-9 | LEVER | 1 | |
| 003 | 313268-2 | TURN BLOCK | 1 | |
| 004 | 911102-6 | PAN HEAD SCREW M4X6 | 1 | |
| 005 | 232282-8 | LEAF SPRING | 1 | |
| 006 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 007 | 268306-4 | PIN 5 | 1 | |
| 008 | 326346-9 | HOLDER BOLT | 1 | |
| 008-1 | 327176-1 | HOLDER BOLT | 1 | |
| 009 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 010 | 454635-3 | LOWER HEAD COVER | 1 | |
| 011 | 213343-3 | O RING 35 | 1 | |
| 012 | 326347-7 | BEARING BOX | 1 | |
| 013 | 961003-8 | RETAINING RING S-7 | 1 | |
| 014 | 211392-4 | SPHERE BEARING 706 | 1 | |
| 014-1 | 210164-4 | SPHERE BEARING 706 | 1 | |
| 015 | 253133-2 | FLAT WASHER 7 | 1 | |
| 016 | 313245-4 | BALANCER | 1 | |
| 017 | 211092-6 | BALL BEARING 629DDW | 1 | |
| 018 | 285857-2 | BEARING RETAINNER | 1 | |
| 019 | 240140-4 | FAN 46 | 1 | |
| 020 | 517683-4 | ARMATURE ASSEMBLY 220-240V | 1 | |
| 020 | D10 | INC. 19,21-26 | ||
| 021 | 681636-0 | INSULATION WASHER | 1 | |
| 022 | 267426-1 | FLAT WASHER 7 | 1 | |
| 023 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 024 | 267756-0 | WAVE WASHER 6 | 1 | |
| 025 | 688174-3 | MAGNET SLEEVE | 1 | |
| 025-1 | 688117-5 | MAGNET SLEEVE | 1 | |
| 026 | 259039-2 | SELF LOCK 6 | 1 | |
| 027 | 453828-9 | BAFFLE PLATE | 1 | |
| 028 | 266415-3 | TAPPING SCREW 4X55 | 2 | |
| 029 | 623558-8 | FIELD 220-240V | 1 | |
| 030 | 453823-9 | MOTOR HOUSING | 1 | |
| 031 | 453761-5 | SWITCH KNOB | 1 | |
| 032 | 453825-5 | SWITCH LEVER | 1 | |
| 033 | 234263-8 | COMPRESSION SPRING 5 | 1 | |
| 034 | 651609-7 | SWITCH SS106A-7-1 | 1 | |
| 035 | 643839-4 | BRUSH HOLDER 6X9 | 2 | |
| 036 | 266492-5 | TAPPING SCREW 3X8 | 2 | |
| 037 | 194722-3 | CARBON BRUSH CB-459 | 1 | |
| 038 | 654532-5 | TERMINAL BLOCK 1P | 1 | |
| 039 | 687681-3 | STRAIN RELIEF | 1 | |
| 040 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 041 | 692037-7 | POWER SUPPLY CORD 1.0-2-5.0 | 1 | |
| 042 | 682569-2 | CORD GUARD 8-85 | 1 | |
| 043 | 814T82-4 | TM3010C NAME PLATE | 1 | |
| 044 | 620234-5 | CONTROLLER | 1 | |
| 045 | 453824-7 | REAR COVER | 1 | |
| 046 | 266424-2 | TAPPING SCREW 4X20 | 1 | |
| 047A | 142208-1 | CRANK HOUSING COMPLETE | 1 | |
| 047-1A | 143249-0 | CRANK HOUSING COMPLETE | 1 | |
| 047-1B | 143249-0 | CRANK HOUSING COMPLETE | 1 | |
| A01A | 142257-8 | TOOL BOX COMPLETE | 1 | |
| A01A | C10 | 454652-3 | LATCH | 1 |
| A01-1A | 143308-0 | TOOL BOX COMPLETE WITH LABEL | 1 | |
| A01-1A | C10 | 454652-3 | LATCH | 1 |
| A01-1B | 143308-0 | TOOL BOX COMPLETE WITH LABEL | 1 | |
| A01-1B | C10 | 454652-3 | LATCH | 1 |
| A02 | 821592-4 | PLASTIC CARRYING CASE | 1 | |
| A02 | C10 | 162315-4 | LATCH | 2 |
| A02 | C20 | 452137-3 | HANDLE | 1 |
| A03B | 196272-4 | ADAPTER A SET | 1 | |
| A03-1B | 196271-6 | ADAPTER A SET | 1 | |
| A04B | B-21325 | SEGMENT SAW BLADE 85 TMA006 | 1 | |
| A04-1B | B-64799 | STARLOCK SEGMENTSAW 85 TMA045 | 1 | |
| A05B | B-21353 | PLUNGE CUT SAW BLADE 28 TMA009 | 1 | |
| A05-1B | B-64814 | STARLOCK CUTSAW 32 TMA047 BIM | 1 | |
| A06B | B-21537 | SANDING PAD | 1 | |
| A06-1B | B-46202 | SANDING PAD | 1 | |
| A06-2B | B-65115 | STARLOCK SANDING PAD 93 TMA078 | 1 | |
| A06-3B | B-46202 | SANDING PAD | 1 | |
| A06-4B | B-65115 | STARLOCK SANDING PAD 93 TMA078 | 1 | |
| A07B | 196538-2 | DUST ATTACHMENT SET | 1 | |
| A07B | C10 | 443177-2 | FELT RING 37 | 1 |
| A07B | C20 | 453832-8 | JOINT | 1 |
| A07B | C30 | 453835-2 | NOZZLE BAND A | 1 |
| A07B | C40 | 454636-1 | DUST ATTACHMENT | 1 |
| A07B | C50 | 454637-9 | DUST NOZZLE D | 1 |
| A07-1B | 199624-8 | DUST ATTACHMENT SET | 1 | |
| A07-1B | C10 | 443177-2 | FELT RING 37 | 1 |
| A07-1B | C20 | 453832-8 | JOINT | 1 |
| A07-1B | C30 | 453835-2 | NOZZLE BAND A | 1 |
| A07-1B | C40 | 454636-1 | DUST ATTACHMENT | 1 |
| A07-1B | C50 | 454637-9 | DUST NOZZLE D | 1 |
| A07-1B | C60 | 422362-0 | FELT RING 47 | 1 |
| A07-1B | C70 | 459362-7 | SPACER | 1 |
