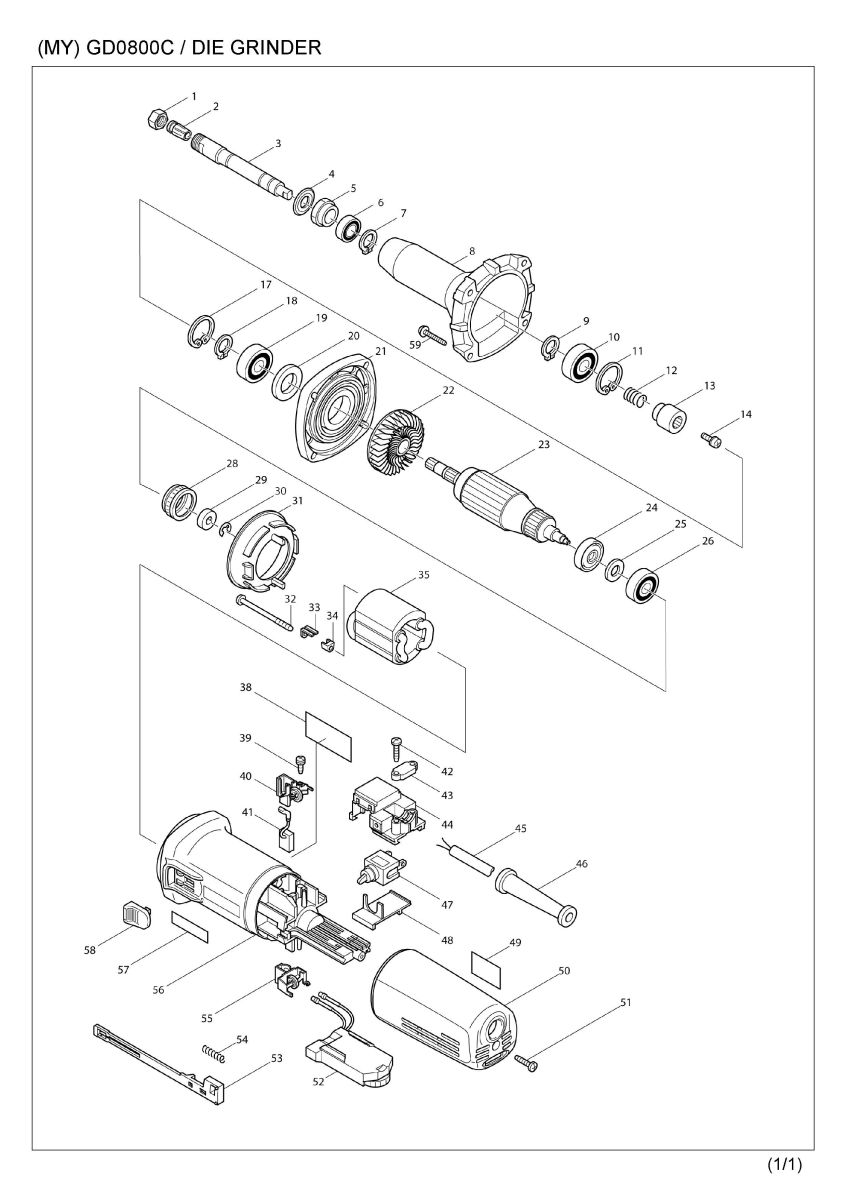

Part Diagram
Total: 74 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 763645-2 | COLLET NUT | 1 | |
| 2 | 193012-1 | COLLET CONE 6 SET | 1 | |
| 2 | C10 | 763646-0 | COLLET CONE 6 | 1 |
| 2 | D10 | INC. 1 | ||
| 3 | 324042-3 | SPINDLE | 1 | |
| 4 | 213209-7 | OIL SEAL 16 | 1 | |
| 5 | 285700-5 | BEARING RETAINER | 1 | |
| 6 | 211141-9 | BALL BEARING 6901LLB | 1 | |
| 7 | 961052-5 | RETAINING RING S-12 | 1 | |
| 8 | 317368-0 | BARREL | 1 | |
| 9 | 961052-5 | RETAINING RING S-12 | 1 | |
| 10 | 211142-7 | BALL BEARING 6001LLB | 1 | |
| 010-1 | 211148-5 | BALL BEARING 6001ZZ | 1 | |
| 11 | 962106-1 | RETAINING RING R-28 | 1 | |
| 12 | 233901-9 | LOCK SPRING 12 | 1 | |
| 13 | 323989-8 | COUPLING | 1 | |
| 14 | 265082-1 | PAN HEAD SCREW M4X8 | 1 | |
| 17 | 962106-1 | RETAINING RING R-28 | 1 | |
| 18 | 961052-5 | RETAINING RING S-12 | 1 | |
| 19 | 211142-7 | BALL BEARING 6001LLB | 1 | |
| 019-1 | 211148-5 | BALL BEARING 6001ZZ | 1 | |
| 20 | 253084-9 | FLAT WASHER 12 | 1 | |
| 21 | 317367-2 | BEARING BOX | 1 | |
| 22 | 240036-9 | FAN 57 | 1 | |
| 023B_ | 515194-3 | ARMATURE ASS'Y 230-240V | 1 | |
| 023B_ | D10 | INC. 22,24-26 | ||
| 023B1 | 515219-3 | ARMATURE ASS'Y 240V | 1 | |
| 023B1 | D10 | INC. 22,24-26 | ||
| 24 | 681656-4 | INSULATION WASHER | 1 | |
| 25 | 253823-7 | FLAT WASHER 7 | 1 | |
| 26 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 28 | 421770-2 | LABYRINTH RUBBER RING 22 | 1 | |
| 29 | 688117-5 | MAGNET SLEEVE | 1 | |
| 30 | 961011-9 | STOP RING E-4 | 1 | |
| 030-1 | 259039-2 | SELF LOCK 6 | 1 | |
| 31 | 413076-2 | BAFFLE PLATE | 1 | |
| 32 | 266259-1 | TAPPING SCREW 4X60 | 2 | |
| 33 | 344871-8 | RETAINER | 2 | |
| 34 | 417237-6 | INSULATION COVER | 2 | |
| 035B_ | 626524-4 | FIELD 230-240V | 1 | |
| 38 | 852410-5 | NAME PLATE GD0800C | 1 | |
| 038-1 | 814S07-2 | NAME PLATE GD0800C | 1 | |
| 39 | 266256-7 | TAPPING SCREW PT3X10 | 4 | |
| 40 | 643762-3 | BRUSH HOLDER | 1 | |
| 040-1 | 643760-7 | BRUSH HOLDER | 1 | |
| 41 | 191974-7 | A.C. CARBON BRUSH CB-310 | 1 | |
| 041-1 | 191978-9 | A.C. CARBON BRUSH CB-318 | 1 | |
| 42 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 43 | 687063-9 | CORD CLAMP | 1 | |
| 44 | 632999-7 | SWITCH BLOCK | 1 | |
| 045J_ | 692021-2 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 046A_ | 682559-5 | CORD GUARD 8 | 1 | |
| 47 | 651418-4 | SWITCH ST115A-40 | 1 | |
| 48 | 687113-0 | COVER | 1 | |
| 049A_ | 816801-4 | INDICATION LABEL | 1 | |
| 50 | 417185-9 | REAR COVER | 1 | |
| 51 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 052B_ | 631402-5 | CONTROLLER | 1 | |
| 53 | 417187-5 | SWITCH LEVER | 1 | |
| 54 | 233071-4 | COMPRESSION SPRING 4 | 1 | |
| 055A_ | 643762-3 | BRUSH HOLDER | 1 | |
| 055A1 | 643760-7 | BRUSH HOLDER | 1 | |
| 56 | 417184-1 | MOTOR HOUSING | 1 | |
| 056-1 | 183406-8 | MOTOR HOUSING | 1 | |
| 056-1 | D10 | INC. 57 | ||
| 056-2 | 417812-8 | MOTOR HOUSING | 1 | |
| 056-3 | 453294-0 | MOTOR HOUSING | 1 | |
| 056-4 | 417812-8 | MOTOR HOUSING | 1 | |
| 58 | 417188-3 | SWITCH KNOB | 1 | |
| 058-1 | 417813-6 | SWITCH KNOB | 1 | |
| 59 | 265999-8 | TAPPING SCREW 4X25 | 4 | |
| 60 | 800092-7 | INDICATION LABEL | 1 | |
| A01 | 781203-2 | WRENCH 13 | 1 | |
| A02 | 781206-6 | WRENCH 19 | 1 |
