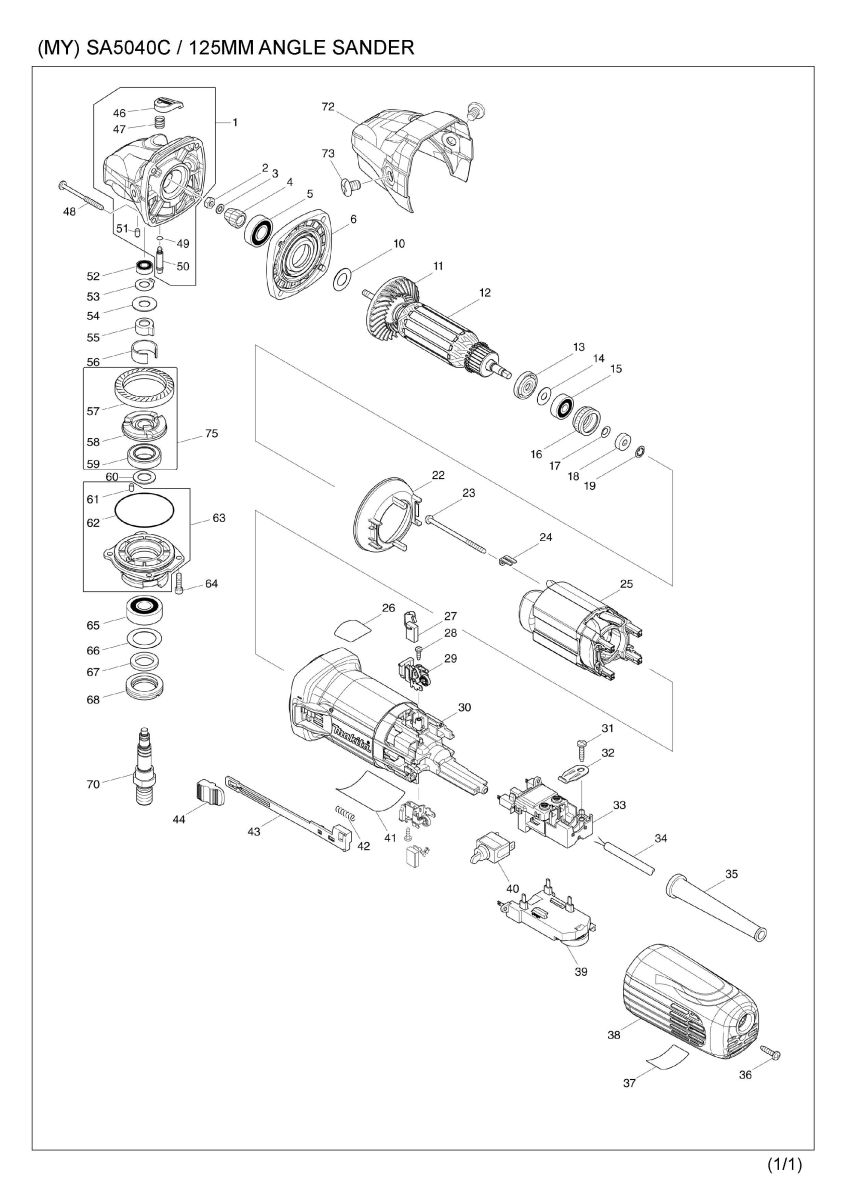

Part Diagram
Total: 84 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001-1 | 319310-7 | GEAR HOUSING | 1 | |
| 001-2 | 136013-6 | GEAR HOUSING ASS'Y | 1 | |
| 001-2 | D10 | INC. 46,47,49-51 | ||
| 002 | 252137-1 | HEX. NUT M5-8 | 1 | |
| 003 | 267034-8 | FLAT WASHER 5 | 1 | |
| 004 | 227595-0 | SPIRAL BEVEL GEAR 7 | 1 | |
| 005 | 211142-7 | BALL BEARING 6001LLB | 1 | |
| 006-1 | 141981-0 | GEAR HOUSING COVER COMPLETE | 1 | |
| 010 | 253084-9 | FLAT WASHER 12 | 1 | |
| 011 | 240134-9 | FAN 60 | 1 | |
| 012-1 | 515383-0 | ARMATURE ASS'Y 220-240V | 1 | |
| 012-1 | D10 | INC. 11,13-15 | ||
| 013 | 681656-4 | INSULATION WASHER | 1 | |
| 014 | 253823-7 | FLAT WASHER 7 | 1 | |
| 015 | 210027-4 | BALL BEARING 627DDW | 1 | |
| 016 | 421738-8 | LABYRINTH RUBBER RING 22 | 1 | |
| 016-1 | 422750-1 | LABYRINTH RUBBER RING 22 | 1 | |
| 017 | 267756-0 | WAVE WASHER 6 | 1 | |
| 018 | 688117-5 | MAGNET SLEEVE | 1 | |
| 019 | 259039-2 | SELF LOCK 6 | 1 | |
| 022 | 453367-9 | BUFFLE PLATE | 1 | |
| 023 | 266258-3 | TAPPING SCREW 4X70 | 2 | |
| 024 | 344871-8 | RETAINER | 2 | |
| 025 | 626653-3 | FIELD 220-240V | 1 | |
| 026 | 898443-6 | SJS2 MARK LABEL | 1 | |
| 027 | 191978-9 | A.C. CARBON BRUSH CB-318 | 1 | |
| 028 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 2 | |
| 029-1 | 643770-4 | BRUSH HOLDER | 2 | |
| 030 | 453366-1 | MOTOR HOUSING | 1 | |
| 031 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 032 | 687169-3 | STRAIN RELIEF | 1 | |
| 033 | 638948-2 | SWITCH BLOCK | 1 | |
| 033-1 | 632K99-9 | SWITCH BLOCK | 1 | |
| 034 | 692021-2 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 035 | 682559-5 | CORD GUARD 8 | 1 | |
| 036 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 037 | 898446-0 | INDICATION LABEL | 1 | |
| 038 | 453365-3 | REAR COVER C | 1 | |
| 039 | 620127-6 | CONTROLLER | 1 | |
| 039-1 | 620734-5 | CONTROLLER | 1 | |
| 039-2 | 620G02-8 | CONTROLLER | 1 | |
| 040 | 651418-4 | SWITCH ST115A-40 | 1 | |
| 040-1 | 651418-4 | SWITCH ST115A-40 | 1 | |
| 041-1 | 897116-8 | SA5040C NAME PLATE | 1 | |
| 042 | 233071-4 | COMPRESSION SPRING 4 | 1 | |
| 043 | 453847-5 | SWITCH LEVER | 1 | |
| 044 | 453368-7 | SWITCH KNOB | 1 | |
| 046 | 453369-5 | PIN CAP | 1 | |
| 047 | 234057-1 | COMPRESSION SPRING 8 | 1 | |
| 048 | 266361-0 | TAPPING SCREW 4X30 | 4 | |
| 049 | 213032-0 | O RING 4 | 1 | |
| 049-1 | 213960-9 | O RING 5 | 1 | |
| 050 | 256535-1 | SHOULDER PIN 6 | 1 | |
| 051 | 263002-9 | RUBBER PIN 4 | 1 | |
| 052 | 210006-2 | BALL BEARING 696ZZ | 1 | |
| 053 | 961005-4 | RETAINING RING S-9 | 1 | |
| 054 | 253180-3 | FLAT WASHER 10 | 1 | |
| 055-2 | 310683-1 | JOINT SLEEVE | 1 | |
| 056 | 346556-2 | C TYPE PLATE | 1 | |
| 057 | 227596-8 | SPIRAL BEVEL GEAR 37 | 1 | |
| 058 | 313228-4 | COUPLING | 1 | |
| 059 | 210302-8 | BALL BEARING 6903ZZ | 1 | |
| 060 | 253744-3 | FLAT WASHER 12 | 1 | |
| 061 | 263002-9 | RUBBER PIN 4 | 1 | |
| 062 | 213641-5 | O RING 51 | 1 | |
| 063 | 318837-4 | BEARING BOX | 1 | |
| 063-1 | 136012-8 | BEARING BOX ASSEMBLY | 1 | |
| 063-1 | D10 | INC. 61.62 | ||
| 064 | 265490-6 | HEX. SOCKET HEAD BOLT M4X16 | 4 | |
| 065 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 066 | 267279-8 | FLAT WASHER 21 | 1 | |
| 067 | 443124-3 | FELT RING 17 | 1 | |
| 068 | 285854-8 | BEARING RETAINER 20-33 | 1 | |
| 070 | 326130-2 | SPINDLE | 1 | |
| 072 | 453378-4 | HEAD COVER | 1 | |
| 073 | 265083-9 | + FLAT HEAD SCREW M8X11 | 2 | |
| 075 | 135559-9 | COUPLING ASS'Y | 1 | |
| 075 | D10 | INC. 57-59 | ||
| 076 | 892272-9 | CLEAR LABEL | 1 | |
| A01 | 153489-2 | GRIP 36 COMPLETE | 1 | |
| A02 | 743060-6 | PAD 115 | 1 | |
| A02-1 | 743060-6 | PAD 115 | 1 | |
| F04 | 194514-0 | VIBRATION PROOF GRIP SET | 1 | |
| F07-1 | 198719-4 | DUST COVER ATTACHMENT SET | 1 |
