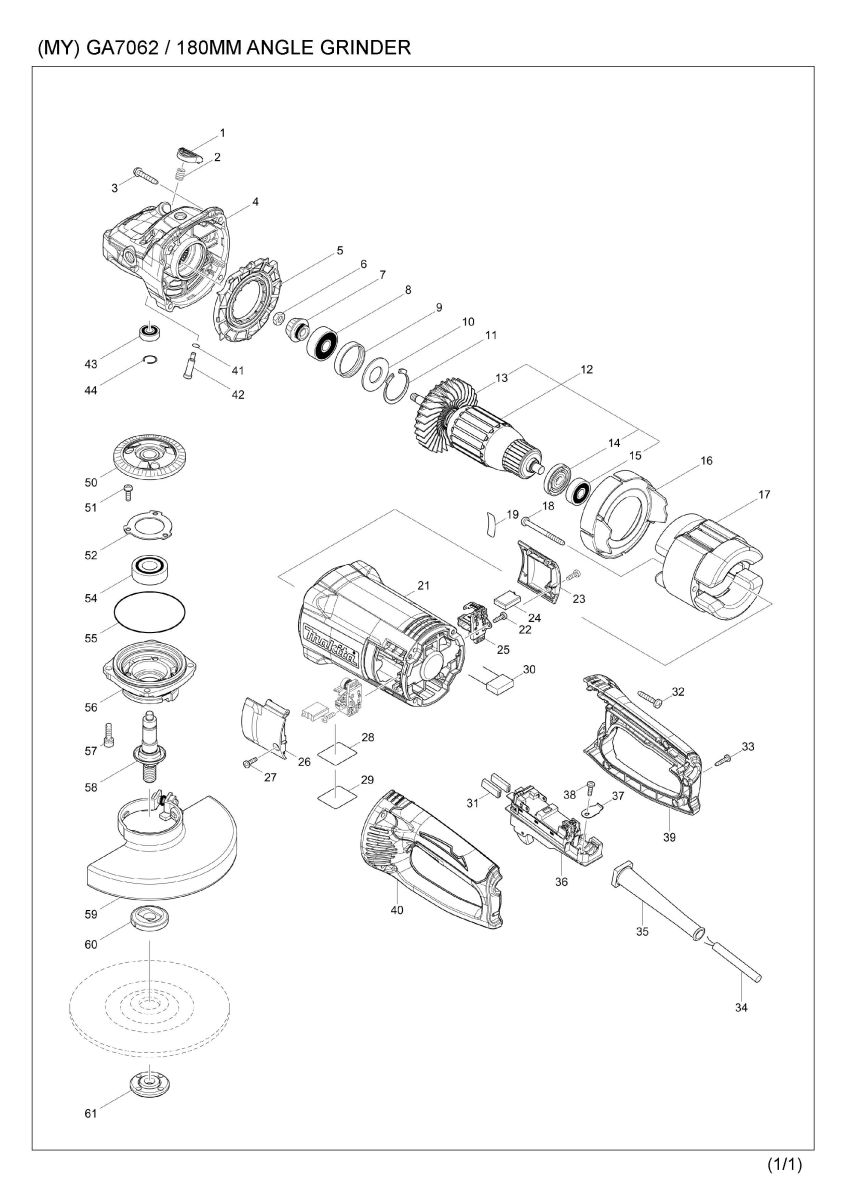

Part Diagram
Total: 134 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 456247-8 | PIN CAP | 1 | |
| 002 | 234391-9 | COMPRESSION SPRING 8 | 1 | |
| 003 | 251489-7 | TAPPING SCREW 5X30 | 4 | |
| 004 | 143485-8 | GEAR HOUSING COMPLETE | 1 | |
| 004 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 005 | 456238-9 | DIFFUSER | 1 | |
| 006 | 252194-9 | HEX. NUT M8 | 1 | |
| 007 | 227655-8 | SPIRAL BEVEL GEAR 17 | 1 | |
| 008 | 211132-0 | BALL BEARING 6301DDW | 1 | |
| 009 | 262085-6 | RUBBER RING 38 | 1 | |
| 010 | 267299-2 | FLAT WASHER 20 | 1 | |
| 011 | 962211-4 | RETAINING RING R-42 | 1 | |
| 012 | 513449-0 | ARMATURE ASS'Y 240V | 1 | |
| 012 | D10 | INC. 13-15 | ||
| 013 | 240161-6 | FAN 86 | 1 | |
| 014 | 681630-2 | INSULATION WASHER | 1 | |
| 015 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 016 | 456239-7 | BAFFLE PLATE | 1 | |
| 017 | 621779-6 | FIELD 240V | 1 | |
| 018 | 266044-2 | TAPPING SCREW 5X60 | 2 | |
| 019 | 853C82-7 | GA7062 SERIAL NO. LABEL | 1 | |
| 021 | 456240-2 | MOTOR HOUSING | 1 | |
| 022 | 266385-6 | TAPPING SCREW 4X14 | 2 | |
| 023 | 456246-0 | BRUSH HOLDER COVER R | 1 | |
| 024 | 197129-2 | CARBON BRUSH CB-218 | 1 | |
| 025 | 643715-2 | BRUSH HOLDER | 2 | |
| 026 | 456245-2 | BRUSH HOLDER COVER L | 1 | |
| 027 | 266385-6 | TAPPING SCREW 4X14 | 2 | |
| 028 | 853C80-1 | GA7062 NAME PLATE | 1 | |
| 029 | 808D02-2 | CLEAR LABEL | 1 | |
| 031 | 686036-9 | RECEPTACLE SLEEVE | 2 | |
| 032 | 251489-7 | TAPPING SCREW 5X30 | 4 | |
| 033 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 034 | 692607-2 | POWER SUPPLY CORD 1.5-2-2.5 | 1 | |
| 035 | 682573-1 | CORD GUARD 10 | 1 | |
| 036 | 632F74-5 | SWITCH UNIT | 1 | |
| 037 | 687169-3 | STRAIN RELIEF | 1 | |
| 038 | 266385-6 | TAPPING SCREW 4X14 | 1 | |
| 039 | 183G26-0 | HANDLE SET | 1 | |
| 039 | D10 | INC. 40 | ||
| 040 | 183G26-0 | HANDLE SET | 1 | |
| 040 | D10 | INC. 39 | ||
| 041 | 213026-5 | O RING 7 | 1 | |
| 042 | 256571-7 | SHOULDER PIN 7 | 1 | |
| 043 | 211032-4 | BALL BEARING 608ZZ | 1 | |
| 044 | 233925-5 | RING SPRING 13 | 1 | |
| 050 | 227656-6 | SPIRAL BEVEL GEAR 55 | 1 | |
| 051 | 265120-9 | PAN HEAD SCREW M5X16 | 3 | |
| 052 | 285741-1 | BEARING RETAINER 50 | 1 | |
| 054 | 211278-2 | BALL BEARING 6203DDW | 1 | |
| 055 | 213760-7 | O RING 78 | 1 | |
| 056 | 319351-3 | BEARING BOX | 1 | |
| 057 | 265541-5 | HEX. SOCKET HEAD BOLT M6X22 | 4 | |
| 058 | 143484-0 | SPINDLE COMPLETE | 1 | |
| 059 | 122889-7 | WHEEL COVER 180K ASSEMBLY | 1 | |
| 059 | C10 | 213017-6 | O RING 6 | 1 |
| 059 | C20 | 265198-2 | +PAN HEAD SCREW M8X25 | 1 |
| 059-1 | 122889-7 | WHEEL COVER 180K ASSEMBLY | 1 | |
| 059-1 | C20 | 265198-2 | +PAN HEAD SCREW M8X25 | 1 |
| 060 | 224415-9 | INNER FLANGE 42 | 1 | |
| 061 | 224485-8 | LOCK NUT 14-45 | 1 | |
| A01 | 143486-6 | GRIP 37 COMPLETE | 1 | |
| A02 | 782407-9 | LOCK NUT WRENCH 35 | 1 | |
| A02-1 | 782034-2 | LOCK NUT WRENCH 35 | 1 | |
| F04 | 192227-7 | SUPER FLANGE | 1 | |
| F08 | 194305-9 | LOCK NUT RELEASE SOCKET 35 SET | 1 | |
| F13 | 197476-1 | DUST COVER ATTACHMENT SET | 1 | |
| 001 | 456247-8 | PIN CAP | 1 | |
| 002 | 234391-9 | COMPRESSION SPRING 8 | 1 | |
| 003 | 251489-7 | TAPPING SCREW 5X30 | 4 | |
| 004 | 143485-8 | GEAR HOUSING COMPLETE | 1 | |
| 004 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 005 | 456238-9 | DIFFUSER | 1 | |
| 006 | 252194-9 | HEX. NUT M8 | 1 | |
| 007 | 227655-8 | SPIRAL BEVEL GEAR 17 | 1 | |
| 008 | 211132-0 | BALL BEARING 6301DDW | 1 | |
| 009 | 262085-6 | RUBBER RING 38 | 1 | |
| 010 | 267299-2 | FLAT WASHER 20 | 1 | |
| 011 | 962211-4 | RETAINING RING R-42 | 1 | |
| 012 | 513449-0 | ARMATURE ASS'Y 240V | 1 | |
| 012 | D10 | INC. 13-15 | ||
| 013 | 240161-6 | FAN 86 | 1 | |
| 014 | 681630-2 | INSULATION WASHER | 1 | |
| 015 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 016 | 456239-7 | BAFFLE PLATE | 1 | |
| 017 | 621779-6 | FIELD 240V | 1 | |
| 018 | 266044-2 | TAPPING SCREW 5X60 | 2 | |
| 019 | 853C82-7 | GA7062 SERIAL NO. LABEL | 1 | |
| 021 | 456240-2 | MOTOR HOUSING | 1 | |
| 022 | 266385-6 | TAPPING SCREW 4X14 | 2 | |
| 023 | 456246-0 | BRUSH HOLDER COVER R | 1 | |
| 024 | 197129-2 | CARBON BRUSH CB-218 | 1 | |
| 025 | 643715-2 | BRUSH HOLDER | 2 | |
| 026 | 456245-2 | BRUSH HOLDER COVER L | 1 | |
| 027 | 266385-6 | TAPPING SCREW 4X14 | 2 | |
| 028 | 853C80-1 | GA7062 NAME PLATE | 1 | |
| 029 | 808D02-2 | CLEAR LABEL | 1 | |
| 031 | 686036-9 | RECEPTACLE SLEEVE | 2 | |
| 032 | 251489-7 | TAPPING SCREW 5X30 | 4 | |
| 033 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 034 | 692607-2 | POWER SUPPLY CORD 1.5-2-2.5 | 1 | |
| 035 | 682573-1 | CORD GUARD 10 | 1 | |
| 036 | 632F74-5 | SWITCH UNIT | 1 | |
| 037 | 687169-3 | STRAIN RELIEF | 1 | |
| 038 | 266385-6 | TAPPING SCREW 4X14 | 1 | |
| 039 | 183G26-0 | HANDLE SET | 1 | |
| 039 | D10 | INC. 40 | ||
| 040 | 183G26-0 | HANDLE SET | 1 | |
| 040 | D10 | INC. 39 | ||
| 041 | 213026-5 | O RING 7 | 1 | |
| 042 | 256571-7 | SHOULDER PIN 7 | 1 | |
| 043 | 211032-4 | BALL BEARING 608ZZ | 1 | |
| 044 | 233925-5 | RING SPRING 13 | 1 | |
| 050 | 227656-6 | SPIRAL BEVEL GEAR 55 | 1 | |
| 051 | 265120-9 | PAN HEAD SCREW M5X16 | 3 | |
| 052 | 285741-1 | BEARING RETAINER 50 | 1 | |
| 054 | 211278-2 | BALL BEARING 6203DDW | 1 | |
| 055 | 213760-7 | O RING 78 | 1 | |
| 056 | 319351-3 | BEARING BOX | 1 | |
| 057 | 265541-5 | HEX. SOCKET HEAD BOLT M6X22 | 4 | |
| 058 | 143484-0 | SPINDLE COMPLETE | 1 | |
| 059 | 122889-7 | WHEEL COVER 180K ASSEMBLY | 1 | |
| 059 | C10 | 213017-6 | O RING 6 | 1 |
| 059 | C20 | 265198-2 | +PAN HEAD SCREW M8X25 | 1 |
| 059-1 | 122889-7 | WHEEL COVER 180K ASSEMBLY | 1 | |
| 059-1 | C20 | 265198-2 | +PAN HEAD SCREW M8X25 | 1 |
| 060 | 224415-9 | INNER FLANGE 42 | 1 | |
| 061 | 224485-8 | LOCK NUT 14-45 | 1 | |
| A01 | 143486-6 | GRIP 37 COMPLETE | 1 | |
| A02 | 782407-9 | LOCK NUT WRENCH 35 | 1 | |
| A02-1 | 782034-2 | LOCK NUT WRENCH 35 | 1 | |
| F04 | 192227-7 | SUPER FLANGE | 1 | |
| F08 | 194305-9 | LOCK NUT RELEASE SOCKET 35 SET | 1 | |
| F13 | 197476-1 | DUST COVER ATTACHMENT SET | 1 |
