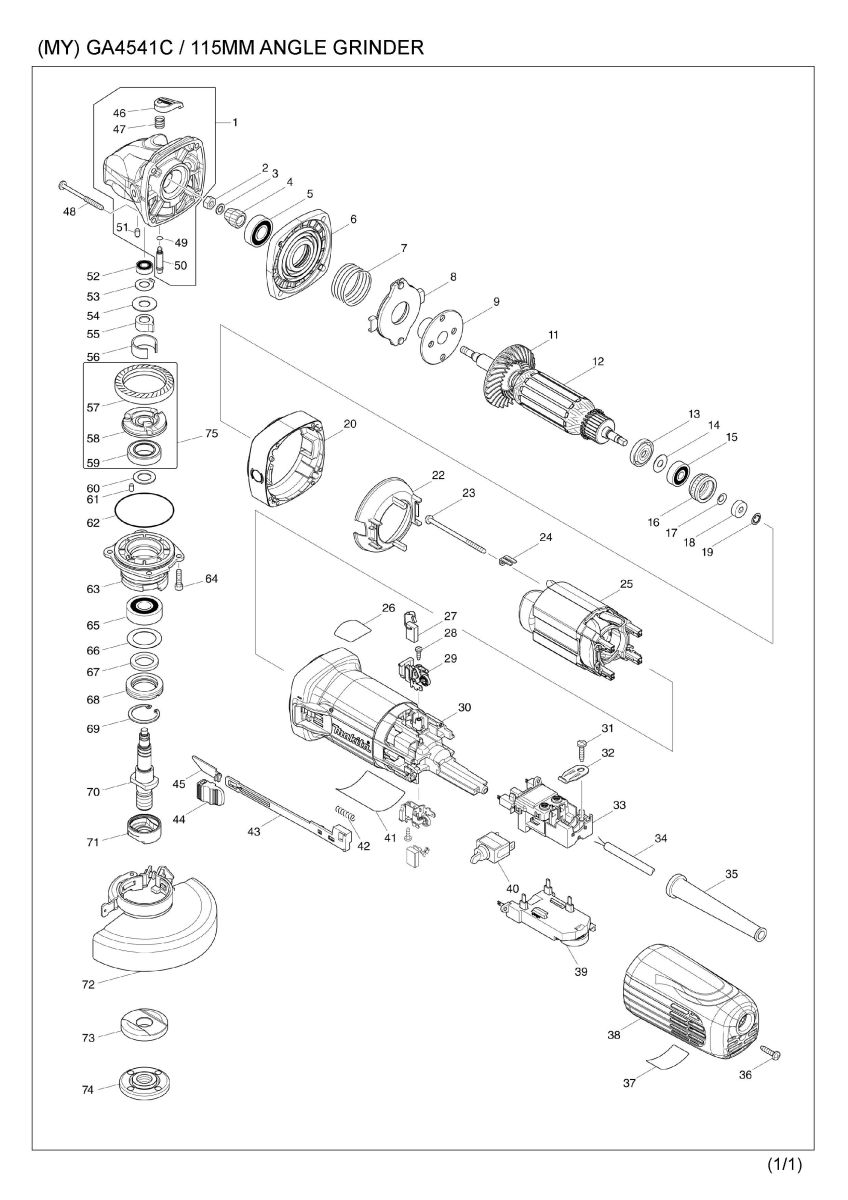

Part Diagram
Total: 190 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001-1 | 319310-7 | GEAR HOUSING | 1 | |
| 001-2 | 136013-6 | GEAR HOUSING ASS'Y | 1 | |
| 001-2 | D10 | INC. 46,47,49-51 | ||
| 002 | 252186-8 | HEX. NUT M6 | 1 | |
| 003 | 253077-6 | FLAT WASHER 6 | 1 | |
| 004 | 227591-8 | SPIRAL BEVEL GEAR 10 | 1 | |
| 005 | 211142-7 | BALL BEARING 6001LLB | 1 | |
| 006 | 141981-0 | GEAR HOUSING COVER COMPLETE | 1 | |
| 007 | 234230-3 | COMPRESSION SPRING 33 | 1 | |
| 008 | 141515-9 | BRAKE SHOE HOLDER COMPLETE | 1 | |
| 012-1 | 515398-7 | ARMATURE ASS'Y 220-240V | 1 | |
| 012-1 | D10 | INC. 13-15 | ||
| 013 | 681656-4 | INSULATION WASHER | 1 | |
| 014 | 253823-7 | FLAT WASHER 7 | 1 | |
| 015 | 210027-4 | BALL BEARING 627DDW | 1 | |
| 016 | 421738-8 | LABYRINTH RUBBER RING 22 | 1 | |
| 016-1 | 422750-1 | LABYRINTH RUBBER RING 22 | 1 | |
| 017 | 267756-0 | WAVE WASHER 6 | 1 | |
| 018 | 688117-5 | MAGNET SLEEVE | 1 | |
| 019 | 259039-2 | SELF LOCK 6 | 1 | |
| 020-1 | 455351-0 | SPACER | 1 | |
| 022 | 453375-0 | BUFFLE PLATE B | 1 | |
| 023 | 266258-3 | TAPPING SCREW 4X70 | 2 | |
| 024 | 344871-8 | RETAINER | 2 | |
| 025 | 626653-3 | FIELD 220-240V | 1 | |
| 026 | 898443-6 | SJS2 MARK LABEL | 1 | |
| 027 | 191978-9 | A.C. CARBON BRUSH CB-318 | 1 | |
| 028 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 2 | |
| 029-1 | 643770-4 | BRUSH HOLDER | 2 | |
| 030 | 453376-8 | MOTOR HOUSING B | 1 | |
| 031 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 031-1 | 265B67-9 | TAPPING SCREW 4X18 | 1 | |
| 032 | 687169-3 | STRAIN RELIEF | 1 | |
| 033 | 638948-2 | SWITCH BLOCK | 1 | |
| 033-1 | 632K99-9 | SWITCH BLOCK | 1 | |
| 034 | 692021-2 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 035 | 682559-5 | CORD GUARD 8 | 1 | |
| 036 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 036-1 | 265B67-9 | TAPPING SCREW 4X18 | 1 | |
| 037 | 898444-4 | INDICATION LABEL | 1 | |
| 038 | 453365-3 | REAR COVER C | 1 | |
| 039 | 620127-6 | CONTROLLER | 1 | |
| 039-1 | 620734-5 | CONTROLLER | 1 | |
| 039-2 | 620G02-8 | CONTROLLER | 1 | |
| 040 | 651418-4 | SWITCH ST115A-40 | 1 | |
| 040-1 | 651418-4 | SWITCH ST115A-40 | 1 | |
| 041-1 | 897098-4 | GA4541C NAME PLATE | 1 | |
| 042 | 233071-4 | COMPRESSION SPRING 4 | 1 | |
| 043 | 453847-5 | SWITCH LEVER | 1 | |
| 044 | 453377-6 | SWITCH KNOB B | 1 | |
| 045 | 346557-0 | SWITCHI PLATE | 1 | |
| 046 | 453369-5 | PIN CAP | 1 | |
| 047 | 234057-1 | COMPRESSION SPRING 8 | 1 | |
| 048 | 266467-4 | TAPPING SCREW 4X50 | 4 | |
| 049 | 213032-0 | O RING 4 | 1 | |
| 049-1 | 213960-9 | O RING 5 | 1 | |
| 050 | 256535-1 | SHOULDER PIN 6 | 1 | |
| 051 | 263002-9 | RUBBER PIN 4 | 1 | |
| 052 | 210006-2 | BALL BEARING 696ZZ | 1 | |
| 053 | 961005-4 | RETAINING RING S-9 | 1 | |
| 054 | 253180-3 | FLAT WASHER 10 | 1 | |
| 055-2 | 310683-1 | JOINT SLEEVE | 1 | |
| 056 | 346556-2 | C TYPE PLATE | 1 | |
| 057 | 227592-6 | SPIRAL BEVEL GEAR 38 | 1 | |
| 058 | 313228-4 | COUPLING | 1 | |
| 059 | 210302-8 | BALL BEARING 6903ZZ | 1 | |
| 060 | 253744-3 | FLAT WASHER 12 | 1 | |
| 061 | 263002-9 | RUBBER PIN 4 | 1 | |
| 062 | 213641-5 | O RING 51 | 1 | |
| 063 | 318839-0 | BEARRING BOX B | 1 | |
| 064 | 265490-6 | HEX. SOCKET HEAD BOLT M4X16 | 4 | |
| 065 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 066 | 267279-8 | FLAT WASHER 21 | 1 | |
| 067 | 443124-3 | FELT RING 17 | 1 | |
| 068 | 285854-8 | BEARING RETAINER 20-33 | 1 | |
| 069 | 962105-3 | RETAINING RING R-26 | 1 | |
| 070 | 326133-6 | SPINDLE | 1 | |
| 071 | 310514-4 | LEAD FLANGE | 1 | |
| 072 | 123144-0 | TOOLLESS WHEELCOVER 115AK ASS | 1 | |
| 072 | C10 | 213009-5 | O RING 4 | 1 |
| 072 | C20 | 265180-1 | PAN HEAD SCREW M5X16 | 1 |
| 073 | 224447-6 | INNER FLANGE 42B | 1 | |
| 074 | 224554-5 | LOCK NUT 14-45 | 1 | |
| 075 | 135555-7 | COUPLING ASS'Y | 1 | |
| 075 | D10 | INC. 57-59 | ||
| 076 | 819357-6 | CLEAR LABEL | 1 | |
| A01 | 153489-2 | GRIP 36 COMPLETE | 1 | |
| A02-1 | 197610-3 | LOCK NUT WRENCH 35 SET | 1 | |
| A03-1 | D-18459 | GRINDING WHEEL 115X6 A24R | 1 | |
| F02 | 194514-0 | VIBRATION PROOF GRIP SET | 1 | |
| F05-1 | 198719-4 | DUST COVER ATTACHMENT SET | 1 | |
| F17-1 | 195239-9 | 115/125MM DUST COVER K SET | 1 | |
| F25 | 191W06-8 | 115/125MM DUST COVER K SET | 1 | |
| F25 | C10 | 743129-6 | BRUSH A | 1 |
| F25 | C20 | 743130-1 | BRUSH B | 1 |
