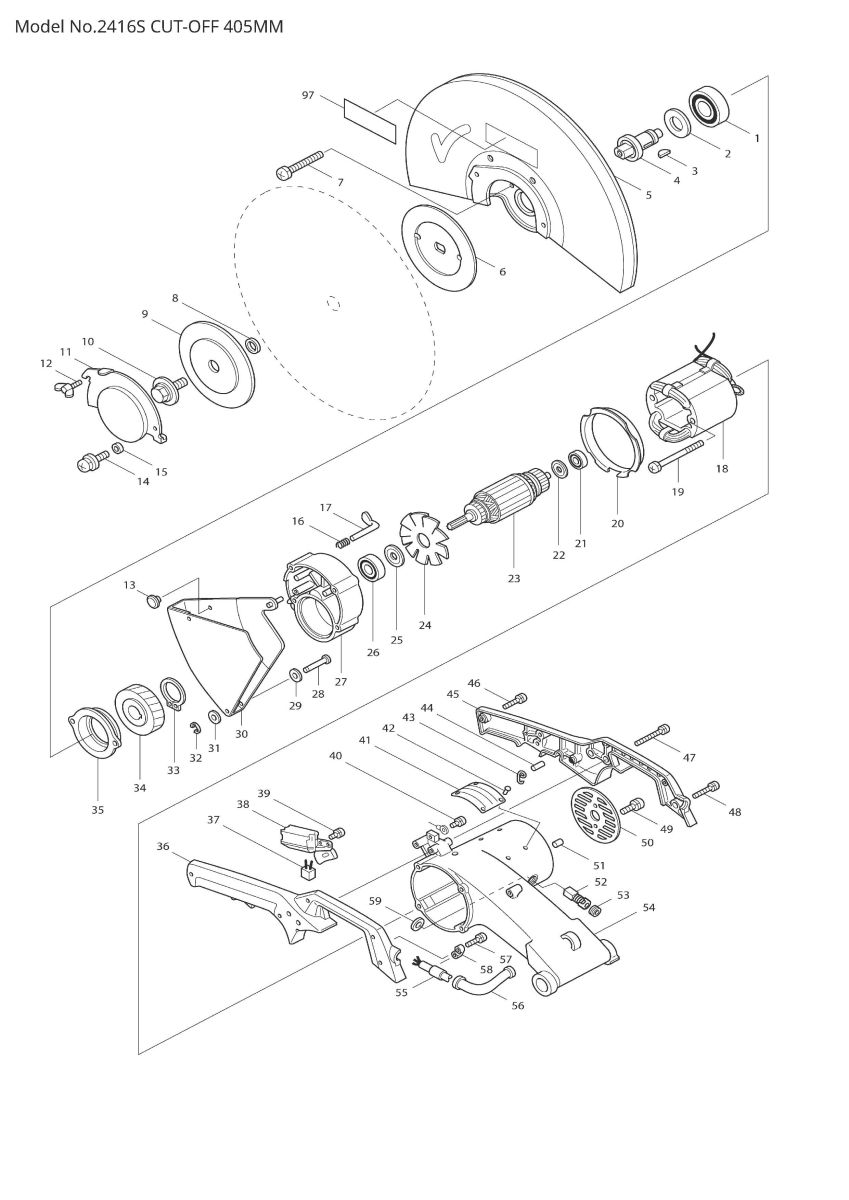

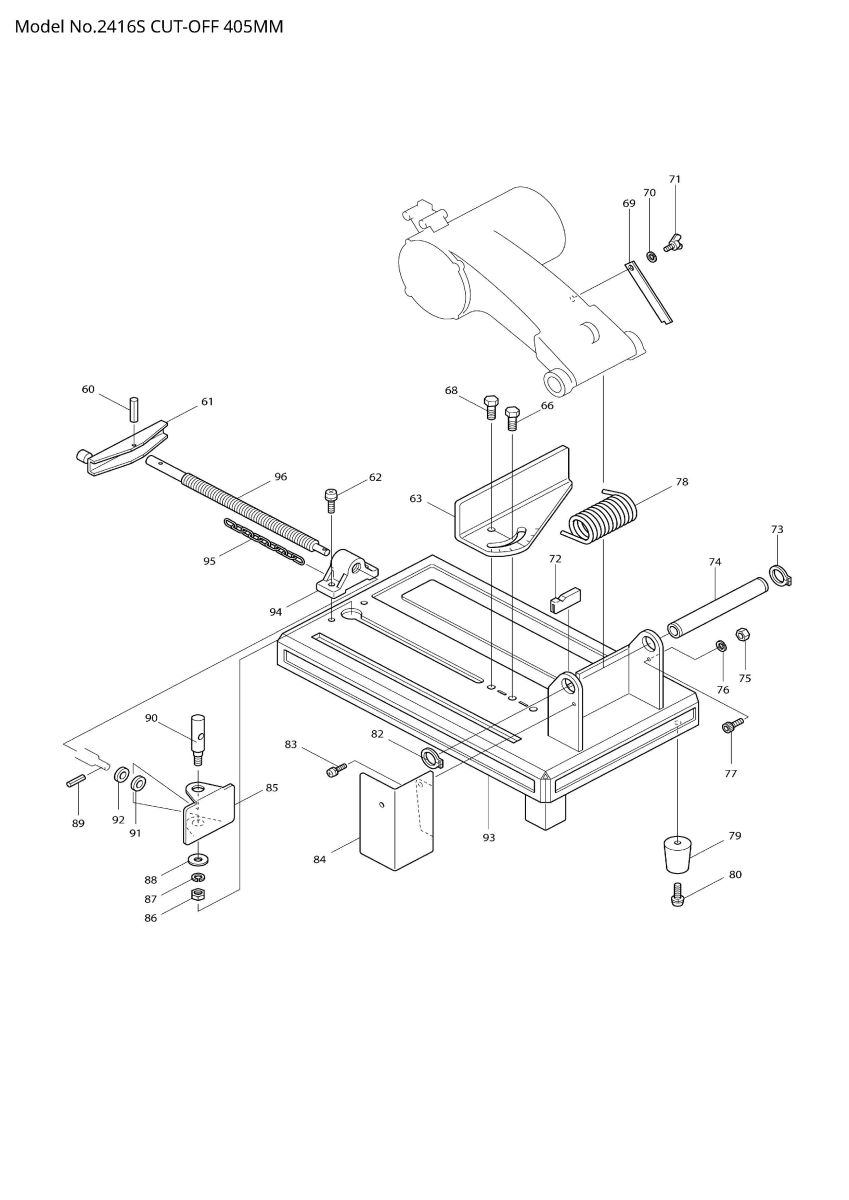

Part Diagram
Total: 120 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 211361-5 | BALL BEARING 6305LLB | 1 | |
| 002 | 253888-9 | FLAT WASHER 25 | 1 | |
| 003 | 254032-1 | WOODRUFF KEY 5 | 1 | |
| 004 | 321645-4 | SPINDLE | 1 | |
| 005 | 164700-7 | SAFETY COVER | 1 | |
| 006 | 224209-2 | INNER FLANGE 140 | 1 | |
| 007 | 911381-6 | PAN HEAD SCREW M6X60 | 4 | |
| 008 | 257104-1 | RING 22 | 1 | |
| 009 | 224208-4 | OUTER FLANGE 140 | 1 | |
| 010 | 251680-7 | HEX. BOLT M10X25 | 1 | |
| 011 | 342666-3 | CENTER CAP | 1 | |
| 012 | 924306-1 | WING BOLT M6X10 | 1 | |
| 013 | 421163-3 | RUBBER PLUG | 2 | |
| 013-1 | 416771-3 | PLUG | 2 | |
| 014 | 911309-4 | PAN HEAD SCREW M6X10 | 1 | |
| 015 | 257105-9 | RING 6 | 1 | |
| 016 | 231240-1 | COMPRESSION SPRING 7 | 1 | |
| 017 | 321682-8 | STOPPER | 1 | |
| 018D_ | 524754-0 | FIELD ASS'Y 240V | 1 | |
| C10 | 654020-2 | RING TERMINAL | 2 | |
| C20 | 654502-4 | CONNECTOR P-2 | 2 | |
| 019-1 | 911938-3 | PAN HEAD SCREW M5X85 | 2 | |
| 020 | 343299-7 | BAFFLE PLATE | 1 | |
| 021 | 211066-7 | BALL BEARING 6200LLB | 1 | |
| 022 | 213051-6 | DUST SEAL 10 | 1 | |
| 023D 1 | 514884-5 | ARMATURE ASS'Y 240V | 1 | |
| 023D 1 | INC. 21,22,24 | |||
| 024-1 | 241515-0 | FAN 92 | 1 | |
| 025 | 253887-1 | FLAT WASHER 15 | 1 | |
| 026 | 211211-4 | BALL BEARING 6302LLB | 1 | |
| 027-1 | 157822-0 | GEAR HOUSING | 1 | |
| C10 | 267039-8 | FLAT WASHER 32 | 1 | |
| C20 | 213513-4 | O RING 39 | 1 | |
| 027-2 | 151829-8 | GEAR HOUSING COMPLETE | 1 | |
| C10 | 212104-8 | NEEDLE BEARING 1212 | 1 | |
| C20 | 213513-4 | O RING 39 | 1 | |
| C30 | 213561-3 | O RING 42 | 1 | |
| C40 | 267039-8 | FLAT WASHER 32 | 1 | |
| 028 | 256643-8 | PIN 7 | 1 | |
| 029 | 253022-1 | FLAT WASHER 8 | 1 | |
| 030 | 164699-6 | SAFETY GUARD | 1 | |
| 030-1 | 165276-7 | SAFETY GUARD | 1 | |
| 030-2 | 165276-7 | SAFETY GUARD | 1 | |
| 031 | 253022-1 | FLAT WASHER 8 | 1 | |
| 032 | 961018-5 | STOP RING E-5 | 1 | |
| 033 | 961105-0 | RETAINING RING S-25 | 1 | |
| 034 | 221730-2 | HELICAL GEAR 53 | 1 | |
| 035 | 315636-5 | BEARING HOUSING | 1 | |
| 036-1 | 181976-1 | HANDLE SET | 1 | |
| 036-1 | INC. 45 | |||
| 038-2 | 651128-3 | SWITCH C3D-15AS | 1 | |
| 039 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 040 | 652014-1 | PAN HEAD SCREW M4X8 | 1 | |
| 041 | 855032-0 | NAME PLATE 2416S | 1 | |
| 041-1 | 851469-9 | NAME PLATE 2416S | 1 | |
| 042 | 953106-2 | RIVET 0-5 | 4 | |
| 043 | 281207-9 | HANGER | 1 | |
| 043-1 | 281216-8 | HANGER | 1 | |
| 044 | 256012-3 | PIN 6 | 1 | |
| 045-1 | 181976-1 | HANDLE SET | 1 | |
| 045-1 | INC. 36 | |||
| 046 | 911148-2 | PAN HEAD SCREW M4X25 | 4 | |
| 047 | 911273-9 | PAN HEAD SCREW M5X50 | 2 | |
| 048 | 911253-5 | PAN HEAD SCREW M5X30 | 1 | |
| 049 | 911211-1 | PAN HEAD SCREW M5X12 | 2 | |
| 050 | 284010-7 | REAR COVER | 1 | |
| 051 | 263002-9 | RUBBER PIN 4 | 1 | |
| 052-1 | 181044-0 | CARBON BRUSH CB-153 | 1 | |
| 052-2 | 194985-1 | CARBON BRUSH SET CB-153 | 1 | |
| 053 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 053-1 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 054-1 | 157752-5 | MOTOR HOUSING | 1 | |
| 054-2 | 157753-3 | MOTOR HOUSING COMPLETE | 1 | |
| C10 | 643653-8 | BRUSH HOLDER 6.5-13.5 | 2 | |
| C20 | 913206-0 | SET SCREW M5X8 | 2 | |
| 054-2 | INC. 51 | |||
| 055T1 | 692234-5 | POWER SUPPLY CORD 1.0-3-2.5 | 1 | |
| 056 | 682507-4 | CORD GUARD 12-200 | 1 | |
| 057A_ | 911133-5 | PAN HEAD SCREW M4X18 | 2 | |
| 058B_ | 687001-1 | STRAIN RELIEF | 1 | |
| 059 | 681002-1 | INSULATION WASHER | 2 | |
| 060 | 951163-4 | SPRING PIN 5-20 | 1 | |
| 061 | 272019-1 | HANDLE 120 | 1 | |
| 062A_ | 911451-1 | PAN HEAD SCREW M8X30 | 2 | |
| 063 | 331252-5 | GUIDE | 1 | |
| 066 | 265201-9 | HEX. BOLT M10X25 | 1 | |
| 068 | 265201-9 | HEX. BOLT M10X25 | 1 | |
| 069-1 | 343422-4 | STOPPER PLATE | 1 | |
| 070-1 | 942151-2 | SPRING WASHER 6 | 1 | |
| 071-1 | 924316-8 | WING BOLT M6X15 | 1 | |
| 072 | 342759-6 | RETAINER | 1 | |
| 073 | 961104-2 | RETAINING RING S-24 | 1 | |
| 074 | 331251-7 | PIPE 24 | 1 | |
| 075 | 931302-2 | HEX. NUT M6 | 1 | |
| 076 | 942151-2 | SPRING WASHER 6 | 1 | |
| 077 | 922317-0 | HEX. SOCKET HEAD BOLT M6X14 | 1 | |
| 078 | 231569-5 | TORSION SPRING 30 | 1 | |
| 079 | 421277-8 | CUSHION | 3 | |
| 080 | 911349-2 | PAN HEAD SCREW M6X28 | 3 | |
| 082 | 961104-2 | RETAINING RING S-24 | 1 | |
| 083 | 911316-7 | PAN HEAD SCREW M6X14 | 1 | |
| 084 | 342678-6 | SPARK CHUTE | 1 | |
| 085 | 342679-4 | VISE PLATE | 1 | |
| 086-1 | 931402-8 | HEX. NUT M8 | 1 | |
| 087 | 942201-3 | SPRING WASHER 8 | 1 | |
| 088 | 253752-4 | FLAT WASHER 8 | 1 | |
| 089 | 951066-2 | SPRING PIN 3-18 | 1 | |
| 090 | 321680-2 | SCREW M8 | 1 | |
| 091 | 253731-2 | FLAT WASHER 8 | 1 | |
| 092 | 253731-2 | FLAT WASHER 8 | 1 | |
| 093 | 164710-4 | BASE | 1 | |
| 094 | 311714-9 | VISE NUT | 1 | |
| 095 | 282010-1 | CHAIN | 1 | |
| 095-1 | 282016-9 | CHAIN | 1 | |
| 096 | 321681-0 | VISE SCREW | 1 | |
| 097 | 819064-1 | MAKITA MARK | 1 | |
| 400 | 792261-3 | CUT-OFF WHEEL 405-NO.10 | 1 | |
| 400-1 | A-23553 | CUT OFF WHEEL 405-NO.10 | 1 | |
| 400-2 | A-01367 | CUT-OFF WHEEL 405 | 1 | |
| 401 | 782210-8 | SOCKET WRENCH 17 | 1 |
