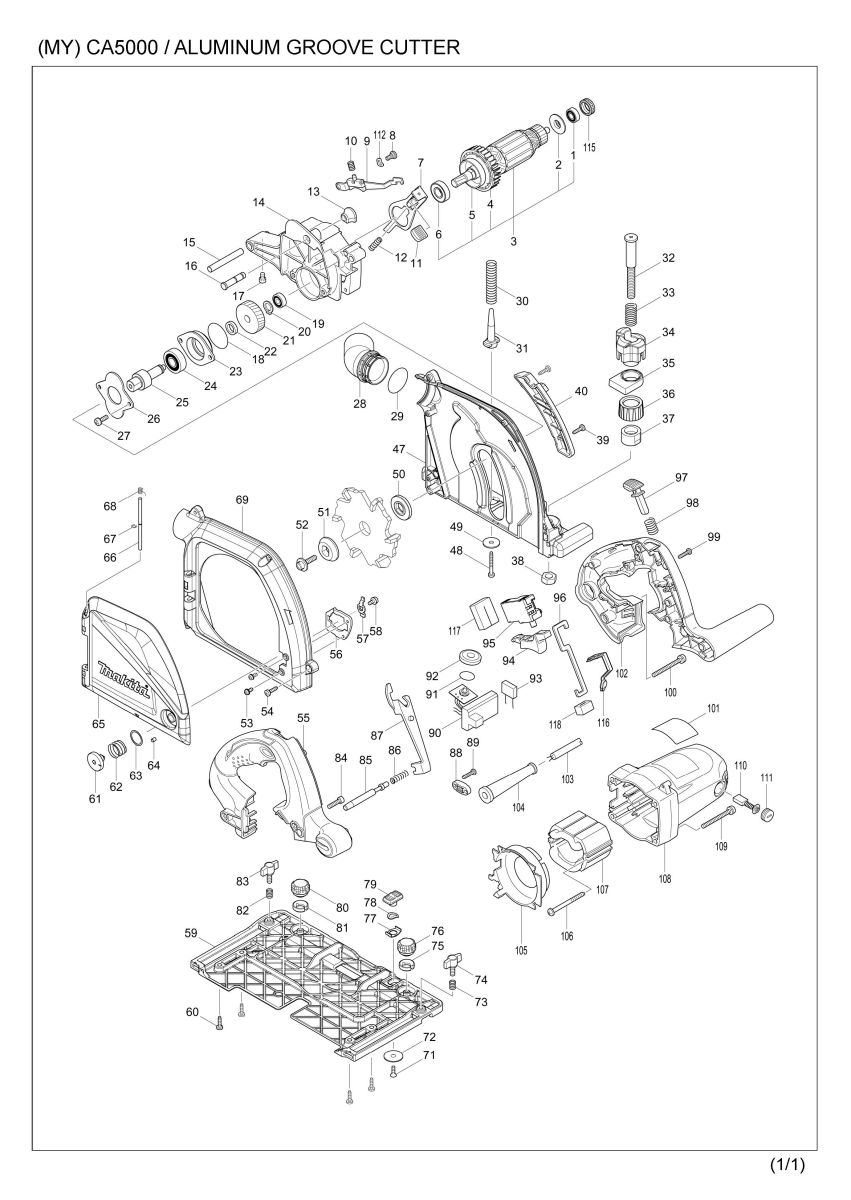

Part Diagram
Total: 164 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 210013-5 | BALL BEARING 698VV | 1 | |
| 2 | 681634-4 | INSULATION WASHER | 1 | |
| 3 | 513678-5 | ARMATURE ASS'Y 220-240V | 1 | |
| 3 | D10 | INC. 1,2,4-6 | ||
| 4 | 240091-1 | FAN 60 | 1 | |
| 5 | 345767-6 | DRUM | 1 | |
| 6 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 7 | 345742-2 | SHAFT LOCK | 1 | |
| 8 | 265011-4 | + BINDING HEAD SCREW M5 | 1 | |
| 008-1 | 256A59-3 | +BINDING HEAD SCREW M5 | 1 | |
| 9 | 158096-6 | SHOE COMPLETE | 1 | |
| 009-1 | 345743-0 | SHOE HOLDER | 1 | |
| 10 | 233480-7 | COMPRESSION SPRING 7 | 1 | |
| 11 | 286275-7 | CAP | 1 | |
| 011-1 | 286039-9 | CAP | 1 | |
| 12 | 233084-5 | COMPRESSION SPRING 6 | 1 | |
| 13 | 286278-1 | CAP | 1 | |
| 013-1 | 286040-4 | CAP | 1 | |
| 14 | 158092-4 | GEAR HOUSING COMPLETE | 1 | |
| 14 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 014-1 | 144586-5 | GEAR HOUSING COMPLETE | 1 | |
| 014-1 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 15 | 324716-6 | PIN 8 | 1 | |
| 015-1 | 326960-1 | PIN 8 | 1 | |
| 015-2 | 324716-6 | PIN 8 | 1 | |
| 015-3 | 327B66-0 | PIN 8 | 1 | |
| 16 | 324708-5 | STOPPER PIN 8 | 1 | |
| 17 | 265913-4 | HEX. SOCKET HEAD BOLT M5X8 | 1 | |
| 017-1 | 265907-9 | HEX. SOCKET HEAD BOLT M5X10 | 1 | |
| 18 | 213512-6 | O RING 39 | 1 | |
| 19 | 211021-9 | BALL BEARING 607LLB | 1 | |
| 20 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 21 | 226637-7 | HELICAL GEAR 39 | 1 | |
| 22 | 257010-0 | RING 12 | 1 | |
| 23 | 318088-9 | BEARING BOX | 1 | |
| 24 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 25 | 326555-0 | SPINDLE | 1 | |
| 26 | 285024-9 | BEARING RETAINER 55 | 1 | |
| 27 | 911221-8 | PAN HEAD SCREW M5X16 | 2 | |
| 28 | 419620-3 | DUST NOZZLE | 1 | |
| 29 | 213460-9 | O RING 35 | 1 | |
| 30 | 233479-2 | COMPRESSION SPRING 11 | 1 | |
| 31 | 419624-5 | SPRING HOLDER | 1 | |
| 32 | 266964-0 | + FLAT HEAD SCREW M10 | 1 | |
| 33 | 234382-0 | COMPRESSION SPRING 13 | 1 | |
| 34 | 319316-5 | STOPPER | 1 | |
| 35 | 456060-4 | SPACER | 1 | |
| 36 | 456059-9 | GRIP | 1 | |
| 37 | 264115-9 | CIRCULAR NUT M10-24 | 1 | |
| 38 | 931501-6 | HEX. NUT M10 | 1 | |
| 038-1 | 252234-3 | HEX. NUT M10 | 1 | |
| 39 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 40 | 456110-5 | DEPTH GUIDE | 1 | |
| 47 | 319317-3 | BLADE CASE | 1 | |
| 48 | 266053-1 | TAPPING SCREW 4X35 | 1 | |
| 49 | 253010-8 | FLAT WASHER 6 | 1 | |
| 50 | 224406-0 | INNER FLANGE 35 | 1 | |
| 050-1 | 224593-5 | INNER FLANGE 35 | 1 | |
| 51 | 224479-3 | OUTER FLANGE 35 | 1 | |
| 52 | 251475-8 | HEX. SOCKET HEAD BOLT M6X25 | 1 | |
| 53 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 2 | |
| 54 | 266034-5 | TAPPING SCREW CT 4X16 | 5 | |
| 55 | 188197-6 | HANDLE SET | 1 | |
| 55 | D10 | INC. 102 | ||
| 56 | 346946-9 | LOCK PLATE B | 1 | |
| 57 | 346945-1 | LOCK PLATE A | 1 | |
| 58 | 911114-9 | PAN HEAD SCREW M4X10 | 1 | |
| 59 | 319314-9 | BASE | 1 | |
| 60 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | |
| 61 | 319315-7 | LOCK PIN | 1 | |
| 62 | 234283-2 | COMPRESSION SPRING 18.5 | 1 | |
| 63 | 253343-1 | THIN WASHER 18 | 1 | |
| 64 | 263032-0 | RUBBER PIN 4 | 1 | |
| 65 | 456062-0 | COVER | 1 | |
| 66 | 256875-7 | ROD 4 | 1 | |
| 67 | 961017-7 | STOP RING E-3 | 1 | |
| 68 | 233627-3 | TORSION SPRING 4 | 1 | |
| 69 | 456061-2 | BLADE CASE COVER | 1 | |
| 71 | 912112-6 | COUNTERSUNK HEAD SCREW M4X10 | 1 | |
| 72 | 345748-0 | LOCK WASHER | 1 | |
| 73 | 231316-4 | COMPRESSION SPRING 7 | 1 | |
| 073-1 | 234057-1 | COMPRESSION SPRING 8 | 1 | |
| 74 | 265726-3 | SCREW M6X15 | 1 | |
| 75 | 419627-9 | HOLDER | 1 | |
| 76 | 265775-0 | THUMB SCREW M4X3 | 1 | |
| 77 | 345977-5 | PLATE | 1 | |
| 78 | 253932-2 | WAVE WASHER 10 | 1 | |
| 79 | 419621-1 | SLIDE LEVER | 1 | |
| 079-1 | 458092-7 | SLIDE LEVER | 1 | |
| 80 | 265775-0 | THUMB SCREW M4X3 | 1 | |
| 81 | 419627-9 | HOLDER | 1 | |
| 82 | 231316-4 | COMPRESSION SPRING 7 | 1 | |
| 082-1 | 234057-1 | COMPRESSION SPRING 8 | 1 | |
| 83 | 265726-3 | SCREW M6X15 | 1 | |
| 84 | 922232-8 | HEX. SOCKET HEAD BOLT M5X20 | 1 | |
| 85 | 326557-6 | LOCK PIN 8 | 1 | |
| 86 | 233267-7 | COMPRESSION SPRING 7 | 1 | |
| 87 | 419631-8 | LOCK PLATE | 1 | |
| 88 | 687052-4 | STRAIN RELIEF | 1 | |
| 89 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 90 | 631729-3 | CONTROLLER | 1 | |
| 91 | 213261-5 | O RING 17 | 1 | |
| 92 | 418905-4 | DIAL | 1 | |
| 94 | 419622-9 | SWITCH LEVER | 1 | |
| 95 | 650716-3 | SWITCH TGC31B | 1 | |
| 96 | 345745-6 | LINK PLATE | 1 | |
| 97 | 419629-5 | LOCK OFF BUTTON | 1 | |
| 98 | 233089-5 | COMPRESSION SPRING 12 | 1 | |
| 99 | 265995-6 | TAPPING SCREW 4X18 | 6 | |
| 100 | 911273-9 | PAN HEAD SCREW M5X50 | 1 | |
| 101 | 851F08-1 | CA5000 NAME PLATE | 1 | |
| 102 | 188197-6 | HANDLE SET | 1 | |
| 102 | D10 | INC. 55 | ||
| 103 | 692527-0 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 104 | 682540-6 | CORD GUARD 9.3-90 | 1 | |
| 105 | 419626-1 | BAFFLE PLATE | 1 | |
| 106 | 266044-2 | TAPPING SCREW 5X60 | 2 | |
| 107 | 525743-8 | FIELD ASS'Y 220-240V | 1 | |
| 107 | C10 | 654020-2 | RING TERMINAL | 2 |
| 107 | C20 | 654501-6 | CONNECTOR P-1.25 | 2 |
| 108 | 158094-0 | MOTOR HOUSING COMPLETE | 1 | |
| 108 | C10 | 643708-9 | BRUSH HOLDER 5-11 | 2 |
| 109 | 911273-9 | PAN HEAD SCREW M5X50 | 4 | |
| 110 | 191963-2 | CARBON BRUSH CB-303 | 1 | |
| 110-1 | 194996-6 | CARBON BRUSH SET CB-303 | 1 | |
| 111 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | |
| 112 | 267781-1 | WAVE WASHER 7 | 1 | |
| 115 | 421479-6 | RUBBER RING 19 | 1 | |
| 116 | 424047-4 | PACKING | 1 | |
| 117 | 424050-5 | SPONGE | 1 | |
| 118 | 443137-4 | FELT | 1 | |
| 119 | 422953-7 | SHOE | 1 | |
| A01 | 143293-7 | SKIRT COMPLETE | 1 | |
| A01 | C10 | 266020-6 | TAPPING SCREW 4X12 | 1 |
| A01-1 | 143939-5 | SKIRT COMPLETE | 1 | |
| A01-1 | C10 | 266020-6 | TAPPING SCREW 4X12 | 1 |
| A02 | 143396-7 | PLATE COMPLETE | 1 | |
| A02 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| A03 | 783022-2 | HEX. WRENCH 5 | 1 | |
| A04 | 922331-6 | HEX. SOCKET HEAD BOLT M6X20 | 2 | |
| A05 | B-48832 | GROOVING TCT SAW BLADE90 118MM | 1 | |
| F02 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F02 | C10 | 413102-7 | SEAT 3000 | 2 |
| F02 | C20 | 423360-7 | POSITION SHEET 3000 | 1 |
| F02 | C30 | 423362-3 | RUBBER SEAT 3000 | 2 |
| F02 | C40 | 819212-2 | MAKITA LOGO LABEL | 1 |
| F03 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F03 | C10 | 413101-9 | SEAT 1400 | 2 |
| F03 | C20 | 423359-2 | POSITION SHEET 1400 | 1 |
| F03 | C30 | 423361-5 | RUBBEER SEAT 1400 | 2 |
| F03 | C40 | 819212-2 | MAKITA LOGO LABEL | 1 |
| F05 | 194416-0 | SHEET 10000 SET | 1 | |
| F06 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F07 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F09 | 194910-2 | POSITION SHEET 1900 SET | 1 | |
| F11 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F11 | C10 | 423386-9 | POSITION SHEET 1900 | 1 |
| F11 | C20 | 423390-8 | RUBBER SHEET 1900 | 2 |
| F11 | C30 | 451330-6 | SHEET 1900 | 2 |
| F11 | C40 | 819212-2 | MAKITA LOGO LABEL | 1 |
| F13 | 196664-7 | BEVEL GUIDE SET | 1 | |
| F17 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| F18 | 199141-8 | GUIDE RAIL 1500 SET | 1 | |
| F28 | 1913K7-3 | PARALLEL GUIDE SET(MM) | 1 |
