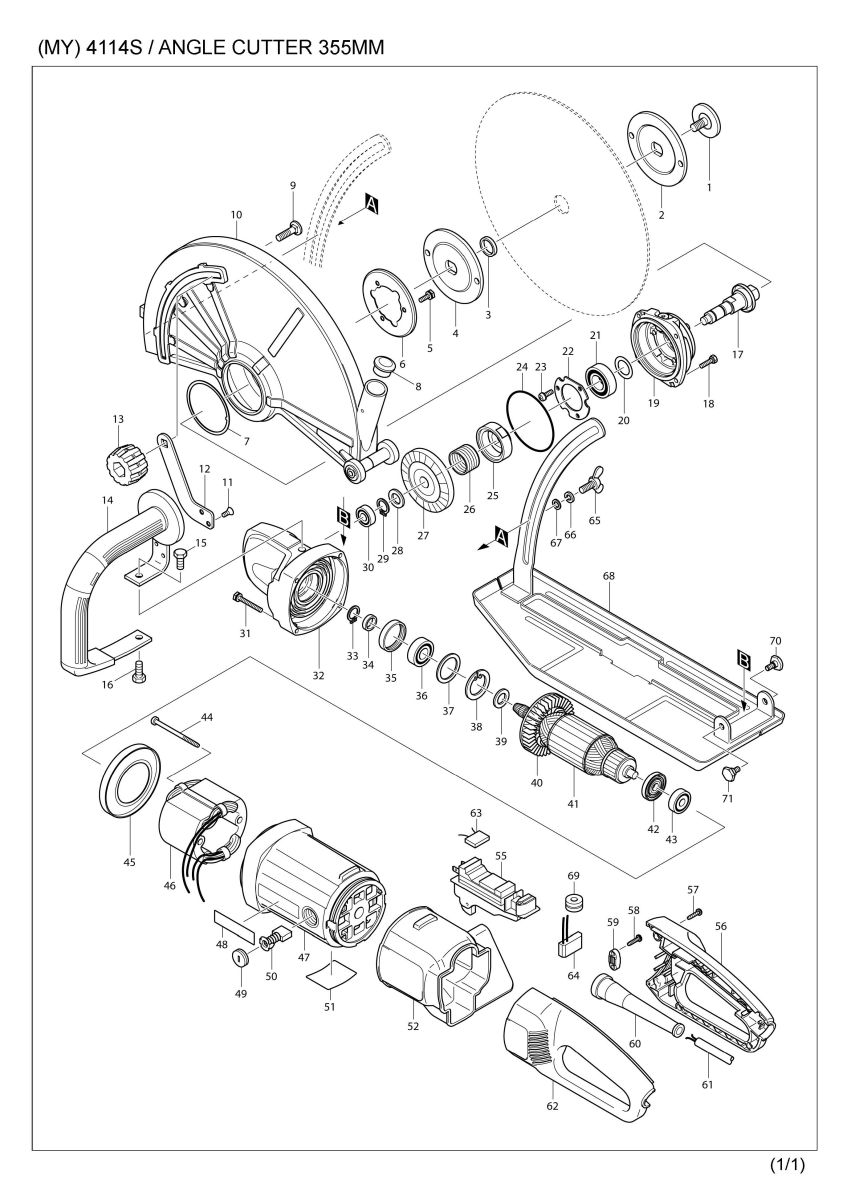

Part Diagram
Total: 81 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 265265-3 | HEX. BOLT M10X25 | 1 | |
| 2 | 224184-2 | INNER FLANGE 100 | 1 | |
| 3 | 257054-0 | RING 20 | 1 | |
| 4 | 224184-2 | INNER FLANGE 100 | 1 | |
| 5 | 925216-5 | + HEX. BOLT M5X14 | 3 | |
| 6 | 345269-2 | PRESSURE PLATE | 1 | |
| 7 | 341853-1 | PLATE B | 1 | |
| 008-1 | 286289-6 | CAP 32 | 1 | |
| 9 | 265845-5 | CAP SQUARE NECK BOLT M8X30 | 1 | |
| 10 | 125336-7 | WHEEL COVER ASS'Y | 1 | |
| 10 | C10 | 257091-4 | RING 12 | 2 |
| 10 | C20 | 961015-1 | STOP RING E-9 | 2 |
| 10 | C30 | 817574-2 | CAUTION LABEL | 1 |
| 11 | 912202-5 | COUNTERSUNK HEAD SCREW M5X8 | 2 | |
| 12 | 345291-9 | LOCK PLATE | 1 | |
| 13 | 252648-6 | THUMB NUT M8 | 1 | |
| 14 | 273655-6 | GRIP | 1 | |
| 15 | 921432-7 | HEX. BOLT M8X20 | 1 | |
| 16 | 921432-7 | HEX. BOLT M8X20 | 1 | |
| 17 | 153541-6 | SPINDLE COMPLETE | 1 | |
| 18 | 265502-5 | + HEX. BOLT M5X20 | 4 | |
| 19 | 153539-3 | BEARING BOX COMPLETE | 1 | |
| 20 | 267041-1 | FLAT WASHER 20 | 1 | |
| 021-1 | 211326-7 | BALL BEARING 6004DDW | 1 | |
| 22 | 285708-9 | BEARING RETAINER 50 | 1 | |
| 23 | 911221-8 | PAN HEAD SCREW M5X16 | 3 | |
| 24 | 213757-6 | O RING 80 | 1 | |
| 25 | 331644-8 | LOCK SLEEVE | 1 | |
| 26 | 233922-1 | LOCK SPRING 24 | 1 | |
| 27 | 227439-4 | SPIRAL BEVEL GEAR 57 | 1 | |
| 28 | 267251-0 | FLAT WASHER 15 | 1 | |
| 29 | 961055-9 | RETAINING RING S-15 | 1 | |
| 30 | 211061-7 | BALL BEARING 6000LLB | 1 | |
| 31 | 925261-0 | + HEX. BOLT M5X40 | 4 | |
| 32 | 153542-4 | GEAR HOUSING COMPLETE | 1 | |
| 33 | 961055-9 | RETAINING RING S-15 | 1 | |
| 34 | 257053-2 | RING 15 | 1 | |
| 35 | 262554-7 | RUBBER RING 36 | 1 | |
| 36 | 211228-7 | BALL BEARING 6202DDW | 1 | |
| 37 | 267250-2 | FLAT WASHER 30 | 1 | |
| 38 | 962157-4 | RETAINING RING R-40 | 1 | |
| 39 | 267251-0 | FLAT WASHER 15 | 1 | |
| 40 | 240060-2 | FAN 80 | 1 | |
| 41 | 516868-9 | ARMATURE ASS'Y 220-240V | 1 | |
| 41 | D10 | INC. 40,42,43 | ||
| 42 | 681630-2 | INSULATION WASHER | 1 | |
| 43 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 44 | 266059-9 | TAPPING SCREW 5X75 | 2 | |
| 45 | 416131-9 | BAFFLE PLATE | 1 | |
| 46 | 626129-0 | FIELD 230V | 1 | |
| 47 | 183564-0 | MOTOR HOUSING | 1 | |
| 47 | C10 | 643707-1 | BRUSH HOLDER | 2 |
| 47 | D10 | INC. 48 | ||
| 48 | 819064-1 | MAKITA MARK | 2 | |
| 49 | 643710-2 | BRUSH HOLDER CAP | 2 | |
| 50 | 191957-7 | A.C. CARBON BRUSH CB-204 | 1 | |
| 050-1 | 194992-4 | CARBON BRUSH SET CB-204 | 1 | |
| 51 | 862177-7 | 4114S NAME PLATE | 1 | |
| 051-1 | 815P83-1 | 4114S NAME PLATE | 1 | |
| 52 | 421831-8 | DUST COVER | 1 | |
| 055-1 | 651181-9 | SWITCH 1362.0114 | 1 | |
| 56 | 183615-9 | HANDLE SET | 1 | |
| 56 | C10 | 421833-4 | SPONGE SHEET | 1 |
| 56 | D10 | INC. 62 | ||
| 57 | 266045-0 | TAPPING SCREW 4X20 | 5 | |
| 58 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 59 | 687053-2 | STRAIN RELIEF | 1 | |
| 60 | 682560-0 | CORD GUARD 10 | 1 | |
| 61 | 692607-2 | POWER SUPPLY CORD 1.5-2-2.5 | 1 | |
| 62 | 183615-9 | HANDLE SET | 1 | |
| 62 | C10 | 421833-4 | SPONGE SHEET | 1 |
| 62 | D10 | INC. 56 | ||
| 64 | 631553-4 | SOFT START CIRCUIT | 1 | |
| 65 | 924426-1 | WING BOLT M8X20 | 1 | |
| 66 | 942201-3 | SPRING WASHER 8 | 1 | |
| 67 | 941201-0 | FLAT WASHER 8 | 1 | |
| 68 | 165431-1 | BASE | 1 | |
| 70 | 265557-0 | SHOULDER HEX. BOLT M6 | 1 | |
| 71 | 265557-0 | SHOULDER HEX. BOLT M6 | 1 | |
| A01 | 782210-8 | SOCKET WRENCH 17 | 1 | |
| F01 | 192613-2 | ELBOW JOINT 32 | 1 |
