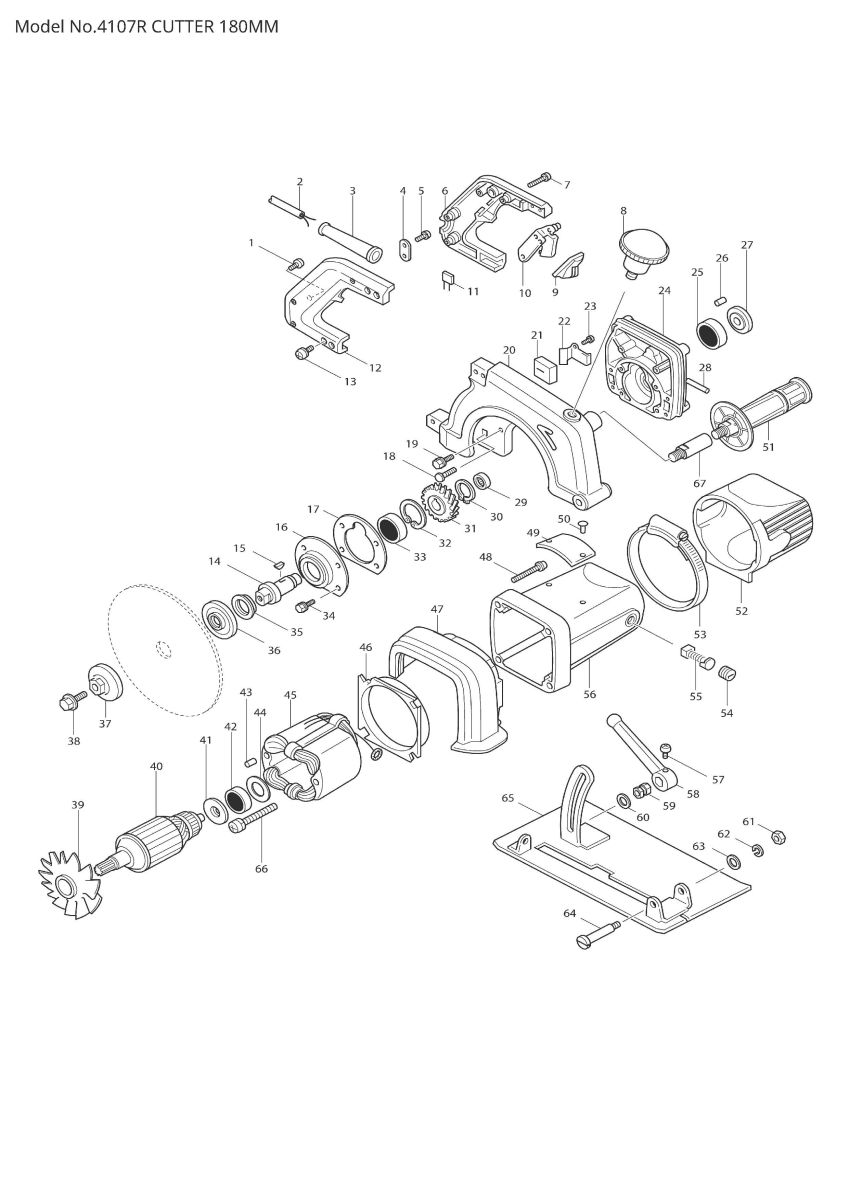

Part Diagram
Total: 108 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 911103-4 | PAN HEAD SCREW M4X6 | 1 | |
| 002X_ | 692541-6 | POWER SUPPLY CORD 1.00-2-5.0 | 1 | |
| 003B_ | 682540-6 | CORD GUARD 9.3-90 | 1 | |
| 003B1 | 682505-8 | CORD GUARD 10-90 | 1 | |
| 004C_ | 687031-2 | STRAIN RELIEF | 1 | |
| 5 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 6 | 181531-9 | HANDLE SET | 1 | |
| 6 | D10 | INC. 12 | ||
| 006-1 | 183178-5 | HANDLE SET | 1 | |
| 006-1 | D10 | INC. 12 | ||
| 7 | 911153-9 | PAN HEAD SCREW M4X28 | 3 | |
| 8 | 271207-7 | KNOB 55 | 1 | |
| 9 | 421224-9 | DUST COVER | 1 | |
| 010-1 | 651018-0 | SWITCH HPAHR2-3S | 1 | |
| 12 | 181531-9 | HANDLE SET | 1 | |
| 12 | D10 | INC. 6 | ||
| 012-1 | 183178-5 | HANDLE SET | 1 | |
| 012-1 | D10 | INC. 6 | ||
| 13 | 911213-7 | PAN HEAD SCREW M5X12 | 8 | |
| 14 | 325402-2 | SPINDLE | 1 | |
| 15 | 254001-2 | WOODRUFF KEY 4 | 1 | |
| 16 | 315769-6 | BEARING BOX | 1 | |
| 17 | 442033-3 | PACKING | 1 | |
| 18 | 265835-8 | CAP SQUARE NECK BOLT M8X30 | 1 | |
| 019-1 | 925231-9 | + HEX. BOLT M5X20 | 4 | |
| 20 | 315535-1 | BLADE CASE | 1 | |
| 020-1 | 317317-7 | BLADE CASE | 1 | |
| 020-2 | 319153-7 | BLADE CASE | 1 | |
| 21 | 685700-9 | SPONGE SHEET | 1 | |
| 22 | 343330-9 | LEAD COVER | 1 | |
| 23 | 911106-8 | PAN HEAD SCREW M4X8 | 1 | |
| 24 | 157028-0 | GEAR HOUSING | 1 | |
| 24 | D10 | INC. 26 | ||
| 024-1 | 151874-3 | GEAR HOUSING COMPLETE | 1 | |
| 024-1 | D10 | INC. 26 | ||
| 024-2 | 143177-9 | GEAR HOUSING COMPLETE | 1 | |
| 024-2 | D10 | INC. 26 | ||
| 025-1 | 211228-7 | BALL BEARING 6202DDW | 1 | |
| 26 | 263005-3 | RUBBER PIN 6 | 1 | |
| 27 | 421281-7 | WATERPROOF RING 34.5 | 1 | |
| 28 | 422016-9 | SEAL RUBBER | 1 | |
| 29 | 212101-4 | NEEDLE BEARING 1210 | 1 | |
| 30 | 961057-5 | RETAINING RING S-17 | 1 | |
| 31 | 221607-1 | HELICAL GEAR 45 | 1 | |
| 32 | 962157-4 | RETAINING RING R-40 | 1 | |
| 033-1 | 211278-2 | BALL BEARING 6203DDW | 1 | |
| 034-1 | 925221-2 | + HEX. BOLT M5X16 | 4 | |
| 35 | 421280-9 | WATERPROOF RING 36 | 1 | |
| 36 | 224200-0 | INNER FLANGE 55 | 1 | |
| 037-1 | 224286-4 | OUTER FLANGE 55 | 1 | |
| 38 | 251644-1 | HEX. FLANGE HEAD BOLT M8X20 | 1 | |
| 39 | 241072-8 | FAN 97 | 1 | |
| 040D_ | 514506-7 | ARMATURE ASS'Y 230V-250V | 1 | |
| 040D_ | D10 | INC. 25,27,39-42 | ||
| 41 | 681626-3 | INSULATION WASHER | 1 | |
| 041-1 | 681624-7 | INSULATION WASHER | 1 | |
| 041-2 | 681635-2 | INSULATION WASHER | 1 | |
| 041-3 | 681623-9 | INSULATION WASHER | 1 | |
| 42 | 211068-3 | BALL BEARING 6200LB | 1 | |
| 43 | 263002-9 | RUBBER PIN 4 | 1 | |
| 44 | 253794-8 | FLAT WASHER 18 | 1 | |
| 045D_ | 524467-3 | FIELD ASS'Y 230V-250V | 1 | |
| 045D_ | C10 | 654020-2 | RING TERMINAL | 2 |
| 045D_ | C20 | 654502-4 | CONNECTOR P-2 | 2 |
| 46 | 343259-9 | BAFFLE PLATE | 1 | |
| 47 | 410920-4 | COVER B | 1 | |
| 48 | 911263-2 | PAN HEAD SCREW M5X40 | 4 | |
| 49 | 855933-2 | NAME PLATE 4107R | 1 | |
| 049-1 | 854R54-5 | 4107R NAME PLATE | 1 | |
| 50 | 953106-2 | RIVET 0-5 | 2 | |
| 51 | 273488-9 | GRIP 37 | 1 | |
| 051-1 | 152492-0 | GRIP 36 COMPLETE | 1 | |
| 52 | 410919-9 | COVER A | 1 | |
| 53 | 163255-9 | CLAMP 120 | 1 | |
| 54 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 054-1 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 055-1 | 181044-0 | CARBON BRUSH CB-153 | 1 | |
| 56 | 157745-2 | MOTOR HOUSING | 1 | |
| 56 | C10 | 643653-8 | BRUSH HOLDER 6.5-13.5 | 2 |
| 56 | C20 | 817846-5 | CAUTION LABEL | 1 |
| 56 | C40 | 913206-0 | SET SCREW M5X8 | 2 |
| 56 | D10 | INC. 43 | ||
| 056-1 | 153416-9 | MOTOR HOUSING COMPLETE | 1 | |
| 056-1 | C10 | 643653-8 | BRUSH HOLDER 6.5-13.5 | 2 |
| 056-1 | C40 | 913206-0 | SET SCREW M5X8 | 2 |
| 056-1 | D10 | INC. 43 | ||
| 57 | 911207-2 | PAN HEAD SCREW M5X10 | 1 | |
| 58 | 133014-5 | LEVER 98 ASS'Y | 1 | |
| 58 | D10 | INC. 57 | ||
| 59 | 252003-2 | HEX. NUT M8-14 | 1 | |
| 060-1 | 253731-2 | FLAT WASHER 8 | 1 | |
| 61 | 931401-0 | HEX. NUT M8 | 1 | |
| 061-1 | 252105-4 | HEX. LOCK NUT M8-13 | 1 | |
| 62 | 942201-3 | SPRING WASHER 8 | 1 | |
| 63 | 941201-0 | FLAT WASHER 8 | 1 | |
| 64 | 251407-5 | - FLAT HEAD SCREW M8 | 1 | |
| 065-1 | 164655-6 | BASE | 1 | |
| 066-1 | 911300-2 | PAN HEAD SCREW M5X75 | 2 | |
| 67 | 324206-9 | JOINT THREAD M12 | 1 | |
| 400 | 421125-1 | PLUG | 1 | |
| 400-1 | 421835-0 | WATER SUPPLY PLUG | 1 | |
| 401-1 | 782212-4 | SOCKET WRENCH 13 | 1 | |
| 402-1 | 782017-2 | WRENCH 22 | 1 | |
| 403 | 412028-0 | VINYL TUBE 5X9X5000 | 1 | |
| 404 | 164350-8 | PIPE | 1 | |
| 404-1 | 164350-8 | PIPE | 1 | |
| 406 | 323601-0 | NUT | 1 | |
| 500 | 133018-7 | WATER SUPPLY ASS'Y | 1 |
