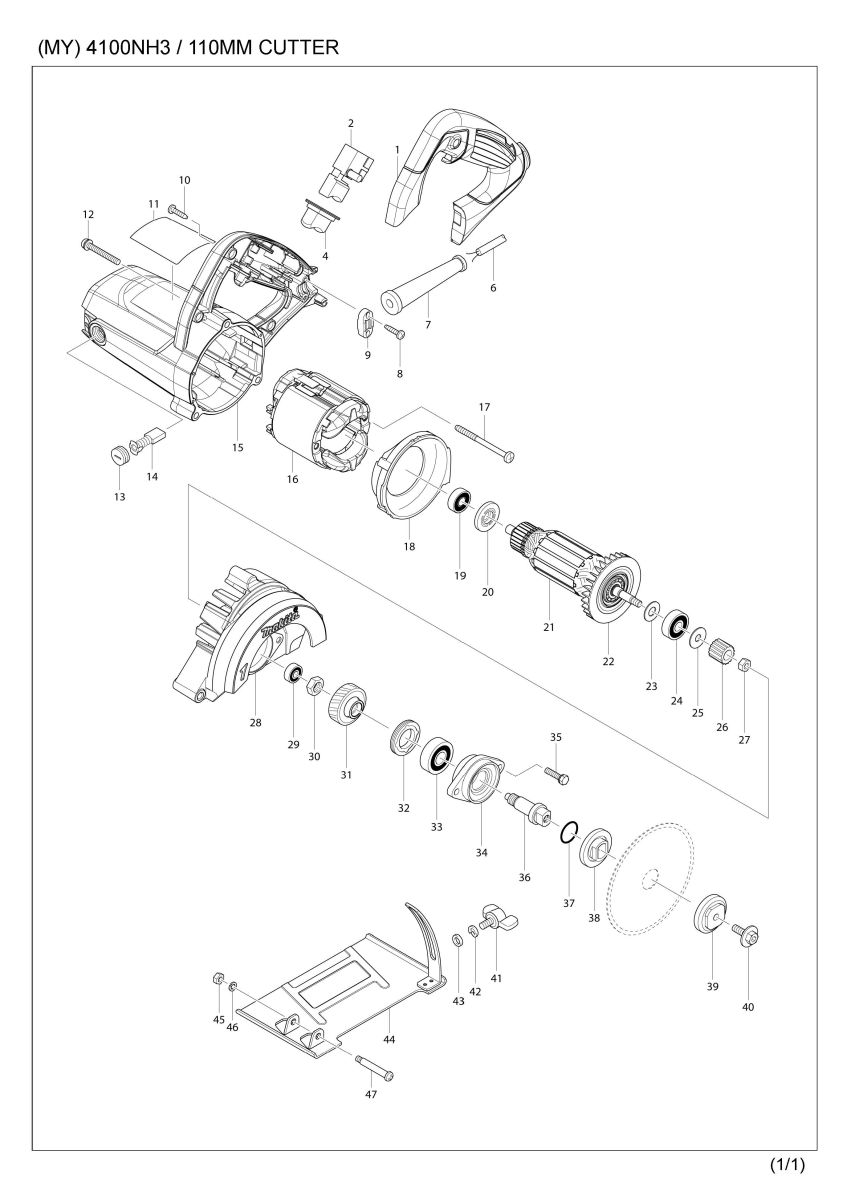

Part Diagram
Total: 59 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 454557-7 | HANDLE COVER | 1 | |
| 2 | 650239-1 | SWITCH FA1-6/1B | 1 | |
| 4 | 421812-2 | DUST COVER | 1 | |
| 6 | 692021-2 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 7 | 682503-2 | CORD GUARD 8-90 | 1 | |
| 8 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 9 | 687123-7 | STRAIN RELIEF | 1 | |
| 10 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 11 | 814L09-6 | 4100NH3 NAME PLATE | 1 | |
| 12 | 265104-7 | PAN HEAD SCREW M5X40 | 3 | |
| 13 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | |
| 14 | 191963-2 | CARBON BRUSH CB-303 | 1 | |
| 014-1 | 194996-6 | CARBON BRUSH SET CB-303 | 1 | |
| 15 | 142142-5 | MOTOR HOUSING COMPLETE | 1 | |
| 15 | C10 | 643708-9 | BRUSH HOLDER 5-11 | 2 |
| 16 | 594614-0 | FIELD ASS'Y 240V | 1 | |
| 16 | C10 | 654020-2 | RING TERMINAL | 2 |
| 16 | C20 | 654501-6 | CONNECTOR P-1.25 | 2 |
| 16 | C21 | 654485-8 | PARALLEL SPLICE | 2 |
| 17 | 266352-1 | TAPPING SCREW 5X65 | 2 | |
| 18 | 417810-2 | BAFFLE PLATE | 1 | |
| 19 | 211395-8 | BALL BEARING 608LLU | 1 | |
| 20 | 681644-1 | INSULATION WASHER | 1 | |
| 21 | 513869-8 | ARMATURE ASS'Y 240V | 1 | |
| 21 | D10 | INC. 19,20,22-24 | ||
| 22 | 240053-9 | FAN 65 | 1 | |
| 23 | 267237-4 | FLAT WASHER 9 | 1 | |
| 24 | 211092-6 | BALL BEARING 629DDW | 1 | |
| 25 | 267239-0 | FLAT WASHER 7 | 1 | |
| 26 | 226552-5 | HELICAL GEAR 15 | 1 | |
| 27 | 252186-8 | HEX. NUT M6 | 1 | |
| 28 | 142143-3 | BLADE CASE COMPLETE | 1 | |
| 28 | C10 | 213445-5 | O-RING 26 | 1 |
| 028-1 | 142143-3 | BLADE CASE COMPLETE | 1 | |
| 028-1 | C10 | 213445-5 | O-RING 26 | 1 |
| 29 | 210028-2 | BALL BEARING 606ZZ | 1 | |
| 30 | 252170-3 | HEX. NUT M10-17 | 1 | |
| 31 | 227767-7 | HELICAL GEAR 34 | 1 | |
| 32 | 285840-9 | BEARING RETAINER 19-33 | 1 | |
| 33 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 34 | 317550-1 | BEARING BOX | 1 | |
| 35 | 265497-2 | + HEX. BOLT M5X20 | 2 | |
| 36 | 324221-3 | SPINDLE | 1 | |
| 37 | 213279-6 | O RING 18 | 1 | |
| 38 | 224080-4 | INNER FLANGE 36 | 1 | |
| 39 | 224081-2 | OUTER FLANGE 36 | 1 | |
| 40 | 266510-9 | HEX. SOCKET HEX. BOLT M6X18 | 1 | |
| 41 | 265754-8 | THUMB SCREW M6X12 | 1 | |
| 42 | 942151-2 | SPRING WASHER 6 | 1 | |
| 042-1 | 253428-3 | SPRING WASHER 6 | 1 | |
| 43 | 941151-9 | FLAT WASHER 6 | 1 | |
| 44 | 165711-5 | BASE | 1 | |
| 45 | 252137-1 | HEX. NUT M5-8 | 1 | |
| 46 | 942101-7 | SPRING WASHER 5 | 1 | |
| 046-1 | 253427-5 | SPRING WASHER 5 | 1 | |
| 47 | 265056-2 | + PAN HEAD SCREW M5 | 1 | |
| A01 | 781041-2 | WRENCH 22 | 1 | |
| A02 | 783217-7 | HEX. WRENCH 5 | 1 | |
| E01 | 424635-7 | SPONGE | 1 |
