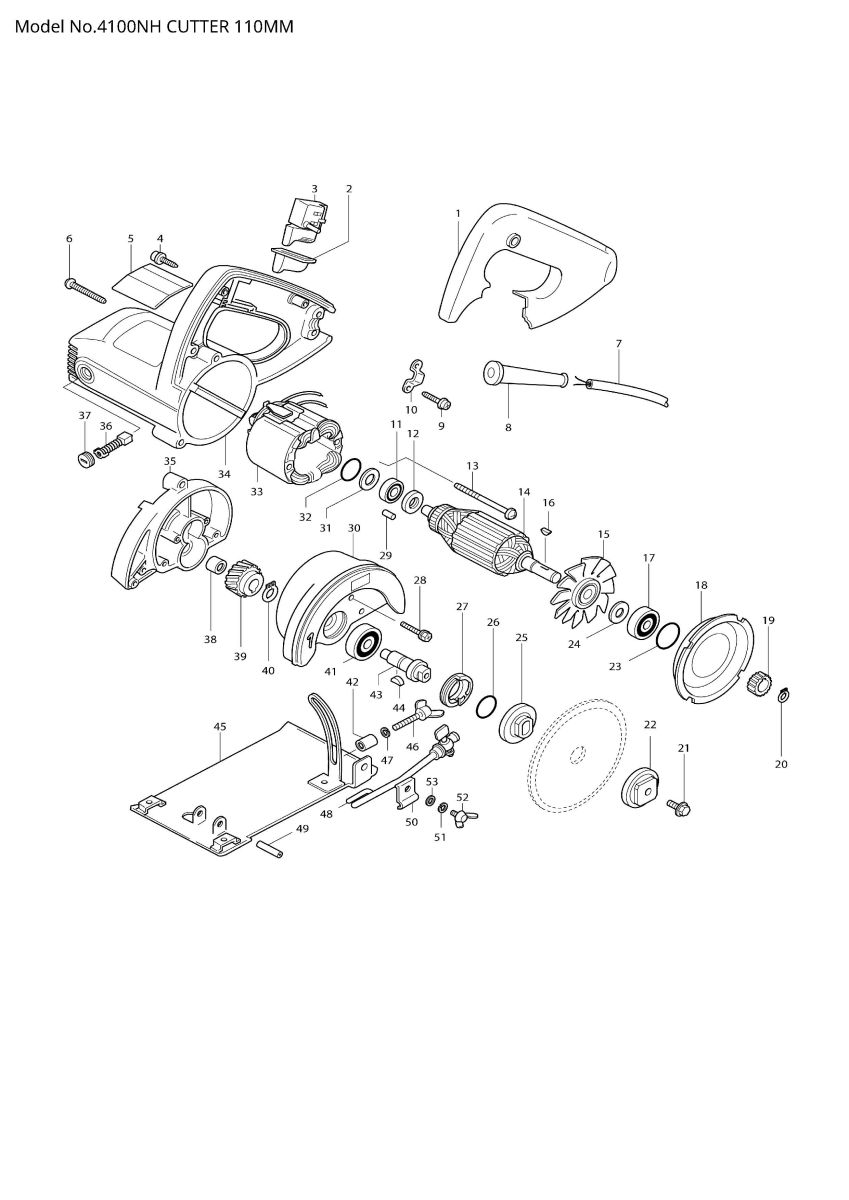

Part Diagram
Total: 94 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 415600-7 | HANDLE COVER | 1 | |
| 2 | 421329-5 | DUST COVER | 1 | |
| 3 | 651204-3 | SWITCH SGEL115CDY | 1 | |
| 4 | 266045-0 | TAPPING SCREW 4X20 | 4 | |
| 5 | 859871-0 | NAME PLATE 4100NH | 1 | |
| 005B | 859871-0 | NAME PLATE 4100NH | 1 | |
| 6 | 911263-2 | PAN HEAD SCREW M5X40 | 3 | |
| 007G | 664265-4 | POWER SUPPLY CORD AWG#16-2-2.5 | 1 | |
| 007B_ | 692021-2 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 8 | 682502-4 | CORD GUARD 8-85 | 1 | |
| 008G | 682504-0 | CORD GUARD 10-85 | 1 | |
| 9 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 010A_ | 687063-9 | CORD CLAMP | 1 | |
| 010A1 | 687123-7 | STRAIN RELIEF | 1 | |
| 010A1B | 687123-7 | STRAIN RELIEF | 1 | |
| 11 | 211033-2 | BALL BEARING 608LB | 1 | |
| 12 | 681625-5 | INSULATION WASHER | 1 | |
| 13 | 266029-8 | TAPPING SCREW 5X65 | 2 | |
| 013-1 | 266352-1 | TAPPING SCREW 5X65 | 2 | |
| 013-1B | 266352-1 | TAPPING SCREW 5X65 | 2 | |
| 014B_ | 516219-6 | ARMATURE ASS'Y 240V | 1 | |
| 014B_A | D10 | INC. 11,12,15,17,24 | ||
| 015-1 | 240007-6 | FAN 68 | 1 | |
| 16 | 254002-0 | WOODRUFF KEY 3 | 1 | |
| 017-1 | 210053-3 | BALL BEARING 629LLB | 1 | |
| 017-2 | 210042-8 | BALL BEARING 629LLB | 1 | |
| 017-2B | 210042-8 | BALL BEARING 629LLB | 1 | |
| 18 | 343289-0 | BAFFLE PLATE | 1 | |
| 19 | 226440-6 | HELICAL GEAR 19 | 1 | |
| 019-1 | 226683-0 | HELICAL GEAR 17 | 1 | |
| 019-1B | 226683-0 | HELICAL GEAR 17 | 1 | |
| 20 | 961004-6 | RETAINING RING S-8 | 1 | |
| 21 | 265226-3 | HEX. FLANGE HEAD BOLT M6X17 | 1 | |
| 22 | 224081-2 | OUTER FLANGE 36 | 1 | |
| 23 | 213407-3 | O RING 26 | 1 | |
| 24 | 253741-9 | FLAT WASHER 9 | 1 | |
| 25 | 224080-4 | INNER FLANGE 36 | 1 | |
| 26 | 213255-0 | O RING 18 | 1 | |
| 27 | 285815-8 | BEARING RETAINER 19-33 | 1 | |
| 28 | 925146-0 | + HEX. BOLT M4X25 | 4 | |
| 29 | 263002-9 | RUBBER PIN 4 | 1 | |
| 30 | 155410-7 | BLADE CASE COMPLETE | 1 | |
| 030A | C10 | 817667-5 | CAUTION LABEL | 1 |
| 030-1 | 150647-1 | BLADE CASE COMPLETE | 1 | |
| 030-1 | C10 | 817667-5 | CAUTION LABEL | 1 |
| 030-1B | 150647-1 | BLADE CASE COMPLETE | 1 | |
| 31 | 253192-6 | FLAT WASHER 14 | 1 | |
| 32 | 213262-3 | O RING 18 | 1 | |
| 033B_A | 594229-3 | FIELD ASS'Y 240V | 1 | |
| 033B_A | C10 | 654020-2 | RING TERMINAL | 2 |
| 033B_A | C20 | 654501-6 | CONNECTOR P-1.25 | 2 |
| 033B1A | 594344-3 | FIELD ASS'Y 240V | 1 | |
| 033B1A | C10 | 654020-2 | RING TERMINAL | 2 |
| 033B1A | C20 | 654501-6 | CONNECTOR P-1.25 | 2 |
| 033B1B | 594344-3 | FIELD ASS'Y 240V | 1 | |
| 033B1B | C10 | 654020-2 | RING TERMINAL | 2 |
| 033B1B | C20 | 654501-6 | CONNECTOR P-1.25 | 2 |
| 34 | 159767-8 | MOTOR HOUSING | 1 | |
| 34 | C20 | 643708-9 | BRUSH HOLDER 5-11 | 2 |
| 34 | D10 | INC. 29 | ||
| 34 | C10 | 817846-5 | CAUTION LABEL | 1 |
| 35 | 159771-7 | GEAR HOUSING | 1 | |
| 035A | D10 | INC. 23 | ||
| 035-1 | 159911-7 | GEAR HOUSING COMPLETE | 1 | |
| 035-1 | D10 | INC. 23 | ||
| 035-1B | 159911-7 | GEAR HOUSING COMPLETE | 1 | |
| 36 | 191963-2 | CARBON BRUSH CB-303 | 1 | |
| 37 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | |
| 38 | 212004-2 | NEEDLE BEARING 810 | 1 | |
| 39 | 226441-4 | HELICAL GEAR 42 | 1 | |
| 039-1 | 226684-8 | HELICAL GEAR 41 | 1 | |
| 039-1B | 226684-8 | HELICAL GEAR 41 | 1 | |
| 40 | 961052-5 | RETAINING RING S-12 | 1 | |
| 41 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 42 | 257507-9 | SLEEVE 7 | 1 | |
| 43 | 321197-5 | SPINDLE | 1 | |
| 44 | 254001-2 | WOODRUFF KEY 4 | 1 | |
| 45 | 164195-4 | BASE | 1 | |
| 46 | 924341-9 | WING BOLT M6X28 | 1 | |
| 47 | 942151-2 | SPRING WASHER 6 | 1 | |
| 047-1 | 253428-3 | SPRING WASHER 6 | 1 | |
| 048B | 164405-9 | PIPE | 1 | |
| 49 | 951219-3 | SPRING PIN 6-32 | 1 | |
| 050B | 342291-0 | PIPE HOLDER | 1 | |
| 051B | 253427-5 | SPRING WASHER 5 | 1 | |
| 052B | 924206-5 | WING BOLT M5X10 | 1 | |
| 053B | 941102-2 | FLAT WASHER 5 | 1 | |
| A01B | 421835-0 | WATER SUPPLY PLUG | 1 | |
| A02B | 412088-2 | VINYL TUBE 5 | 1 | |
| A03 | 781011-1 | WRENCH 22 | 1 | |
| A03-1 | 781043-8 | WRENCH 22 | 1 | |
| A03-1B | 781043-8 | WRENCH 22 | 1 | |
| A04 | 782209-3 | SOCKET WRENCH 9 | 1 | |
| A05B | D-05197 | DIAMOND WHEEL 105MM(SEG,DRY) | 1 |
