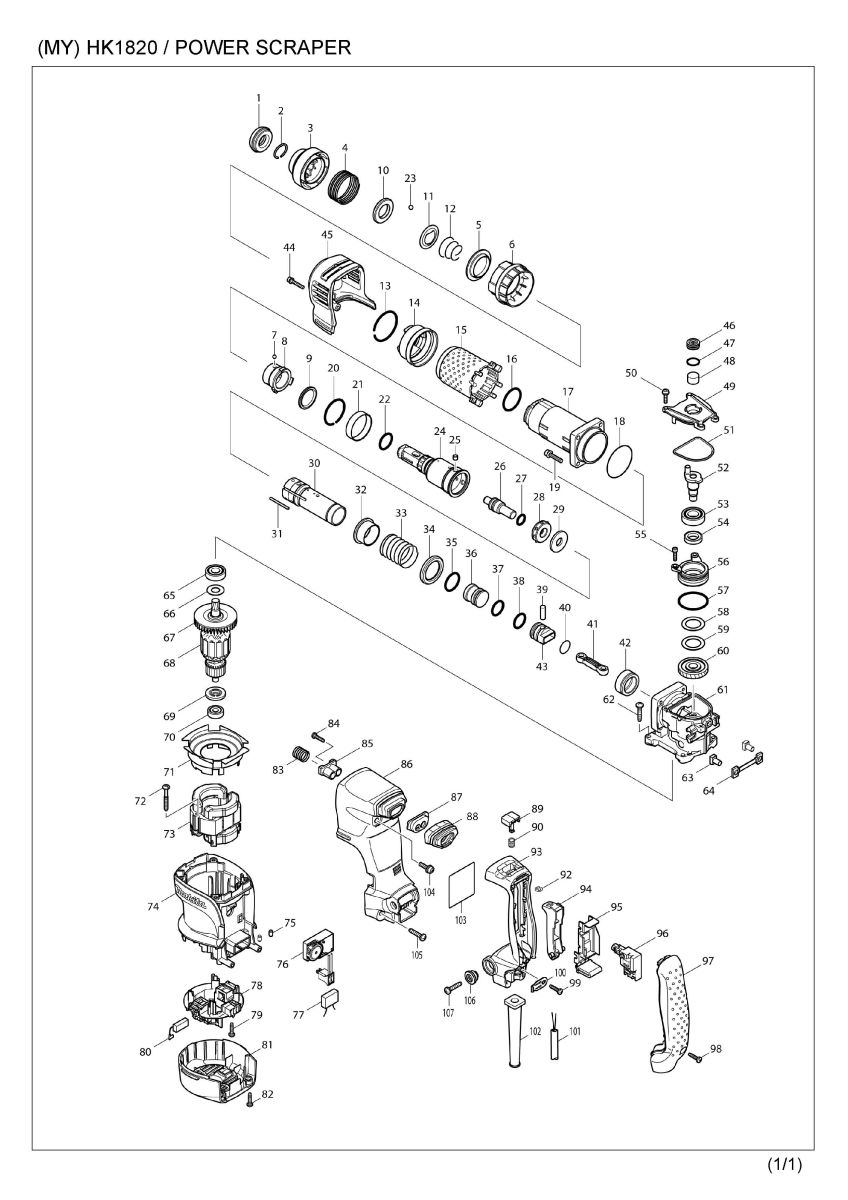

Part Diagram
Total: 117 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 286283-8 | CAP 38 | 1 | |
| 2 | 233966-1 | RING SPRING 19 | 1 | |
| 3 | 450275-5 | CHUCK COVER | 1 | |
| 4 | 234039-3 | COMPRESSION SPRING 42 | 1 | |
| 5 | 345874-5 | STEEL BALL GUIDE | 1 | |
| 6 | 450274-7 | CHANGE RING | 1 | |
| 7 | 216002-8 | STEEL BALL 4.8 | 3 | |
| 8 | 331796-5 | RING 25 | 1 | |
| 9 | 262142-0 | URETHAN RING 26 | 1 | |
| 10 | 257288-5 | RING 21 | 1 | |
| 11 | 345873-7 | GUIDE WASHER | 1 | |
| 12 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | |
| 13 | 231985-1 | RING SPRING 43 | 1 | |
| 14 | 450273-9 | BARREL COVER SUPPORT | 1 | |
| 15 | 424066-0 | BARREL COVER | 1 | |
| 16 | 213465-9 | O RING 31 | 1 | |
| 017-2 | 318196-6 | BARREL | 1 | |
| 18 | 213606-7 | O RING 48 | 1 | |
| 19 | 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 4 | |
| 20 | 233956-4 | RING SPRING 37 | 1 | |
| 021-1 | 257296-6 | RING 39 | 1 | |
| 22 | 213008-7 | O RING 22.4 | 1 | |
| 23 | 216022-2 | STEEL BALL 7.0 | 2 | |
| 24 | 324837-4 | TOOL HOLDER | 1 | |
| 025-1 | 268226-2 | PIN 6 | 3 | |
| 26 | 324844-7 | IMPACT BOLT | 1 | |
| 27 | 213128-7 | O RING 12 | 1 | |
| 28 | 424065-2 | RUBBER RING 13 | 1 | |
| 29 | 267363-9 | FLAT WASHER 12 | 1 | |
| 030-1 | 331849-0 | CYLINDER | 1 | |
| 031-1 | 256862-6 | ROD 2.5 | 3 | |
| 32 | 331799-9 | RING 29 | 1 | |
| 33 | 234041-6 | COMPRESSION SPRING 32 | 1 | |
| 34 | 345872-9 | CUP WASHER 29 | 1 | |
| 36 | 324847-1 | STRIKER | 1 | |
| 37 | 213283-5 | O-RING 18 | 1 | |
| 38 | 213283-5 | O-RING 18 | 1 | |
| 39 | 256087-2 | PIN 7 | 1 | |
| 40 | 213262-3 | O RING 18 | 1 | |
| 41 | 450278-9 | CONNECTING ROD | 1 | |
| 42 | 331797-3 | SLEEVE 29 | 1 | |
| 43 | 450298-3 | PISTON | 1 | |
| 44 | 922148-7 | HEX. SOCKET HEAD BOLT M4X25 | 1 | |
| 45 | 450277-1 | CRANK HOUSING COVER | 1 | |
| 46 | 419988-7 | FILTER CAP | 1 | |
| 47 | 213218-6 | O RING 16 | 1 | |
| 48 | 443129-3 | FILTER | 1 | |
| 49 | 450276-3 | CRANK CAP | 1 | |
| 50 | 911133-5 | PAN HEAD SCREW M4X18 | 4 | |
| 51 | 424067-8 | SEAL RING | 1 | |
| 52 | 324845-5 | CRANK SHAFT | 1 | |
| 53 | 211232-6 | BALL BEARING 6002LLU | 1 | |
| 54 | 213219-4 | OIL SEAL 15 | 1 | |
| 55 | 265490-6 | HEX. SOCKET HEAD BOLT M4X16 | 2 | |
| 56 | 318202-7 | BEARING BOX | 1 | |
| 57 | 213513-4 | O RING 39 | 1 | |
| 58 | 267126-3 | FLAT WASHER 22 | 1 | |
| 59 | 267126-3 | FLAT WASHER 22 | 1 | |
| 60 | 226675-9 | HELICAL GEAR 36 | 1 | |
| 061-1 | 158523-3 | CRANK HOUSING COMPLETE | 1 | |
| 061-1 | C10 | 213415-4 | O RING 28 | 1 |
| 62 | 266041-8 | TAPPING SCREW 5X25 | 4 | |
| 63 | 331798-1 | FIX GUIDE | 2 | |
| 64 | 424068-6 | CUSHION PLATE | 1 | |
| 65 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 66 | 253748-5 | FLAT WASHER 12 | 1 | |
| 67 | 241879-2 | FAN 60 | 1 | |
| 68 | 513743-0 | ARMATURE ASS'Y 220-240V | 1 | |
| 68 | D10 | INC. 65-67,69,70 | ||
| 69 | 681644-1 | INSULATION WASHER | 1 | |
| 70 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 71 | 450265-8 | BAFFLE PLATE | 1 | |
| 72 | 266211-9 | TAPPING SCREW 5X40 | 2 | |
| 73 | 625809-5 | FIELD 240V | 1 | |
| 74 | 450263-2 | MOTOR HOUSING | 1 | |
| 75 | 263002-9 | RUBBER PIN 4 | 2 | |
| 76 | 631780-3 | CONTROLLER | 1 | |
| 78 | 638393-1 | BRUSH HOLDER UNIT | 1 | |
| 79 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 80 | 194160-9 | CARBON BRUSH CB-350 | 1 | |
| 81 | 450264-0 | REAR COVER | 1 | |
| 82 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 83 | 234022-0 | COMPRESSION SPRING 14 | 1 | |
| 84 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 85 | 450280-2 | SPRING GUIDE | 1 | |
| 86 | 450272-1 | HANDLE BASE | 1 | |
| 87 | 450279-7 | DUST COVER SUPPORT | 1 | |
| 88 | 424069-4 | DUST COVER | 1 | |
| 89 | 450271-3 | LOCK ON BUTTON | 1 | |
| 90 | 234040-8 | COMPRESSION SPRING 8 | 1 | |
| 92 | 961011-9 | STOP RING E-4 | 1 | |
| 93 | 188495-8 | HANDLE SET | 1 | |
| 94 | 450269-0 | SWITCH LEVER | 1 | |
| 95 | 158522-5 | SWITCH HOLDER COMPLETE | 1 | |
| 96 | 650597-5 | SWITCH TG71BS-1 | 1 | |
| 97 | 450267-4 | HANDLE COVER | 1 | |
| 98 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 99 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 100 | 687169-3 | STRAIN RELIEF | 1 | |
| 101 | 692541-6 | POWER SUPPLY CORD 1.00-2-5.0 | 1 | |
| 102 | 682573-1 | CORD GUARD 10 | 1 | |
| 103 | 864601-6 | HK1820 NAME PLATE | 1 | |
| 104 | 911234-9 | PAN HEAD SCREW M5X20 | 2 | |
| 105 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 106 | 313139-3 | SHOULDER SLEEVE 6 | 2 | |
| 106-1 | 459895-2 | SHOULDER SLEEVE 6 | 2 | |
| 107 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 109 | 213142-3 | O-RING 35 | 1 | |
| A01 | 158024-1 | HOOK COMPLETE | 1 | |
| A02 | 824789-4 | PLASTIC CARRYING CASE | 1 | |
| A02 | C10 | 324207-7 | SHAFT | 1 |
| A02 | C20 | 417724-5 | LATCH | 2 |
| A02 | C30 | 419216-0 | HANDLE | 1 |
| A03 | 806524-2 | HK1820 PLASTIC CASE LABEL | 1 | |
| B01 | 195194-5 | HAMMER SERVICE KIT SET | 1 | |
| B01 | C10 | 181490-7 | HAMMER GREASE 30G | 1 |
| B01 | D10 | INC. 1,9,23,27,28,37,38,80 |
