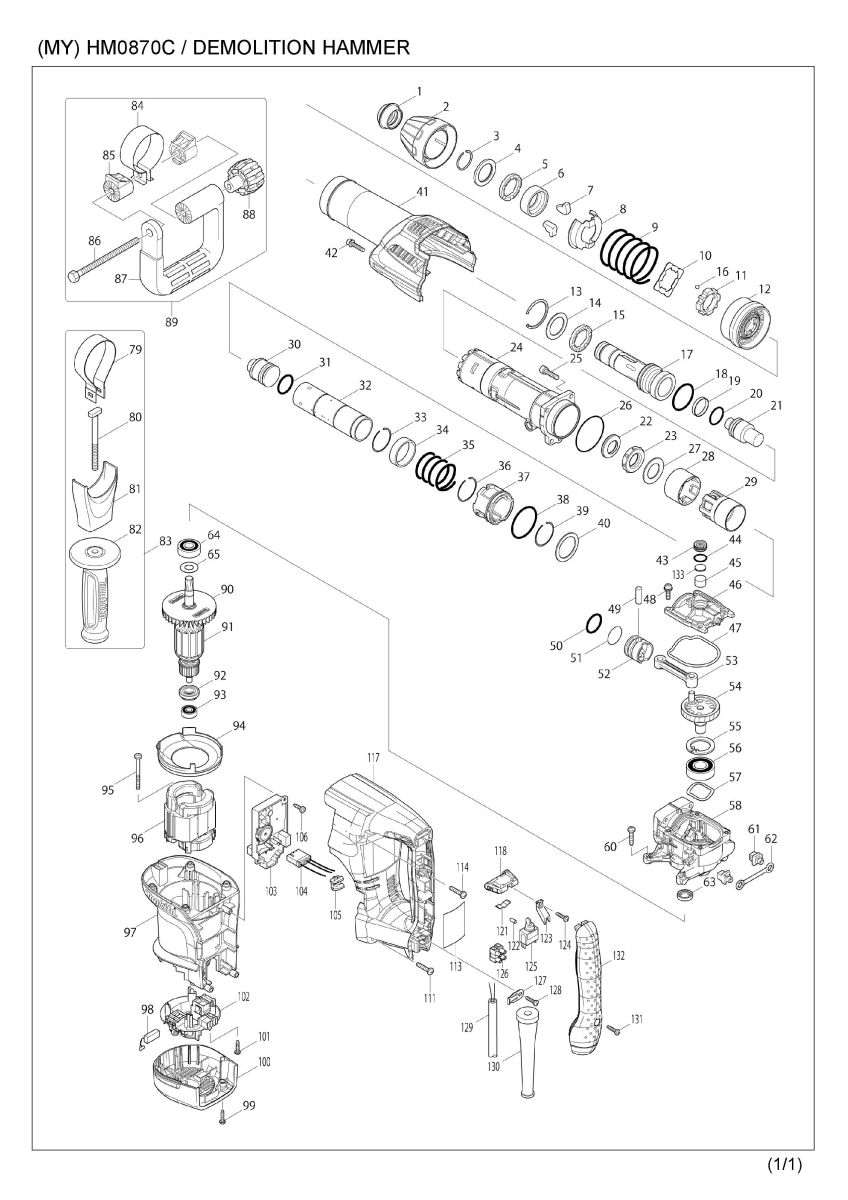

Part Diagram
Total: 270 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 286287-0 | TOOL HOLDER CAP | 1 | |
| 002 | 451432-8 | CHUCK COVER | 1 | |
| 003 | 231984-3 | RING SPRING 25 | 1 | |
| 004 | 267272-2 | FLAT WASHER 28 | 1 | |
| 005 | 424261-2 | RUBBER RING 28 | 1 | |
| 006 | 331659-5 | CHUCK RING | 1 | |
| 007 | 310108-5 | TOOL RETAINER | 2 | |
| 008-1 | 346677-0 | SPRING GUIDE | 1 | |
| 009 | 233387-7 | COMPRESSION SPRING 52 | 1 | |
| 010 | 346141-1 | PLATE | 1 | |
| 011 | 310145-9 | LOCK RING | 1 | |
| 012 | 451433-6 | CHANGE RING | 1 | |
| 013 | 257960-9 | RETAINING RING(INT) ROUND R-42 | 1 | |
| 014 | 267273-0 | FLAT WASHER 29 | 1 | |
| 015 | 424261-2 | RUBBER RING 28 | 1 | |
| 016 | 216002-8 | STEEL BALL 4.8 | 4 | |
| 017 | 324387-9 | TOOL HOLDER | 1 | |
| 018 | 213527-3 | O RING 38 | 1 | |
| 019 | 213431-6 | FLUORIDE RING 28 | 1 | |
| 020 | 213394-6 | O RING 23 | 1 | |
| 021 | 324389-5 | IMPACT BOLT | 1 | |
| 022 | 325732-1 | RING 20 | 1 | |
| 023 | 424245-0 | RUBBER RING 20 | 1 | |
| 024 | 318512-2 | BARREL | 1 | |
| 025 | 922341-3 | HEX. SOCKET HEAD BOLT M6X25 | 4 | |
| 026 | 213656-2 | O RING 53 | 1 | |
| 027 | 267407-5 | FLAT WASHER 23 | 1 | |
| 028 | 451639-6 | GUIDE RING | 1 | |
| 029 | 450098-1 | SLIDE SLEEVE | 1 | |
| 030 | 324388-7 | STRIKER | 1 | |
| 031 | 213958-6 | O RING 24 | 1 | |
| 032 | 331658-7 | CYLINDER 32 | 1 | |
| 033 | 233927-1 | RING SPRING 34 | 1 | |
| 034 | 331660-0 | RING 36 | 1 | |
| 035 | 233386-9 | COMPRESSION SPRING 37 | 1 | |
| 036 | 233927-1 | RING SPRING 34 | 1 | |
| 037 | 317719-7 | CYLINDER GUIDE | 1 | |
| 038 | 213611-4 | O RING 46 | 1 | |
| 039 | 233927-1 | RING SPRING 34 | 1 | |
| 040 | 267079-6 | FLAT WASHER 34 | 1 | |
| 041 | 451444-1 | HOUSING COVER | 1 | |
| 042 | 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 1 | |
| 042-1 | 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 1 | |
| 043 | 419988-7 | FILTER CAP | 1 | |
| 044 | 213218-6 | O RING 16 | 1 | |
| 044-1 | 213A05-9 | O-RING16 | 1 | |
| 045 | 443129-3 | FILTER | 1 | |
| 046 | 451434-4 | CRANK CAP | 1 | |
| 047 | 424244-2 | SEAL RING | 1 | |
| 048 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 049 | 268104-6 | PIN 8 | 1 | |
| 050 | 213958-6 | O RING 24 | 1 | |
| 051 | 213432-4 | O RING 26 | 1 | |
| 052 | 418349-8 | PISTON | 1 | |
| 053 | 418350-3 | CONNECTING ROD | 1 | |
| 054 | 325735-5 | CRANK SHAFT 17 | 1 | |
| 055 | 962157-4 | RETAINING RING R-40 | 1 | |
| 056-1 | 211490-4 | BALL BEARING 6203LLU | 1 | |
| 057 | 267825-7 | WAVE WASHER 30 | 1 | |
| 058 | 140206-9 | CRANK HOUSING COMPLETE | 1 | |
| 060 | 266041-8 | TAPPING SCREW 5X25 | 4 | |
| 061 | 419008-7 | FIX GUIDE | 2 | |
| 062 | 423345-3 | CUSHION PLATE | 1 | |
| 063-1 | 213678-2 | OIL SEAL 12 | 1 | |
| 064 | 211106-1 | BALL BEARING 6201LLB | 1 | |
| 065 | 253759-0 | FLAT WASHER 12 | 1 | |
| 079 | 346140-3 | GRIP SPRING 70 | 1 | |
| 080 | 266522-2 | SQUARE BOLT M8X95 | 1 | |
| 081 | 418363-4 | SIDE GRIP BASE 60 | 1 | |
| 082 | 158131-0 | GRIP 36 COMPLETE | 1 | |
| 083 | 135332-7 | GRIP 36 ASSEMBLY | 1 | |
| 083 | D10 | INC. 79-82 | ||
| 090 | 240119-5 | FAN 76 | 1 | |
| 091 | 513793-5 | ARMATURE ASSEMBLY 220-240V | 1 | |
| 091 | D10 | INC. 90,92,93 | ||
| 092 | 681650-6 | INSULATION WASHER | 1 | |
| 093 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 094 | 451438-6 | BAFFLE PLATE | 1 | |
| 095 | 266095-5 | TAPPING SCREW 5X55 | 2 | |
| 096 | 625764-1 | FIELD 240V | 1 | |
| 097 | 451423-9 | MOTOR HOUSING | 1 | |
| 098 | 194160-9 | CARBON BRUSH CB-350 | 1 | |
| 098-1 | 195004-6 | CARBON BRUSH SET CB-350 | 1 | |
| 098-2 | 194160-9 | CARBON BRUSH CB-350 | 1 | |
| 099 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 100 | 451442-5 | REAR COVER | 1 | |
| 101 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 102 | 638674-3 | BRUSH HOLDER UNIT | 1 | |
| 103 | 631930-0 | CONTROLLER | 1 | |
| 104 | 638675-1 | LEAD UNIT | 1 | |
| 105 | 451428-9 | LENS | 1 | |
| 106-1 | 266901-4 | TAPPING SCREW 4X14 | 2 | |
| 111 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 113-1 | 814H49-0 | HM0870C NAME PLATE | 1 | |
| 114 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 117 | 140207-7 | HANDLE COMPLETE | 1 | |
| 118 | 451440-9 | SLIDE LEVER | 1 | |
| 121 | 232209-8 | LEAF SPRING | 1 | |
| 122 | 263027-3 | RUBBER PIN 4 | 1 | |
| 123 | 451427-1 | SWITCH LEVER | 1 | |
| 124 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 125 | 651418-4 | SWITCH ST115A-40 | 1 | |
| 125-1 | 651418-4 | SWITCH ST115A-40 | 1 | |
| 126 | 654531-7 | TERMINAL BLOCK 2P | 1 | |
| 126-1 | 654741-6 | TERMINAL BLOCK | 1 | |
| 127 | 687169-3 | STRAIN RELIEF | 1 | |
| 128 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 129 | 692637-3 | POWER SUPPLY CORD 1.5-2-5.0 | 1 | |
| 130 | 682560-0 | CORD GUARD 10 | 1 | |
| 131 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 132 | 451445-9 | HANDLE COVER | 1 | |
| 133 | 423411-6 | RUBBER PLATE | 1 | |
| A01 | 194683-7 | GREASE VESSEL SET | 1 | |
| A02 | 443122-7 | CLOTH | 1 | |
| A03 | 824905-8 | PLASTIC CARRYING CASE | 1 | |
| A03 | C10 | 162271-8 | LATCH | 2 |
| A03 | C20 | 450990-1 | HANDLE | 1 |
| A03 | C30 | 325809-2 | SHAFT | 1 |
| A04-1 | 801F95-0 | HM0870C PLASTIC CASE LABEL | 2 | |
| A04-2 | 806X18-1 | HM0870C PLASTIC CASE LABEL | 2 | |
| B01 | 195113-1 | HAMMER SERVICE KIT | 1 | |
| B01 | C10 | 181490-7 | HAMMER GREASE 30G | 1 |
| B01 | C11 | 1914C5-7 | GREASE SET | 1 |
| B01 | D10 | INC. 1,3,7,19,20,31,50,51,98 | ||
| E03 | 801G22-3 | CLEAR LABEL | 1 | |
| F04-1 | 199143-4 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F05-1 | 199143-4 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F07-1 | 199144-2 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F07-1 | C10 | 417765-1 | FRONT CUFF 22 | 1 |
| F07-1 | C20 | 417766-9 | FRONT CUFF 38 | 1 |
| F07-1 | C30 | 415021-3 | HOSE JOINT | 1 |
| F08-1 | 199144-2 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F08-1 | C10 | 417765-1 | FRONT CUFF 22 | 1 |
| F08-1 | C20 | 417766-9 | FRONT CUFF 38 | 1 |
| F08-1 | C30 | 415021-3 | HOSE JOINT | 1 |
| 001 | 286287-0 | TOOL HOLDER CAP | 1 | |
| 002 | 451432-8 | CHUCK COVER | 1 | |
| 003 | 231984-3 | RING SPRING 25 | 1 | |
| 004 | 267272-2 | FLAT WASHER 28 | 1 | |
| 005 | 424261-2 | RUBBER RING 28 | 1 | |
| 006 | 331659-5 | CHUCK RING | 1 | |
| 007 | 310108-5 | TOOL RETAINER | 2 | |
| 008-1 | 346677-0 | SPRING GUIDE | 1 | |
| 009 | 233387-7 | COMPRESSION SPRING 52 | 1 | |
| 010 | 346141-1 | PLATE | 1 | |
| 011 | 310145-9 | LOCK RING | 1 | |
| 012 | 451433-6 | CHANGE RING | 1 | |
| 013 | 257960-9 | RETAINING RING(INT) ROUND R-42 | 1 | |
| 014 | 267273-0 | FLAT WASHER 29 | 1 | |
| 015 | 424261-2 | RUBBER RING 28 | 1 | |
| 016 | 216002-8 | STEEL BALL 4.8 | 4 | |
| 017 | 324387-9 | TOOL HOLDER | 1 | |
| 018 | 213527-3 | O RING 38 | 1 | |
| 019 | 213431-6 | FLUORIDE RING 28 | 1 | |
| 020 | 213394-6 | O RING 23 | 1 | |
| 021 | 324389-5 | IMPACT BOLT | 1 | |
| 022 | 325732-1 | RING 20 | 1 | |
| 023 | 424245-0 | RUBBER RING 20 | 1 | |
| 024 | 318512-2 | BARREL | 1 | |
| 025 | 922341-3 | HEX. SOCKET HEAD BOLT M6X25 | 4 | |
| 026 | 213656-2 | O RING 53 | 1 | |
| 027 | 267407-5 | FLAT WASHER 23 | 1 | |
| 028 | 451639-6 | GUIDE RING | 1 | |
| 029 | 450098-1 | SLIDE SLEEVE | 1 | |
| 030 | 324388-7 | STRIKER | 1 | |
| 031 | 213958-6 | O RING 24 | 1 | |
| 032 | 331658-7 | CYLINDER 32 | 1 | |
| 033 | 233927-1 | RING SPRING 34 | 1 | |
| 034 | 331660-0 | RING 36 | 1 | |
| 035 | 233386-9 | COMPRESSION SPRING 37 | 1 | |
| 036 | 233927-1 | RING SPRING 34 | 1 | |
| 037 | 317719-7 | CYLINDER GUIDE | 1 | |
| 038 | 213611-4 | O RING 46 | 1 | |
| 039 | 233927-1 | RING SPRING 34 | 1 | |
| 040 | 267079-6 | FLAT WASHER 34 | 1 | |
| 041 | 451444-1 | HOUSING COVER | 1 | |
| 042 | 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 1 | |
| 042-1 | 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 1 | |
| 043 | 419988-7 | FILTER CAP | 1 | |
| 044 | 213218-6 | O RING 16 | 1 | |
| 044-1 | 213A05-9 | O-RING16 | 1 | |
| 045 | 443129-3 | FILTER | 1 | |
| 046 | 451434-4 | CRANK CAP | 1 | |
| 047 | 424244-2 | SEAL RING | 1 | |
| 048 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 049 | 268104-6 | PIN 8 | 1 | |
| 050 | 213958-6 | O RING 24 | 1 | |
| 051 | 213432-4 | O RING 26 | 1 | |
| 052 | 418349-8 | PISTON | 1 | |
| 053 | 418350-3 | CONNECTING ROD | 1 | |
| 054 | 325735-5 | CRANK SHAFT 17 | 1 | |
| 055 | 962157-4 | RETAINING RING R-40 | 1 | |
| 056-1 | 211490-4 | BALL BEARING 6203LLU | 1 | |
| 057 | 267825-7 | WAVE WASHER 30 | 1 | |
| 058 | 140206-9 | CRANK HOUSING COMPLETE | 1 | |
| 060 | 266041-8 | TAPPING SCREW 5X25 | 4 | |
| 061 | 419008-7 | FIX GUIDE | 2 | |
| 062 | 423345-3 | CUSHION PLATE | 1 | |
| 063-1 | 213678-2 | OIL SEAL 12 | 1 | |
| 064 | 211106-1 | BALL BEARING 6201LLB | 1 | |
| 065 | 253759-0 | FLAT WASHER 12 | 1 | |
| 079 | 346140-3 | GRIP SPRING 70 | 1 | |
| 080 | 266522-2 | SQUARE BOLT M8X95 | 1 | |
| 081 | 418363-4 | SIDE GRIP BASE 60 | 1 | |
| 082 | 158131-0 | GRIP 36 COMPLETE | 1 | |
| 083 | 135332-7 | GRIP 36 ASSEMBLY | 1 | |
| 083 | D10 | INC. 79-82 | ||
| 090 | 240119-5 | FAN 76 | 1 | |
| 091 | 513793-5 | ARMATURE ASSEMBLY 220-240V | 1 | |
| 091 | D10 | INC. 90,92,93 | ||
| 092 | 681650-6 | INSULATION WASHER | 1 | |
| 093 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 094 | 451438-6 | BAFFLE PLATE | 1 | |
| 095 | 266095-5 | TAPPING SCREW 5X55 | 2 | |
| 096 | 625764-1 | FIELD 240V | 1 | |
| 097 | 451423-9 | MOTOR HOUSING | 1 | |
| 098 | 194160-9 | CARBON BRUSH CB-350 | 1 | |
| 098-1 | 195004-6 | CARBON BRUSH SET CB-350 | 1 | |
| 098-2 | 194160-9 | CARBON BRUSH CB-350 | 1 | |
| 099 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 100 | 451442-5 | REAR COVER | 1 | |
| 101 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 102 | 638674-3 | BRUSH HOLDER UNIT | 1 | |
| 103 | 631930-0 | CONTROLLER | 1 | |
| 104 | 638675-1 | LEAD UNIT | 1 | |
| 105 | 451428-9 | LENS | 1 | |
| 106-1 | 266901-4 | TAPPING SCREW 4X14 | 2 | |
| 111 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 113-1 | 814H49-0 | HM0870C NAME PLATE | 1 | |
| 114 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 117 | 140207-7 | HANDLE COMPLETE | 1 | |
| 118 | 451440-9 | SLIDE LEVER | 1 | |
| 121 | 232209-8 | LEAF SPRING | 1 | |
| 122 | 263027-3 | RUBBER PIN 4 | 1 | |
| 123 | 451427-1 | SWITCH LEVER | 1 | |
| 124 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 125 | 651418-4 | SWITCH ST115A-40 | 1 | |
| 125-1 | 651418-4 | SWITCH ST115A-40 | 1 | |
| 126 | 654531-7 | TERMINAL BLOCK 2P | 1 | |
| 126-1 | 654741-6 | TERMINAL BLOCK | 1 | |
| 127 | 687169-3 | STRAIN RELIEF | 1 | |
| 128 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 129 | 692637-3 | POWER SUPPLY CORD 1.5-2-5.0 | 1 | |
| 130 | 682560-0 | CORD GUARD 10 | 1 | |
| 131 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 132 | 451445-9 | HANDLE COVER | 1 | |
| 133 | 423411-6 | RUBBER PLATE | 1 | |
| A01 | 194683-7 | GREASE VESSEL SET | 1 | |
| A02 | 443122-7 | CLOTH | 1 | |
| A03 | 824905-8 | PLASTIC CARRYING CASE | 1 | |
| A03 | C10 | 162271-8 | LATCH | 2 |
| A03 | C20 | 450990-1 | HANDLE | 1 |
| A03 | C30 | 325809-2 | SHAFT | 1 |
| A04-1 | 801F95-0 | HM0870C PLASTIC CASE LABEL | 2 | |
| A04-2 | 806X18-1 | HM0870C PLASTIC CASE LABEL | 2 | |
| B01 | 195113-1 | HAMMER SERVICE KIT | 1 | |
| B01 | C10 | 181490-7 | HAMMER GREASE 30G | 1 |
| B01 | C11 | 1914C5-7 | GREASE SET | 1 |
| B01 | D10 | INC. 1,3,7,19,20,31,50,51,98 | ||
| E03 | 801G22-3 | CLEAR LABEL | 1 | |
| F04-1 | 199143-4 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F05-1 | 199143-4 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F07-1 | 199144-2 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F07-1 | C10 | 417765-1 | FRONT CUFF 22 | 1 |
| F07-1 | C20 | 417766-9 | FRONT CUFF 38 | 1 |
| F07-1 | C30 | 415021-3 | HOSE JOINT | 1 |
| F08-1 | 199144-2 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F08-1 | C10 | 417765-1 | FRONT CUFF 22 | 1 |
| F08-1 | C20 | 417766-9 | FRONT CUFF 38 | 1 |
| F08-1 | C30 | 415021-3 | HOSE JOINT | 1 |
Back Download
