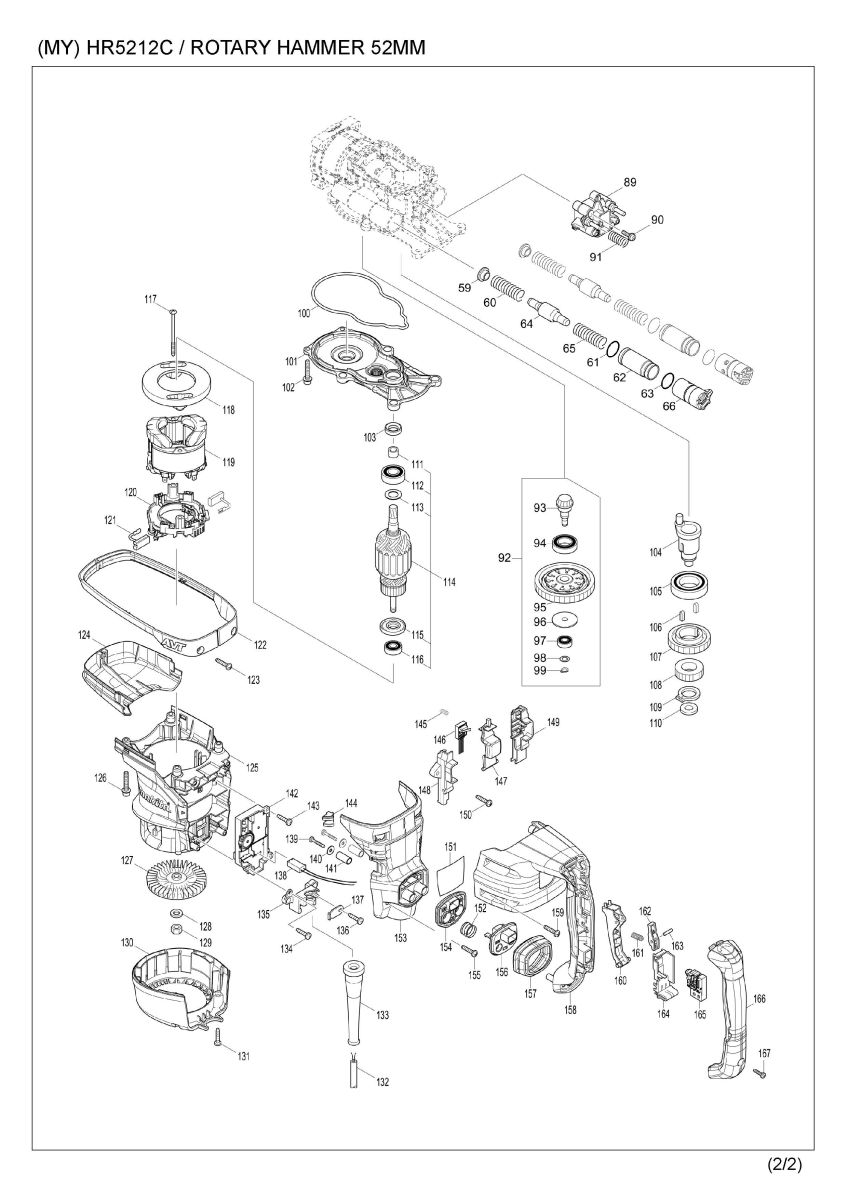

Part Diagram
Total: 466 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 142411-4 | HOUSING COVER A COMPLETE | 1 | |
| 001 | C10 | 810100-6 | CAUTION LABEL | 1 |
| 002 | 286292-7 | TOOL HOLDER CAP | 1 | |
| 003 | 233948-3 | RING SPRING 25 | 1 | |
| 004 | 257367-9 | RING 28 | 1 | |
| 005 | 262172-1 | RUBBER RING 29 | 1 | |
| 006 | 454767-6 | CHUCK COVER | 1 | |
| 007 | 324752-2 | CHUCK RING | 1 | |
| 008 | 454768-4 | RELEASE COVER | 1 | |
| 009 | 310178-4 | TOOL RETAINER | 2 | |
| 010 | 346751-4 | SPRING GUIDE | 1 | |
| 011 | 234317-1 | COMPRESSION SPRING 49 | 1 | |
| 012 | 346751-4 | SPRING GUIDE | 1 | |
| 013 | 213674-0 | O-RING 60 | 1 | |
| 013-1 | 213664-3 | O RING 60 | 1 | |
| 014 | 922456-6 | HEX. SOCKET HEAD BOLT M8X35 | 4 | |
| 015 | 142408-3 | BARREL COMPLETE | 1 | |
| 015 | C10 | 213663-5 | O RING 55 | 1 |
| 015 | C20 | 213778-8 | OIL SEAL 42 | 1 |
| 015 | C30 | 214603-6 | PLANE BEARING 49 | 1 |
| 015 | C40 | 259056-2 | RING SPRING 54 | 1 |
| 016 | 454769-2 | LOCK SLEEVE | 1 | |
| 017 | 259057-0 | RING SPRING 74 | 1 | |
| 018 | 213766-5 | O-RING 78 | 1 | |
| 019 | 213789-3 | O-RING 38 | 1 | |
| 021 | 326361-3 | TOOL HOLDER A | 1 | |
| 022 | 268308-0 | PIN 9 | 4 | |
| 023 | 231989-3 | RING SPRING 46 | 1 | |
| 024 | 257353-0 | RING 49 | 1 | |
| 025 | 213779-6 | O-RING 45 | 1 | |
| 026 | 267477-4 | FLAT WASHER 60 | 1 | |
| 027 | 262171-3 | RUBBER RING 60 | 1 | |
| 028 | 267477-4 | FLAT WASHER 60 | 1 | |
| 029 | 326362-1 | TOOL HOLDER B | 1 | |
| 030 | 213783-5 | O-RING 48 | 1 | |
| 031 | 454761-8 | SLIDE SLEEVE | 1 | |
| 032 | 234318-9 | COMPRESSION SPRING 45 | 1 | |
| 033 | 213811-6 | O-RING 26.5 | 1 | |
| 033-1 | 213811-6 | O-RING 26.5 | 3 | |
| 034 | 213780-1 | FLUORIDE RING 32.5 | 1 | |
| 034-1 | 213780-1 | FLUORIDE RING 32.5 | 3 | |
| 035 | 213776-2 | X-RING 26 | 1 | |
| 036 | 326374-4 | IMPACT BOLT | 1 | |
| 036-1 | 327245-8 | IMPACT BOLT | 1 | |
| 036-2 | 327245-8 | IMPACT BOLT | 1 | |
| 037 | 257354-8 | RING 23 | 1 | |
| 038 | 262173-9 | RUBBER RING 24 | 1 | |
| 039 | 267856-6 | SHOULDER WASHER 23 | 1 | |
| 040 | 257994-2 | RETAINING RING(EXT)WR-44 | 1 | |
| 041 | 257355-6 | RING 44 | 1 | |
| 042 | 267478-2 | FLAT WASHER 44 | 1 | |
| 043 | 234319-7 | COMPRESSION SPRING 46 | 1 | |
| 044 | 267478-2 | FLAT WASHER 44 | 1 | |
| 045 | 326377-8 | STRIKER | 1 | |
| 046 | 213781-9 | O-RING 33 | 1 | |
| 047 | 332093-2 | CYLINDER 40 | 1 | |
| 048 | 213460-9 | O RING 35 | 3 | |
| 049 | 213782-7 | O-RING 30 | 1 | |
| 050 | 257820-5 | SLEEVE 9 | 1 | |
| 051 | 319097-1 | PISTON | 1 | |
| 051-1 | 312A68-3 | PISTON | 1 | |
| 052 | 213460-9 | O RING 35 | 1 | |
| 053 | 454765-0 | CONNECTING ROD | 1 | |
| 054 | 256548-2 | FLAT FILLISTER HEAD PIN 6 | 1 | |
| 055 | 346749-1 | LINK PLATE | 1 | |
| 056 | 313272-1 | DRIVING SLEEVE | 1 | |
| 057 | 454779-9 | GUIDE RING | 1 | |
| 058 | 227625-7 | SPIRAL BEVEL GEAR 33 | 1 | |
| 059 | 454774-9 | SPRING PLATE | 2 | |
| 060 | 233497-0 | COMPRESSION SPRING 15 | 2 | |
| 061 | 213953-6 | O RING 24 | 2 | |
| 062 | 332092-4 | PIPE 21.5 | 2 | |
| 063 | 213953-6 | O RING 24 | 2 | |
| 064 | 326375-2 | COUNTER WEIGHT | 2 | |
| 065 | 233497-0 | COMPRESSION SPRING 15 | 2 | |
| 066 | 454773-1 | HOLDER 15 | 2 | |
| 066-1 | 141E52-3 | HOLDER COMPLETE | 2 | |
| 067 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 068 | 454326-6 | CHANGE LEVER | 1 | |
| 069 | 319082-4 | CRANK CAP COVER | 1 | |
| 070 | 454770-7 | CONTROL PLATE | 1 | |
| 071 | 454771-5 | SLIDE PLATE | 1 | |
| 072 | 234284-0 | COMPRESSION SPRING 4 | 1 | |
| 073 | 454345-2 | CRANK LEVER | 1 | |
| 074 | 213262-3 | O RING 18 | 1 | |
| 075 | 424607-2 | FILTER CAP | 1 | |
| 076 | 443129-3 | FILTER | 1 | |
| 077 | 911128-8 | P.H.SCREW M4X16 WITH WR | 6 | |
| 078 | 454764-2 | CRANK CAP | 1 | |
| 079 | 424608-0 | SEAL RING B | 1 | |
| 079-1 | 422787-8 | SEAL RING B | 1 | |
| 080 | 232280-2 | LEAF SPRING | 1 | |
| 081 | 454766-8 | LINK LEVER | 1 | |
| 082 | 911511-9 | PAN HEAD SCREW M4X10 | 1 | |
| 083 | 454778-1 | LINK GUIDE | 1 | |
| 084 | 233611-8 | TORSION SPRING 7 | 1 | |
| 085 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 086 | 346748-3 | GUIDE RAIL | 1 | |
| 087 | 142406-7 | CRANK HOUSING A COMPLETE | 1 | |
| 087-1 | 141H07-6 | CRANK HOUSING A COMPLETE | 1 | |
| 088 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 089 | 454777-3 | BASE A | 1 | |
| 090 | 911233-1 | PAN HEAD SCREW M5X20 | 3 | |
| 091 | 234320-2 | COMPRESSION SPRING 12 | 2 | |
| 092 | 126476-4 | TORQUE LIMITER ASSEMBLY | 1 | |
| 092 | D10 | INC. 93-99 | ||
| 093 | 227628-1 | SPIRAL BEVEL GEAR 10 | 1 | |
| 094 | 211323-3 | BALL BEARING 6904LLU | 1 | |
| 095 | 142410-6 | TORQUE LIMITER COMPLETE | 1 | |
| 096 | 324727-1 | SHOULDER WASHER 8 | 1 | |
| 097 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 098 | 253215-0 | FLAT WASHER 8 | 1 | |
| 099 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | |
| 100 | 424609-8 | SEAL RING A | 1 | |
| 100-1 | 422786-0 | SEAL RING A | 1 | |
| 101 | 142409-1 | GEAR HOUSING COMPLETE | 1 | |
| 102 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 103 | 213231-4 | OIL SEAL 15 | 1 | |
| 104 | 326376-0 | CRANK SHAFT | 1 | |
| 104-1 | 327142-8 | CRANK SHAFT | 1 | |
| 105 | 211418-2 | BALL BEARING 6006LLU | 1 | |
| 106 | 254229-2 | KEY 5 | 2 | |
| 107 | 227788-9 | HELICAL GEAR 46 | 1 | |
| 108 | 227336-4 | SPUR GEAR 26 | 1 | |
| 109 | 961102-6 | RETAINING RING S-22 | 1 | |
| 110 | 253843-1 | FLAT WASHER 12 | 1 | |
| 111 | 331596-3 | SLEEVE 12 | 1 | |
| 112 | 211238-4 | BALL BEARING 6202LLU | 1 | |
| 113 | 267215-4 | FLAT WASHER 15 | 1 | |
| 114 | 517898-3 | ARMATURE ASS'Y 220-240V | 1 | |
| 114 | D10 | INC. 111-113,115,116 | ||
| 115 | 681642-5 | INSULATION WASHER | 1 | |
| 116 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 117 | 266568-8 | TAPPING SCREW 5X80 | 2 | |
| 118 | 454772-3 | BAFFLE PLATE | 1 | |
| 119 | 636303-2 | FIELD 220-240V | 1 | |
| 120 | 632B59-7 | BRUSH HOLDER UNIT | 1 | |
| 121 | 195844-2 | CARBON BRUSH CB-175 | 1 | |
| 122 | 454780-4 | GUARD 52 | 1 | |
| 123 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 124 | 454763-4 | GEAR HOUSING COVER | 1 | |
| 125 | 454757-9 | MOTOR HOUSING | 1 | |
| 126 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 126-1 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 127 | 240016-5 | FAN 90 | 1 | |
| 128 | 253165-9 | FLAT WASHER 8 | 1 | |
| 129 | 252178-7 | HEX. NUT M8-12 | 1 | |
| 130 | 454762-6 | REAR COVER | 1 | |
| 131 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 132 | 692637-3 | POWER SUPPLY CORD 1.5-2-5.0 | 1 | |
| 133 | 682560-0 | CORD GUARD 10 | 1 | |
| 134 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 135 | 419024-9 | CORD CLAMP BASE | 1 | |
| 136 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 137 | 687169-3 | STRAIN RELIEF | 1 | |
| 138 | 632C15-3 | LEAD UNIT | 1 | |
| 139 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 140 | 253194-2 | FLAT WASHER 5 | 2 | |
| 141 | 257813-2 | SLEEVE 9 | 2 | |
| 142 | 620249-2 | CONTROLLER | 1 | |
| 143 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 144 | 454346-0 | LENS | 1 | |
| 145 | 234281-6 | COMPRESSION SPRING 6 | 1 | |
| 146 | 632A83-4 | SWITCH UNIT | 1 | |
| 147 | 454336-3 | SWITCH LEVER C | 1 | |
| 148 | 187890-9 | SWITCH CASE SET | 1 | |
| 148 | D10 | INC. 149 | ||
| 149 | 187890-9 | SWITCH CASE SET | 1 | |
| 149 | D10 | INC. 148 | ||
| 150 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 151 | 815W21-5 | HR5212C NAME PLATE | 1 | |
| 152 | 234283-2 | COMPRESSION SPRING 18.5 | 2 | |
| 153 | 454758-7 | HANDLE BASE | 1 | |
| 154 | 454343-6 | DUST SUPPORT A | 1 | |
| 155 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 156 | 454344-4 | DUST SUPPORT B | 1 | |
| 157 | 424557-1 | DUST COVER | 1 | |
| 158 | 454759-5 | HANDLE A | 1 | |
| 159 | 266041-8 | TAPPING SCREW 5X25 | 4 | |
| 160 | 454332-1 | SWITCH LEVER A | 1 | |
| 161 | 234285-8 | COMPRESSION SPRING 7 | 1 | |
| 162 | 454327-4 | SUB LEVER | 1 | |
| 163 | 268309-8 | PIN | 1 | |
| 164 | 154626-1 | SWITCH HOLDER COMPLETE | 1 | |
| 165 | 650678-5 | SWITCH C3PA-1121 | 1 | |
| 166 | 454760-0 | HANDLE COVER | 1 | |
| 167 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 168 | 257994-2 | RETAINING RING(EXT)WR-44 | 1 | |
| A01 | 135283-4 | SIDE HANDLE 90 ASSEMBLY | 1 | |
| A01 | C10 | 252640-2 | WING NUT M8 | 1 |
| A01 | C20 | 265439-6 | HEX. BOLT M8X150 | 1 |
| A01 | C30 | 318430-4 | SIDE HANDLE BASE 90A | 1 |
| A01 | C40 | 318431-2 | SIDE HANDLE BASE 90B | 1 |
| A01 | C50 | 417002-3 | SIDE HANDLE CAM | 2 |
| A01 | C60 | 417003-1 | SIDE HANDLE | 1 |
| A01 | C70 | 951166-8 | SPRING PIN 5-24 | 1 |
| A02 | 135629-4 | SIDE GRIP ASSEMBLY | 1 | |
| A02 | C10 | 158131-0 | GRIP 36 COMPLETE | 1 |
| A02 | C20 | 234226-4 | COMPRESSION SPRING 6 | 1 |
| A02 | C30 | 266163-4 | CUP SQUARE NECK BOLT M8X80 | 1 |
| A02 | C40 | 313223-4 | RACK GUIDE | 1 |
| A02 | C50 | 344492-6 | PLATE | 1 |
| A02 | C60 | 346750-6 | GRIP SPRING 90 | 1 |
| A02 | C70 | 453114-8 | LOCK BUTTON | 1 |
| A02 | C80 | 454781-2 | SIDE GRIP BASE 90 | 1 |
| A03 | 194683-7 | GREASE VESSEL SET | 1 | |
| A04 | 142296-8 | PLASTIC CASE COMPLETE | 1 | |
| A04 | C10 | 162271-8 | LATCH | 2 |
| A04 | C20 | 801Y02-7 | INDICATION LABEL | 1 |
| A04-1 | 821602-7 | PLASTIC CASE | 1 | |
| A04-1 | C10 | 162271-8 | LATCH | 2 |
| A04-2 | 821601-9 | PLASTIC CASE | 1 | |
| A04-2 | C10 | 162271-8 | LATCH | 2 |
| A05 | 804K54-3 | HR5212C PLASTIC CASE LABEL | 2 | |
| A06 | 331955-1 | DEPTH GAUGE | 1 | |
| A07 | 443122-7 | CLOTH | 1 | |
| B01 | 191K75-7 | HAMMER SERVICE KIT | 1 | |
| B01 | C10 | 181490-7 | HAMMER GREASE 30G | 4 |
| B01 | C11 | 1914C5-7 | GREASE SET | 4 |
| B01 | D10 | INC. 2,33,34,46,49,121 | ||
| F01-1 | 199143-4 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F02-1 | 199143-4 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F03-1 | 199144-2 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F04-1 | 199144-2 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F05 | 196858-4 | DUST EXTRACTOR ATTACHMENT SET | 1 | |
| F05 | C10 | 162361-7 | DUST COVER COMPLETE | 1 |
| F05 | C20 | 454809-6 | HOSE HOLDER C | 1 |
| F05 | C30 | 453674-0 | JOINT 25 | 1 |
| F05 | C40 | 453118-0 | BELLOWS | 2 |
| F05 | C50 | 455810-4 | JOINT | 2 |
| F05 | C60 | 424472-9 | DUST COVER CAP | 2 |
| F05 | C70 | 123066-4 | DEPTH GAUGE B ASSEMBLY | 1 |
| G12 | 1914X3-8 | DUST EXTRACTION PAD SET | 1 | |
| 001 | 142411-4 | HOUSING COVER A COMPLETE | 1 | |
| 001 | C10 | 810100-6 | CAUTION LABEL | 1 |
| 002 | 286292-7 | TOOL HOLDER CAP | 1 | |
| 003 | 233948-3 | RING SPRING 25 | 1 | |
| 004 | 257367-9 | RING 28 | 1 | |
| 005 | 262172-1 | RUBBER RING 29 | 1 | |
| 006 | 454767-6 | CHUCK COVER | 1 | |
| 007 | 324752-2 | CHUCK RING | 1 | |
| 008 | 454768-4 | RELEASE COVER | 1 | |
| 009 | 310178-4 | TOOL RETAINER | 2 | |
| 010 | 346751-4 | SPRING GUIDE | 1 | |
| 011 | 234317-1 | COMPRESSION SPRING 49 | 1 | |
| 012 | 346751-4 | SPRING GUIDE | 1 | |
| 013 | 213674-0 | O-RING 60 | 1 | |
| 013-1 | 213664-3 | O RING 60 | 1 | |
| 014 | 922456-6 | HEX. SOCKET HEAD BOLT M8X35 | 4 | |
| 015 | 142408-3 | BARREL COMPLETE | 1 | |
| 015 | C10 | 213663-5 | O RING 55 | 1 |
| 015 | C20 | 213778-8 | OIL SEAL 42 | 1 |
| 015 | C30 | 214603-6 | PLANE BEARING 49 | 1 |
| 015 | C40 | 259056-2 | RING SPRING 54 | 1 |
| 016 | 454769-2 | LOCK SLEEVE | 1 | |
| 017 | 259057-0 | RING SPRING 74 | 1 | |
| 018 | 213766-5 | O-RING 78 | 1 | |
| 019 | 213789-3 | O-RING 38 | 1 | |
| 021 | 326361-3 | TOOL HOLDER A | 1 | |
| 022 | 268308-0 | PIN 9 | 4 | |
| 023 | 231989-3 | RING SPRING 46 | 1 | |
| 024 | 257353-0 | RING 49 | 1 | |
| 025 | 213779-6 | O-RING 45 | 1 | |
| 026 | 267477-4 | FLAT WASHER 60 | 1 | |
| 027 | 262171-3 | RUBBER RING 60 | 1 | |
| 028 | 267477-4 | FLAT WASHER 60 | 1 | |
| 029 | 326362-1 | TOOL HOLDER B | 1 | |
| 030 | 213783-5 | O-RING 48 | 1 | |
| 031 | 454761-8 | SLIDE SLEEVE | 1 | |
| 032 | 234318-9 | COMPRESSION SPRING 45 | 1 | |
| 033 | 213811-6 | O-RING 26.5 | 1 | |
| 033-1 | 213811-6 | O-RING 26.5 | 3 | |
| 034 | 213780-1 | FLUORIDE RING 32.5 | 1 | |
| 034-1 | 213780-1 | FLUORIDE RING 32.5 | 3 | |
| 035 | 213776-2 | X-RING 26 | 1 | |
| 036 | 326374-4 | IMPACT BOLT | 1 | |
| 036-1 | 327245-8 | IMPACT BOLT | 1 | |
| 036-2 | 327245-8 | IMPACT BOLT | 1 | |
| 037 | 257354-8 | RING 23 | 1 | |
| 038 | 262173-9 | RUBBER RING 24 | 1 | |
| 039 | 267856-6 | SHOULDER WASHER 23 | 1 | |
| 040 | 257994-2 | RETAINING RING(EXT)WR-44 | 1 | |
| 041 | 257355-6 | RING 44 | 1 | |
| 042 | 267478-2 | FLAT WASHER 44 | 1 | |
| 043 | 234319-7 | COMPRESSION SPRING 46 | 1 | |
| 044 | 267478-2 | FLAT WASHER 44 | 1 | |
| 045 | 326377-8 | STRIKER | 1 | |
| 046 | 213781-9 | O-RING 33 | 1 | |
| 047 | 332093-2 | CYLINDER 40 | 1 | |
| 048 | 213460-9 | O RING 35 | 3 | |
| 049 | 213782-7 | O-RING 30 | 1 | |
| 050 | 257820-5 | SLEEVE 9 | 1 | |
| 051 | 319097-1 | PISTON | 1 | |
| 051-1 | 312A68-3 | PISTON | 1 | |
| 052 | 213460-9 | O RING 35 | 1 | |
| 053 | 454765-0 | CONNECTING ROD | 1 | |
| 054 | 256548-2 | FLAT FILLISTER HEAD PIN 6 | 1 | |
| 055 | 346749-1 | LINK PLATE | 1 | |
| 056 | 313272-1 | DRIVING SLEEVE | 1 | |
| 057 | 454779-9 | GUIDE RING | 1 | |
| 058 | 227625-7 | SPIRAL BEVEL GEAR 33 | 1 | |
| 059 | 454774-9 | SPRING PLATE | 2 | |
| 060 | 233497-0 | COMPRESSION SPRING 15 | 2 | |
| 061 | 213953-6 | O RING 24 | 2 | |
| 062 | 332092-4 | PIPE 21.5 | 2 | |
| 063 | 213953-6 | O RING 24 | 2 | |
| 064 | 326375-2 | COUNTER WEIGHT | 2 | |
| 065 | 233497-0 | COMPRESSION SPRING 15 | 2 | |
| 066 | 454773-1 | HOLDER 15 | 2 | |
| 066-1 | 141E52-3 | HOLDER COMPLETE | 2 | |
| 067 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 068 | 454326-6 | CHANGE LEVER | 1 | |
| 069 | 319082-4 | CRANK CAP COVER | 1 | |
| 070 | 454770-7 | CONTROL PLATE | 1 | |
| 071 | 454771-5 | SLIDE PLATE | 1 | |
| 072 | 234284-0 | COMPRESSION SPRING 4 | 1 | |
| 073 | 454345-2 | CRANK LEVER | 1 | |
| 074 | 213262-3 | O RING 18 | 1 | |
| 075 | 424607-2 | FILTER CAP | 1 | |
| 076 | 443129-3 | FILTER | 1 | |
| 077 | 911128-8 | P.H.SCREW M4X16 WITH WR | 6 | |
| 078 | 454764-2 | CRANK CAP | 1 | |
| 079 | 424608-0 | SEAL RING B | 1 | |
| 079-1 | 422787-8 | SEAL RING B | 1 | |
| 080 | 232280-2 | LEAF SPRING | 1 | |
| 081 | 454766-8 | LINK LEVER | 1 | |
| 082 | 911511-9 | PAN HEAD SCREW M4X10 | 1 | |
| 083 | 454778-1 | LINK GUIDE | 1 | |
| 084 | 233611-8 | TORSION SPRING 7 | 1 | |
| 085 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 086 | 346748-3 | GUIDE RAIL | 1 | |
| 087 | 142406-7 | CRANK HOUSING A COMPLETE | 1 | |
| 087-1 | 141H07-6 | CRANK HOUSING A COMPLETE | 1 | |
| 088 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 089 | 454777-3 | BASE A | 1 | |
| 090 | 911233-1 | PAN HEAD SCREW M5X20 | 3 | |
| 091 | 234320-2 | COMPRESSION SPRING 12 | 2 | |
| 092 | 126476-4 | TORQUE LIMITER ASSEMBLY | 1 | |
| 092 | D10 | INC. 93-99 | ||
| 093 | 227628-1 | SPIRAL BEVEL GEAR 10 | 1 | |
| 094 | 211323-3 | BALL BEARING 6904LLU | 1 | |
| 095 | 142410-6 | TORQUE LIMITER COMPLETE | 1 | |
| 096 | 324727-1 | SHOULDER WASHER 8 | 1 | |
| 097 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 098 | 253215-0 | FLAT WASHER 8 | 1 | |
| 099 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | |
| 100 | 424609-8 | SEAL RING A | 1 | |
| 100-1 | 422786-0 | SEAL RING A | 1 | |
| 101 | 142409-1 | GEAR HOUSING COMPLETE | 1 | |
| 102 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 103 | 213231-4 | OIL SEAL 15 | 1 | |
| 104 | 326376-0 | CRANK SHAFT | 1 | |
| 104-1 | 327142-8 | CRANK SHAFT | 1 | |
| 105 | 211418-2 | BALL BEARING 6006LLU | 1 | |
| 106 | 254229-2 | KEY 5 | 2 | |
| 107 | 227788-9 | HELICAL GEAR 46 | 1 | |
| 108 | 227336-4 | SPUR GEAR 26 | 1 | |
| 109 | 961102-6 | RETAINING RING S-22 | 1 | |
| 110 | 253843-1 | FLAT WASHER 12 | 1 | |
| 111 | 331596-3 | SLEEVE 12 | 1 | |
| 112 | 211238-4 | BALL BEARING 6202LLU | 1 | |
| 113 | 267215-4 | FLAT WASHER 15 | 1 | |
| 114 | 517898-3 | ARMATURE ASS'Y 220-240V | 1 | |
| 114 | D10 | INC. 111-113,115,116 | ||
| 115 | 681642-5 | INSULATION WASHER | 1 | |
| 116 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 117 | 266568-8 | TAPPING SCREW 5X80 | 2 | |
| 118 | 454772-3 | BAFFLE PLATE | 1 | |
| 119 | 636303-2 | FIELD 220-240V | 1 | |
| 120 | 632B59-7 | BRUSH HOLDER UNIT | 1 | |
| 121 | 195844-2 | CARBON BRUSH CB-175 | 1 | |
| 122 | 454780-4 | GUARD 52 | 1 | |
| 123 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 124 | 454763-4 | GEAR HOUSING COVER | 1 | |
| 125 | 454757-9 | MOTOR HOUSING | 1 | |
| 126 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 126-1 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 127 | 240016-5 | FAN 90 | 1 | |
| 128 | 253165-9 | FLAT WASHER 8 | 1 | |
| 129 | 252178-7 | HEX. NUT M8-12 | 1 | |
| 130 | 454762-6 | REAR COVER | 1 | |
| 131 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 132 | 692637-3 | POWER SUPPLY CORD 1.5-2-5.0 | 1 | |
| 133 | 682560-0 | CORD GUARD 10 | 1 | |
| 134 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 135 | 419024-9 | CORD CLAMP BASE | 1 | |
| 136 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 137 | 687169-3 | STRAIN RELIEF | 1 | |
| 138 | 632C15-3 | LEAD UNIT | 1 | |
| 139 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 140 | 253194-2 | FLAT WASHER 5 | 2 | |
| 141 | 257813-2 | SLEEVE 9 | 2 | |
| 142 | 620249-2 | CONTROLLER | 1 | |
| 143 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 144 | 454346-0 | LENS | 1 | |
| 145 | 234281-6 | COMPRESSION SPRING 6 | 1 | |
| 146 | 632A83-4 | SWITCH UNIT | 1 | |
| 147 | 454336-3 | SWITCH LEVER C | 1 | |
| 148 | 187890-9 | SWITCH CASE SET | 1 | |
| 148 | D10 | INC. 149 | ||
| 149 | 187890-9 | SWITCH CASE SET | 1 | |
| 149 | D10 | INC. 148 | ||
| 150 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 151 | 815W21-5 | HR5212C NAME PLATE | 1 | |
| 152 | 234283-2 | COMPRESSION SPRING 18.5 | 2 | |
| 153 | 454758-7 | HANDLE BASE | 1 | |
| 154 | 454343-6 | DUST SUPPORT A | 1 | |
| 155 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 156 | 454344-4 | DUST SUPPORT B | 1 | |
| 157 | 424557-1 | DUST COVER | 1 | |
| 158 | 454759-5 | HANDLE A | 1 | |
| 159 | 266041-8 | TAPPING SCREW 5X25 | 4 | |
| 160 | 454332-1 | SWITCH LEVER A | 1 | |
| 161 | 234285-8 | COMPRESSION SPRING 7 | 1 | |
| 162 | 454327-4 | SUB LEVER | 1 | |
| 163 | 268309-8 | PIN | 1 | |
| 164 | 154626-1 | SWITCH HOLDER COMPLETE | 1 | |
| 165 | 650678-5 | SWITCH C3PA-1121 | 1 | |
| 166 | 454760-0 | HANDLE COVER | 1 | |
| 167 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 168 | 257994-2 | RETAINING RING(EXT)WR-44 | 1 | |
| A01 | 135283-4 | SIDE HANDLE 90 ASSEMBLY | 1 | |
| A01 | C10 | 252640-2 | WING NUT M8 | 1 |
| A01 | C20 | 265439-6 | HEX. BOLT M8X150 | 1 |
| A01 | C30 | 318430-4 | SIDE HANDLE BASE 90A | 1 |
| A01 | C40 | 318431-2 | SIDE HANDLE BASE 90B | 1 |
| A01 | C50 | 417002-3 | SIDE HANDLE CAM | 2 |
| A01 | C60 | 417003-1 | SIDE HANDLE | 1 |
| A01 | C70 | 951166-8 | SPRING PIN 5-24 | 1 |
| A02 | 135629-4 | SIDE GRIP ASSEMBLY | 1 | |
| A02 | C10 | 158131-0 | GRIP 36 COMPLETE | 1 |
| A02 | C20 | 234226-4 | COMPRESSION SPRING 6 | 1 |
| A02 | C30 | 266163-4 | CUP SQUARE NECK BOLT M8X80 | 1 |
| A02 | C40 | 313223-4 | RACK GUIDE | 1 |
| A02 | C50 | 344492-6 | PLATE | 1 |
| A02 | C60 | 346750-6 | GRIP SPRING 90 | 1 |
| A02 | C70 | 453114-8 | LOCK BUTTON | 1 |
| A02 | C80 | 454781-2 | SIDE GRIP BASE 90 | 1 |
| A03 | 194683-7 | GREASE VESSEL SET | 1 | |
| A04 | 142296-8 | PLASTIC CASE COMPLETE | 1 | |
| A04 | C10 | 162271-8 | LATCH | 2 |
| A04 | C20 | 801Y02-7 | INDICATION LABEL | 1 |
| A04-1 | 821602-7 | PLASTIC CASE | 1 | |
| A04-1 | C10 | 162271-8 | LATCH | 2 |
| A04-2 | 821601-9 | PLASTIC CASE | 1 | |
| A04-2 | C10 | 162271-8 | LATCH | 2 |
| A05 | 804K54-3 | HR5212C PLASTIC CASE LABEL | 2 | |
| A06 | 331955-1 | DEPTH GAUGE | 1 | |
| A07 | 443122-7 | CLOTH | 1 | |
| B01 | 191K75-7 | HAMMER SERVICE KIT | 1 | |
| B01 | C10 | 181490-7 | HAMMER GREASE 30G | 4 |
| B01 | C11 | 1914C5-7 | GREASE SET | 4 |
| B01 | D10 | INC. 2,33,34,46,49,121 | ||
| F01-1 | 199143-4 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F02-1 | 199143-4 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F03-1 | 199144-2 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F04-1 | 199144-2 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F05 | 196858-4 | DUST EXTRACTOR ATTACHMENT SET | 1 | |
| F05 | C10 | 162361-7 | DUST COVER COMPLETE | 1 |
| F05 | C20 | 454809-6 | HOSE HOLDER C | 1 |
| F05 | C30 | 453674-0 | JOINT 25 | 1 |
| F05 | C40 | 453118-0 | BELLOWS | 2 |
| F05 | C50 | 455810-4 | JOINT | 2 |
| F05 | C60 | 424472-9 | DUST COVER CAP | 2 |
| F05 | C70 | 123066-4 | DEPTH GAUGE B ASSEMBLY | 1 |
| G12 | 1914X3-8 | DUST EXTRACTION PAD SET | 1 |
Back Download
