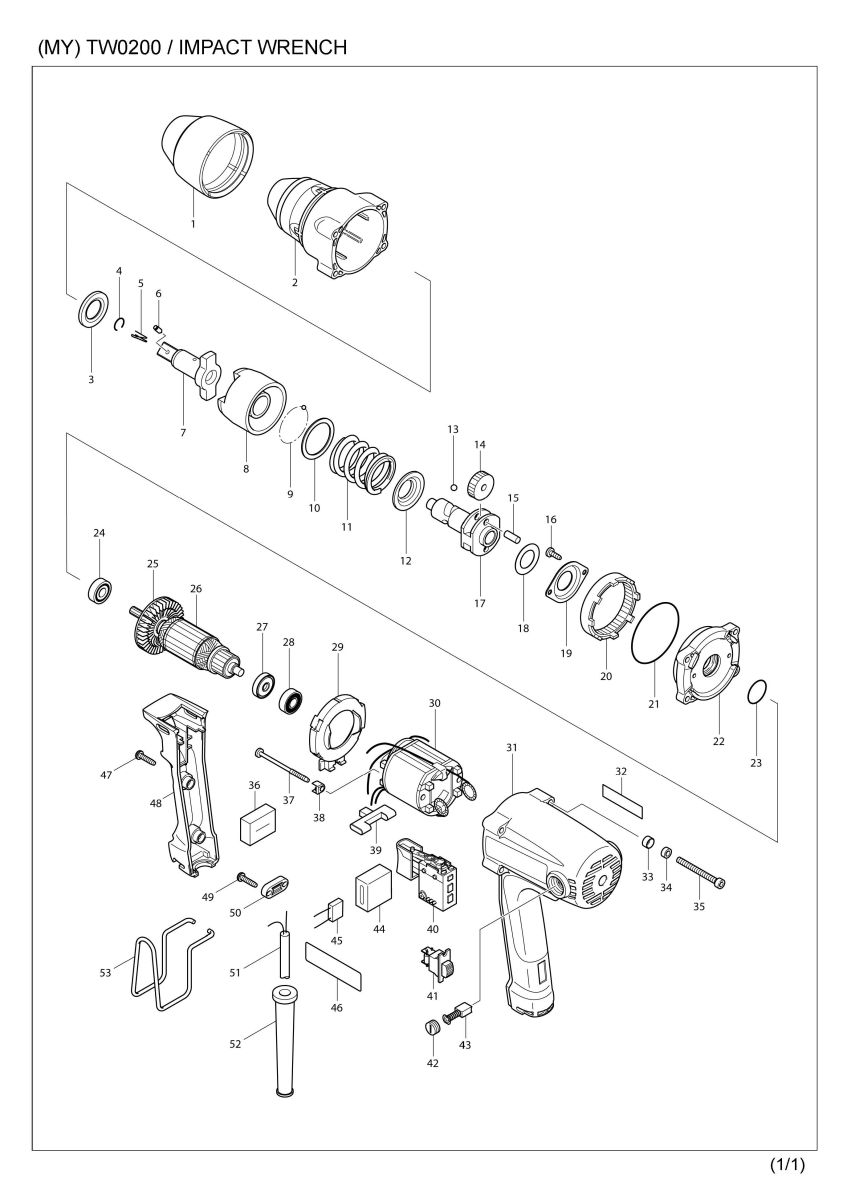

Part Diagram
Total: 67 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 421839-2 | BUMPER | 1 | |
| 002 | 153581-4 | HAMMER CASE COMPLETE | 1 | |
| 002 | C10 | 213257-6 | OIL SEAL 18 | 1 |
| 002 | C20 | 321119-5 | SLEEVE 18 | 1 |
| 003 | 267268-3 | FLAT WASHER 19 | 1 | |
| 004 | 231907-1 | RING SPRING 10 | 1 | |
| 007 | 324344-7 | ANVIL | 1 | |
| 008 | 324341-3 | HAMMER | 1 | |
| 009 | 216001-0 | STEEL BALL 3.5 | 31 | |
| 010 | 267269-1 | FLAT WASHER 32 | 1 | |
| 011 | 233377-0 | COMPRESSION SPRING 30 | 1 | |
| 012 | 267777-2 | CUP WASHER 19 | 1 | |
| 013 | 216007-8 | STEEL BALL 6.4 | 2 | |
| 014 | 227092-6 | SPUR GEAR 32 | 2 | |
| 015 | 256002-6 | PIN 6 | 2 | |
| 016 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | |
| 017 | 324339-0 | SPINDLE | 1 | |
| 018 | 253794-8 | FLAT WASHER 18 | 1 | |
| 019 | 285709-7 | BEARING RETAINER 44 | 1 | |
| 020 | 227093-4 | INTERNAL GEAR 71 | 1 | |
| 021 | 213670-8 | O RING 58 | 1 | |
| 022 | 153583-0 | INTERNAL GEAR COVER COMPLETE | 1 | |
| 023 | 213373-4 | O RING 22 | 1 | |
| 024 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 025 | 241881-5 | FAN 52 | 1 | |
| 026 | 517448-4 | ARMATURE ASS'Y 220-240V | 1 | |
| 026 | D10 | INC. 24,25,27,28 | ||
| 027 | 681652-2 | INSULATION WASHER | 1 | |
| 028 | 211021-9 | BALL BEARING 607LLB | 1 | |
| 029 | 418187-8 | BAFFLE PLATE | 1 | |
| 030 | 593563-8 | FIELD ASS'Y 220-240V | 1 | |
| 030 | C10 | 654100-4 | RING TERMINAL | 2 |
| 030 | C20 | 654501-6 | CONNECTOR P-1.25 | 2 |
| 031 | 183612-5 | MOTOR HOUSING | 1 | |
| 031 | C10 | 643455-2 | BRUSH HOLDER 6X9 | 2 |
| 031 | D10 | INC. 32 | ||
| 031-1 | 140021-1 | MOTOR HOUSING COMPLETE | 1 | |
| 031-1 | C10 | 643455-2 | BRUSH HOLDER 6X9 | 2 |
| 032 | 819063-3 | MAKITA LABEL | 1 | |
| 033 | 253929-1 | CUP WASHER 5 | 4 | |
| 034 | 262001-8 | URETHANE RING 5 | 4 | |
| 035 | 266331-9 | HEX. SOCKET HEAD BOLT M5X50 | 4 | |
| 037 | 266091-3 | TAPPING SCREW 4X50 | 2 | |
| 038 | 417237-6 | INSULATION COVER | 2 | |
| 039 | 418186-0 | F/L CHANGE LEVER | 1 | |
| 040 | 650523-4 | SWITCH C3MA-DB | 1 | |
| 042 | 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | |
| 043 | 191940-4 | CARBON BRUSH CB-411 | 1 | |
| 046 | 850444-2 | NAME PLATE TW0200 | 1 | |
| 047 | 265995-6 | TAPPING SCREW 4X18 | 3 | |
| 048 | 418189-4 | HANDLE COVER | 1 | |
| 049 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 050 | 687052-4 | STRAIN RELIEF | 1 | |
| 051 | 692527-0 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 052 | 682566-8 | CORD GUARD 10 | 1 | |
| 053 | 324284-9 | HOOK | 1 | |
| A01 | 134841-3 | SOCKET 24-45 ASS'Y | 1 | |
| A01 | C10 | 213399-6 | O-RING 25 | 1 |
| A01 | C20 | 268057-9 | PIN 4 | 1 |
| A01-1 | 137071-5 | SOCKET 24-38 ASS'Y | 1 | |
| A01-1 | C10 | 422B61-6 | RUBBER RING23 | 1 |
| A01-1 | C11 | B-54570 | ORING 3PC SET 1/2" SQ 20-32MM | 1 |
| A01-1 | C20 | 256A76-3 | PIN 4 | 1 |
| A01-1 | C21 | B-54617 | PIN 3PC SET 1/2" SQ 20-32MM | 1 |
| A02 | 824703-0 | PLASTIC CARRYING CASE | 1 | |
| A02 | C10 | 186347-7 | SLIDE LATCH SET | 1 |
| F38 | 191B20-8 | BIT ADAPTER SET | 1 |
