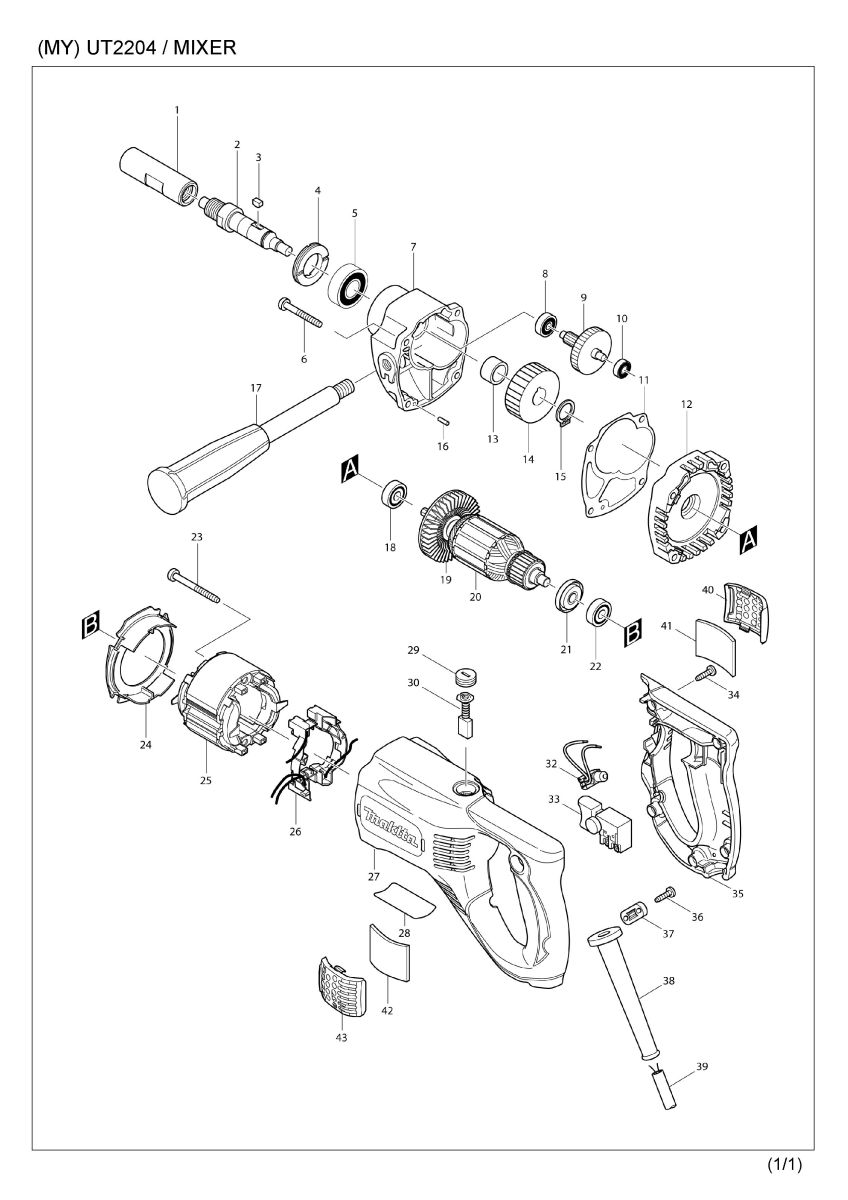

Part Diagram
Total: 54 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 324265-3 | SHAFT HOLDER 5/8-M12 | 1 | |
| 001-1 | 324265-3 | SHAFT HOLDER 5/8-M12 | 1 | |
| 002 | 324273-4 | SPINDLE | 1 | |
| 003 | 254011-9 | WOODRUFF KEY 4 | 1 | |
| 004 | 285807-7 | BEARING RETAINER 22-36 | 1 | |
| 005 | 211206-7 | BALL BEARING 6202LLB | 1 | |
| 006 | 266211-9 | TAPPING SCREW 5X40 | 4 | |
| 007 | 317598-3 | GEAR HOUSING | 1 | |
| 008 | 211016-2 | BALL BEARING 626LLB | 1 | |
| 009 | 226826-4 | GEAR COMPLETE 7-46 | 1 | |
| 010 | 210006-2 | BALL BEARING 696ZZ | 1 | |
| 011-1 | 419529-9 | GASKET | 1 | |
| 012 | 153414-3 | GEAR HOUSING COVER COMPLETE | 1 | |
| 013 | 257719-4 | SLEEVE 15 | 1 | |
| 014 | 226561-4 | HELICAL GEAR 43 | 1 | |
| 015 | 961055-9 | RETAINING RING S-15 | 1 | |
| 016 | 256180-2 | PIN 3 | 1 | |
| 017 | 152892-4 | GRIP COMPLETE | 1 | |
| 018 | 211031-6 | BALL BEARING 608LLB | 1 | |
| 019 | 241850-6 | FAN 60 | 1 | |
| 020 | 513654-9 | ARMATURE ASS'Y 240V | 1 | |
| 020 | D10 | INC. 18,19,21,22 | ||
| 021 | 681644-1 | INSULATION WASHER | 1 | |
| 022 | 211031-6 | BALL BEARING 608LLB | 1 | |
| 023 | 266046-8 | TAPPING SCREW 5X50 | 2 | |
| 024 | 419417-0 | BAFFLE PLATE | 1 | |
| 025 | 634554-1 | FIELD 230-240V | 1 | |
| 026 | 638439-3 | SUPPORT COMPLETE | 1 | |
| 027 | 154874-2 | MOTOR HOUSING COMPLETE | 1 | |
| 027 | C10 | 643708-9 | BRUSH HOLDER 5-11 | 2 |
| 028 | 862264-2 | UT2204 NAME PLATE | 1 | |
| 029 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | |
| 029-1 | 643515-0 | HOLDER CAP 7-11 | 2 | |
| 029-2 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | |
| 030 | 191963-2 | CARBON BRUSH CB-303 | 1 | |
| 030-1 | 194996-6 | CARBON BRUSH SET CB-303 | 1 | |
| 032 | 631706-5 | PILOT LAMP | 1 | |
| 033 | 650203-2 | SWITCH SGEL115CD-1 | 1 | |
| 034 | 265995-6 | TAPPING SCREW 4X18 | 5 | |
| 035 | 419416-2 | HANDLE COVER | 1 | |
| 036 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 037 | 687063-9 | CORD CLAMP | 1 | |
| 038 | 682559-5 | CORD GUARD 8 | 1 | |
| 039 | 692021-2 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 040 | 345691-3 | COVER | 1 | |
| 041 | 423322-5 | FILTER | 1 | |
| 042 | 423322-5 | FILTER | 1 | |
| 043 | 345691-3 | COVER | 1 | |
| A01-1 | A-43717 | MIXING BLADE | 1 | |
| A01-1 | D10 | INC. A03 | ||
| A02-1 | A-43773 | SHAFT COMPLETE | 1 | |
| A03 | 265440-1 | HEX. BOLT M8X16 | 1 | |
| A04 | 781006-4 | WRENCH 13 | 1 | |
| A05 | 781010-3 | WRENCH 19 | 2 |
