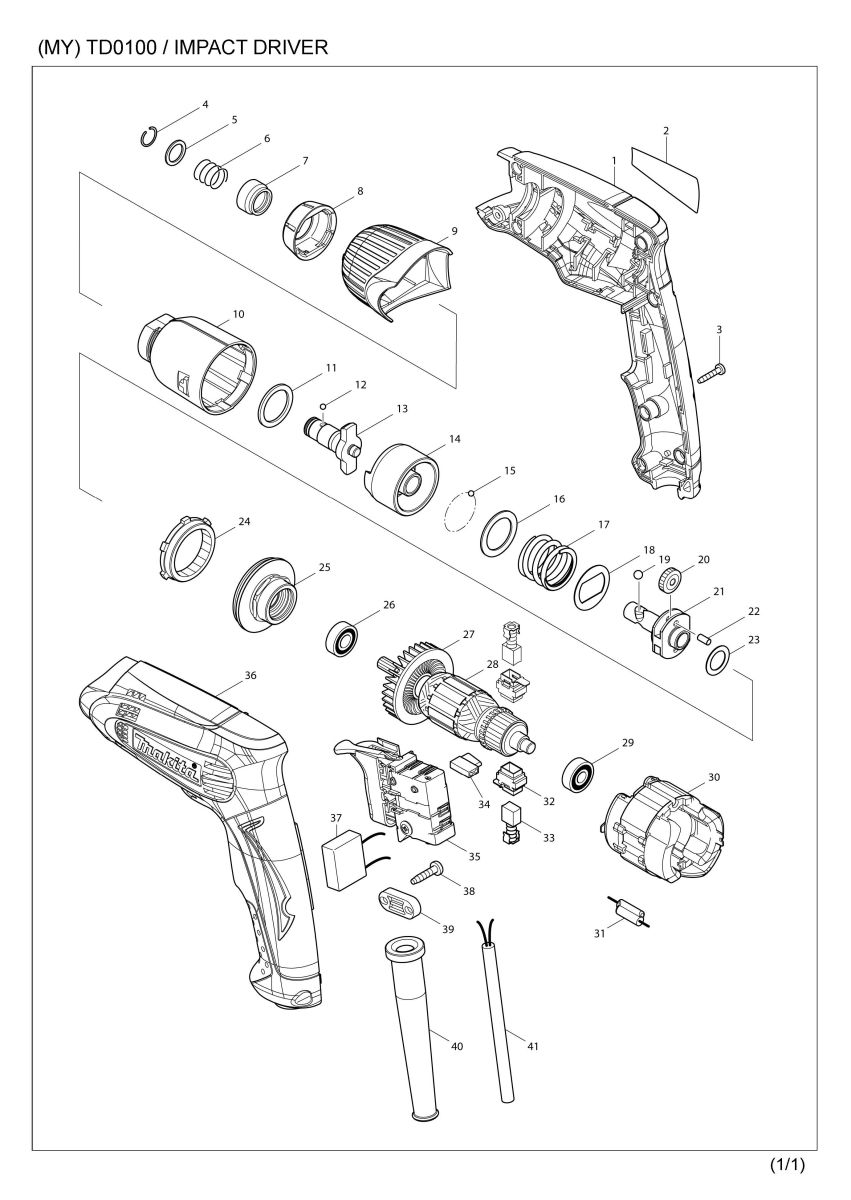

Part Diagram
Total: 50 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 188619-6 | HOUSING SET | 1 | |
| 001 | D10 | INC. 36 | ||
| 002 | 866253-9 | TD0100 NAME PLATE | 1 | |
| 003 | 266429-2 | TAPPING SCREW 3X16 | 8 | |
| 004 | 231965-7 | RING SPRING 10 | 1 | |
| 005 | 267143-3 | FLAT WASHER 11 | 1 | |
| 006 | 233005-7 | COMPRESSION SPRING 13 | 1 | |
| 007 | 324711-6 | BIT SLEEVE | 1 | |
| 008-1 | 424376-5 | BUMPER | 1 | |
| 009-1 | 452440-2 | HAMMER CASE COVER | 1 | |
| 010 | 158898-0 | HAMMER CASE COMPLETE | 1 | |
| 011 | 261140-1 | NYLON WASHER 20 | 1 | |
| 012 | 216019-1 | STEEL BALL 3 | 2 | |
| 013-1 | 326629-7 | ANVIL N | 1 | |
| 014 | 324894-2 | HAMMER | 1 | |
| 015 | 216019-1 | STEEL BALL 3 | 24 | |
| 016 | 267380-9 | FLAT WASHER 20 | 1 | |
| 017 | 234096-1 | COMPRESSION SPRING 21 | 1 | |
| 018 | 267813-4 | WASHER 21 | 1 | |
| 019 | 216002-8 | STEEL BALL 4.8 | 2 | |
| 020 | 227213-0 | SPUR GEAR 17 | 2 | |
| 021 | 324897-6 | SPINDLE | 1 | |
| 022 | 268217-3 | PIN 3.5 | 2 | |
| 023 | 253052-2 | FLAT WASHER 12 | 1 | |
| 024 | 227215-6 | INTERNAL GEAR 43 | 1 | |
| 025 | 158899-8 | BEARING BOX COMPLETE | 1 | |
| 025 | C10 | 210112-3 | BALL BEARING 6801LLB | 1 |
| 025 | C11 | 210242-0 | BALL BEARING 6801LLB | 1 |
| 025 | C20 | 213325-5 | O RING 19 | 1 |
| 026 | 210013-5 | BALL BEARING 698VV | 1 | |
| 027 | 240046-6 | FAN 46 | 1 | |
| 028 | 517654-1 | ARMATURE ASSY 240V | 1 | |
| 028 | D10 | INC. 26,27,29 | ||
| 029 | 210062-2 | BALL BEARING 607ZZ | 1 | |
| 030 | 635104-5 | FIELD 240V | 1 | |
| 032 | 643936-6 | BRUSH HOLDER | 2 | |
| 033 | 191962-4 | CARBON BRUSH CB-419 | 1 | |
| 034 | 686039-3 | RECEPTACLE SLEEVE | 1 | |
| 035 | 650615-9 | SWITCH C3TA-2 | 1 | |
| 036 | 188619-6 | HOUSING SET | 1 | |
| 036 | D10 | INC. 1 | ||
| 038 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 039 | 687124-5 | STRAIN RELIEF | 1 | |
| 040 | 682566-8 | CORD GUARD 10 | 1 | |
| 041 | 692527-0 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| A01-1 | 784203-1 | PHILLIPS BIT 2-65 | 1 | |
| A01-2 | 784042-9 | +BIT2-65 | 1 | |
| F25 | 192121-3 | KEYLESS DRILL CHUCK | 1 | |
| F29 | 191880-6 | DRILL CHUCK S10 & KEY SET | 1 | |
| F30-1 | 198913-8 | DRILL CHUCK SET | 1 |
