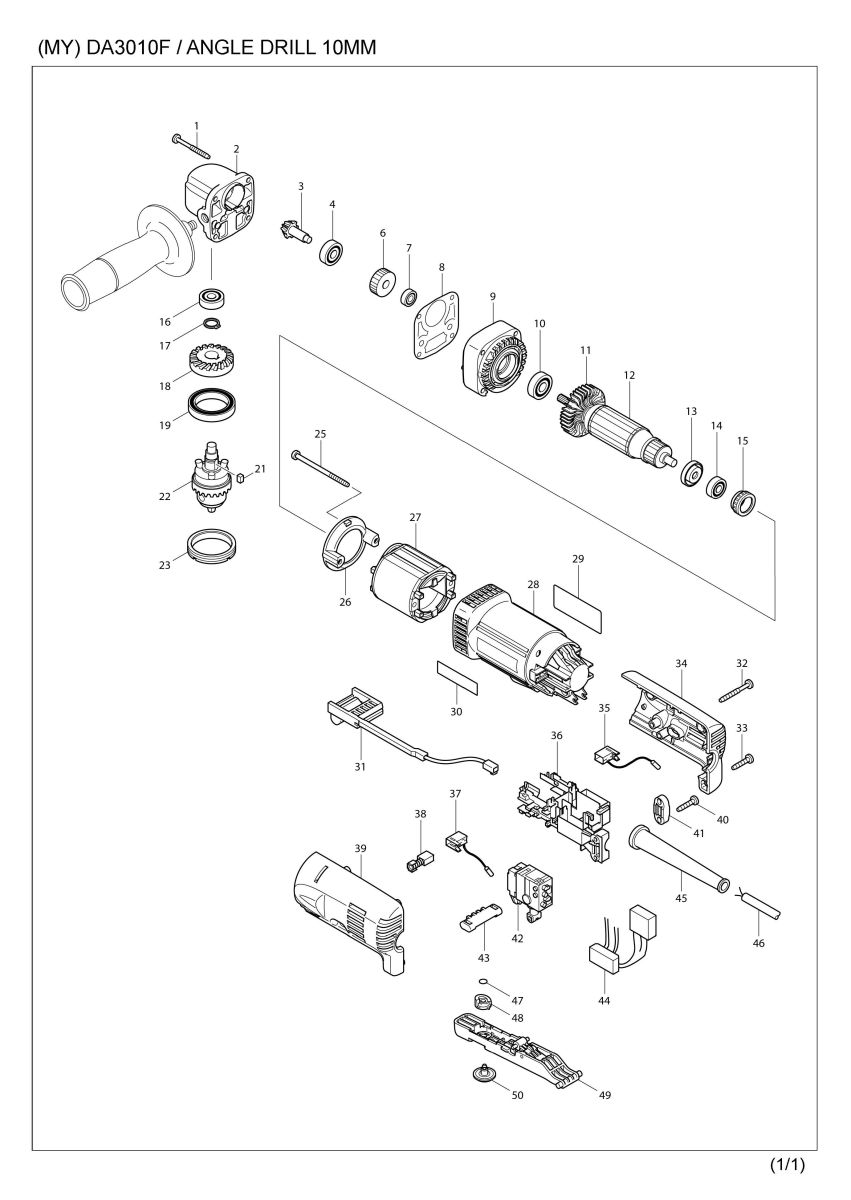

Part Diagram
Total: 54 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266048-4 | TAPPING SCREW 4X40 | 4 | |
| 002-1 | 317635-3 | GEAR HOUSING | 1 | |
| 3 | 227436-0 | SPIRAL BEVEL GEAR 9 | 1 | |
| 004-1 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 6 | 226567-2 | HELICAL GEAR 28 | 1 | |
| 7 | 210026-6 | BALL BEARING 696ZZ | 1 | |
| 8 | 418036-9 | GASKET | 1 | |
| 9 | 418042-4 | GEAR HOUSING COVER | 1 | |
| 10 | 211051-0 | BALL BEARING 609LLB | 1 | |
| 11 | 240061-0 | FAN 48 | 1 | |
| 12 | 517583-8 | ARMATURE ASS'Y 220-240V | 1 | |
| 12 | D10 | INC. 10,11,13,14 | ||
| 13 | 681636-0 | INSULATION WASHER | 1 | |
| 14 | 211021-9 | BALL BEARING 607LLB | 1 | |
| 15 | 421494-0 | RUBBER RING 19 | 1 | |
| 016-1 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 17 | 961052-5 | RETAINING RING S-12 | 1 | |
| 18 | 227437-8 | SPIRAL BEVEL GEAR 26 | 1 | |
| 019-1 | 211423-9 | BALL BEARING 6806DDW | 1 | |
| 21 | 254201-4 | KEY 4 | 1 | |
| 22 | 763174-5 | DRILL CHUCK S10 | 1 | |
| 23 | 285842-5 | BEARING RETAINER 36-43 | 1 | |
| 25 | 266315-7 | TAPPING SCREW MT 4X65 | 2 | |
| 26 | 418033-5 | BAFFLE PLATE | 1 | |
| 27 | 635078-0 | FIELD | 1 | |
| 28 | 183560-8 | MOTOR HOUSING | 1 | |
| 28 | D10 | INC. 30 | ||
| 29 | 850083-8 | NAME PLATE DA3010F | 1 | |
| 30 | 819063-3 | MAKITA LABEL | 1 | |
| 31 | 631516-0 | LED CIRCUIT | 1 | |
| 32 | 266053-1 | TAPPING SCREW 4X35 | 1 | |
| 33 | 265995-6 | TAPPING SCREW 4X18 | 3 | |
| 34 | 183559-3 | REAR COVER SET | 1 | |
| 34 | D10 | INC. 39 | ||
| 35 | 643802-7 | BRUSH HOLDER | 1 | |
| 36 | 687139-2 | SUPPORT | 1 | |
| 37 | 643802-7 | BRUSH HOLDER | 1 | |
| 38 | 191962-4 | CARBON BRUSH CB-419 | 1 | |
| 39 | 183559-3 | REAR COVER SET | 1 | |
| 39 | D10 | INC. 34 | ||
| 40 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 41 | 687063-9 | CORD CLAMP | 1 | |
| 42 | 650539-9 | SWITCH TG803BSA-1 | 1 | |
| 43 | 418038-5 | F/R CHANGE LEVER | 1 | |
| 44 | 631527-5 | POWER SUPPLY CIRCUIT | 1 | |
| 45 | 682559-5 | CORD GUARD 8 | 1 | |
| 46 | 692021-2 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 47 | 213034-6 | O RING 3 | 1 | |
| 48 | 418040-8 | CAM | 1 | |
| 49 | 153477-9 | SWITCH LEVER COMPLETE | 1 | |
| 50 | 418037-7 | SPEED CHANGE DIAL | 1 | |
| A01 | 411780-7 | KEY HOLDER 10 | 1 | |
| A02 | 763415-9 | CHUCK KEY S10 | 1 | |
| A03 | 152490-4 | GRIP 36 COMPLETE | 1 |
