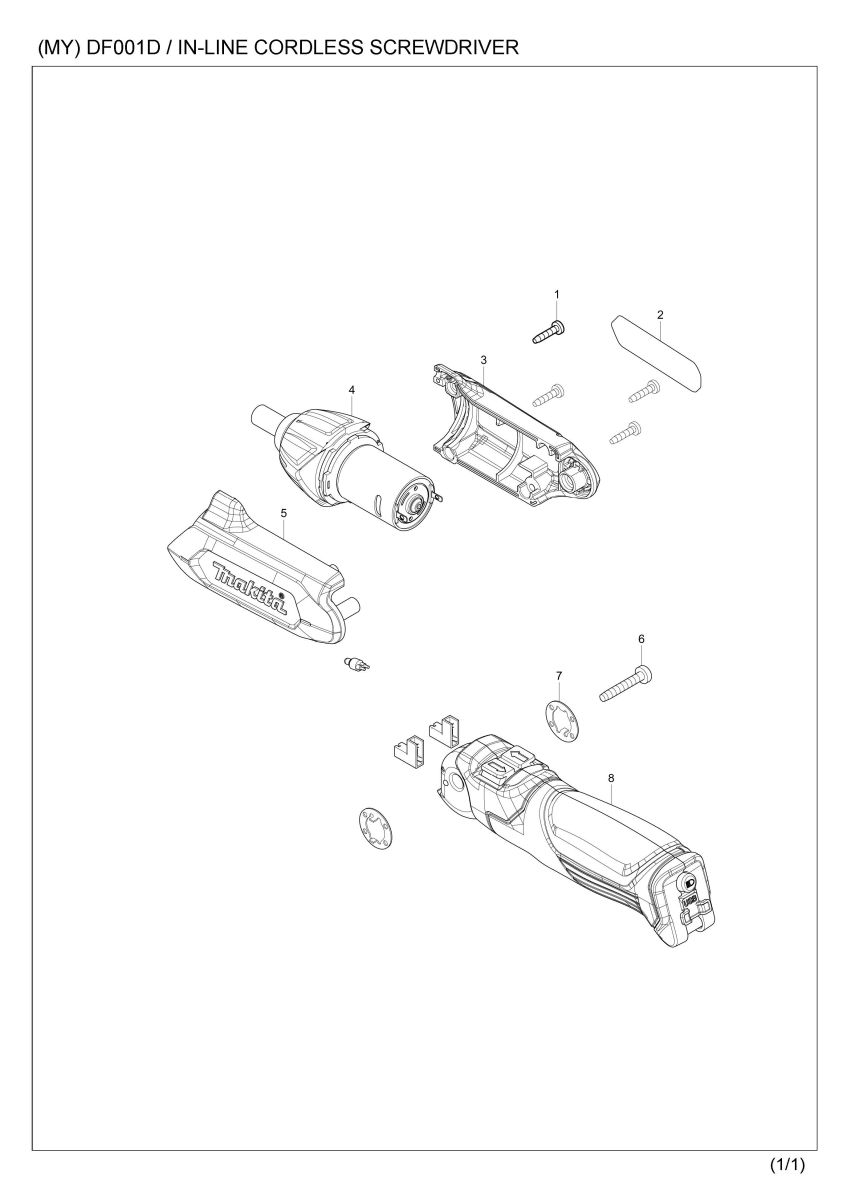

Part Diagram
Total: 21 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266404-8 | TAPPING SCREW BIND 3X14 | 4 | |
| 2 | 852X12-1 | DF001D NAME PLATE | 1 | |
| 3 | 183F38-7 | MOTOR HOUSING SET | 1 | |
| 3 | D10 | INC. 5 | ||
| 4 | 123911-3 | GEAR ASSY(NON EMC COMPLIANT) | 1 | |
| 4 | C10 | 221532-6 | SPUR GEAR 20B | 3 |
| 4 | C20 | 221531-8 | MOTOR PINION | 1 |
| 4 | C30 | 629246-5 | DC MOTOR | 1 |
| 4 | C40 | 265172-0 | +PAN HEAD SCREW M2.6X6 | 2 |
| 5 | 183F38-7 | MOTOR HOUSING SET | 1 | |
| 5 | D10 | INC. 3 | ||
| 6 | 266374-1 | TAPPING SCREW 4X25 | 1 | |
| 7 | 267803-7 | LOCK WASHER | 2 | |
| 8 | 620627-6 | CONTROLLER ASSEMBLY | 1 | |
| 008-1 | 620693-3 | BATTERY INTEGRATED CONTROLLER | 1 | |
| A01 | D-61494 | BIT CASE SET A | 1 | |
| A02 | 630A39-1 | ADP07 AC ADAPTER | 1 | |
| A02-1 | 198365-3 | ADP07 AC ADAPTER SET | 1 | |
| A03 | 661750-8 | USB CABLE | 1 | |
| A03-1 | 661753-2 | USB CABLE | 1 | |
| A04 | 821704-9 | PLASTIC CASE | 1 |
