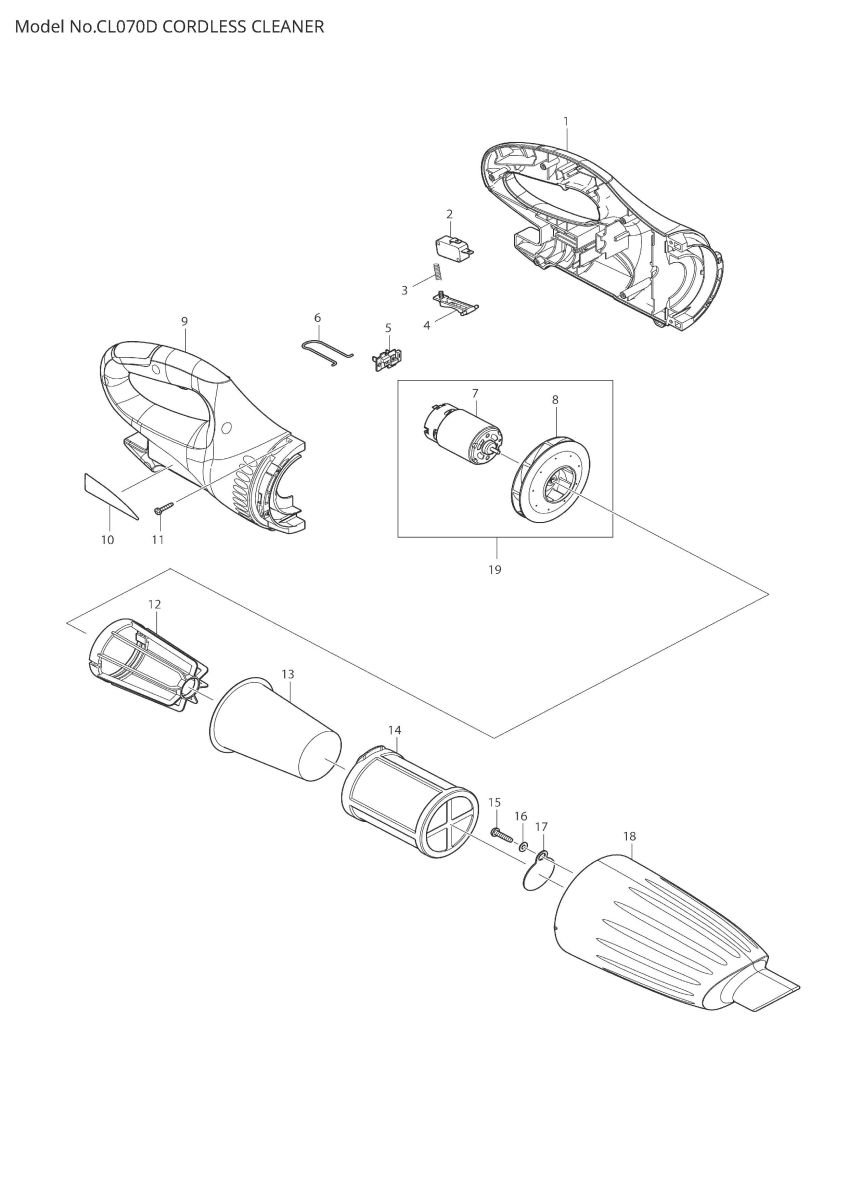

Part Diagram
Total: 74 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 188687-9 | HOUSING SET | 1 | |
| 001 | INC. 9 | |||
| 001-1 | 188974-6 | HOUSING SET | 1 | |
| 001-1 | INC. 9 | |||
| 001-2 | 183T02-2 | HOUSING SET | 1 | |
| 001-2 | INC. 9 | |||
| 002 | 651944-3 | SWITCH DMC-1115-13 | 1 | |
| 002-1 | 650744-8 | SWITCH D3V-16-3C26 | 1 | |
| 003 | 231473-8 | COMPRESSION SPRING 4 | 1 | |
| 004 | 451210-6 | SWITCH LEVER | 1 | |
| 005 | 643817-4 | TERMINAL | 1 | |
| 006 | 324885-3 | HANGER | 1 | |
| 007 | 629864-9 | DC MOTOR | 1 | |
| 008 | 240102-2 | FAN 82 | 1 | |
| 009 | 188687-9 | HOUSING SET | 1 | |
| 009 | INC. 1 | |||
| 009-1 | 188974-6 | HOUSING SET | 1 | |
| 009-1 | INC. 1 | |||
| 009-2 | 183T02-2 | HOUSING SET | 1 | |
| 009-2 | INC. 1 | |||
| 010 | 866711-5 | CL070D NAME PLATE | 1 | |
| 011 | 266429-2 | TAPPING SCREW 3X16 | 7 | |
| 012 | 410237-5 | STAY | 1 | |
| 012-1 | 458467-0 | STAY | 1 | |
| 013 | 443060-3 | FILTER | 1 | |
| 014 | 451208-3 | PRE-FILTER | 1 | |
| 015 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 015-1 | 251530-6 | TAPPING SCREW 4X18 | 1 | |
| 016 | 941051-3 | FLAT WASHER 4 | 1 | |
| 017 | 424208-6 | VALVE | 1 | |
| 018 | 451207-5 | CAPSULE | 1 | |
| 019 | 135404-8 | MOTOR ASSEMBLY | 1 | |
| 019 | INC. 7,8 | |||
| 020 | 632H17-9 | FUSE UNIT | 1 | |
| A01 | 122861-9 | NOZZLE ASS'Y | 1 | |
| C10 | 268208-4 | PIN 3 | 4 | |
| C20 | 424095-3 | ROLLER | 4 | |
| C30 | 424096-1 | WIPER | 1 | |
| A01-1 | 122861-9 | NOZZLE ASS'Y | 1 | |
| C10 | 268208-4 | PIN 3 | 4 | |
| C21 | 451410-8 | ROLLER | 4 | |
| C30 | 424096-1 | WIPER | 1 | |
| A01-2 | 123485-4 | FLOOR T-NOZZLE 28 IVO | 1 | |
| C10 | 268208-4 | PIN 3 | 4 | |
| C21 | 451410-8 | ROLLER | 4 | |
| C30 | 424096-1 | WIPER | 1 | |
| C31 | 422963-4 | WIPER | 1 | |
| A02 | 416041-0 | SASH NOZZLE 28 IVO | 1 | |
| A02-1 | 413769-1 | SASH NOZZLE | 1 | |
| A03 | 451424-7 | PIPE | 1 | |
| A04 | 416043-6 | SASH NOZZLE HOLDER (IVORY) | 1 | |
| F02 | 191496-7 | FLEXIBLE HOSE SET28(IVO) | 1 | |
| F11 | 198527-3 | FLOOR/CARPET T-NOZZLE BLU | 1 | |
| F12 | 198537-0 | SHELF BRUSH SET28 IVO EU | 1 | |
| F14 | 198538-8 | SHELF BRUSH SET28 BLU | 1 | |
| F17 | 198545-1 | FLEXIBLE HOSE SET28(BLU) | 1 | |
| F19 | 198552-4 | ROUND BRUSH SET 28 IVO | 1 | |
| F21 | 198553-2 | ROUND BRUSH SET 28 BLU | 1 | |
| F22-1 | 198560-5 | TELESCOPIC PIPE SET 28 EU | 1 | |
| F25 | 198915-4 | FILTER SET | 1 | |
| F27 | 199038-1 | SEAT NOZZLE SET 28 WHI | 1 | |
| F29 | 199039-9 | SEAT NOZZLE SET 28 BLK | 1 | |
| F31 | 199041-2 | SEAT NOZZLE SET 28 BLU | 1 | |
| F33 | 198919-6 | LONG SASH NOZZLE SET 28 WHI | 1 | |
| F35 | 198992-6 | LONG SASH NOZZLE SET 28 BLK | 1 | |
| F37 | 198990-0 | LONG SASH NOZZLE SET 28 BLU | 1 | |
| F39 | 198751-8 | PRE FILTER SET EU | 1 | |
| F41 | 198753-4 | EASY SHAKE OFF FILTER SET | 1 | |
| F42 | 199439-3 | CREVICE NOZZLE 415 SET | 1 | |
| F44 | 191D80-2 | STRAIGHT PIPE SET 320 | 1 | |
| F92 | 1911L1-0 | CLEANER STAND SET | 1 | |
| F94 | 1915A8-3 | FILTER H KIT SET | 1 | |
| C10 | 4131K6-6 | PRE-FILTER | 1 | |
| C20 | 4131K7-4 | FILTER H | 1 |
