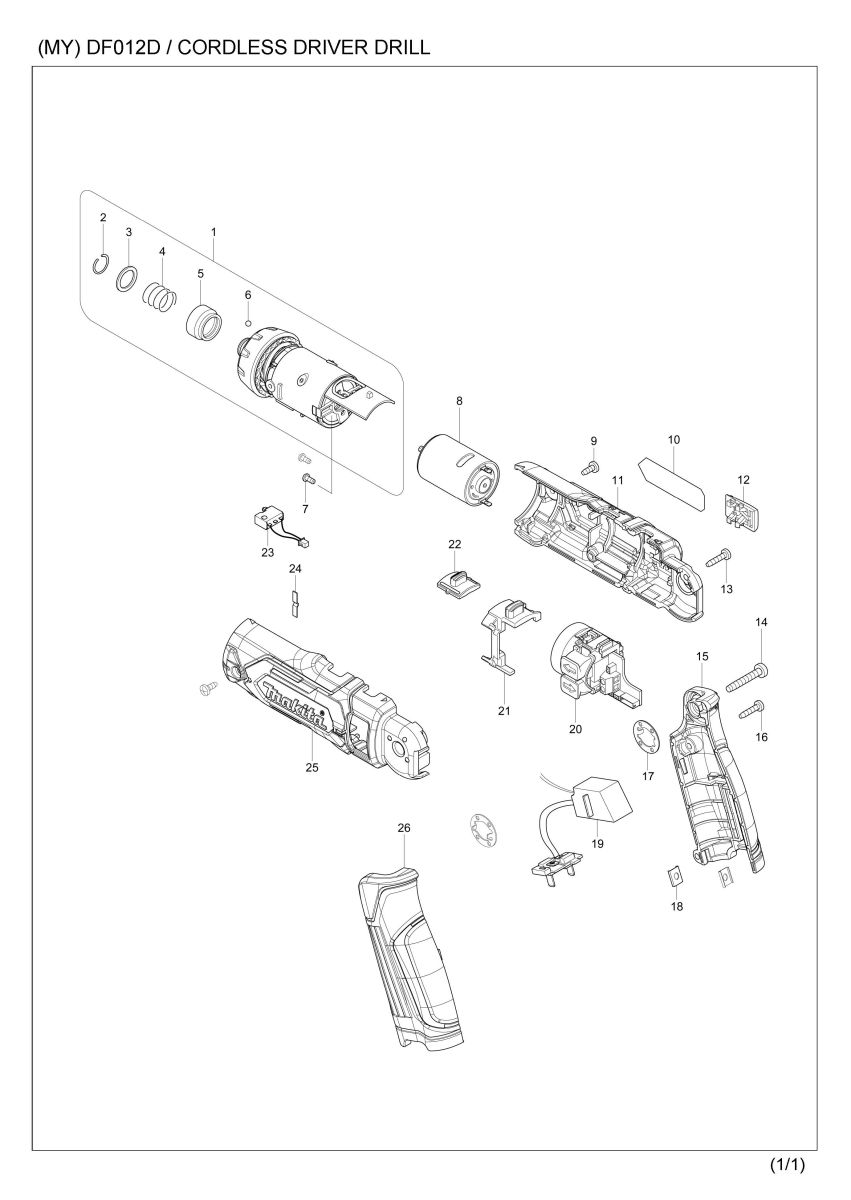

Part Diagram
Total: 46 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 123913-9 | GEAR ASSEMBLY | 1 | |
| 1 | C10 | 450558-3 | CHANGE RING | 1 |
| 1 | D10 | INC. 2-6 | ||
| 2 | 231965-7 | RING SPRING 10 | 1 | |
| 3 | 267143-3 | FLAT WASHER 11 | 1 | |
| 4 | 233005-7 | COMPRESSION SPRING 13 | 1 | |
| 5 | 324711-6 | BIT SLEEVE | 1 | |
| 6 | 216019-1 | STEEL BALL 3 | 2 | |
| 7 | 265172-0 | +PAN HEAD SCREW M2.6X6 | 2 | |
| 8 | 629264-3 | DC MOTOR | 1 | |
| 9 | 265954-0 | TAPPING SCREW BIND PT3X8 | 2 | |
| 10 | 853C22-5 | DF012D NAME PLATE | 1 | |
| 11 | 183F98-9 | MOTOR HOUSING SET | 1 | |
| 11 | D10 | INC. 25 | ||
| 12 | 450590-7 | SLIDE PLATE | 1 | |
| 13 | 266404-8 | TAPPING SCREW BIND 3X14 | 3 | |
| 14 | 266374-1 | TAPPING SCREW 4X25 | 1 | |
| 15 | 183G00-8 | HANDLE SET | 1 | |
| 15 | D10 | INC. 26 | ||
| 16 | 266404-8 | TAPPING SCREW BIND 3X14 | 2 | |
| 17 | 267803-7 | LOCK WASHER | 2 | |
| 18 | 345749-8 | SET PLATE | 2 | |
| 19 | 631811-8 | CONTROLLER | 1 | |
| 20 | 638605-2 | SWITCH UNIT | 1 | |
| 21 | 450553-3 | CHANGE LEVER | 1 | |
| 22 | 125465-6 | SPEED CHANGE LEVER ASSEMBLY | 1 | |
| 22 | C10 | 233018-8 | COMPRESSION SPRING 3 | 2 |
| 23 | 638609-4 | SWITCH UNIT | 1 | |
| 24 | 232369-6 | LEAF SPRING | 1 | |
| 25 | 183F98-9 | MOTOR HOUSING SET | 1 | |
| 25 | D10 | INC. 11 | ||
| 26 | 183G00-8 | HANDLE SET | 1 | |
| 26 | D10 | INC. 15 | ||
| A01 | ***DC10WA | DC10WA BATTERY CHARGER | 1 | |
| A01 | D10 | COMPO-PARTS | ||
| A02 | 198000-3 | BATTERY BL0715 SET | 2 | |
| A02-1 | 1913W2-7 | BATTERY BL0715 SET | 2 | |
| A03 | 784202-3 | PHILLIPS BIT 2-45 | 1 | |
| A03-1 | 784043-7 | +BIT 2-45 | 1 | |
| A04 | 784243-9 | + BIT 1-45 | 1 | |
| A05 | 824781-0 | PLASTIC CASE | 1 | |
| A06 | 158775-6 | PLASTIC CARRYING CASE COMPLETE | 1 | |
| A06 | C10 | 417724-5 | LATCH | 2 |
| A06 | C20 | 324679-6 | SHAFT | 1 |
| F02 | 198000-3 | BATTERY BL0715 SET | 1 | |
| F02-1 | 1913W2-7 | BATTERY BL0715 SET | 1 |
